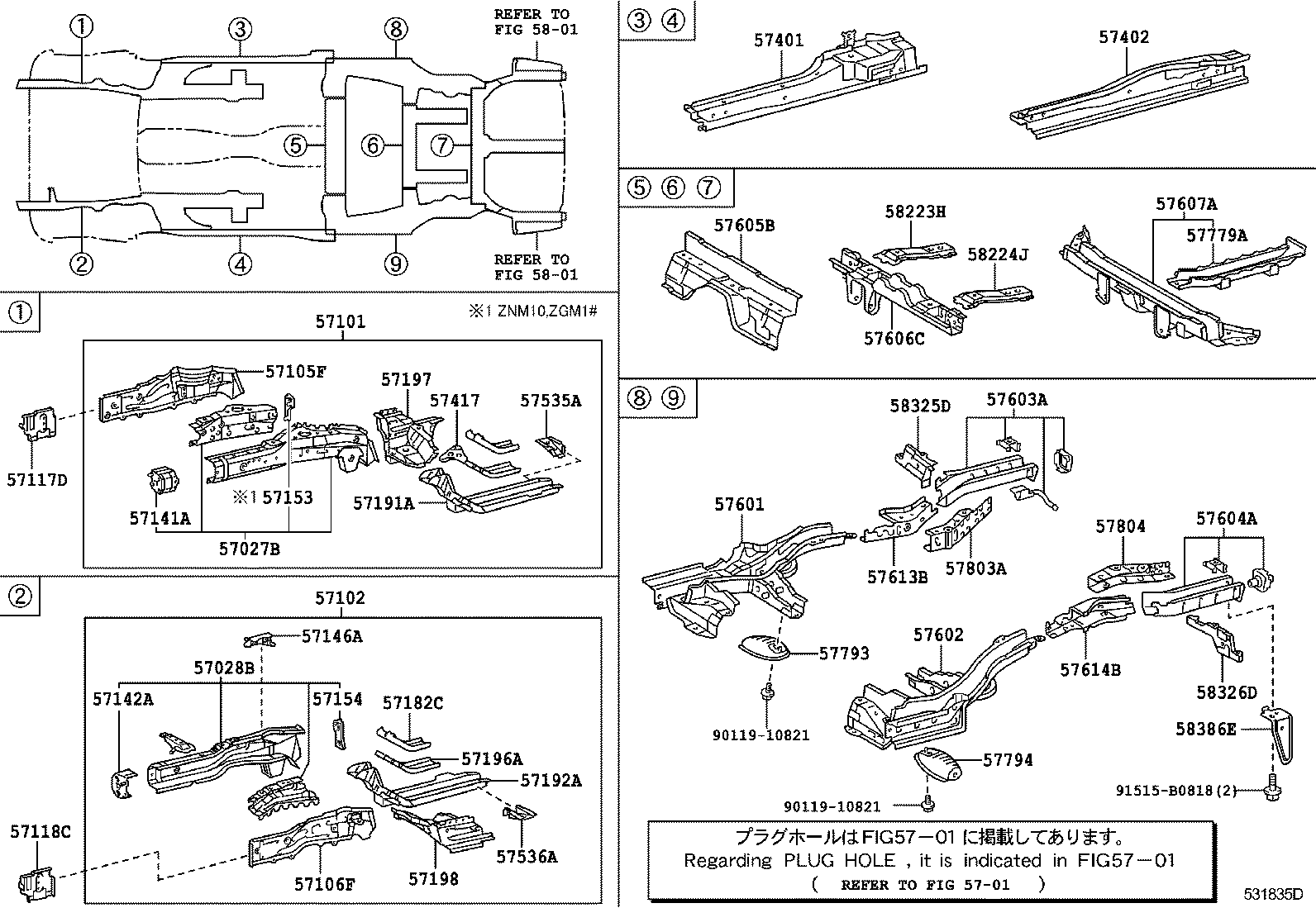

Toyota Isis ANM10 FLOOR SIDE MEMBER

Part #	Description	Period	Qty
57027B - MEMBER SUB-ASSY, FRONT SIDE, INNER RH
57027-44040	ANM1#	09/2004 - 09/2009	1
57028B - MEMBER SUB-ASSY, FRONT SIDE, INNER LH
57028-44040	ANM1#	09/2004 - 09/2009	1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-44060	ANM1#	09/2004 - 09/2009	1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-44050	ANM1#	09/2004 - 09/2009	1
57105F - PLATE SUB-ASSY, FRONT SIDE MEMBER, OUTER RH
57025-44030	ANM1#	09/2004 - 09/2009	1
57106F - PLATE SUB-ASSY, FRONT SIDE MEMBER, OUTER LH
57026-44020	ANM1#,ZNM10	09/2004 - 09/2009	1
57117D - RETAINER, FRONT BUMPER ARM, RH
57117-44010	ANM1#,ZNM10	09/2004 - 09/2009	1
57118C - RETAINER, FRONT BUMPER ARM, LH
57118-44020	ANM1#,ZNM10	09/2004 - 09/2009	1
57141A - SUPPORT, FRONT BUMPER ARM, RH
57013-44010	ANM1#,ZNM10	09/2004 - 09/2009	1
57142A - SUPPORT, FRONT BUMPER ARM, LH
57014-44010	ANM1#,ZNM10	09/2004 - 09/2009	1
57146A - REINFORCEMENT, FRONT SIDE MEMBER, REAR LH
57146-12020	ANM1#,ZNM10	09/2004 - 09/2009	1
57154 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH
57154-44020	ANM1#,ZNM10	09/2004 - 09/2009	1
57182C - REINFORCEMENT, FRONT SIDE MEMBER, REAR NO.1 LH
57182-44040	ANM1#,ZNM10	09/2004 - 09/2009	1
57191A - MEMBER, FRONT SIDE, INNER REAR RH
57191-44030	ANM1#,ZNM10	09/2004 - 09/2009	1
57192A - MEMBER, FRONT SIDE, INNER REAR LH
57192-44030	ANM1#,ZNM10	09/2004 - 09/2009	1
57196A - REINFORCEMENT, FRONT SIDE MEMBER, FRONT LH
57196-44010	ANM1#,ZNM10	09/2004 - 09/2009	1
57197 - BOX, TORQUE, FRONT RH
57077-44010	ANM1#,ZNM10	09/2004 - 09/2009	1
57198 - BOX, TORQUE, FRONT LH
57078-44010	ANM1#,ZNM10	09/2004 - 09/2009	1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-44030	ANM1#,ZNM10	09/2004 - 09/2009	1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-44030	ANM1#,ZNM10	09/2004 - 09/2009	1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57505-44010	ANM1#,ZNM10	09/2004 - 09/2009	1
57535A - BRACE, FRONT FLOOR, RH
57535-13010	ANM1#,ZNM10	09/2004 - 09/2009	1
57536A - BRACE, FRONT FLOOR, LH
57536-13010	ANM1#,ZNM10	09/2004 - 09/2009	1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-44901	ANM1#,ZNM10	09/2004 - 12/2005	1
57601-44903	ANM1#,ZNM10	12/2005 - 09/2009	1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-44902	ANM1#,ZNM10	09/2004 - 09/2009	1
57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57603-44040	ANM1#,ZNM10	09/2004 - 09/2009	1
57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
57604-44040	ANM1#,ZNM10	09/2004 - 09/2009	1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-44050	ANM10,ZNM10	09/2004 - 09/2009	1
57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57606-44180	ANM10,ZNM10	09/2004 - 09/2009	1
57607A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57607-44080	ANM10,ZNM10	09/2004 - 09/2009	1
57613B - MEMBER, REAR FLOOR SIDE CENTER, RH
57613-44010	ANM1#,ZNM10	09/2004 - 09/2009	1
57614B - MEMBER, REAR FLOOR SIDE, CENTER LH
57614-44010	ANM1#,ZNM10	09/2004 - 09/2009	1
57779A - GUSSET, REAR FLOOR CROSSMEMBER, B
57779-44901	ANM1#,ZNM10	09/2004 - 09/2009	1
57793 - BRACKET, REAR SUSPENSION ARM, REAR RH NO.1
57793-44040	ANM1#,ZNM10	04/2005 - 09/2009	1
57793-44030	ANM1#,ZNM10	09/2004 - 03/2005	1
57794 - BRACKET, REAR SUSPENSION ARM, REAR LH NO.1
57794-44030	ANM1#,ZNM10	09/2004 - 09/2009	1
57803A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH
57803-44020	ANM1#,ZNM10	09/2004 - 09/2009	1
57804 - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH
57804-44020	ANM1#,ZNM10	09/2004 - 09/2009	1
58223H - REINFORCEMENT, FLOOR PANEL SIDE, RH
58223-44010	ANM1#,ZNM10	09/2004 - 09/2009	1
58224J - REINFORCEMENT, FLOOR PANEL SIDE, LH
58224-44010	ANM1#,ZNM10	09/2004 - 09/2009	1
58325D - BRACE, REAR FLOOR PANEL, RH
58325-44050	ANM1#,ZNM10	09/2004 - 09/2009	1
58326D - BRACE, REAR FLOOR PANEL, LH
58326-44010	ANM1#,ZNM10	09/2004 - 09/2009	1
Common parts
90119-10821
91515-B0818
Linked diagrams
5701
5801

ANM10G-AWXGH (2004)

(0409- )
