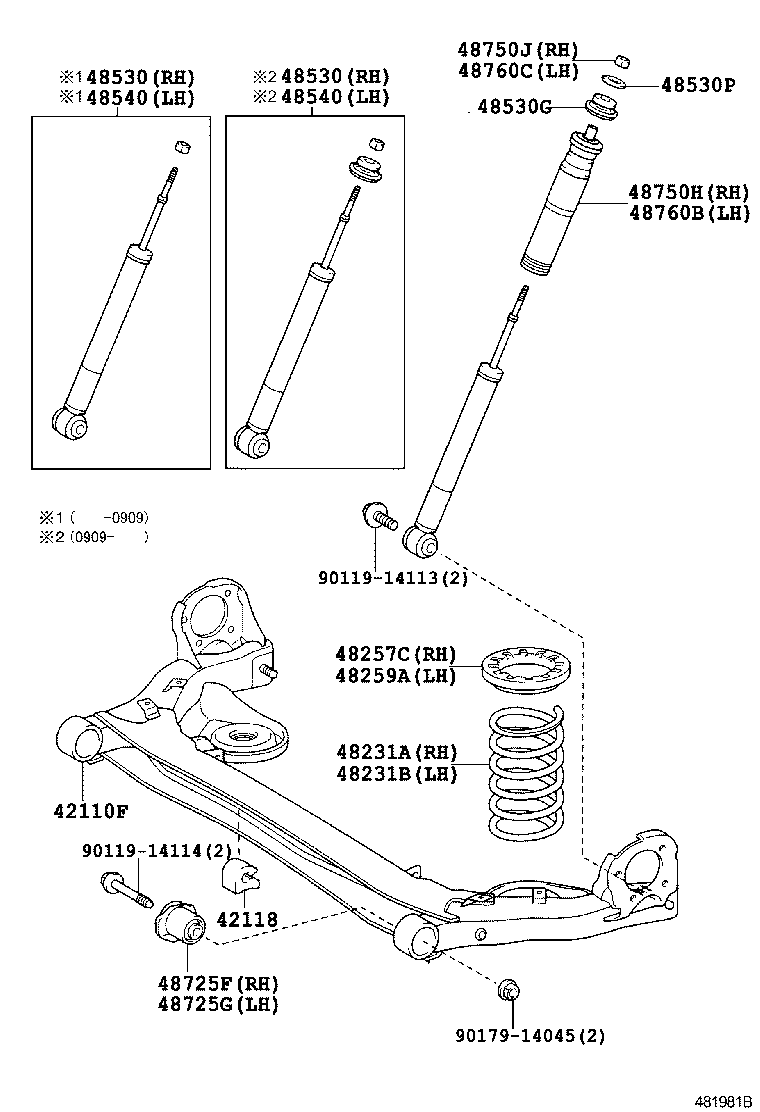

Toyota Isis ANM10 REAR SPRING & SHOCK ABSORBER

Part #	Description	Period	Qty
42110F - BEAM ASSY, REAR AXLE
42101-28410	ANM1#,ZNM10	09/2004 - 12/2004	1
42101-28411	ANM1#,ZNM10	01/2005 - 09/2009	1
42118 - DAMPER, REAR AXLE BEAM
42118-28020	ANM1#,ZNM10	09/2004 - 09/2009	1
48231A - SPRING, COIL, REAR RH
48231-44150	ANM10,ZNM10	09/2004 - 09/2009	1
48231B - SPRING, COIL, REAR LH
48231-44150	ANM10,ZNM10	09/2004 - 09/2009	1
48257C - INSULATOR, REAR COIL SPRING, UPPER RH
48257-28060	ANM1#,ZNM10	09/2004 - 09/2009	1
48259A - INSULATOR, REAR COIL SPRING, UPPER LH
48257-28060	ANM1#,ZNM10	09/2004 - 09/2009	1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-49375	ZNM10;ANM10..G,L ﾏｰｸ 48531−44101	09/2004 - 09/2009	1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-49375	ZNM10;ANM10..G,L ﾏｰｸ 48531−44101	09/2004 - 09/2009	1
48530G - CUSHION, REAR SHOCK ABSORBER, NO.1
90905-40019	ANM1#,ZNM10	09/2004 - 09/2009	2
48530P - RETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)
90948-02159	ANM1#,ZNM10	09/2004 - 09/2009	2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-49375	ZNM10;ANM10..G,L ﾏｰｸ 48531−44101	09/2004 - 09/2009	1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-49375	ZNM10;ANM10..G,L ﾏｰｸ 48531−44101	09/2004 - 09/2009	1
48725F - BUSH, REAR AXLE CARRIER, RH
48725-58010	ANM10,ZNM10..G,L	09/2004 - 09/2009	1
48725G - BUSH, REAR AXLE CARRIER, LH
48725-58010	ANM10,ZNM10..G,L	09/2004 - 09/2009	1
48750H - SUPPORT ASSY, REAR SUSPENSION, RH
48750-44010	ANM1#,ZNM10	09/2004 - 05/2007	1
48750-44011	ANM1#,ZNM10	05/2007 - 09/2009	1
48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
90177-12002	ANM1#,ZNM10	09/2004 - 09/2009	1
48760B - SUPPORT ASSY REAR SUSPENSION, LH
48750-44010	ANM1#,ZNM10	09/2004 - 05/2007	1
48750-44011	ANM1#,ZNM10	05/2007 - 09/2009	1
48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
90177-12002	ANM1#,ZNM10	09/2004 - 09/2009	1
Common parts
90119-14113
90119-14114
90179-14045

ANM10G-AWXGH (2004)

(0409- )
