ANM10G-AWXEH (2004)
Toyota Isis

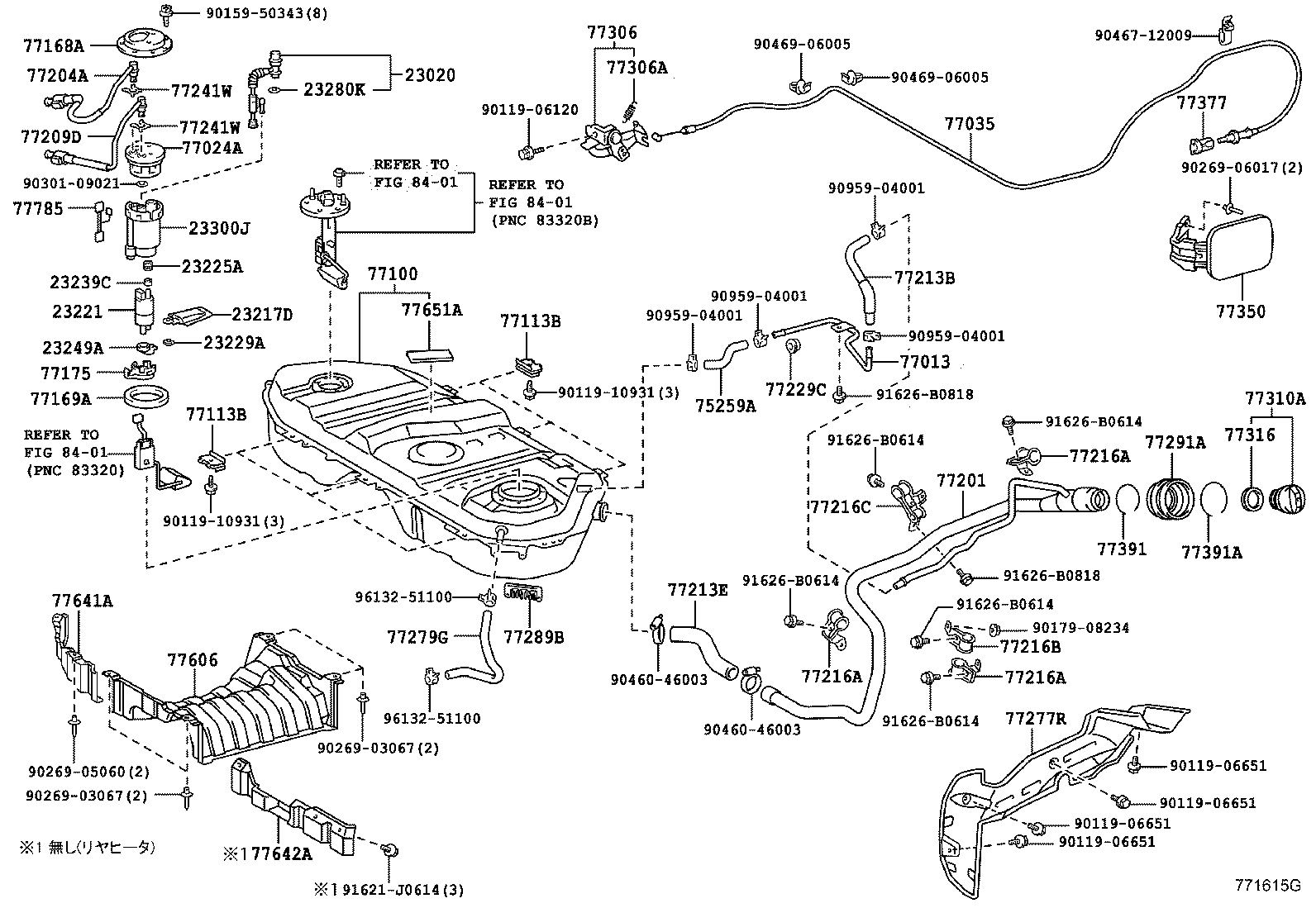

ILLUST NO. 1 OF 2(0409- )ANM1#
ﾌｭｰｴﾙ ﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23020 - REGULATOR ASSY, FUEL PRESSURE W/JET PUMP | ||||
| 23020-28020 |
1AZFSE..ANM1# |
1 | ||
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-28250 |
1AZFSE..ANM1# |
1 | ||
| 23217-28250 |
1AZFSE..ANM1# |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-28040 |
1AZFSE..ANM1# |
1 | ||
| 23221-28310 |
1AZFSE..ANM1# |
1 | ||
| 23221-28290 |
1AZFSE..ANM1# |
1 | ||
| 23221-28310 |
1AZFSE..ANM1# |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-21010 |
1AZFSE,1ZZFE..ANM1#,ZNM10 |
1 | ||
| 23229A - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
1AZFSE,1ZZFE..ANM1#,ZNM10 |
1 | ||
| 23229-16010 |
1AZFSE,1ZZFE..ANM1#,ZNM10 |
1 | ||
| 23239C - SEAL, FUEL PUMP FILTER | ||||
| 23239-21010 |
1AZFSE,1ZZFE..ANM1#,ZNM10 |
1 | ||
| 23249A - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74610 |
1AZFSE,1ZZFE..ANM1#,ZNM10 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07041 |
1AZFSE,1ZZFE..ANM1#,ZNM10 |
1 | ||
| 23300J - FILTER ASSY, FUEL | ||||
| 23300-28040 |
1AZFSE,1ZZFE..ANM1#,ZNM10 |
1 | ||
| 75259A - HOSE, FUEL | ||||
| 77259-44050 |
ANM1#,ZNM10 |
1 | ||
| 77259-44050 |
ANM1#,ZNM10 |
1 | ||
| 77013 - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2 | ||||
| 77013-44090 |
ANM1#,ZNM10 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-32050 |
ANM1# |
1 | ||
| 77024-32050 |
ANM1# |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-44010 |
ANM1#,ZNM10 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-44061 |
ANM1#,ZNM10 |
1 | ||
| 77001-44060 |
ANM1#,ZNM10 |
1 | ||
| 77001-44062 |
ANM1#,ZNM10 |
1 | ||
| 77001-44063 |
ANM1#,ZNM10 |
1 | ||
| 77113B - PLATE, FUEL TANK SIDE | ||||
| 77113-44010 |
ANM1#,ZNM10 |
6 | ||
| 77113B - PLATE, FUEL TANK SIDE | ||||
| 77113-44010 |
ANM1#,ZNM10 |
6 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-33050 |
ANM1#,ZNM10 |
1 | ||
| 77168-33050 |
ANM1#,ZNM10 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33020 |
ANM1#,ZNM10 |
1 | ||
| 77169-33020 |
ANM1#,ZNM10 |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-52020 |
ANM1#,ZNM10 |
1 | ||
| 77175-52020 |
ANM1#,ZNM10 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-44191 |
ANM1#,ZNM10 |
1 | ||
| 77204A - TUBE, FUEL TANK RETURN | ||||
| 77204-44020 |
ANM1# |
1 | ||
| 77204-44020 |
ANM1# |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-44050 |
ANM1#,ZNM10 |
1 | ||
| 77209-44050 |
ANM1#,ZNM10 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77259-44071 |
ANM1#,ZNM10 |
1 | ||
| 77213E - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-44050 |
ANM1#,ZNM10 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-44090 |
ANM1#,ZNM10 |
3 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-44090 |
ANM1#,ZNM10 |
3 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-44090 |
ANM1#,ZNM10 |
3 | ||
| 77216B - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77216-44071 |
ANM1#,ZNM10 |
1 | ||
| 77216C - SUPPORT, FUEL TANK FILLER PIPE NO.3 | ||||
| 77216-44051 |
ANM1#,ZNM10 |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-44020 |
ANM1#,ZNM10 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-32060 |
ANM1# |
2 | ||
| 77241-32060 |
ANM1# |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-32060 |
ANM1# |
2 | ||
| 77241-32060 |
ANM1# |
2 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-44041 |
ANM1#,ZNM10 |
1 | ||
| 77279G - HOSE, FUEL, NO.2 | ||||
| 77279-44040 |
ANM1#,ZNM10 |
1 | ||
| 77279-44040 |
ANM1#,ZNM10 |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-44020 |
ANM1#,ZNM10 |
1 | ||
| 77289-44020 |
ANM1#,ZNM10 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-44020 |
ANM1#,ZNM10 |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-13020 |
ANM1#,ZNM10 |
1 | ||
| 77306A - SPRING, FUEL LID OPEN LEVER | ||||
| 90506-09004 |
ANM1#,ZNM10 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-48010 |
ANM1#,ZNM10 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
ANM1#,ZNM10 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-44051 |
ANM1#,ZNM10 |
1 | ||
| 77350-44050 |
ANM1#,ZNM10 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-52010 |
ANM1#,ZNM10 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
ANM1#,ZNM10 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-44020 |
ANM1#,ZNM10 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-44020 |
ANM1#,ZNM10 |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-44030 |
ANM1#,ZNM10 |
1 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-44020 |
ANM1#,ZNM10 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77672-44010 |
ANM1#,ZNM10 |
1 | ||
| 77672-44010 |
ANM1#,ZNM10 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-32010 |
ANM1#,ZNM10 |
1 | ||
| 77785-32010 |
ANM1#,ZNM10 |
1 | ||
| Common parts | ||||
| 90119-06120 | ||||
| 90119-06651 | ||||
| 90119-10931 | ||||
| 90159-50343 | ||||
| 90179-08234 | ||||
| 90269-03067 | ||||
| 90269-05060 | ||||
| 90269-06017 | ||||
| 90301-09021 | ||||
| 90460-46003 | ||||
| 90467-12009 | ||||
| 90469-06005 | ||||
| 90959-04001 | ||||
| 91621-J0614 | ||||
| 91626-B0614 | ||||
| 91626-B0818 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 8401 | ||||

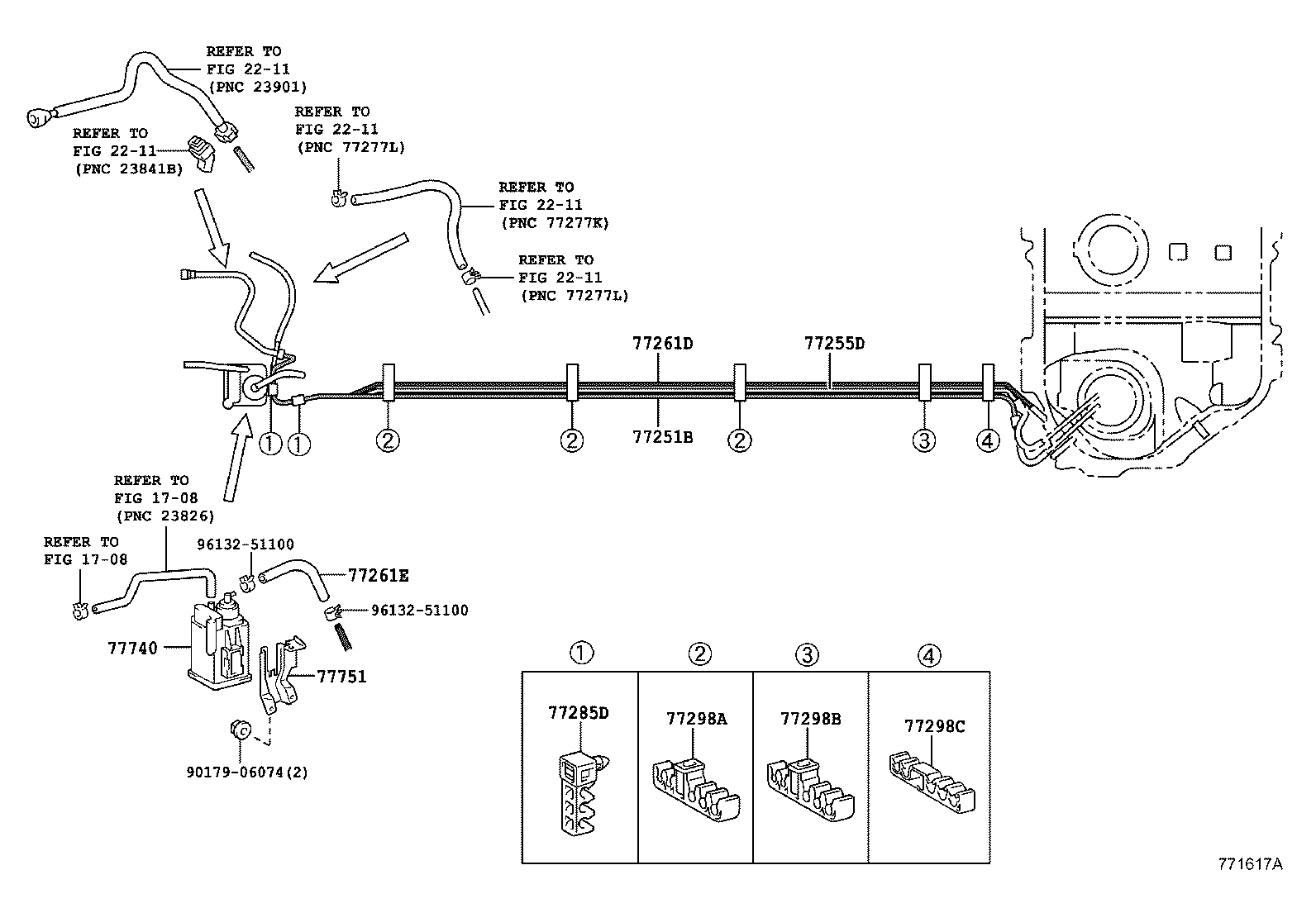

ILLUST NO. 2 OF 2(0409- )ANM1#
ﾌｭｰｴﾙ ﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-44090 |
ANM1#,ZNM10 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-44080 |
ANM1# |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-44050 |
ANM1#,ZNM10 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95337-06014 |
ANM1#,ZNM10 長さ=140 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-44170 |
ANM1#,ZNM10 |
2 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-68010 |
ANM1#,ZNM10 |
3 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-68020 |
ANM1#,ZNM10 |
1 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-68030 |
ANM1#,ZNM10 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-42080 |
ANM1#,ZNM10 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-20390 |
ANM1#,ZNM10 |
1 | ||
| Common parts | ||||
| 90179-06074 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
