4601 - PARKING BRAKE & CABLE

ANM10G-AWXEH (2004)

Toyota Isis

Production Sep 2004 - Sep 2009

Engine 1AZFSE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

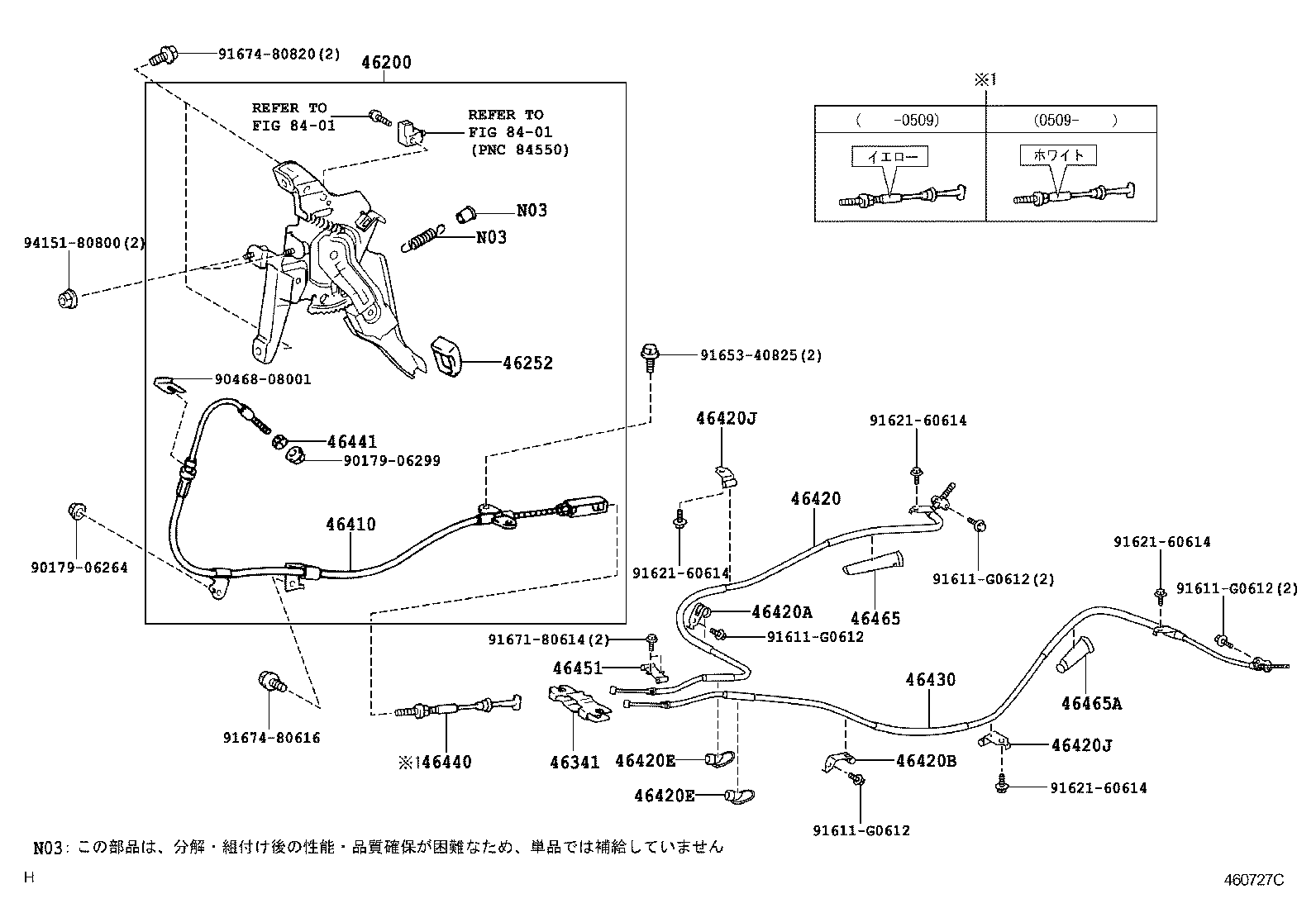

ILLUST NO. 1 OF 2(0409- )ANM10,ZGM10,11,ZNM10

Click highlighted areas on diagram

Part #	Description	Period	Qty
46200 - PEDAL ASSY, PARKING BRAKE CONTROL
46200-68020	ANM10,ZNM10	09/2004 - 09/2009	1
46252 - PAD, PARKING PEDAL
46252-68010	ANM1#,ZNM10	09/2004 - 09/2009	1
46341 - EQUALIZER, PARKING BRAKE
46341-20070	ANM10,ZNM10	09/2004 - 09/2009	1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-68020	ANM10,ZNM10	09/2004 - 09/2009	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-44070	ANM10	09/2004 - 09/2009	1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
46421-44010	ANM1#,ZNM10	09/2004 - 09/2009	1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
46431-44010	ANM1#,ZNM10	09/2004 - 09/2009	1
46420E - GROMMET(FOR PARKING BRAKE CABLE CLAMP)
46423-44010	ANM10,ZNM10	09/2004 - 09/2009	2
46420E - GROMMET(FOR PARKING BRAKE CABLE CLAMP)
46423-44010	ANM10,ZNM10	09/2004 - 09/2009	2
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
90949-01C69	ANM1#,ZNM10	09/2004 - 09/2009	2
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
90949-01C69	ANM1#,ZNM10	09/2004 - 09/2009	2
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-44070	ANM10	09/2004 - 09/2009	1
46440 - CABLE ASSY, PARKING BRAKE, NO.4
46440-68020	ANM10,ZNM10 ｲｴﾛｰﾍﾟｲﾝﾄ	09/2004 - 09/2005	1
46440-44010	ANM10,ZNM10 ﾎﾜｲﾄﾍﾟｲﾝﾄ	09/2005 - 09/2009	1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-12010	ANM1#,ZNM10	09/2004 - 09/2009	1
46451 - BRACKET, CABLE SUPPORT
46451-68010	ANM10,ZNM10	09/2004 - 09/2009	1
46465 - GUIDE, PARKING BRAKE CABLE, RH
46465-44010	ANM1#,ZNM10	09/2004 - 09/2009	1
46465A - GUIDE, PARKING BRAKE CABLE, LH
46465-44020	ANM1#,ZNM10	09/2004 - 09/2009	1
Common parts
90179-06264
90179-06299
90468-08001
91611-G0612
91621-60614
91653-40825
91671-80614
91674-80616
91674-80820
94151-80800
Linked diagrams
8401

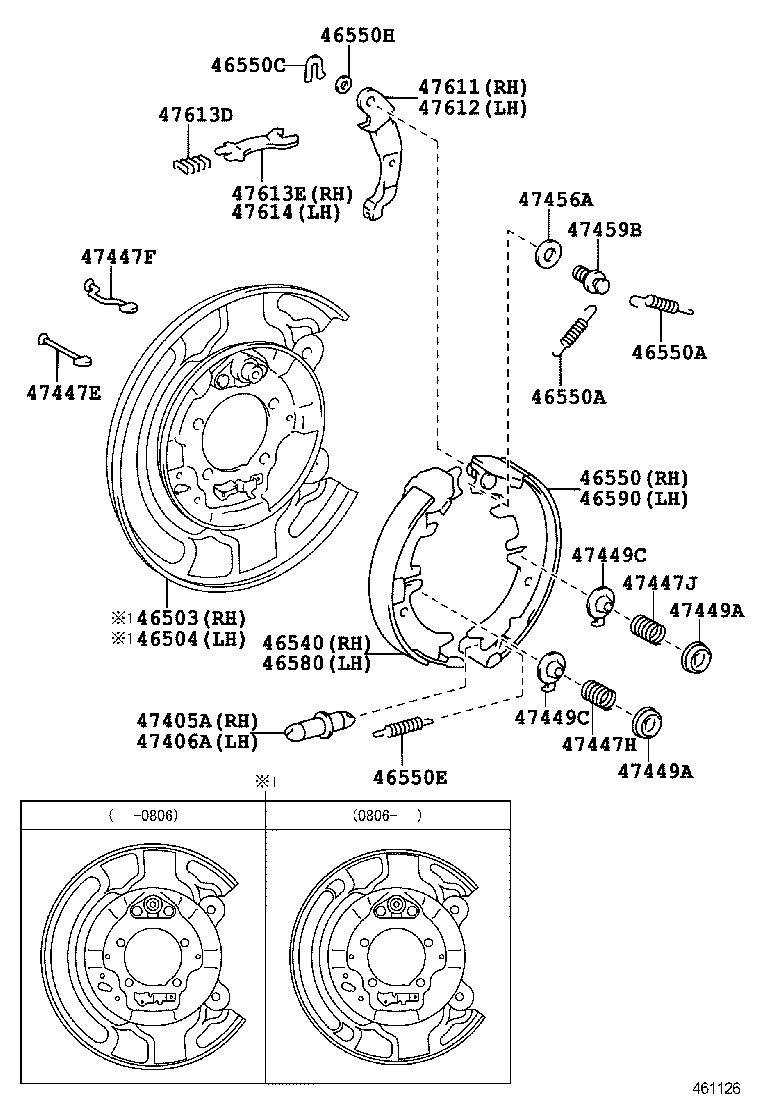

ILLUST NO. 2 OF 2(0409- )ANM1#,ZGM11,15

Click highlighted areas on diagram

Part #	Description	Period	Qty
46503 - PLATE SUB-ASSY, PARKING BRAKE, RH
46503-28030	ANM1#	09/2004 - 06/2008	1
46503-44020	ANM1#	06/2008 - 09/2009	1
46504 - PLATE SUB-ASSY, PARKING BRAKE, LH
46504-28030	ANM1#	09/2004 - 06/2008	1
46504-44020	ANM1#	06/2008 - 09/2009	1
46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1
46540-44010	ANM1#	09/2004 - 09/2009	1
46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46550-44010	ANM1#	09/2004 - 09/2009	1
46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
90507-20016	ANM1#	09/2004 - 09/2009	4
46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
90507-20016	ANM1#	09/2004 - 09/2009	4
46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE)
90213-07018	ANM1#	09/2004 - 09/2009	2
46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
90506-12051	ANM1#	09/2004 - 09/2009	2
46550H - SHIM(FOR PARKING BRAKE SHOE)
90564-09185	ANM1# 厚さ=0.6	09/2004 - 09/2009	1
90564-09184	ANM1# 厚さ=0.3	09/2004 - 09/2009	1
90564-09186	ANM1# 厚さ=0.9	09/2004 - 09/2009	1
46580 - SHOE ASSY, PARKING BRAKE, LH NO.1
46540-44010	ANM1#	09/2004 - 09/2009	1
46590 - SHOE ASSY, PARKING BRAKE, LH NO.2
46590-44010	ANM1#	09/2004 - 09/2009	1
47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE)
47405-30040	ANM1#	09/2004 - 09/2009	1
47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE)
47406-30040	ANM1#	09/2004 - 09/2009	1
47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE)
47447-30020	ANM1#	09/2004 - 09/2009	2
47447F - PIN, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE)
47447-50010	ANM1#	09/2004 - 09/2009	2
47447H - SPRING, COMPRESSION, NO.1(FOR PARKING BRAKE SHOE HOLD D
90501-16053	ANM1#	09/2004 - 09/2009	2
47447J - SPRING, COMPRESSION, NO.2(FOR PARKING BRAKE SHOE HOLD D
90501-16118	ANM1#	09/2004 - 09/2009	2
47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE)
47449-30030	ANM1#	09/2004 - 09/2009	4
47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE)
47449-30030	ANM1#	09/2004 - 09/2009	4
47449C - CUP, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE)
47449-40010	ANM1#	09/2004 - 09/2009	4
47449C - CUP, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE)
47449-40010	ANM1#	09/2004 - 09/2009	4
47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE)
47456-33010	ANM1#	09/2004 - 09/2009	2
47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE)
47459-30010	ANM1#	09/2004 - 09/2009	2
47611 - LEVER, PARKING BRAKE SHOE, RH
47611-28030	ANM1#	09/2004 - 09/2009	1
47612 - LEVER, PARKING BRAKE SHOE, LH
47612-28030	ANM1#	09/2004 - 09/2009	1
47613D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)
90504-14002	ANM1#	09/2004 - 09/2009	2
47613E - STRUT, PARKING BRAKE SHOE, RH
47613-28010	ANM1#	09/2004 - 09/2009	1
47614 - STRUT, PARKING BRAKE SHOE, LH
47614-28010	ANM1#	09/2004 - 09/2009	1
