Toyota Isis ANM10 DISC WHEEL & WHEEL CAP

Part #	Description	Period	Qty

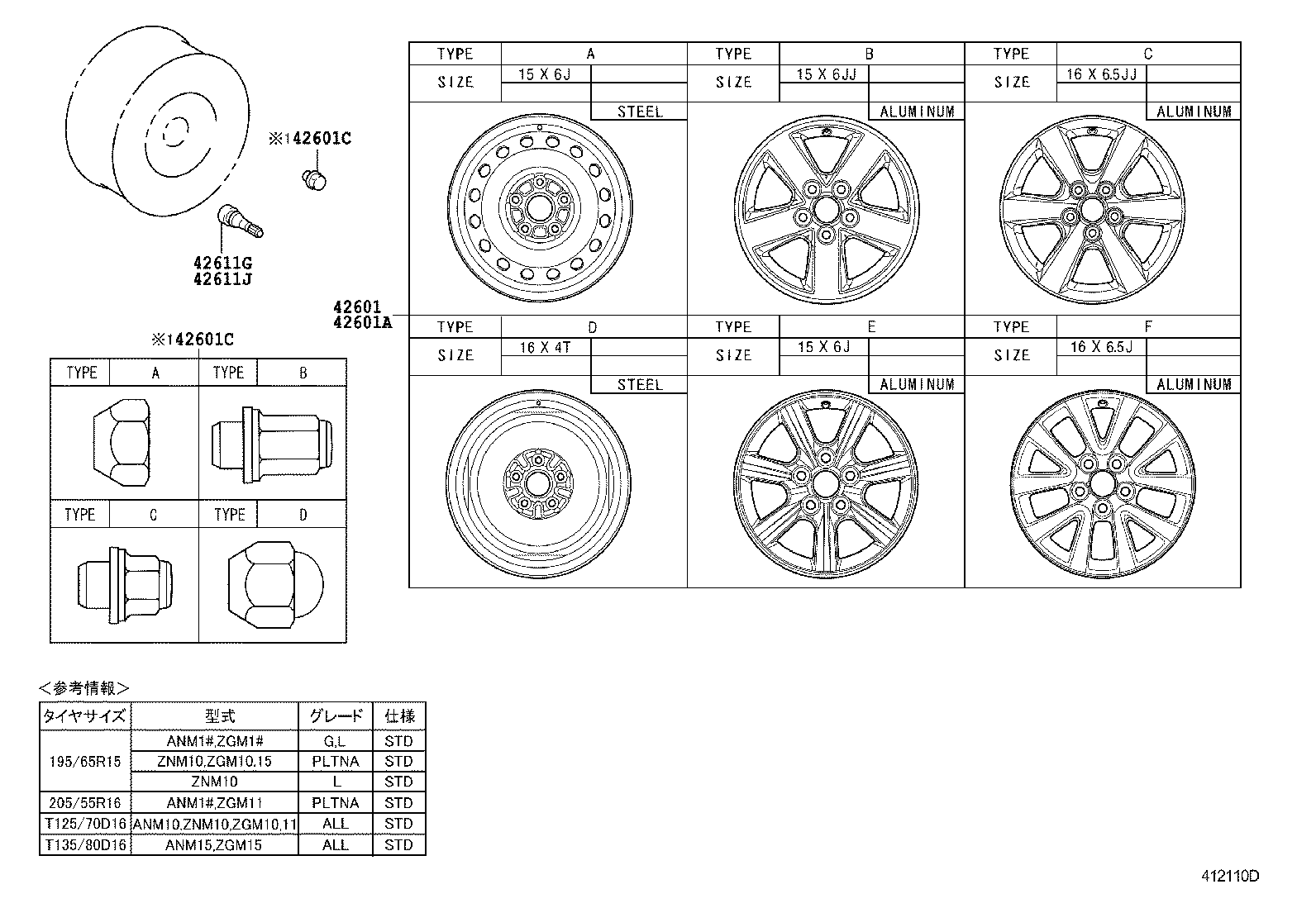

42601 - WHEEL, DISC
42611-44130	ANM1#,ZNM10..L 15X6JJ,#,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−195/65R15 6JJ ｱﾙﾐ,TYPE B:ｲﾗｽﾄ参照	09/2004 - 05/2007	4
42611-44130	ANM1#..G;ZNM10..PLTNA 15X6JJ,#,TYPE B:ｲﾗｽﾄ参照	09/2004 - 05/2007	4
42611-44180	ANM1#,ZNM10..L 15X6J,#,TYPE A:ｲﾗｽﾄ参照	09/2004 - 09/2009	4
42611-44140	ANM1#,ZNM10..L 15X6J,#,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−195/65R15 6JJ ｱﾙﾐ,TYPE E:ｲﾗｽﾄ参照	05/2007 - 09/2009	4
42611-44140	ANM1#..G;ZNM10..PLTNA 15X6J,#,TYPE E:ｲﾗｽﾄ参照	05/2007 - 09/2009	4
42601A - WHEEL, DISC (FOR SPARE)
42611-44100	ANM1#,ZNM10 16X4T,TYPE D:ｲﾗｽﾄ参照	09/2004 - 09/2009	1
42601C - NUT, HUB (FOR AXLE)
90942-01033	ANM1#,ZNM10..G,PLTNA TYPE C:ｲﾗｽﾄ参照	05/2007 - 09/2009	20
90942-01058	ANM1#,ZNM10..L ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−195/65R15 6JJ ｱﾙﾐ,TYPE B:ｲﾗｽg参照	09/2004 - 05/2007	20
90942-01007	ANM1#,ZNM10..L TYPE A:ｲﾗｽﾄ参照	09/2004 - 05/2007	20
90942-01082	ANM1#,ZNM10..L TYPE D:ｲﾗｽﾄ参照	05/2007 - 03/2009	20
90942-01021	ANM1#,ZNM10..L TYPE D:ｲﾗｽﾄ参照	04/2009 - 09/2009	20
90942-01058	ANM1#,ZNM10..G,PLTNA TYPE B:ｲﾗｽﾄ参照	09/2004 - 05/2007	20
90942-01033	ANM1#,ZNM10..L ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−195/65R15 6JJ ｱﾙﾐ,TYPE C:ｲﾗｽg参照	05/2007 - 09/2009	20
42601C - NUT, HUB (FOR AXLE)
90942-01033	ANM1#,ZNM10..G,PLTNA TYPE C:ｲﾗｽﾄ参照	05/2007 - 09/2009	20
90942-01058	ANM1#,ZNM10..L ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−195/65R15 6JJ ｱﾙﾐ,TYPE B:ｲﾗｽg参照	09/2004 - 05/2007	20
90942-01007	ANM1#,ZNM10..L TYPE A:ｲﾗｽﾄ参照	09/2004 - 05/2007	20
90942-01082	ANM1#,ZNM10..L TYPE D:ｲﾗｽﾄ参照	05/2007 - 03/2009	20
90942-01021	ANM1#,ZNM10..L TYPE D:ｲﾗｽﾄ参照	04/2009 - 09/2009	20
90942-01058	ANM1#,ZNM10..G,PLTNA TYPE B:ｲﾗｽﾄ参照	09/2004 - 05/2007	20
90942-01033	ANM1#,ZNM10..L ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−195/65R15 6JJ ｱﾙﾐ,TYPE C:ｲﾗｽg参照	05/2007 - 09/2009	20
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009	ANM1#,ZNM10	09/2004 - 09/2009	4
90942-05009	ANM1#,ZNM10	09/2004 - 09/2009	4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009	ANM1#,ZNM10	09/2004 - 09/2009	1

Part #	Description	Period	Qty

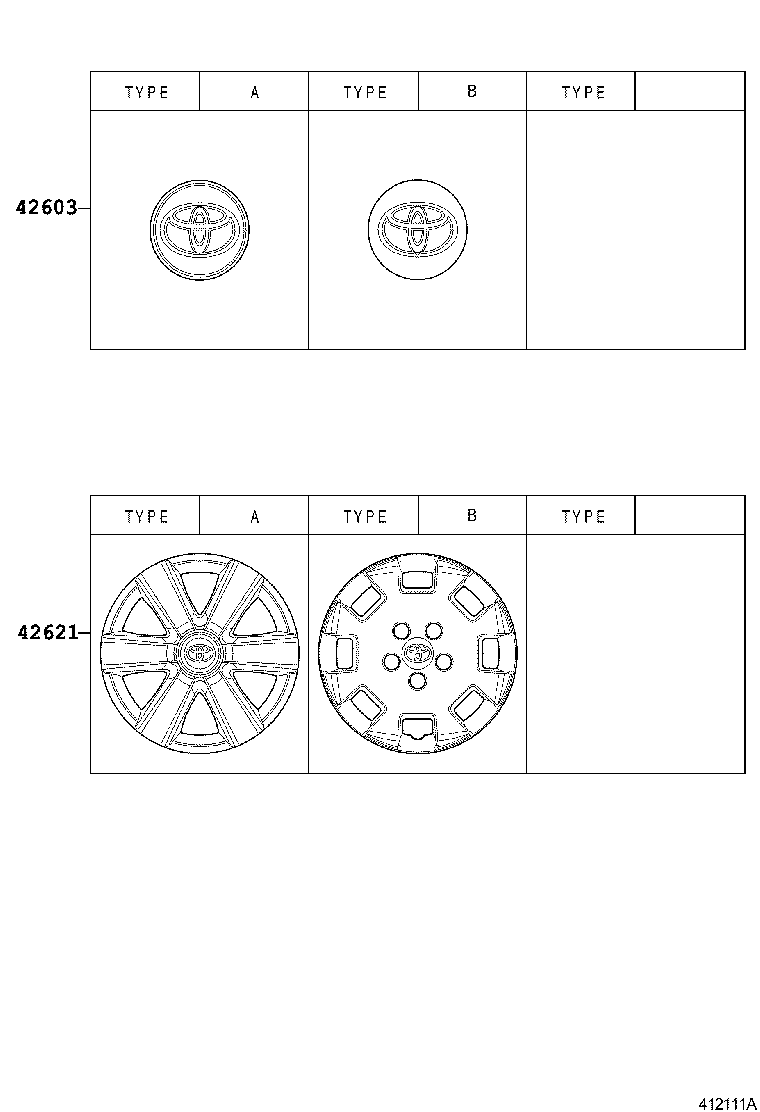

42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-12730	ANM1#,ZNM10..L ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−195/65R15 6JJ ｱﾙﾐ,TYPE B:ｲﾗｽg参照	05/2007 - 09/2009	4
42603-44070	ANM1#,ZNM10..G,PLTNA *ALU,TYPE A:ｲﾗｽﾄ参照	09/2004 - 05/2007	4
42603-12730	ANM1#,ZNM10..G,PLTNA TYPE B:ｲﾗｽﾄ参照	05/2007 - 09/2009	4
42603-44070	ANM1#,ZNM10..L *ALU,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−195/65R15 6JJ ｱﾙﾐ,TYPE A:ｲﾗｽﾄ参照	09/2004 - 05/2007	4
42621 - CAP, WHEEL
42602-44050	ANM1#,ZNM10..L TYPE A:ｲﾗｽﾄ参照	09/2004 - 05/2007	4
42602-44060	ANM1#,ZNM10..L TYPE B:ｲﾗｽﾄ参照	05/2007 - 09/2009	4

Part #	Description	Period	Qty	Price

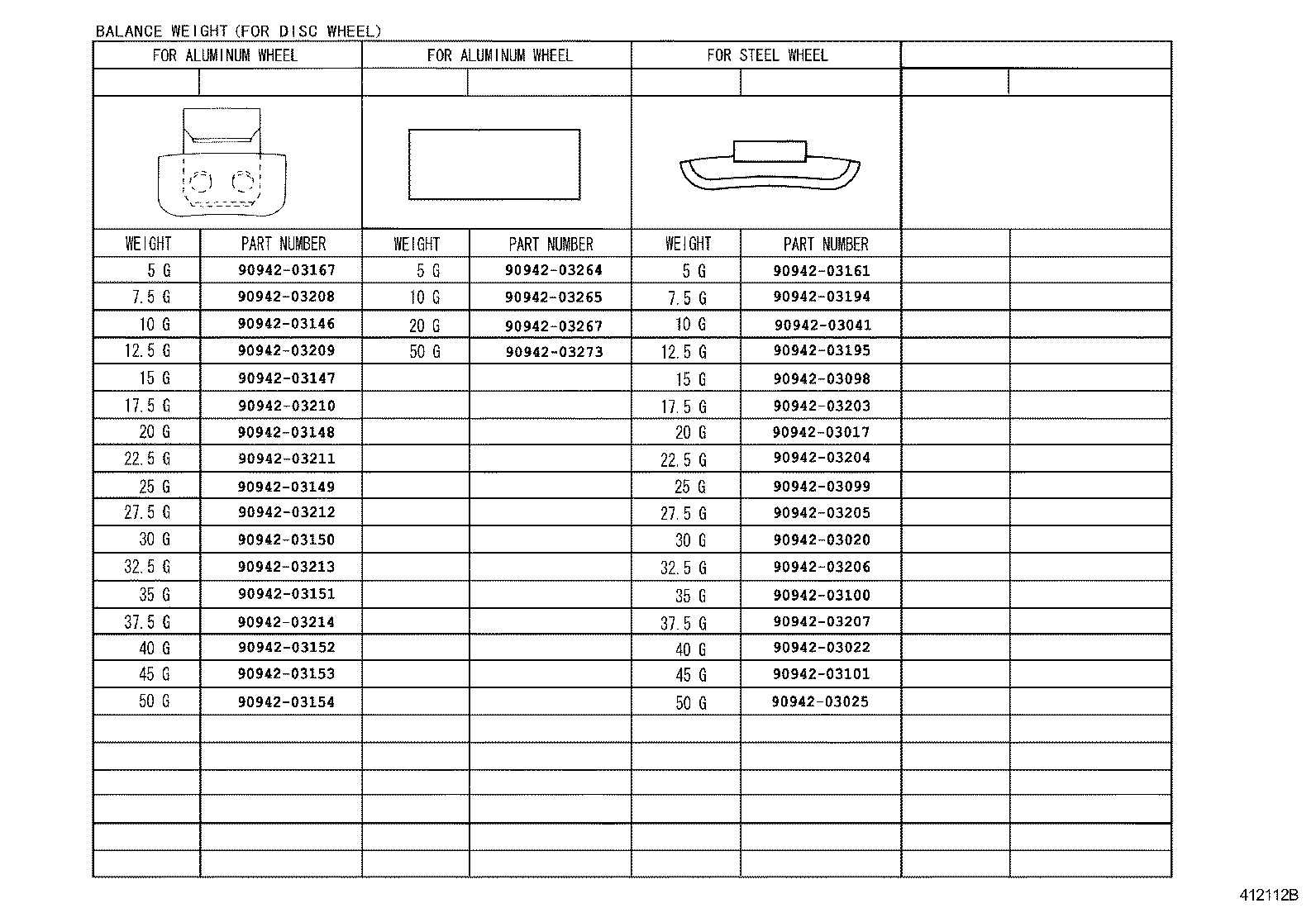

Common parts
90942-03017
90942-03020
90942-03022
90942-03025
90942-03041
90942-03098
90942-03099
90942-03100
90942-03101
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03161
90942-03167
90942-03194
90942-03195
90942-03203
90942-03204
90942-03205
90942-03206
90942-03207
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214
90942-03264
90942-03265
90942-03267
90942-03273

ANM10G-AWXEH (2004)

ILLUST NO. 1 OF 3(0409- )

ILLUST NO. 2 OF 3(0409- )

ILLUST NO. 3 OF 3(0409- )
