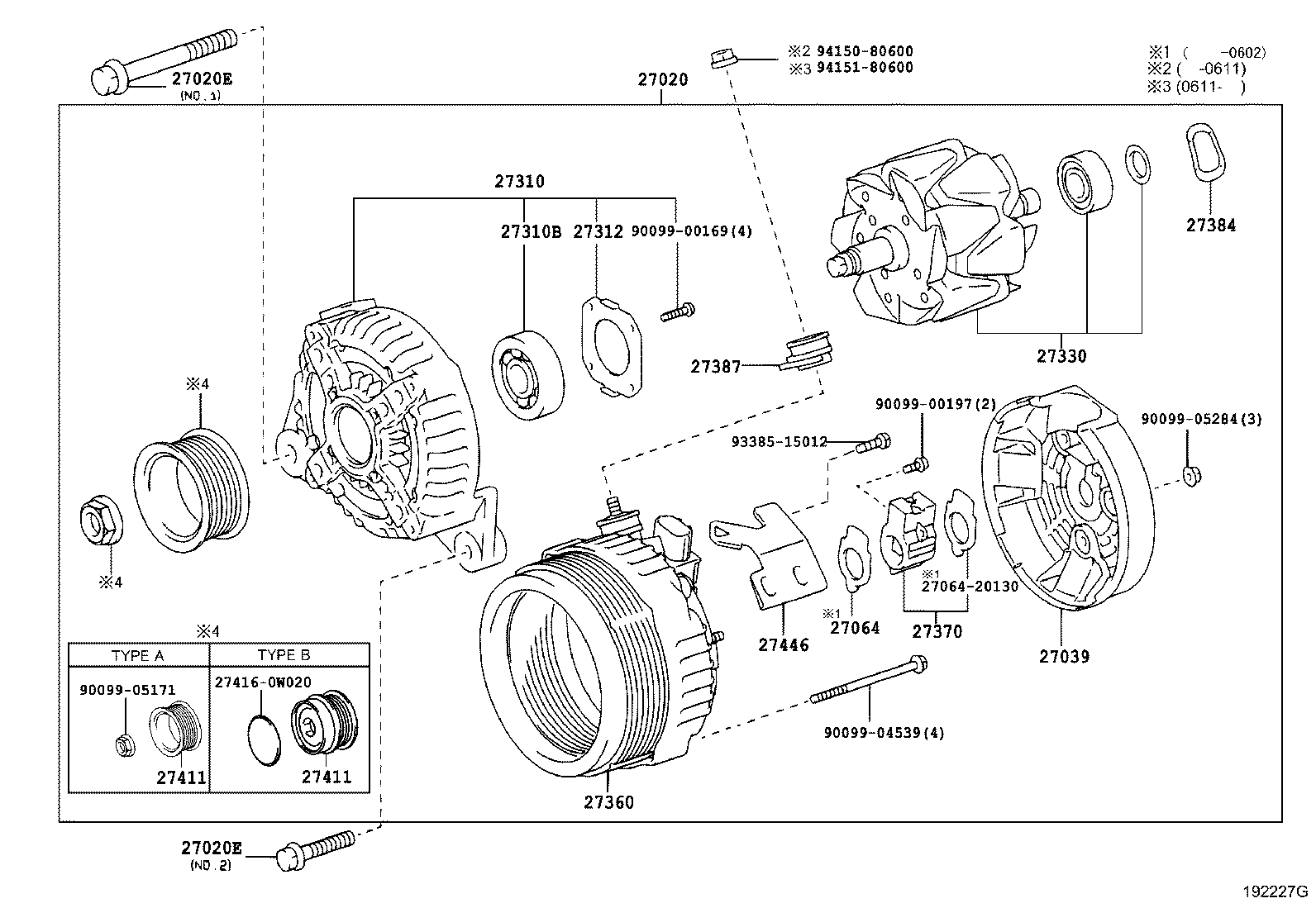

Toyota Isis ANM10 ALTERNATOR - JDM Part Detective

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-28230	1AZFSE..ANM1# 12V 130A,寒冷地仕様	09/2004 - 09/2009	1
27060-28190	1AZFSE..ANM1# 12V 100A	09/2004 - 09/2009	1
27020E - BOLT(FOR ALTERNATOR)
91512-81085	1AZFSE..ANM1# NO.1	09/2004 - 09/2009	1
91511-J0840	1AZFSE..ANM1# NO.2	09/2004 - 07/2006	1
91551-80840	1AZFSE..ANM1# NO.2	08/2006 - 09/2009	1
27020E - BOLT(FOR ALTERNATOR)
91512-81085	1AZFSE..ANM1# NO.1	09/2004 - 09/2009	1
91511-J0840	1AZFSE..ANM1# NO.2	09/2004 - 07/2006	1
91551-80840	1AZFSE..ANM1# NO.2	08/2006 - 09/2009	1
27039 - COVER, ALTERNATOR REAR END
27039-27060	1AZFSE..ANM1#	09/2004 - 06/2009	1
27039-28150	1AZFSE..ANM1# 寒冷地仕様	09/2004 - 02/2006	1
27039-31390	1AZFSE..ANM1#	06/2009 - 09/2009	1
27064 - SEAL, ALTERNATOR PLATE
27064-42010	1AZFSE..ANM1# 寒冷地仕様	09/2004 - 02/2006	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-28120	1AZFSE..ANM1#	09/2004 - 03/2006	1
27310-28170	1AZFSE..ANM1#	04/2006 - 09/2009	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10142	1AZFSE..ANM1#	09/2004 - 03/2006	1
90099-10223	1AZFSE..ANM1#	04/2006 - 09/2009	1
27312 - PLATE, RETAINER
27312-72100	1AZFSE..ANM1#	09/2004 - 09/2009	1
27330 - ROTOR ASSY, ALTERNATOR
27330-20130	1AZFSE..ANM1# 寒冷地仕様	09/2004 - 02/2006	1
27330-30070	1AZFSE..ANM1#	09/2004 - 09/2009	1
27330-33090	1AZFSE..ANM1# 寒冷地仕様	02/2006 - 09/2009	1
27360 - COIL ASSY, ALTERNATOR
27360-28170	1AZFSE..ANM1#	09/2004 - 09/2009	1
27360-28180	1AZFSE..ANM1# 寒冷地仕様	09/2004 - 02/2006	1
27360-28090	1AZFSE..ANM1# 寒冷地仕様	02/2006 - 09/2009	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-20130	1AZFSE..ANM1# 寒冷地仕様	09/2004 - 02/2006	1
27370-58460	1AZFSE..ANM1#	09/2004 - 09/2009	1
27384 - WASHER
27384-50030	1AZFSE..ANM1#	09/2004 - 09/2009	1
27384-50030	1AZFSE..ANM1# 寒冷地仕様	09/2004 - 09/2009	1
27387 - INSULATOR, TERMINAL
27387-20130	1AZFSE..ANM1# 寒冷地仕様	09/2004 - 09/2009	1
27387-20130	1AZFSE..ANM1#	09/2004 - 09/2009	1
27411 - PULLEY, ALTERNATOR
27411-28060	1AZFSE..ANM1# TYPE A:ｲﾗｽﾄ参照	09/2004 - 09/2009	1
27415-0W090	1AZFSE..ANM1# TYPE B:ｲﾗｽﾄ参照	09/2004 - 05/2006	1
27411 - PULLEY, ALTERNATOR
27411-28060	1AZFSE..ANM1# TYPE A:ｲﾗｽﾄ参照	09/2004 - 09/2009	1
27415-0W090	1AZFSE..ANM1# TYPE B:ｲﾗｽﾄ参照	09/2004 - 05/2006	1
27446 - CLIP, ALTERNATOR CORD
27446-28120	1AZFSE..ANM1# 寒冷地仕様	09/2004 - 09/2009	1
27446-28120	1AZFSE..ANM1#	09/2004 - 09/2009	1
Common parts
27064-20130
27416-0W020
90099-00169
90099-00197
90099-04539
90099-05171
90099-05284
93385-15012
94150-80600
94151-80600

ANM10G-AWXEH (2004)

(0409-0909)1AZFSE
