ANM10G-AWXEH (2004)

Toyota Isis

Production Sep 2004 - Sep 2009
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0409- )1AZFSE

Click highlighted areas on diagram

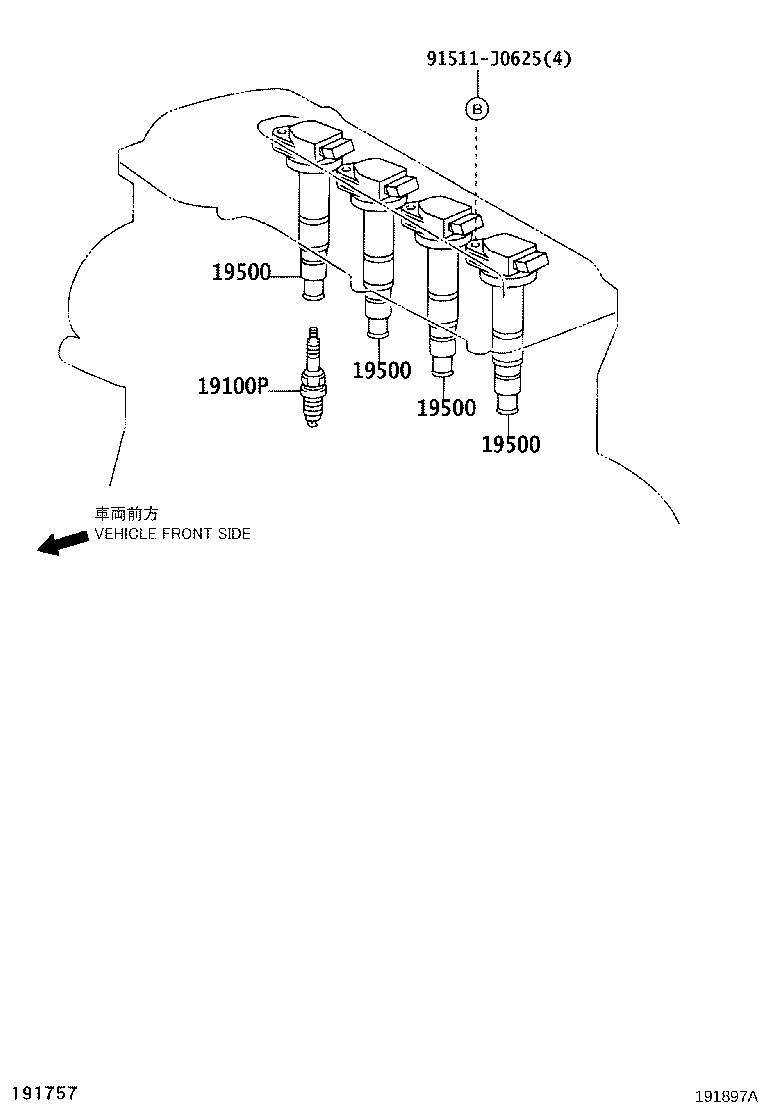

diagram 19100P 19500 19500 19500 19500 91511J0625
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01221

1AZFSE..ANM1#

SK20BGR11

 4
19500 - COIL ASSY, IGNITION
90919-02248

1AZFSE..ANM1#

 4
19500 - COIL ASSY, IGNITION
90919-02248

1AZFSE..ANM1#

 4
19500 - COIL ASSY, IGNITION
90919-02248

1AZFSE..ANM1#

 4
19500 - COIL ASSY, IGNITION
90919-02248

1AZFSE..ANM1#

 4
Common parts
91511-J0625
