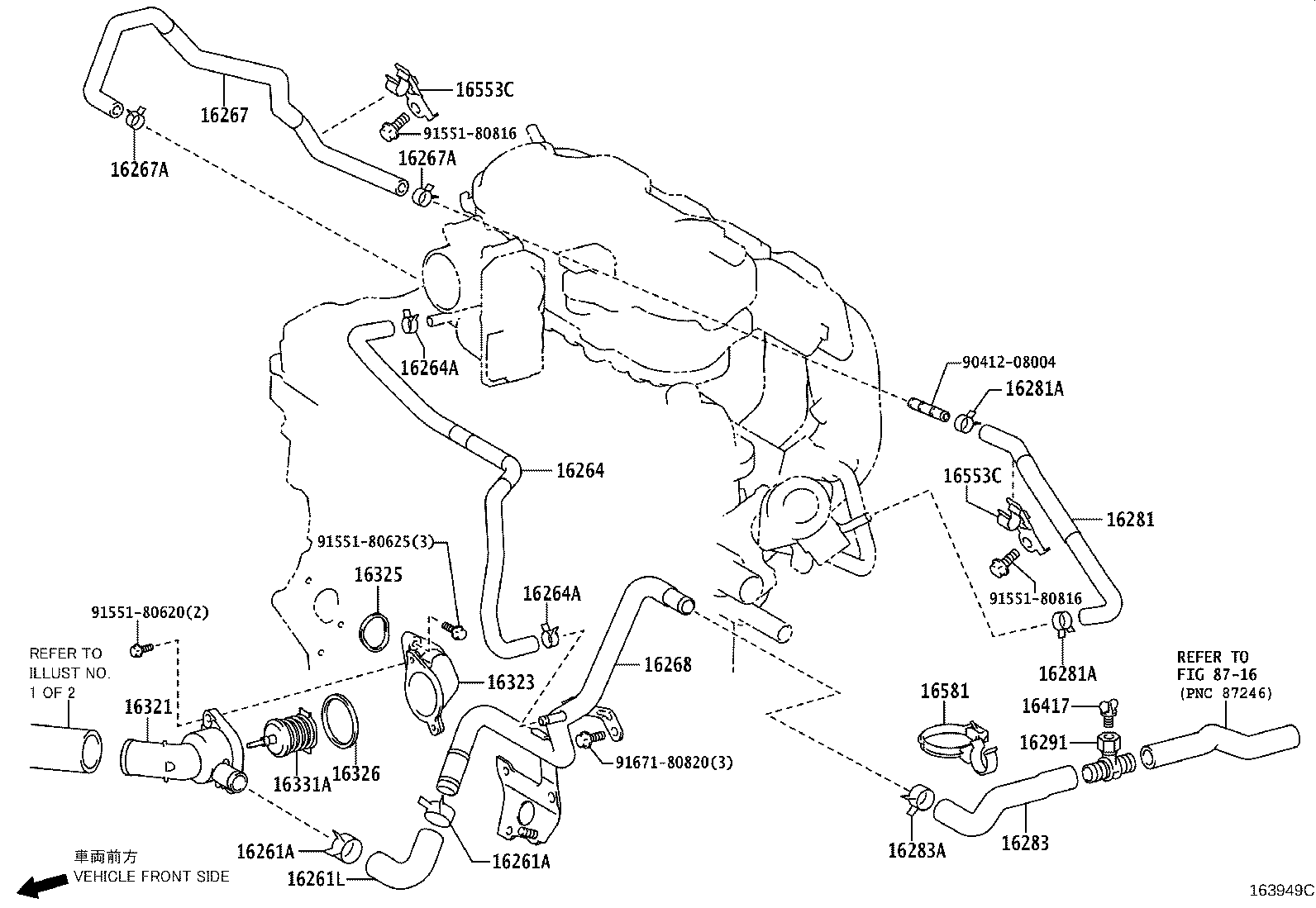

NGJ10-BGXNG (2009)
Toyota Iq
ILLUST NO. 2 OF 2(0911-1002)1NRFE
GAZOO RACING TUNED BY MN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-42901 |
1NRFE..NGJ10 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-42901 |
1NRFE..NGJ10 |
2 | ||
| 16261L - HOSE, WATER BY-PASS | ||||
| 16261-47120 |
1NRFE..NGJ10 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-47020 |
1NRFE..NGJ10 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-41501 |
1NRFE..NGJ10 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-41501 |
1NRFE..NGJ10 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-47020 |
1NRFE..NGJ10 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-41501 |
1NRFE..NGJ10 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-41501 |
1NRFE..NGJ10 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-47060 |
1NRFE..NGJ10 |
1 | ||
| 16268-47061 |
1NRFE..NGJ10 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-47020 |
1NRFE..NGJ10 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-41501 |
1NRFE..NGJ10 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-41501 |
1NRFE..NGJ10 |
2 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-47020 |
1NRFE..NGJ10 |
1 | ||
| 16283-47021 |
1NRFE..NGJ10 |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96136-42501 |
1NRFE..NGJ10 |
1 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 16291-47030 |
1NRFE..NGJ10..CVFC “GAZOO Racing tuned by MN” |
1 | ||
| 16291-47040 |
1NRFE..NGJ10..CVFC NO.2 |
1 | ||
| 16291-47020 |
1NRFE..NGJ10..CVFC NO.1 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-47021 |
1NRFE..NGJ10 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-47010 |
1NRFE..NGJ10 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-47010 |
1NRFE..NGJ10 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-47020 |
1NRFE..NGJ10 |
1 | ||
| 16326-47010 |
1NRFE..NGJ10 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03147 |
1NRFE..NGJ10 *WAX 82−95 |
1 | ||
| 16417 - COCK | ||||
| 16407-97201 |
1NRFE..NGJ10 |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-47030 |
1NRFE..NGJ10 |
2 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-47030 |
1NRFE..NGJ10 |
2 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-47010 |
1NRFE..NGJ10 |
1 | ||
| Common parts | ||||
| 90412-08004 | ||||
| 91551-80620 | ||||
| 91551-80625 | ||||
| 91551-80816 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 8716 | ||||

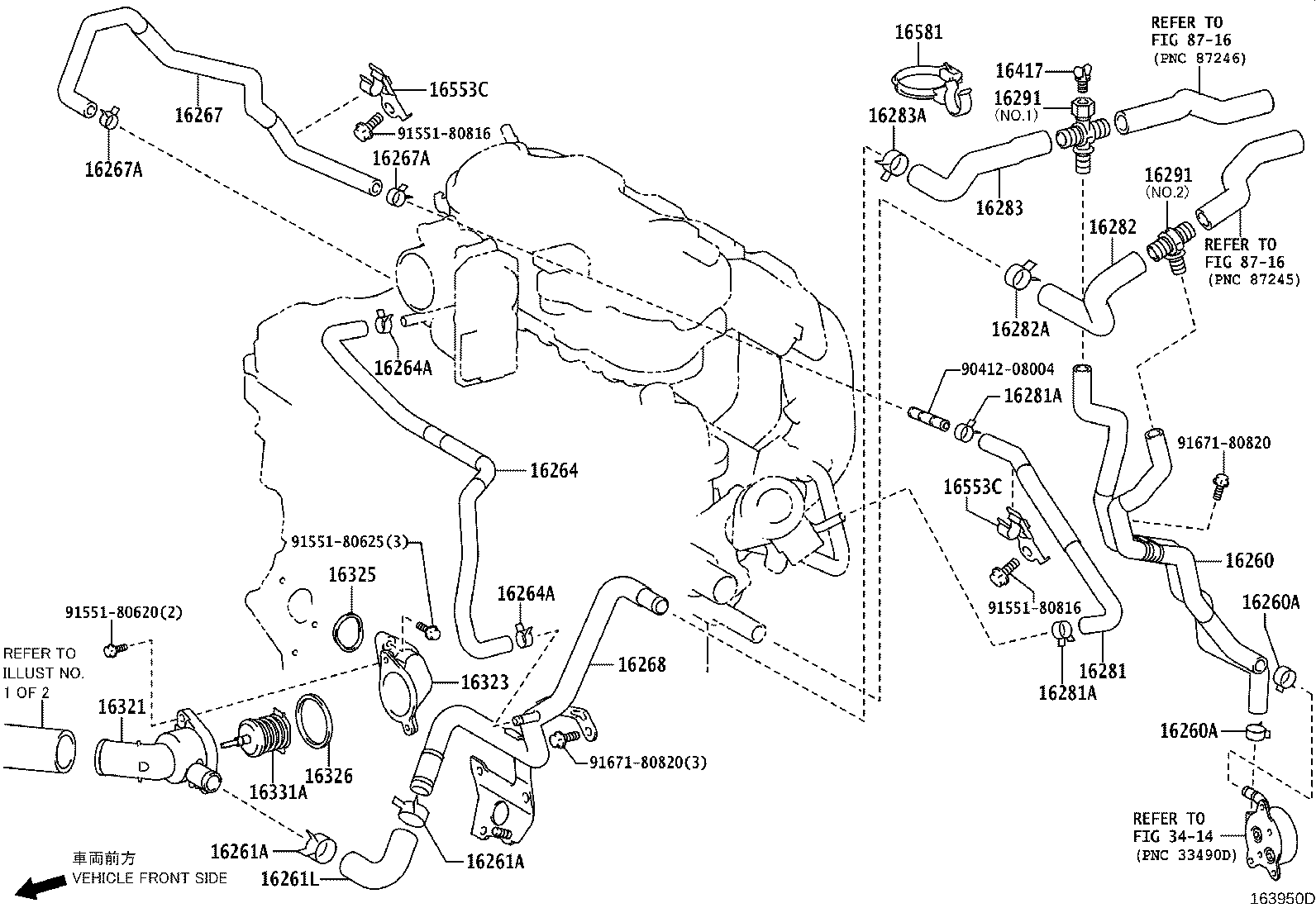

ILLUST NO. 2 OF 2(0908- )1NRFE..CVFC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16260 - HOSE ASSY, WATER BY-PASS | ||||
| 16260-47030 |
1NRFE..NGJ10..CVFC |
1 | ||
| 16260A - CLIP(FOR WATER BY-PASS HOSE ASSY) | ||||
| 96134-41900 |
1NRFE..NGJ10..CVFC |
2 | ||
| 16260A - CLIP(FOR WATER BY-PASS HOSE ASSY) | ||||
| 96134-41900 |
1NRFE..NGJ10..CVFC |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-42901 |
1NRFE..NGJ10 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-42901 |
1NRFE..NGJ10 |
2 | ||
| 16261L - HOSE, WATER BY-PASS | ||||
| 16261-47120 |
1NRFE..NGJ10 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-47020 |
1NRFE..NGJ10 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-41501 |
1NRFE..NGJ10 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-41501 |
1NRFE..NGJ10 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-47020 |
1NRFE..NGJ10 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-41501 |
1NRFE..NGJ10 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-41501 |
1NRFE..NGJ10 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-47060 |
1NRFE..NGJ10 |
1 | ||
| 16268-47061 |
1NRFE..NGJ10 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-47020 |
1NRFE..NGJ10 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-41501 |
1NRFE..NGJ10 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-41501 |
1NRFE..NGJ10 |
2 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-47020 |
1NRFE..NGJ10..CVFC |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-42501 |
1NRFE..NGJ10..CVFC |
1 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-47020 |
1NRFE..NGJ10 |
1 | ||
| 16283-47021 |
1NRFE..NGJ10 |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96136-42501 |
1NRFE..NGJ10 |
1 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 16291-47030 |
1NRFE..NGJ10..CVFC “GAZOO Racing tuned by MN” |
1 | ||
| 16291-47040 |
1NRFE..NGJ10..CVFC NO.2 |
1 | ||
| 16291-47020 |
1NRFE..NGJ10..CVFC NO.1 |
1 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 16291-47030 |
1NRFE..NGJ10..CVFC “GAZOO Racing tuned by MN” |
1 | ||
| 16291-47040 |
1NRFE..NGJ10..CVFC NO.2 |
1 | ||
| 16291-47020 |
1NRFE..NGJ10..CVFC NO.1 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-47021 |
1NRFE..NGJ10 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-47010 |
1NRFE..NGJ10 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-47010 |
1NRFE..NGJ10 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-47020 |
1NRFE..NGJ10 |
1 | ||
| 16326-47010 |
1NRFE..NGJ10 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03147 |
1NRFE..NGJ10 *WAX 82−95 |
1 | ||
| 16417 - COCK | ||||
| 16407-97201 |
1NRFE..NGJ10 |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-47030 |
1NRFE..NGJ10 |
2 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-47030 |
1NRFE..NGJ10 |
2 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-47010 |
1NRFE..NGJ10 |
1 | ||
| Common parts | ||||
| 90412-08004 | ||||
| 91551-80620 | ||||
| 91551-80625 | ||||
| 91551-80816 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 3414 | ||||
| 8716 | ||||

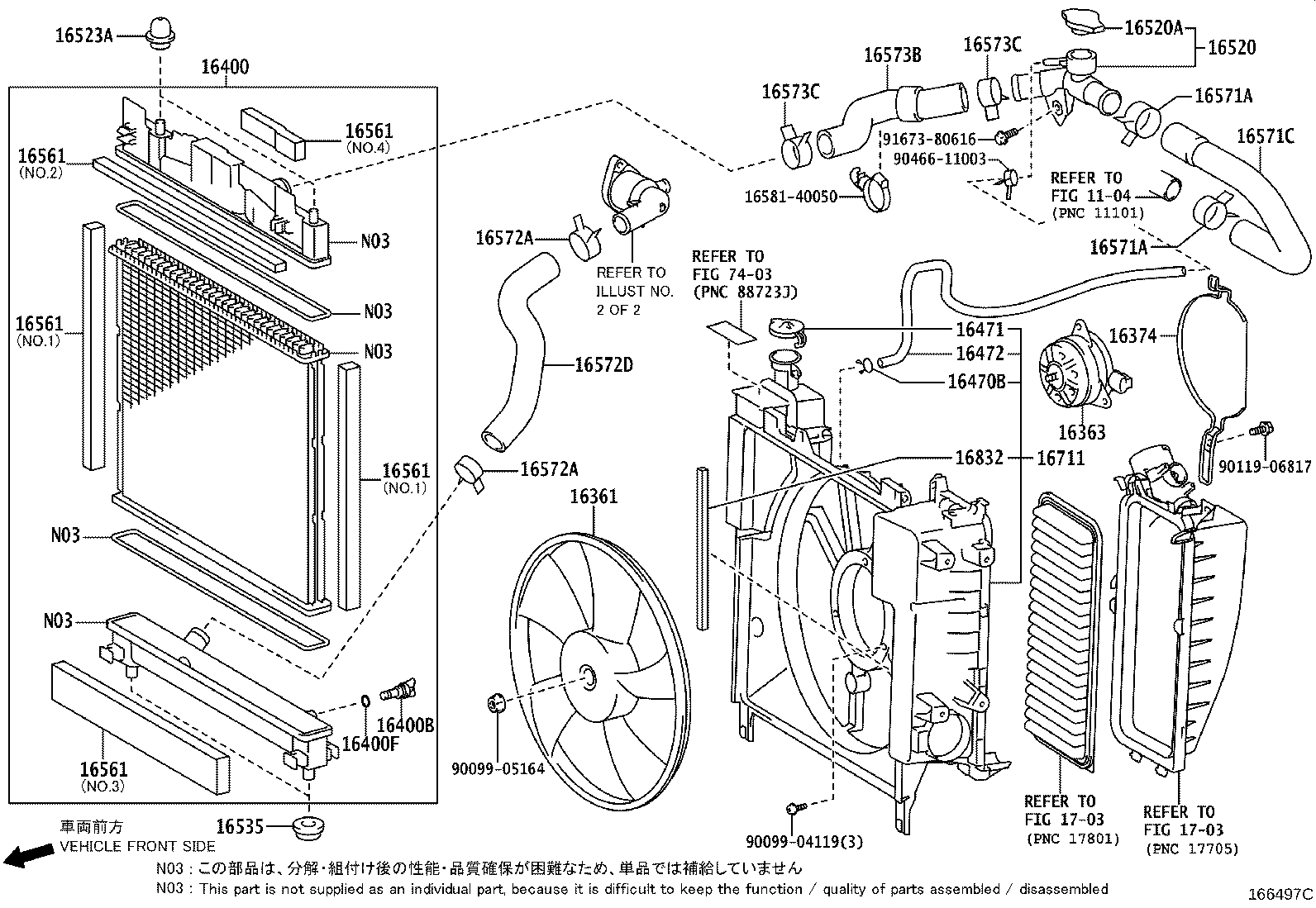

ILLUST NO. 1 OF 2(0908- )1NRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-40080 |
1NRFE..NGJ10 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-40010 |
1NRFE..NGJ10 |
1 | ||
| 16374 - INSULATOR, COOLING FAN MOTOR | ||||
| 16374-47010 |
1NRFE..NGJ10 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-40220 |
1NRFE..NGJ10 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
1NRFE..NGJ10 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1NRFE..NGJ10 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1NRFE..NGJ10 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-23030 |
1NRFE..NGJ10 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 16472-40020 |
1NRFE..NGJ10 |
1 | ||
| 16520 - FILLER ASSY, WATER | ||||
| 16520-40010 |
1NRFE..NGJ10 |
1 | ||
| 16520A - CAP SUB-ASSY, WATER FILLER | ||||
| 16401-31480 |
1NRFE..NGJ10 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-21030 |
1NRFE..NGJ10 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-22025 |
1NRFE..NGJ10 |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-40020 |
1NRFE..NGJ10 NO.1 |
2 | ||
| 16561-40040 |
1NRFE..NGJ10 NO.3 |
1 | ||
| 16561-40050 |
1NRFE..NGJ10 NO.4 |
1 | ||
| 16561-40030 |
1NRFE..NGJ10 NO.2 |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-40020 |
1NRFE..NGJ10 NO.1 |
2 | ||
| 16561-40040 |
1NRFE..NGJ10 NO.3 |
1 | ||
| 16561-40050 |
1NRFE..NGJ10 NO.4 |
1 | ||
| 16561-40030 |
1NRFE..NGJ10 NO.2 |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-40020 |
1NRFE..NGJ10 NO.1 |
2 | ||
| 16561-40040 |
1NRFE..NGJ10 NO.3 |
1 | ||
| 16561-40050 |
1NRFE..NGJ10 NO.4 |
1 | ||
| 16561-40030 |
1NRFE..NGJ10 NO.2 |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-40020 |
1NRFE..NGJ10 NO.1 |
2 | ||
| 16561-40040 |
1NRFE..NGJ10 NO.3 |
1 | ||
| 16561-40050 |
1NRFE..NGJ10 NO.4 |
1 | ||
| 16561-40030 |
1NRFE..NGJ10 NO.2 |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-40020 |
1NRFE..NGJ10 NO.1 |
2 | ||
| 16561-40040 |
1NRFE..NGJ10 NO.3 |
1 | ||
| 16561-40050 |
1NRFE..NGJ10 NO.4 |
1 | ||
| 16561-40030 |
1NRFE..NGJ10 NO.2 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96136-43901 |
1NRFE..NGJ10 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96136-43901 |
1NRFE..NGJ10 |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-47060 |
1NRFE..NGJ10 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96136-43901 |
1NRFE..NGJ10 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96136-43901 |
1NRFE..NGJ10 |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-47050 |
1NRFE..NGJ10 |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-47030 |
1NRFE..NGJ10 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96136-43901 |
1NRFE..NGJ10 |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96136-43901 |
1NRFE..NGJ10 |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-40040 |
1NRFE..NGJ10 |
1 | ||
| 16832 - SEAL, FAN SHROUD | ||||
| 16832-40010 |
1NRFE..NGJ10 |
1 | ||
| Common parts | ||||
| 16581-40050 | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-06817 | ||||
| 90466-11003 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1703 | ||||
| 7403 | ||||
