NGJ10-BGXNG (2009)
Toyota Iq
Production
Aug 2009
-
Mar 2016
Engine
1NRFE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)

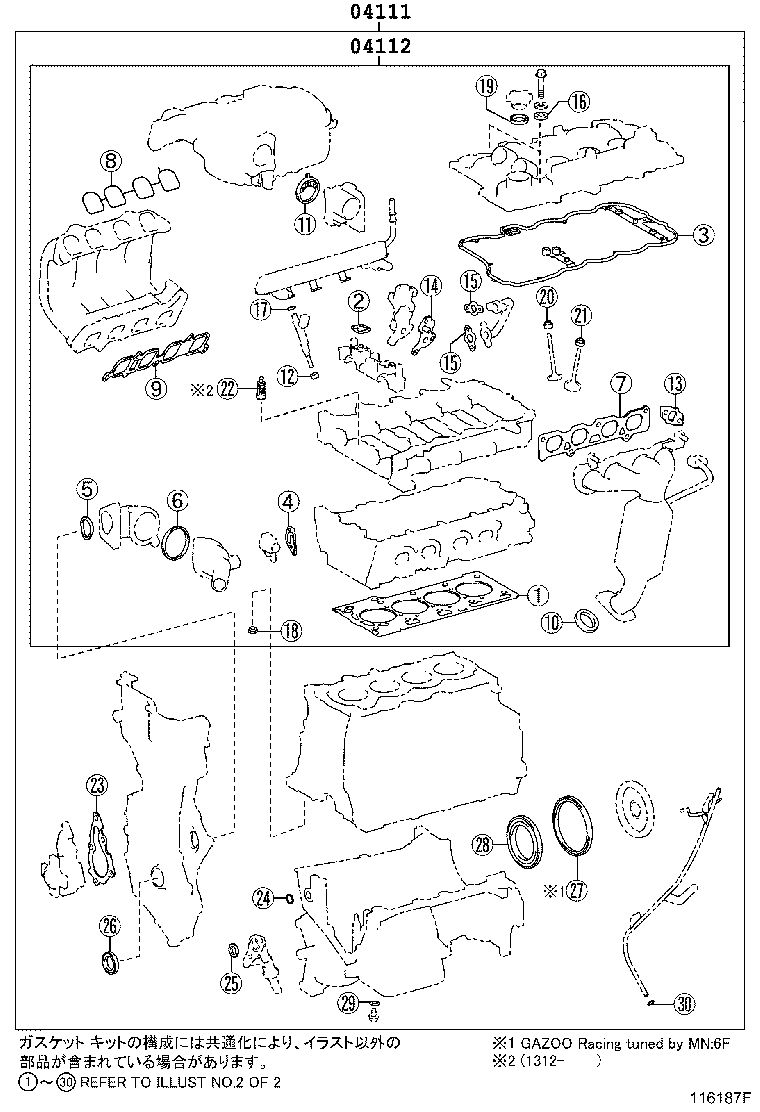

ILLUST NO. 1 OF 2(0908- )1NRFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04111 - GASKET KIT, ENGINE OVERHAUL | ||||
| 04111-47090 |
1NRFE..NGJ10..CVFC “GAZOO Racing tuned by MN” |
1 | ||
| 04111-47081 |
1NRFE..NGJ10..CVFC |
1 | ||
| 04111-47200 |
1NRFE..NGJ10..CVFC |
1 | ||
| 04111-47084 |
1NRFE..NGJ10..CVFC |
1 | ||
| 04111-47083 |
1NRFE..NGJ10..CVFC |
1 | ||
| 04111-47080 |
1NRFE..NGJ10 |
1 | ||
| 04111-47082 |
1NRFE..NGJ10..CVFC |
1 | ||
| 04112 - GASKET KIT, ENGINE VALVE GRIND | ||||
| 04112-47052 |
1NRFE..NGJ10 |
1 | ||
| 04112-47051 |
1NRFE..NGJ10 |
1 | ||
| 04112-47050 |
1NRFE..NGJ10 |
1 | ||
| 04112-47140 |
1NRFE..NGJ10 |
1 | ||
| 04112-47053 |
1NRFE..NGJ10 |
1 | ||

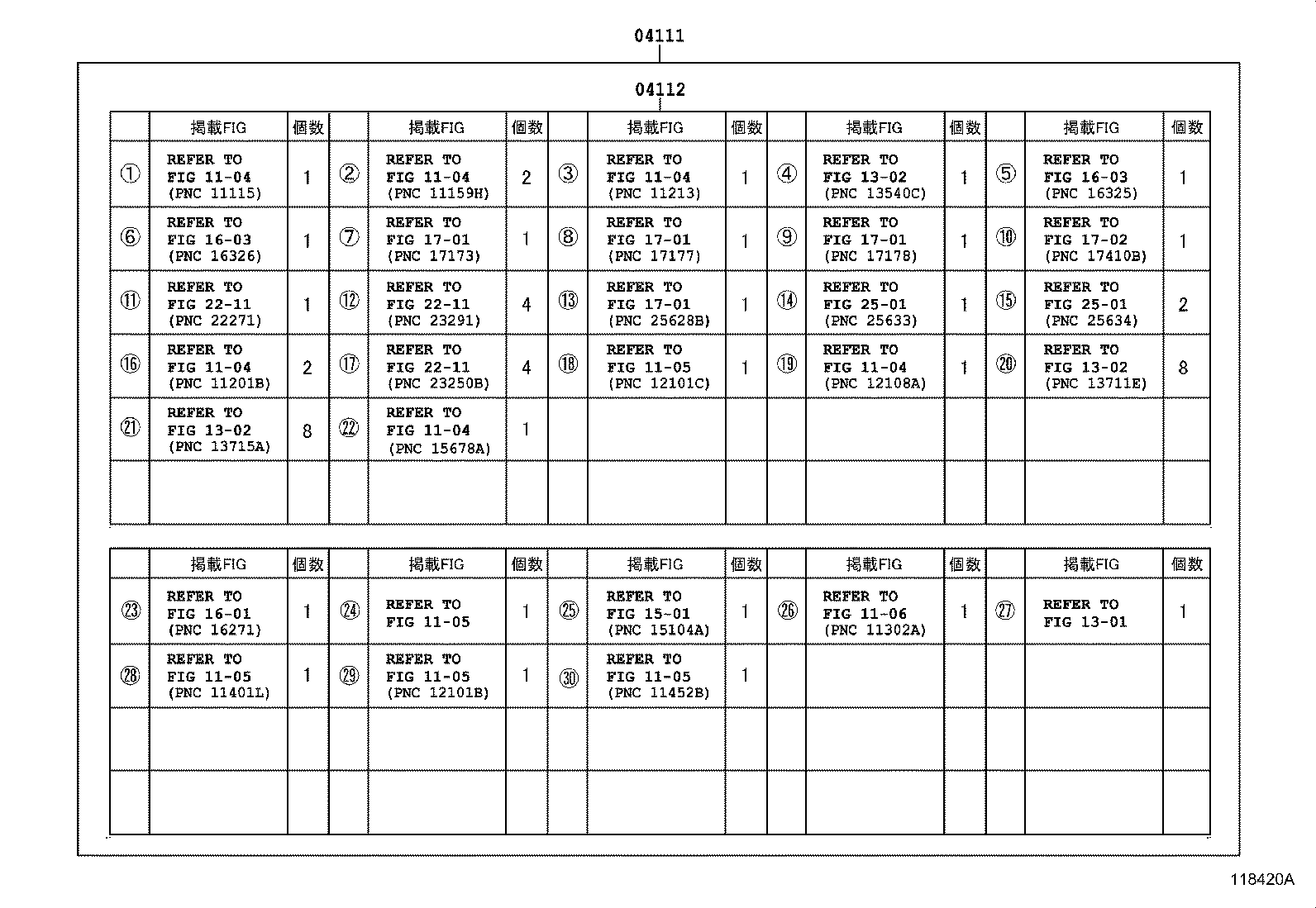

ILLUST NO. 2 OF 2(0908- )1NRFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04111 - GASKET KIT, ENGINE OVERHAUL | ||||
| 04111-47090 |
1NRFE..NGJ10..CVFC “GAZOO Racing tuned by MN” |
1 | ||
| 04111-47081 |
1NRFE..NGJ10..CVFC |
1 | ||
| 04111-47200 |
1NRFE..NGJ10..CVFC |
1 | ||
| 04111-47084 |
1NRFE..NGJ10..CVFC |
1 | ||
| 04111-47083 |
1NRFE..NGJ10..CVFC |
1 | ||
| 04111-47080 |
1NRFE..NGJ10 |
1 | ||
| 04111-47082 |
1NRFE..NGJ10..CVFC |
1 | ||
| 04112 - GASKET KIT, ENGINE VALVE GRIND | ||||
| 04112-47052 |
1NRFE..NGJ10 |
1 | ||
| 04112-47051 |
1NRFE..NGJ10 |
1 | ||
| 04112-47050 |
1NRFE..NGJ10 |
1 | ||
| 04112-47140 |
1NRFE..NGJ10 |
1 | ||
| 04112-47053 |
1NRFE..NGJ10 |
1 | ||
| Linked diagrams | ||||
| 1104 | ||||
| 1105 | ||||
| 1106 | ||||
| 1301 | ||||
| 1302 | ||||
| 1501 | ||||
| 1601 | ||||
| 1603 | ||||
| 1701 | ||||
| 1702 | ||||
| 2211 | ||||
| 2501 | ||||
