KGJ10-BGXRG (2008)
Toyota Iq
ILLUST NO. 1 OF 2(0811- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-74020E0 |
KGJ10,NGJ10 PLUM,TRIM4#,5# |
1 | ||
| 55301-74020C0 |
KGJ10..100X BLACK,TRIM1#,8# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-74020 |
KGJ10,NGJ10 |
1 | ||
| 55312 - PANEL, INSTRUMENT, LOWER | ||||
| 55312-74020B0 |
KGJ10..100X LT.GRAY,TRIM15 |
1 | ||
| 55312-74020E0 |
KGJ10..100X PLUM,TRIM10,4#,5# |
1 | ||
| 55312-74020C0 |
KGJ10..100X BLACK,TRIM8# |
1 | ||
| 55312-74020E0 |
KGJ10..100X PLUM,TRIM10 |
1 | ||
| 55312-74020B0 |
KGJ10..100X LT.GRAY,TRIM14 |
1 | ||
| 55312-74020E0 |
KGJ10,NGJ10 PLUM,TRIM1#,4#,5# |
1 | ||
| 55312-74020B0 |
KGJ10..100X LT.GRAY,TRIM1# |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-10201 |
KGJ10,NGJ10 |
7 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-10201 |
KGJ10,NGJ10 |
7 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-74020C0 |
KGJ10..100X BLACK,TRIM1#,4#,5#,8# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-74020C0 |
KGJ10..100X BLACK,TRIM1#,4#,5#,8# |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-74020 |
KGJ10,NGJ10..CVFC |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-12090 |
KGJ10,NGJ10 |
1 | ||
| 55355E - CUSHION, INSTRUMENT PANEL | ||||
| 55355-74010 |
KGJ10,NGJ10 |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-74010 |
KGJ10,NGJ10 |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-74010 |
KGJ10,NGJ10 |
1 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| 55394-74010 |
KGJ10,NGJ10 |
4 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| 55394-74010 |
KGJ10,NGJ10 |
4 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-74020E0 |
KGJ10,NGJ10 PLUM,TRIM1#,4#,5# |
1 | ||
| 73900-74020E0 |
KGJ10..100X PLUM,TRIM10,4#,5# |
1 | ||
| 73900-74020C0 |
KGJ10..100X BLACK,TRIM10,8# |
1 | ||
| 73900-74020B0 |
KGJ10..100X LT.GRAY,TRIM1# |
1 | ||
| 73900-74020B0 |
KGJ10..100X LT.GRAY,TRIM14,15 |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-74011 |
KGJ10,NGJ10 |
1 | ||
| 73960-74010 |
KGJ10,NGJ10 |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90119-06951 | ||||
| 90159-60383 | ||||
| 90159-60613 | ||||
| 90183-05103 | ||||
| 90467-10161 | ||||
| 90467-10203 | ||||
| 90901-19031 | ||||
| 91671-80616 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||

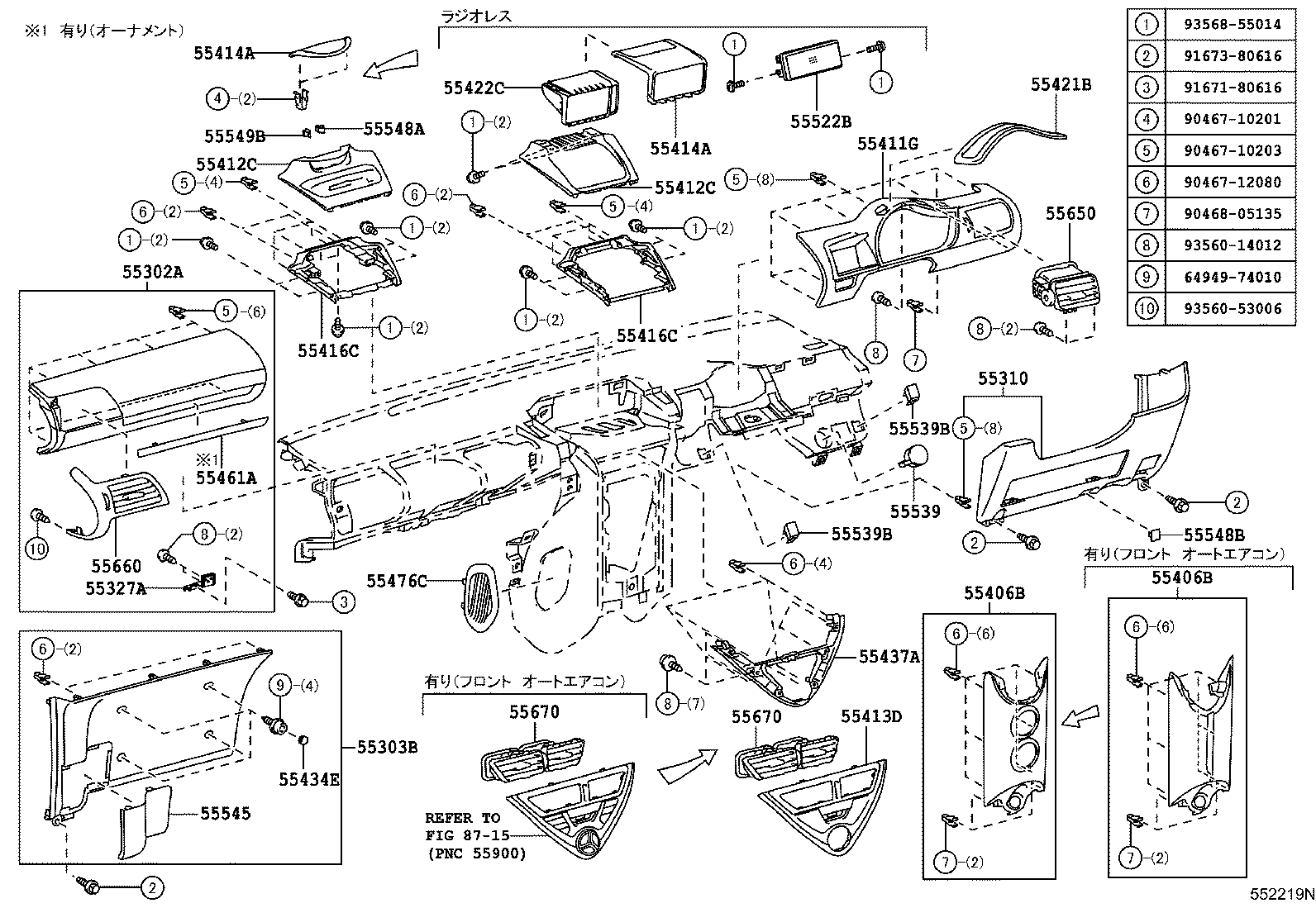

ILLUST NO. 2 OF 2(0811- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-74020C0 |
KGJ10..100X BLACK,TRIM1#,4#,8# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55320-74020E0 |
KGJ10,NGJ10 PLUM,TRIM1#,4#,5# |
1 | ||
| 55320-74020B0 |
KGJ10..100X LT.GRAY,TRIM14,15 |
1 | ||
| 55320-74020E0 |
KGJ10..100X PLUM,TRIM10,4#,5# |
1 | ||
| 55320-74020B0 |
KGJ10..100X LT.GRAY,TRIM1# |
1 | ||
| 55320-74020C0 |
KGJ10..100X BLACK,TRIM10,8# |
1 | ||
| 55310 - PANEL ASSY, INSTRUMENT, LOWER | ||||
| 55310-74020E0 |
KGJ10..100X PLUM,TRIM10,4#,5# |
1 | ||
| 55310-74020E0 |
KGJ10,NGJ10 PLUM,TRIM1#,4#,5# |
1 | ||
| 55310-74020C0 |
KGJ10..100X BLACK,TRIM10,8# |
1 | ||
| 55310-74020B0 |
KGJ10..100X LT.GRAY,TRIM14,15 |
1 | ||
| 55310-74020B0 |
KGJ10..100X LT.GRAY,TRIM1# |
1 | ||
| 55327A - STAY, INSTRUMENT PANEL, NO.2 | ||||
| 55327-74010C0 |
KGJ10..100X BLACK,TRIM1#,4# |
1 | ||
| 55327-74011C0 |
KGJ10..100X BLACK,TRIM1#,8# |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-74010C0 |
KGJ10..100X BLACK,TRIM1#,4#,8# |
1 | ||
| 55406-74020C0 |
KGJ10..100X ﾌﾛﾝﾄｴｱｺﾝ−ｵｰﾄ,BLACK,TRIM1#,4#,5# |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-74010C0 |
KGJ10..100X BLACK,TRIM1#,4#,8# |
1 | ||
| 55406-74020C0 |
KGJ10..100X ﾌﾛﾝﾄｴｱｺﾝ−ｵｰﾄ,BLACK,TRIM1#,4#,5# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-74020C0 |
KGJ10..100X BLACK,TRIM1#,4#,5#,8# |
1 | ||
| 55412C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1 | ||||
| 55412-74010B0 |
KGJ10,NGJ10..CVFC PLUM,TRIM1#,4# |
1 | ||
| 55412-74020B0 |
KGJ10,NGJ10..CVFC ｵｰﾃﾞｨｵ(日本向け用)−ﾗｼﾞｵﾚｽ(4ｽﾋﾟｰｶ+2ﾂｲｰﾀ付),PLUM,TRIM1#,4# |
1 | ||
| 55412-74020C0 |
KGJ10..100X ｵｰﾃﾞｨｵ(日本向け用)−ﾗｼﾞｵﾚｽ(4ｽﾋﾟｰｶ+2ﾂｲｰﾀ付),BLACK,TRIM1#,4#,8# |
1 | ||
| 55412-74010C0 |
KGJ10..100X BLACK,TRIM1#,4#,8# |
1 | ||
| 55412C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1 | ||||
| 55412-74010B0 |
KGJ10,NGJ10..CVFC PLUM,TRIM1#,4# |
1 | ||
| 55412-74020B0 |
KGJ10,NGJ10..CVFC ｵｰﾃﾞｨｵ(日本向け用)−ﾗｼﾞｵﾚｽ(4ｽﾋﾟｰｶ+2ﾂｲｰﾀ付),PLUM,TRIM1#,4# |
1 | ||
| 55412-74020C0 |
KGJ10..100X ｵｰﾃﾞｨｵ(日本向け用)−ﾗｼﾞｵﾚｽ(4ｽﾋﾟｰｶ+2ﾂｲｰﾀ付),BLACK,TRIM1#,4#,8# |
1 | ||
| 55412-74010C0 |
KGJ10..100X BLACK,TRIM1#,4#,8# |
1 | ||
| 55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER | ||||
| 55413-74010B0 |
KGJ10..100X PLUM,TRIM1#,4# |
1 | ||
| 55413-74010B0 |
KGJ10..100X ﾌﾛﾝﾄｴｱｺﾝ−ｵｰﾄ,PLUM,TRIM1#,4# |
1 | ||
| 55413-74010C0 |
KGJ10..100X BLACK,TRIM1#,8# |
1 | ||
| 55413-74010C0 |
KGJ10..100X ﾌﾛﾝﾄｴｱｺﾝ−ｵｰﾄ,BLACK,TRIM1#,8# |
1 | ||
| 55414A - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-74020B1 |
KGJ10,NGJ10..CVFC ｵｰﾃﾞｨｵ(日本向け用)−ﾗｼﾞｵﾚｽ(4ｽﾋﾟｰｶ+2ﾂｲｰﾀ付),PLUM,TRIM1#,4# |
1 | ||
| 55414-74010C0 |
KGJ10,NGJ10..CVFC BLACK,TRIM1#,4# |
1 | ||
| 55414-74020C1 |
KGJ10..100X ｵｰﾃﾞｨｵ(日本向け用)−ﾗｼﾞｵﾚｽ(4ｽﾋﾟｰｶ+2ﾂｲｰﾀ付),BLACK,TRIM1# |
1 | ||
| 55414-74030C1 |
KGJ10..100X BLACK,TRIM1#,5# |
1 | ||
| 55414A - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-74020B1 |
KGJ10,NGJ10..CVFC ｵｰﾃﾞｨｵ(日本向け用)−ﾗｼﾞｵﾚｽ(4ｽﾋﾟｰｶ+2ﾂｲｰﾀ付),PLUM,TRIM1#,4# |
1 | ||
| 55414-74010C0 |
KGJ10,NGJ10..CVFC BLACK,TRIM1#,4# |
1 | ||
| 55414-74020C1 |
KGJ10..100X ｵｰﾃﾞｨｵ(日本向け用)−ﾗｼﾞｵﾚｽ(4ｽﾋﾟｰｶ+2ﾂｲｰﾀ付),BLACK,TRIM1# |
1 | ||
| 55414-74030C1 |
KGJ10..100X BLACK,TRIM1#,5# |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-74020C0 |
KGJ10,NGJ10..CVFC ｵｰﾃﾞｨｵ(日本向け用)−ﾗｼﾞｵﾚｽ(4ｽﾋﾟｰｶ+2ﾂｲｰﾀ付),BLACK,TRIM1#,4# |
1 | ||
| 55416-74030C1 |
KGJ10..100X BLACK,TRIM1#,5#,8# |
1 | ||
| 55416-74040D0 |
KGJ10..100X ｵｰﾃﾞｨｵ(日本向け用)−ﾗｼﾞｵﾚｽ(4ｽﾋﾟｰｶ+2ﾂｲｰﾀ付),RED,TRIM4# |
1 | ||
| 55416-74040C1 |
KGJ10..100X ｵｰﾃﾞｨｵ(日本向け用)−ﾗｼﾞｵﾚｽ(4ｽﾋﾟｰｶ+2ﾂｲｰﾀ付),BLACK,TRIM1#,5#,8# |
1 | ||
| 55416-74010C0 |
KGJ10,NGJ10..CVFC BLACK,TRIM1#,4# |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-74020C0 |
KGJ10,NGJ10..CVFC ｵｰﾃﾞｨｵ(日本向け用)−ﾗｼﾞｵﾚｽ(4ｽﾋﾟｰｶ+2ﾂｲｰﾀ付),BLACK,TRIM1#,4# |
1 | ||
| 55416-74030C1 |
KGJ10..100X BLACK,TRIM1#,5#,8# |
1 | ||
| 55416-74040D0 |
KGJ10..100X ｵｰﾃﾞｨｵ(日本向け用)−ﾗｼﾞｵﾚｽ(4ｽﾋﾟｰｶ+2ﾂｲｰﾀ付),RED,TRIM4# |
1 | ||
| 55416-74040C1 |
KGJ10..100X ｵｰﾃﾞｨｵ(日本向け用)−ﾗｼﾞｵﾚｽ(4ｽﾋﾟｰｶ+2ﾂｲｰﾀ付),BLACK,TRIM1#,5#,8# |
1 | ||
| 55416-74010C0 |
KGJ10,NGJ10..CVFC BLACK,TRIM1#,4# |
1 | ||
| 55421B - PANEL, INSTRUMENT CLUSTER FINISH, UPPER | ||||
| 55421-74020C1 |
KGJ10..100X BLACK/PLUM,TRIM10,14,40,41 |
1 | ||
| 55421-74020C2 |
KGJ10..100X BLACK/BLACK,TRIM15,45,46,5# |
1 | ||
| 55421-74020C1 |
KGJ10 BLACK/PLUM,TRIM1#,4# |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55422-74010C0 |
KGJ10,NGJ10..CVFC ｵｰﾃﾞｨｵ(日本向け用)−ﾗｼﾞｵﾚｽ(4ｽﾋﾟｰｶ+2ﾂｲｰﾀ付),BLACK,TRIM1#,4# |
1 | ||
| 55422-74020C2 |
KGJ10..100X ｵｰﾃﾞｨｵ(日本向け用)−ﾗｼﾞｵﾚｽ(4ｽﾋﾟｰｶ+2ﾂｲｰﾀ付),BLACK/BLACK,TRIM1# |
1 | ||
| 55434E - CAP | ||||
| 64937-74010 |
KGJ10 |
4 | ||
| 64937-74020 |
KGJ10,NGJ10 |
4 | ||
| 64937-74010 |
KGJ10,NGJ10..CVFC |
4 | ||
| 55437A - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1 | ||||
| 55437-74010C0 |
KGJ10..100X ﾌﾛﾝﾄｴｱｺﾝ−ｵｰﾄ,BLACK,TRIM1#,4# |
1 | ||
| 55437-74010C0 |
KGJ10..100X BLACK,TRIM1#,4# |
1 | ||
| 55437-74020C1 |
KGJ10..100X BLACK,TRIM1#,8# |
1 | ||
| 55437-74020C1 |
KGJ10..100X ﾌﾛﾝﾄｴｱｺﾝ−ｵｰﾄ,BLACK,TRIM1#,8# |
1 | ||
| 55476C - GARNISH, INSTRUMENT PANEL FINISH PLATE | ||||
| 55476-74020B0 |
KGJ10..100X LT.GRAY,TRIM14 |
1 | ||
| 55476-74030E0 |
KGJ10..100X PLUM,TRIM1#,4#,ﾌｨﾝ可動ﾀｲﾌﾟ |
1 | ||
| 55476-74020B0 |
KGJ10..100X LT.GRAY,TRIM15 |
1 | ||
| 55476-74020E0 |
KGJ10..100X PLUM,TRIM10 |
1 | ||
| 55476-74020E0 |
KGJ10..100X PLUM,TRIM10,4#,5# |
1 | ||
| 55476-74030E0 |
NGJ10..6F;KGJ10..100X PLUM,TRIM10,4#,ﾌｨﾝ可動ﾀｲﾌﾟ |
1 | ||
| 55476-74020C0 |
KGJ10..100X BLACK,TRIM8# |
1 | ||
| 55476-74020E0 |
KGJ10,NGJ10 PLUM,TRIM1#,4#,5# |
1 | ||
| 55476-74030B0 |
KGJ10..100X LT.GRAY,TRIM14,15,ﾌｨﾝ可動ﾀｲﾌﾟ |
1 | ||
| 55476-74030B0 |
KGJ10..100X LT.GRAY,TRIM1#,ﾌｨﾝ可動ﾀｲﾌﾟ |
1 | ||
| 55476-74020B0 |
KGJ10..100X LT.GRAY,TRIM1# |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
KGJ10,NGJ10 ｵｰﾃﾞｨｵ(日本向け用)−ﾗｼﾞｵﾚｽ(4ｽﾋﾟｰｶ+2ﾂｲｰﾀ付) |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52040B1 |
KGJ10..100X ﾌﾛﾝﾄｴｱｺﾝ−ｵｰﾄ,LT.GRAY,TRIM15 |
1 | ||
| 55539-52040E1 |
KGJ10..100X ﾌﾛﾝﾄｴｱｺﾝ−ｵｰﾄ,PLUM,TRIM1#,4# |
1 | ||
| 55539-52040B0 |
KGJ10..100X DK.GRAY,TRIM1#,8# |
1 | ||
| 55539-52040E1 |
KGJ10..100X PLUM,TRIM1#,4# |
1 | ||
| 55539-52040E1 |
KGJ10..100X PLUM,TRIM10,4# |
1 | ||
| 55539-52040E1 |
KGJ10..100X ﾌﾛﾝﾄｴｱｺﾝ−ｵｰﾄ,PLUM,TRIM10,4# |
1 | ||
| 55539-52040B1 |
KGJ10..100X LT.GRAY,TRIM15 |
1 | ||
| 55539-52040B0 |
KGJ10..100X ﾌﾛﾝﾄｴｱｺﾝ−ｵｰﾄ,DK.GRAY,TRIM1#,8# |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-52060E9 |
KGJ10,NGJ10 PLUM,TRIM1#,4#,5# |
1 | ||
| 55539-52060B0 |
KGJ10..100X DK.GRAY,TRIM1#,8# |
1 | ||
| 55539-52060B0 |
KGJ10..100X 寒冷地仕様,DK.GRAY,TRIM1#,8# |
1 | ||
| 55539-52060E9 |
KGJ10,NGJ10 寒冷地仕様,PLUM,TRIM1#,4#,5# |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-52060E9 |
KGJ10,NGJ10 PLUM,TRIM1#,4#,5# |
1 | ||
| 55539-52060B0 |
KGJ10..100X DK.GRAY,TRIM1#,8# |
1 | ||
| 55539-52060B0 |
KGJ10..100X 寒冷地仕様,DK.GRAY,TRIM1#,8# |
1 | ||
| 55539-52060E9 |
KGJ10,NGJ10 寒冷地仕様,PLUM,TRIM1#,4#,5# |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-74020E0 |
KGJ10..100X PLUM,TRIM10,4#,5# |
1 | ||
| 55545-74020B0 |
KGJ10..100X LT.GRAY,TRIM14,15 |
1 | ||
| 55545-74020C0 |
KGJ10..100X BLACK,TRIM8# |
1 | ||
| 55545-74020E0 |
KGJ10,NGJ10 PLUM,TRIM1#,4#,5# |
1 | ||
| 55545-74020B0 |
KGJ10..100X LT.GRAY,TRIM1# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-74011 |
KGJ10,NGJ10 |
1 | ||
| 55548-74010 |
KGJ10 |
1 | ||
| 55548B - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-12090B2 |
KGJ10..100X LT.GRAY,TRIM14,15 |
1 | ||
| 55548-12090E1 |
KGJ10,NGJ10 PLUM,TRIM1#,4#,5# |
1 | ||
| 55548-12090E1 |
KGJ10..100X PLUM,TRIM10,4#,5# |
1 | ||
| 55548-12090B2 |
KGJ10..100X LT.GRAY,TRIM1# |
1 | ||
| 55549B - COVER, INSTRUMENT PANEL HOLE, NO.2 | ||||
| 55549-74010 |
KGJ10 |
1 | ||
| 55549-74011 |
KGJ10,NGJ10 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-74020C0 |
KGJ10..100X BLACK,TRIM1#,4#,5#,8# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-74020C0 |
KGJ10..100X BLACK,TRIM1#,4#,8# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-74010C0 |
KGJ10..100X BLACK,TRIM1#,4# |
1 | ||
| 55670-74010C0 |
KGJ10..100X ﾌﾛﾝﾄｴｱｺﾝ−ｵｰﾄ,BLACK,TRIM1# |
1 | ||
| 55670-74010C0 |
KGJ10..100X ﾌﾛﾝﾄｴｱｺﾝ−ｵｰﾄ,BLACK,TRIM1# |
1 | ||
| 55670-74010C0 |
KGJ10..100X BLACK,TRIM1# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-74010C0 |
KGJ10..100X BLACK,TRIM1#,4# |
1 | ||
| 55670-74010C0 |
KGJ10..100X ﾌﾛﾝﾄｴｱｺﾝ−ｵｰﾄ,BLACK,TRIM1# |
1 | ||
| 55670-74010C0 |
KGJ10..100X ﾌﾛﾝﾄｴｱｺﾝ−ｵｰﾄ,BLACK,TRIM1# |
1 | ||
| 55670-74010C0 |
KGJ10..100X BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 64949-74010 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90468-05135 | ||||
| 91671-80616 | ||||
| 91673-80616 | ||||
| 93560-14012 | ||||
| 93560-53006 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
