SXM15G-ARSSK (1997)

Toyota Ipsum

Production Aug 1997 - May 2001
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

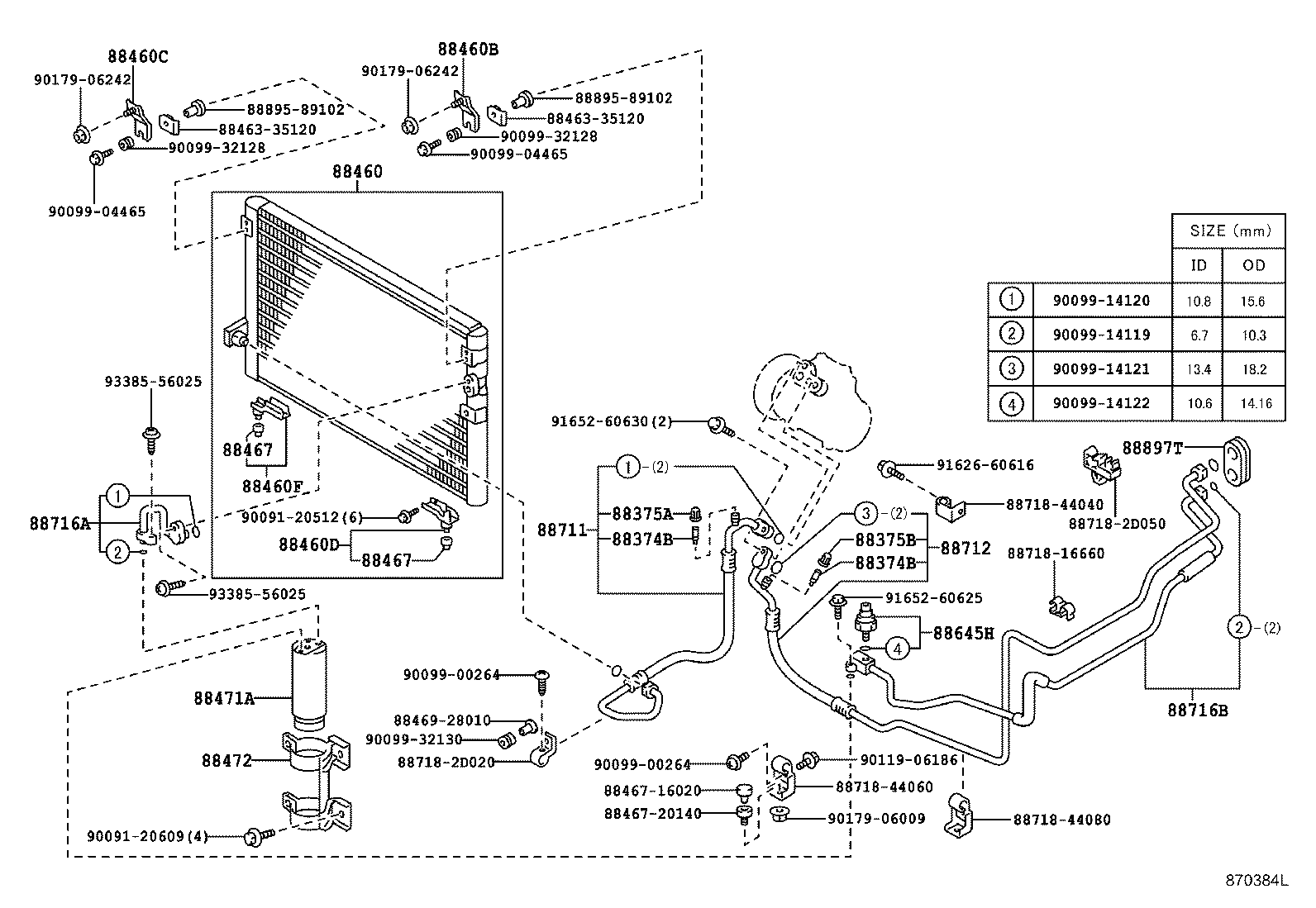

ILLUST NO. 1 OF 2(9605-9804)SXM1#

Click highlighted areas on diagram

FRONT---SINGLE

diagram 88374B 88374B 88375A 88375B 88460 88460B 88460C 88460D 88460F 8846335120 8846335120 88467 88467 8846716020 8846720140 8846928010 88471A 88472 88645H 88711 88712 88716A 88716B 8871816660 887182D020 887182D050 8871844040 8871844060 8871844080 8889589102 8889589102 88897T 9009120512 9009120609 9009900264 9009900264 9009904465 9009904465 9009914119 9009914120 9009914121 9009914122 9009932128 9009932128 9009932130 9011906186 9017906009 9017906242 9017906242 9162660616 9165260625 9165260630 9338556025 9338556025
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

CXM10,SXM1#

 2
88374-30010

CXM10,SXM1#..ATG,IPSUM,L

 1
88374-30010

CXM10,SXM1#

 1
88374B - VALVE, SERVICE, NO.1
88374-30010

CXM10,SXM1#

 2
88374-30010

CXM10,SXM1#..ATG,IPSUM,L

 1
88374-30010

CXM10,SXM1#

 1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

CXM10,SXM1#..ATG,IPSUM,L

 1
88375-30280

CXM10,SXM1#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

CXM10,SXM1#

 1
88375-30290

CXM10,SXM1#

 1
88375-30290

CXM10,SXM1#..ATG,IPSUM,L

 1
88460 - CONDENSER ASSY, COOLER
88460-44010

SXM1#..ATG

 1
88460-44310

SXM1#..ATG,IPSUM,L

 1
88460-44030

SXM1#..E

ｱﾘ(ｼﾝｸﾞﾙｴｱｺﾝ)

 1
88460-44030

SXM1#..E,IPSUM

ｱﾘ(ｼﾝｸﾞﾙｴｱｺﾝ)

 1
88460-44010

SXM1#

ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ)

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-44110

CXM10,SXM1#..ATG,IPSUM,L

 1
88688-44070

CXM10,SXM1#

 1
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-44060

CXM10,SXM1#

 1
88460D - BRACKET, COOLER CONDENSER, NO.3
88688-44030

CXM10,SXM1#

 1
88460F - BRACKET, COOLER CONDENSER, NO.4
88688-44040

CXM10,SXM1#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-32060

CXM10,SXM1#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-32060

CXM10,SXM1#

 2
88471A - TANK, RECEIVER
88471-28070

SXM1#

ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ)

 1
88471-28100

SXM1#..ATG;CXM10..IPSUM,L

 1
88471-34010

SXM1#..E,IPSUM

 1
88471-20050

CXM10,SXM1#..E

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-44020

CXM10,SXM1#

 1
88645H - SWITCH, PRESSURE NO.1
88645-20050

SXM1#

 1
88645-20050

SXM1#..ATG,IPSUM,L

 1
88645-20050

SXM1#..ATG,IPSUM,L

製造工場NO.C21−C26

 1
88645-44010

SXM1#..ATG,IPSUM,L

製造工場NO.A21−A26

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-44150

CXM10,SXM1#..ATG,IPSUM,L

 1
88711-44220

CXM10,SXM1#..ATG,IPSUM,L

 1
88711-44010

SXM1#

 1
88711-44090

SXM1#..ATG,IPSUM,L

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-44020

SXM1#

ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ)

 1
88712-44020

SXM1#..ATG,IPSUM,L

 1
88712-44010

SXM1#..E,IPSUM

 1
88712-44050

SXM1#..ATG

 1
88712-44100

SXM1#..E

 1
88712-44290

SXM1#..ATG,IPSUM,L

 1
88712-44150

SXM1#..ATG,IPSUM,L

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-44120

SXM1#..E,IPSUM

 1
88716-44120

CXM10,SXM1#..E

 1
88716-44010

SXM1#

ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ)

 1
88716-44010

SXM1#..ATG;CXM10..IPSUM,L

 1
88716-44210

CXM10,SXM1#..ATG,IPSUM,L

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-44440

SXM1#..ATG,IPSUM,L

製造工場NO.C21−C26

 1
88716-44180

SXM1#..ATG,IPSUM,L

 1
88716-44050

SXM1#

ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ)

 1
88716-44190

SXM1#..E

 1
88716-44040

SXM1#..E,IPSUM

 1
88716-44230

SXM1#..ATG,IPSUM,L

製造工場NO.A21−A26

 1
88897T - GROMMET, COOLER
88897-44010

SXM1#

 1
88897-44010

CXM10;SXM1#..ATG,L

 1
88897-44010

CXM10,SXM1#

 1
Common parts
88463-35120
88467-16020
88467-20140
88469-28010
88718-16660
88718-2D020
88718-2D050
88718-44040
88718-44060
88718-44080
88895-89102
90091-20512
90091-20609
90099-00264
90099-04465
90099-14119
90099-14120
90099-14121
90099-14122
90099-32128
90099-32130
90119-06186
90179-06009
90179-06242
91626-60616
91652-60625
91652-60630
93385-56025

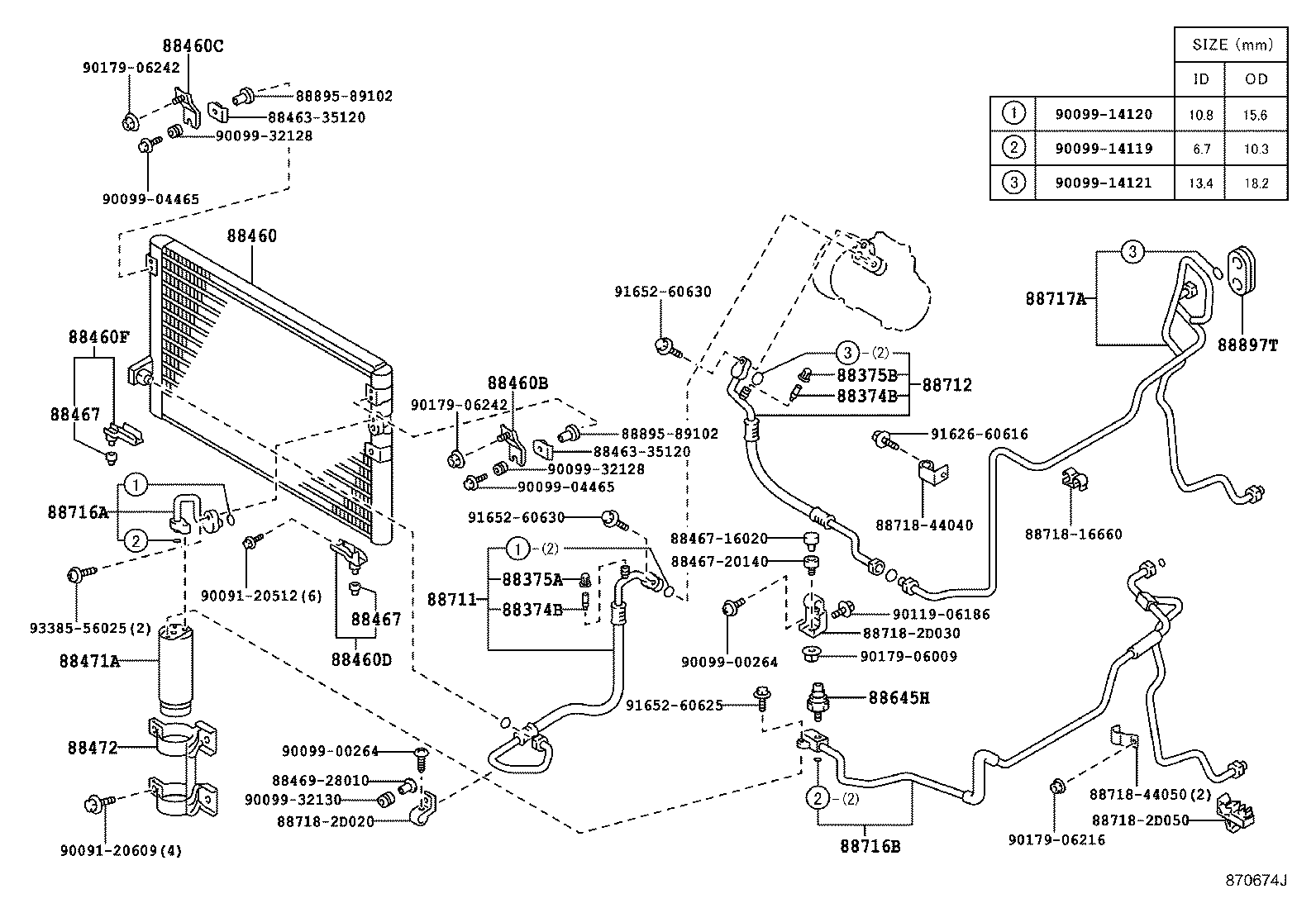

ILLUST NO. 1 OF 2(9605-9804)SXM1#

Click highlighted areas on diagram

FRONT---DUAL

diagram 88374B 88374B 88375A 88375B 88460 88460B 88460C 88460D 88460F 8846335120 8846335120 88467 88467 8846716020 8846720140 8846928010 88471A 88472 88645H 88711 88712 88716A 88716B 88717A 8871816660 887182D020 887182D030 887182D050 8871844040 8871844050 8889589102 8889589102 88897T 9009120512 9009120609 9009900264 9009900264 9009904465 9009904465 9009914119 9009914120 9009914121 9009932128 9009932128 9009932130 9011906186 9017906009 9017906216 9017906242 9017906242 9162660616 9165260625 9165260630 9165260630 9338556025
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

CXM10,SXM1#

 2
88374-30010

CXM10,SXM1#..ATG,IPSUM,L

 1
88374-30010

CXM10,SXM1#

 1
88374B - VALVE, SERVICE, NO.1
88374-30010

CXM10,SXM1#

 2
88374-30010

CXM10,SXM1#..ATG,IPSUM,L

 1
88374-30010

CXM10,SXM1#

 1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

CXM10,SXM1#..ATG,IPSUM,L

 1
88375-30280

CXM10,SXM1#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

CXM10,SXM1#

 1
88375-30290

CXM10,SXM1#

 1
88375-30290

CXM10,SXM1#..ATG,IPSUM,L

 1
88460 - CONDENSER ASSY, COOLER
88460-44010

SXM1#..ATG

 1
88460-44310

SXM1#..ATG,IPSUM,L

 1
88460-44030

SXM1#..E

ｱﾘ(ｼﾝｸﾞﾙｴｱｺﾝ)

 1
88460-44030

SXM1#..E,IPSUM

ｱﾘ(ｼﾝｸﾞﾙｴｱｺﾝ)

 1
88460-44010

SXM1#

ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ)

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-44110

CXM10,SXM1#..ATG,IPSUM,L

 1
88688-44070

CXM10,SXM1#

 1
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-44060

CXM10,SXM1#

 1
88460D - BRACKET, COOLER CONDENSER, NO.3
88688-44030

CXM10,SXM1#

 1
88460F - BRACKET, COOLER CONDENSER, NO.4
88688-44040

CXM10,SXM1#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-32060

CXM10,SXM1#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-32060

CXM10,SXM1#

 2
88471A - TANK, RECEIVER
88471-28070

SXM1#

ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ)

 1
88471-28100

SXM1#..ATG;CXM10..IPSUM,L

 1
88471-34010

SXM1#..E,IPSUM

 1
88471-20050

CXM10,SXM1#..E

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-44020

CXM10,SXM1#

 1
88645H - SWITCH, PRESSURE NO.1
88645-20050

SXM1#

 1
88645-20050

SXM1#..ATG,IPSUM,L

 1
88645-20050

SXM1#..ATG,IPSUM,L

製造工場NO.C21−C26

 1
88645-44010

SXM1#..ATG,IPSUM,L

製造工場NO.A21−A26

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-44150

CXM10,SXM1#..ATG,IPSUM,L

 1
88711-44220

CXM10,SXM1#..ATG,IPSUM,L

 1
88711-44010

SXM1#

 1
88711-44090

SXM1#..ATG,IPSUM,L

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-44020

SXM1#

ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ)

 1
88712-44020

SXM1#..ATG,IPSUM,L

 1
88712-44010

SXM1#..E,IPSUM

 1
88712-44050

SXM1#..ATG

 1
88712-44100

SXM1#..E

 1
88712-44290

SXM1#..ATG,IPSUM,L

 1
88712-44150

SXM1#..ATG,IPSUM,L

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-44120

SXM1#..E,IPSUM

 1
88716-44120

CXM10,SXM1#..E

 1
88716-44010

SXM1#

ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ)

 1
88716-44010

SXM1#..ATG;CXM10..IPSUM,L

 1
88716-44210

CXM10,SXM1#..ATG,IPSUM,L

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-44440

SXM1#..ATG,IPSUM,L

製造工場NO.C21−C26

 1
88716-44180

SXM1#..ATG,IPSUM,L

 1
88716-44050

SXM1#

ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ)

 1
88716-44190

SXM1#..E

 1
88716-44040

SXM1#..E,IPSUM

 1
88716-44230

SXM1#..ATG,IPSUM,L

製造工場NO.A21−A26

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-44010

SXM1#

 1
88717-44080

SXM1#..ATG,IPSUM,L

 1
88717-44090

SXM1#..ATG,IPSUM,L

 1
88897T - GROMMET, COOLER
88897-44010

SXM1#

 1
88897-44010

CXM10;SXM1#..ATG,L

 1
88897-44010

CXM10,SXM1#

 1
Common parts
88463-35120
88467-16020
88467-20140
88469-28010
88718-16660
88718-2D020
88718-2D030
88718-2D050
88718-44040
88718-44050
88895-89102
90091-20512
90091-20609
90099-00264
90099-04465
90099-14119
90099-14120
90099-14121
90099-32128
90099-32130
90119-06186
90179-06009
90179-06216
90179-06242
91626-60616
91652-60625
91652-60630
93385-56025

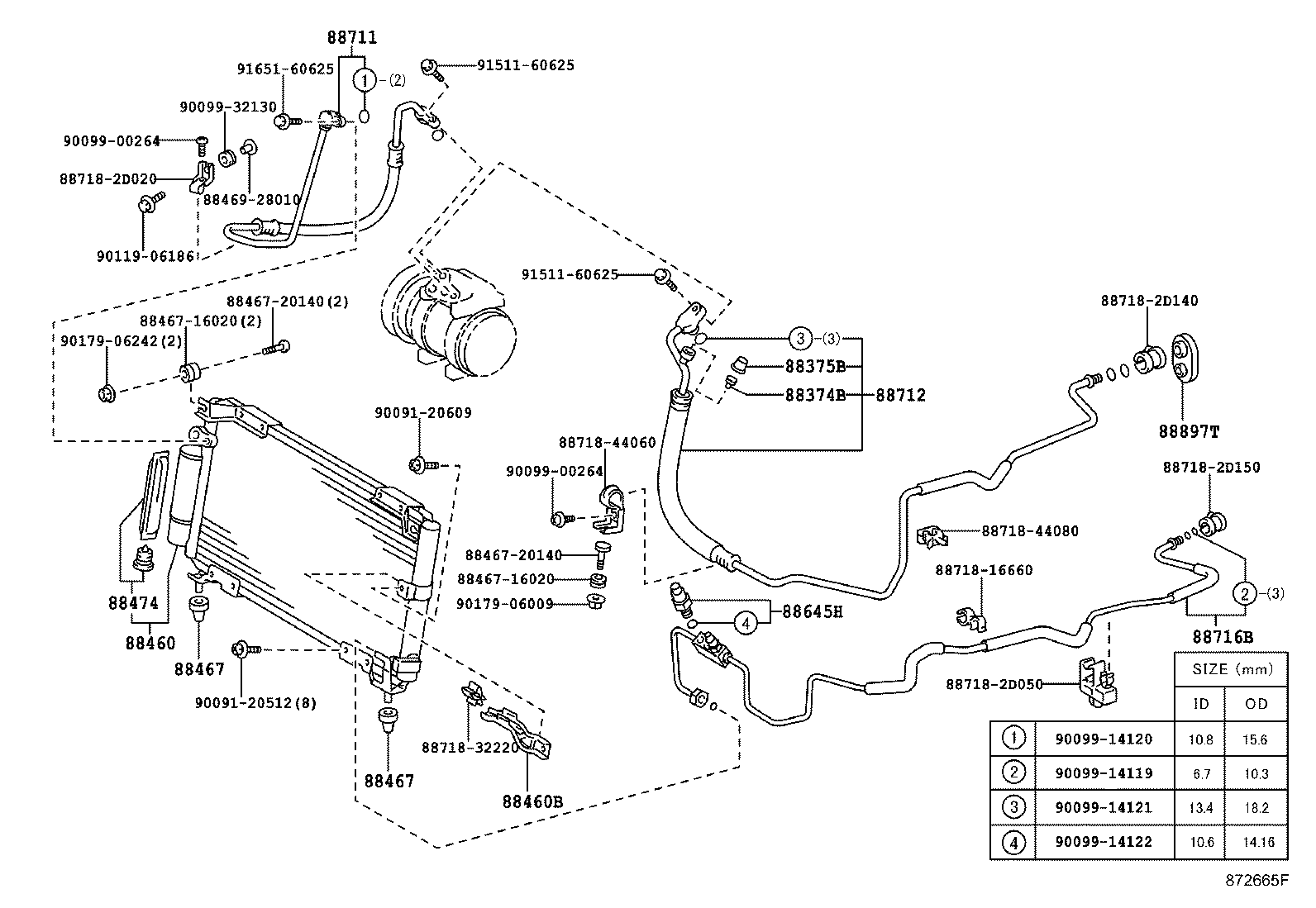

ILLUST NO. 1 OF 2(9804- )SXM1#

Click highlighted areas on diagram

FRONT---SINGLE

diagram 88374B 88375B 88460 88460B 88467 88467 8846716020 8846716020 8846720140 8846720140 8846928010 88474 88645H 88711 88712 88716B 8871816660 887182D020 887182D050 887182D140 887182D150 8871832220 8871844060 8871844080 88897T 9009120512 9009120609 9009900264 9009900264 9009914119 9009914120 9009914121 9009914122 9009932130 9011906186 9017906009 9017906242 9151160625 9151160625 9165160625
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

CXM10,SXM1#

 2
88374-30010

CXM10,SXM1#..ATG,IPSUM,L

 1
88374-30010

CXM10,SXM1#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

CXM10,SXM1#

 1
88375-30290

CXM10,SXM1#

 1
88375-30290

CXM10,SXM1#..ATG,IPSUM,L

 1
88460 - CONDENSER ASSY, COOLER
88460-44010

SXM1#..ATG

 1
88460-44310

SXM1#..ATG,IPSUM,L

 1
88460-44030

SXM1#..E

ｱﾘ(ｼﾝｸﾞﾙｴｱｺﾝ)

 1
88460-44030

SXM1#..E,IPSUM

ｱﾘ(ｼﾝｸﾞﾙｴｱｺﾝ)

 1
88460-44010

SXM1#

ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ)

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-44110

CXM10,SXM1#..ATG,IPSUM,L

 1
88688-44070

CXM10,SXM1#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-32060

CXM10,SXM1#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-32060

CXM10,SXM1#

 2
88474 - DRYER, COOLER
88474-22010

CXM10,SXM1#..ATG,IPSUM,L

 1
88474-47010

CXM10,SXM1#

 1
88645H - SWITCH, PRESSURE NO.1
88645-20050

SXM1#

 1
88645-20050

SXM1#..ATG,IPSUM,L

 1
88645-20050

SXM1#..ATG,IPSUM,L

製造工場NO.C21−C26

 1
88645-44010

SXM1#..ATG,IPSUM,L

製造工場NO.A21−A26

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-44150

CXM10,SXM1#..ATG,IPSUM,L

 1
88711-44220

CXM10,SXM1#..ATG,IPSUM,L

 1
88711-44010

SXM1#

 1
88711-44090

SXM1#..ATG,IPSUM,L

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-44020

SXM1#

ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ)

 1
88712-44020

SXM1#..ATG,IPSUM,L

 1
88712-44010

SXM1#..E,IPSUM

 1
88712-44050

SXM1#..ATG

 1
88712-44100

SXM1#..E

 1
88712-44290

SXM1#..ATG,IPSUM,L

 1
88712-44150

SXM1#..ATG,IPSUM,L

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-44440

SXM1#..ATG,IPSUM,L

製造工場NO.C21−C26

 1
88716-44180

SXM1#..ATG,IPSUM,L

 1
88716-44050

SXM1#

ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ)

 1
88716-44190

SXM1#..E

 1
88716-44040

SXM1#..E,IPSUM

 1
88716-44230

SXM1#..ATG,IPSUM,L

製造工場NO.A21−A26

 1
88897T - GROMMET, COOLER
88897-44010

SXM1#

 1
88897-44010

CXM10;SXM1#..ATG,L

 1
88897-44010

CXM10,SXM1#

 1
Common parts
88467-16020
88467-20140
88469-28010
88718-16660
88718-2D020
88718-2D050
88718-2D140
88718-2D150
88718-32220
88718-44060
88718-44080
90091-20512
90091-20609
90099-00264
90099-14119
90099-14120
90099-14121
90099-14122
90099-32130
90119-06186
90179-06009
90179-06242
91511-60625
91651-60625

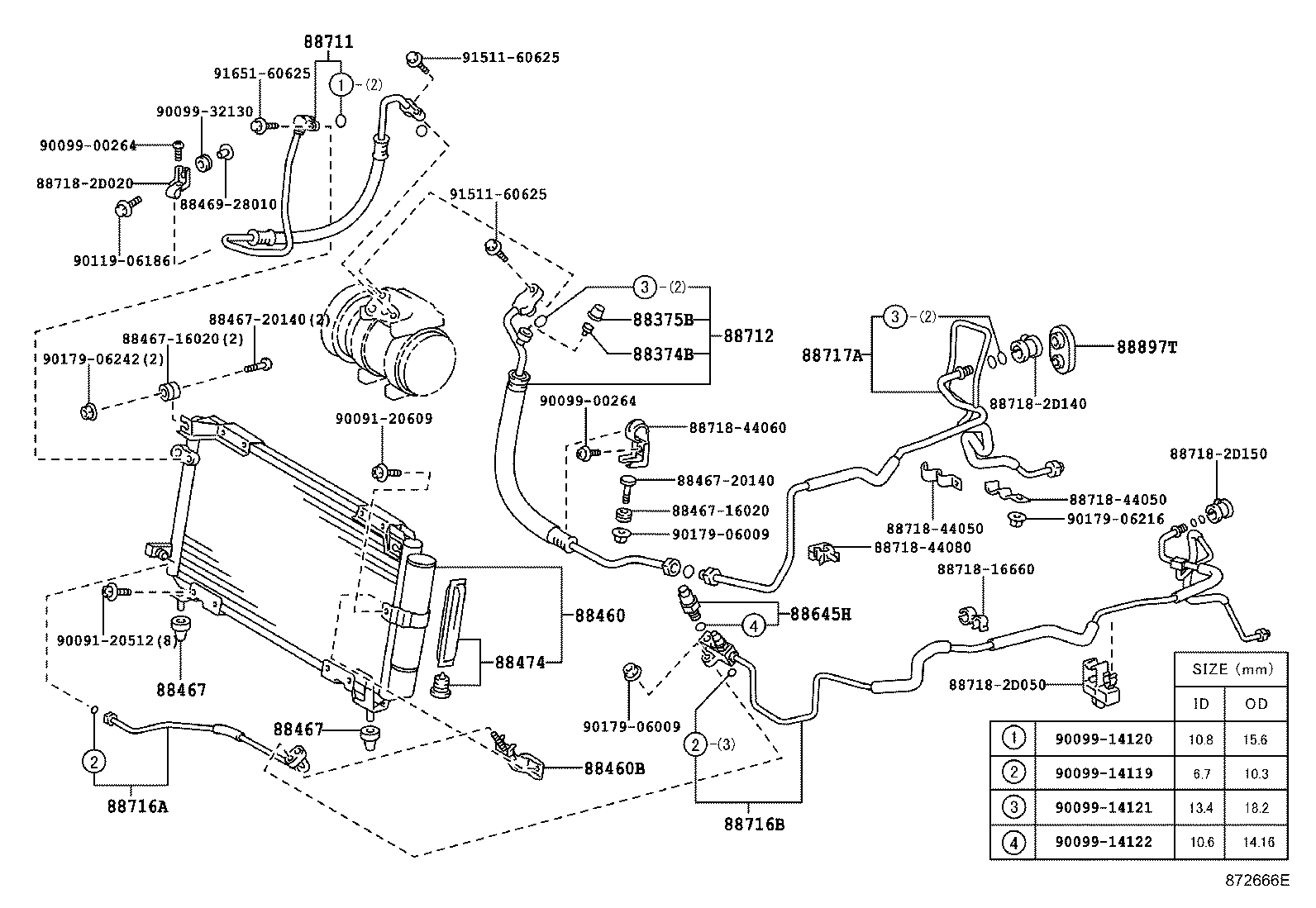

ILLUST NO. 1 OF 2(9804- )SXM1#

Click highlighted areas on diagram

FRONT---DUAL

diagram 88374B 88375B 88460 88460B 88467 88467 8846716020 8846716020 8846720140 8846720140 8846928010 88474 88645H 88711 88712 88716A 88716B 88717A 8871816660 887182D020 887182D050 887182D140 887182D150 8871844050 8871844050 8871844060 8871844080 88897T 9009120512 9009120609 9009900264 9009900264 9009914119 9009914120 9009914121 9009914122 9009932130 9011906186 9017906009 9017906009 9017906216 9017906242 9151160625 9151160625 9165160625
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

CXM10,SXM1#

 2
88374-30010

CXM10,SXM1#..ATG,IPSUM,L

 1
88374-30010

CXM10,SXM1#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

CXM10,SXM1#

 1
88375-30290

CXM10,SXM1#

 1
88375-30290

CXM10,SXM1#..ATG,IPSUM,L

 1
88460 - CONDENSER ASSY, COOLER
88460-44010

SXM1#..ATG

 1
88460-44310

SXM1#..ATG,IPSUM,L

 1
88460-44030

SXM1#..E

ｱﾘ(ｼﾝｸﾞﾙｴｱｺﾝ)

 1
88460-44030

SXM1#..E,IPSUM

ｱﾘ(ｼﾝｸﾞﾙｴｱｺﾝ)

 1
88460-44010

SXM1#

ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ)

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-44110

CXM10,SXM1#..ATG,IPSUM,L

 1
88688-44070

CXM10,SXM1#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-32060

CXM10,SXM1#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-32060

CXM10,SXM1#

 2
88474 - DRYER, COOLER
88474-22010

CXM10,SXM1#..ATG,IPSUM,L

 1
88474-47010

CXM10,SXM1#

 1
88645H - SWITCH, PRESSURE NO.1
88645-20050

SXM1#

 1
88645-20050

SXM1#..ATG,IPSUM,L

 1
88645-20050

SXM1#..ATG,IPSUM,L

製造工場NO.C21−C26

 1
88645-44010

SXM1#..ATG,IPSUM,L

製造工場NO.A21−A26

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-44150

CXM10,SXM1#..ATG,IPSUM,L

 1
88711-44220

CXM10,SXM1#..ATG,IPSUM,L

 1
88711-44010

SXM1#

 1
88711-44090

SXM1#..ATG,IPSUM,L

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-44020

SXM1#

ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ)

 1
88712-44020

SXM1#..ATG,IPSUM,L

 1
88712-44010

SXM1#..E,IPSUM

 1
88712-44050

SXM1#..ATG

 1
88712-44100

SXM1#..E

 1
88712-44290

SXM1#..ATG,IPSUM,L

 1
88712-44150

SXM1#..ATG,IPSUM,L

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-44120

SXM1#..E,IPSUM

 1
88716-44120

CXM10,SXM1#..E

 1
88716-44010

SXM1#

ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ)

 1
88716-44010

SXM1#..ATG;CXM10..IPSUM,L

 1
88716-44210

CXM10,SXM1#..ATG,IPSUM,L

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-44440

SXM1#..ATG,IPSUM,L

製造工場NO.C21−C26

 1
88716-44180

SXM1#..ATG,IPSUM,L

 1
88716-44050

SXM1#

ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ)

 1
88716-44190

SXM1#..E

 1
88716-44040

SXM1#..E,IPSUM

 1
88716-44230

SXM1#..ATG,IPSUM,L

製造工場NO.A21−A26

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-44010

SXM1#

 1
88717-44080

SXM1#..ATG,IPSUM,L

 1
88717-44090

SXM1#..ATG,IPSUM,L

 1
88897T - GROMMET, COOLER
88897-44010

SXM1#

 1
88897-44010

CXM10;SXM1#..ATG,L

 1
88897-44010

CXM10,SXM1#

 1
Common parts
88467-16020
88467-20140
88469-28010
88718-16660
88718-2D020
88718-2D050
88718-2D140
88718-2D150
88718-44050
88718-44060
88718-44080
90091-20512
90091-20609
90099-00264
90099-14119
90099-14120
90099-14121
90099-14122
90099-32130
90119-06186
90179-06009
90179-06216
90179-06242
91511-60625
91651-60625
