SXM15G-ARSSK (1997)

Toyota Ipsum

Production Aug 1997 - May 2001
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )

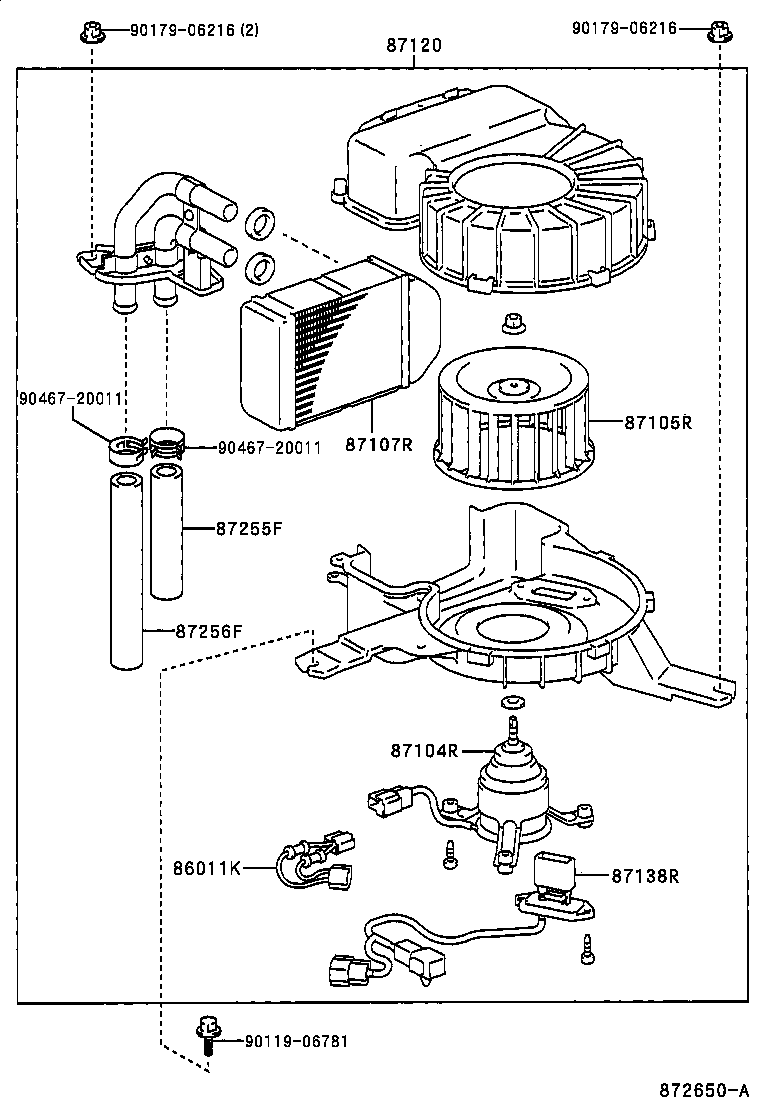

Click highlighted areas on diagram

diagram 86011K 87104R 87105R 87107R 87120 87138R 87255F 87256F 9011906781 9017906216 9017906216 9046720011 9046720011
Part # Description Qty Price
86011K - FILTER, NOISE
90980-05080

CXM10,SXM1#

 1
87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER
87104-44030

CXM10,SXM1#

 1
87105R - FAN SUB-ASSY, REAR HEATER BLOWER
87105-28030

CXM10,SXM1#

 1
87107R - UNIT SUB-ASSY, REAR HEATER
87107-44050

CXM10,SXM1#

 1
87107-44060

CXM10,SXM1#

 1
87120 - HEATER ASSY, REAR
87110-44010

CXM10,SXM1#

 1
87110-44030

CXM10,SXM1#

 1
87138R - RESISTOR, REAR HEATER BLOWER
88635-44010

CXM10,SXM1#

 1
87255F - HOSE, REAR HEATER WATER INLET, F(FOR HEATER UNIT)
87245-44370

CXM10,SXM1#

長さ=180

 1
87256F - HOSE, REAR HEATER WATER OUTLET, F (FOR HEATER UNIT)
87245-44380

CXM10,SXM1#

*H,L=240

 1
Common parts
90119-06781
90179-06216
90467-20011
