SXM15G-ARSSK (1997)

Toyota Ipsum

Production Aug 1997 - May 2001
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

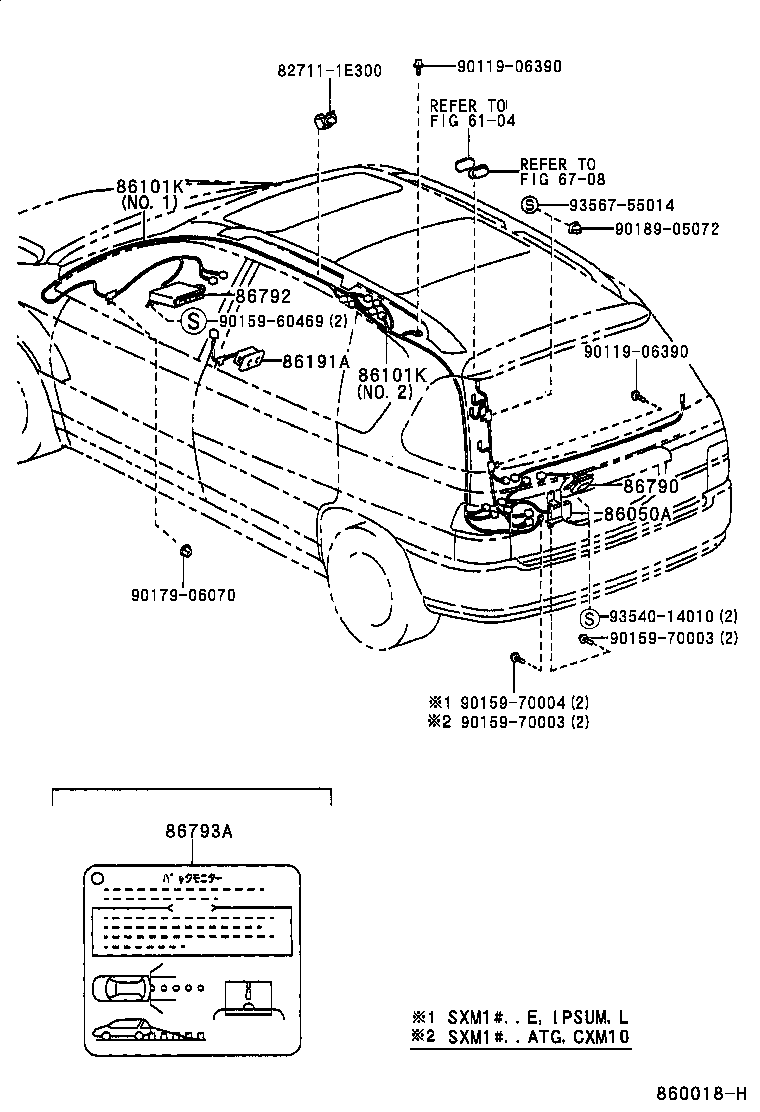

(9605-9804)

Click highlighted areas on diagram

diagram 6104 6708 827111E300 86050A 86101K 86101K 86191A 86790 86792 86793A 9011906390 9011906390 9015960469 9015970003 9015970003 9015970004 9017906070 9018905072 9354014010 9356755014
Part # Description Qty Price
86050A - ANTENNA ASSY, TELEVISION
86050-44010

CXM10,SXM1#

 1
86050-44011

CXM10,SXM1#

 1
86101K - CORD SUB-ASSY, TELEVISION ANTENNA
86101-44021

CXM10,SXM1#

NO.2

 1
86101-44110

CXM10,SXM1#

NO.3

 1
86101-44010

SXM1#

NO.1

 1
86101-44020

CXM10,SXM1#

NO.2

 1
86101-44050

CXM10,SXM1#

NO.1

 1
86101-44051

CXM10,SXM1#

NO.1

 1
86101-44180

CXM10,SXM1#

NO.1

 1
86101-44170

CXM10,SXM1#

NO.3

 1
86101K - CORD SUB-ASSY, TELEVISION ANTENNA
86101-44021

CXM10,SXM1#

NO.2

 1
86101-44110

CXM10,SXM1#

NO.3

 1
86101-44010

SXM1#

NO.1

 1
86101-44020

CXM10,SXM1#

NO.2

 1
86101-44050

CXM10,SXM1#

NO.1

 1
86101-44051

CXM10,SXM1#

NO.1

 1
86101-44180

CXM10,SXM1#

NO.1

 1
86101-44170

CXM10,SXM1#

NO.3

 1
86191A - TERMINAL, VIDEO(VIDEO ADAPTER)
86191-44010

CXM10,SXM1#

 1
86790 - CAMERA ASSY, TELEVISION
86790-44010

CXM10,SXM1#

 1
86792 - CONTROLLER, TELEVISION CAMERA
86792-44010

CXM10,SXM1#

 1
86793A - LABEL, TELEVISION CAMERA INFORMATION
86793-13010

CXM10,SXM1#

 1
86793-44010

CXM10,SXM1#

 1
Common parts
82711-1E300
90119-06390
90159-60469
90159-70003
90159-70004
90179-06070
90189-05072
93540-14010
93567-55014
Linked diagrams
6104
6708

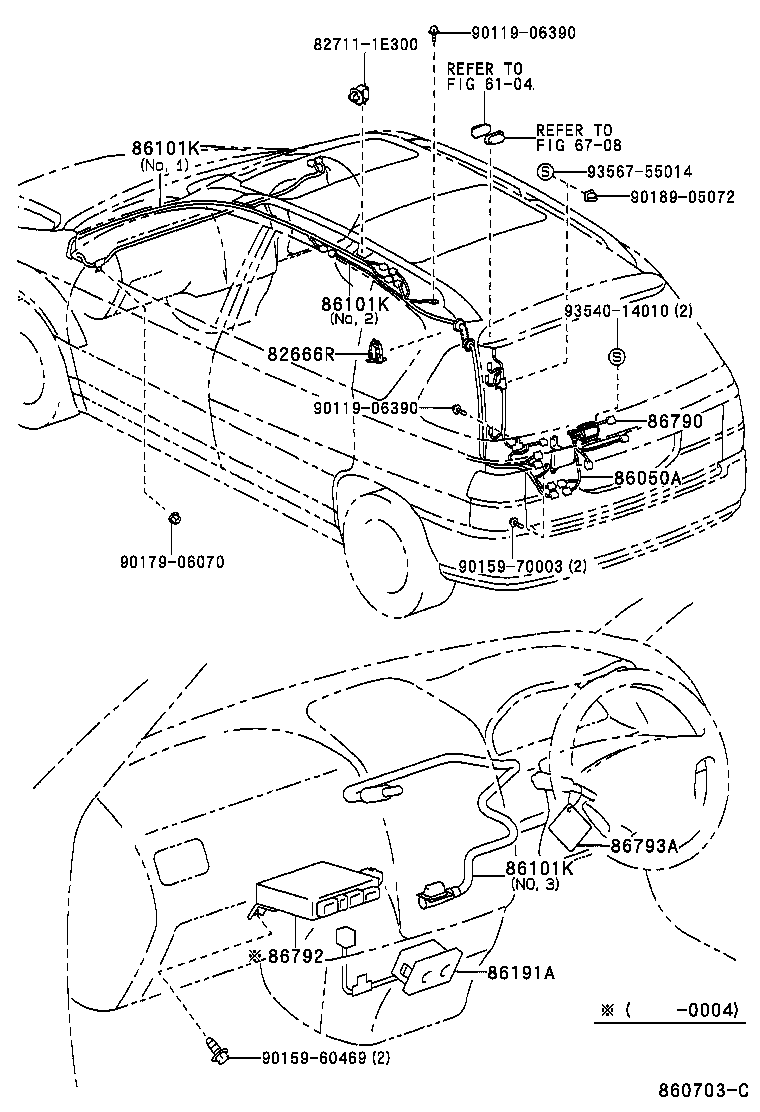

(9804- )

Click highlighted areas on diagram

diagram 6104 6708 82666R 827111E300 86050A 86101K 86101K 86101K 86191A 86790 86792 86793A 9011906390 9011906390 9015960469 9015970003 9017906070 9018905072 9354014010 9356755014
Part # Description Qty Price
82666R - HOLDER, CONNECTOR
82666-44040

CXM10,SXM1#

 1
86050A - ANTENNA ASSY, TELEVISION
86050-44010

CXM10,SXM1#

 1
86050-44011

CXM10,SXM1#

 1
86101K - CORD SUB-ASSY, TELEVISION ANTENNA
86101-44021

CXM10,SXM1#

NO.2

 1
86101-44110

CXM10,SXM1#

NO.3

 1
86101-44010

SXM1#

NO.1

 1
86101-44020

CXM10,SXM1#

NO.2

 1
86101-44050

CXM10,SXM1#

NO.1

 1
86101-44051

CXM10,SXM1#

NO.1

 1
86101-44180

CXM10,SXM1#

NO.1

 1
86101-44170

CXM10,SXM1#

NO.3

 1
86101K - CORD SUB-ASSY, TELEVISION ANTENNA
86101-44021

CXM10,SXM1#

NO.2

 1
86101-44110

CXM10,SXM1#

NO.3

 1
86101-44010

SXM1#

NO.1

 1
86101-44020

CXM10,SXM1#

NO.2

 1
86101-44050

CXM10,SXM1#

NO.1

 1
86101-44051

CXM10,SXM1#

NO.1

 1
86101-44180

CXM10,SXM1#

NO.1

 1
86101-44170

CXM10,SXM1#

NO.3

 1
86101K - CORD SUB-ASSY, TELEVISION ANTENNA
86101-44021

CXM10,SXM1#

NO.2

 1
86101-44110

CXM10,SXM1#

NO.3

 1
86101-44010

SXM1#

NO.1

 1
86101-44020

CXM10,SXM1#

NO.2

 1
86101-44050

CXM10,SXM1#

NO.1

 1
86101-44051

CXM10,SXM1#

NO.1

 1
86101-44180

CXM10,SXM1#

NO.1

 1
86101-44170

CXM10,SXM1#

NO.3

 1
86191A - TERMINAL, VIDEO(VIDEO ADAPTER)
86191-44010

CXM10,SXM1#

 1
86790 - CAMERA ASSY, TELEVISION
86790-44010

CXM10,SXM1#

 1
86792 - CONTROLLER, TELEVISION CAMERA
86792-44010

CXM10,SXM1#

 1
86793A - LABEL, TELEVISION CAMERA INFORMATION
86793-13010

CXM10,SXM1#

 1
86793-44010

CXM10,SXM1#

 1
Common parts
82711-1E300
90119-06390
90159-60469
90159-70003
90179-06070
90189-05072
93540-14010
93567-55014
Linked diagrams
6104
6708
