SXM15G-ARSSK (1997)
Toyota Ipsum
Production
Aug 1997
-
May 2001
Engine
3SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

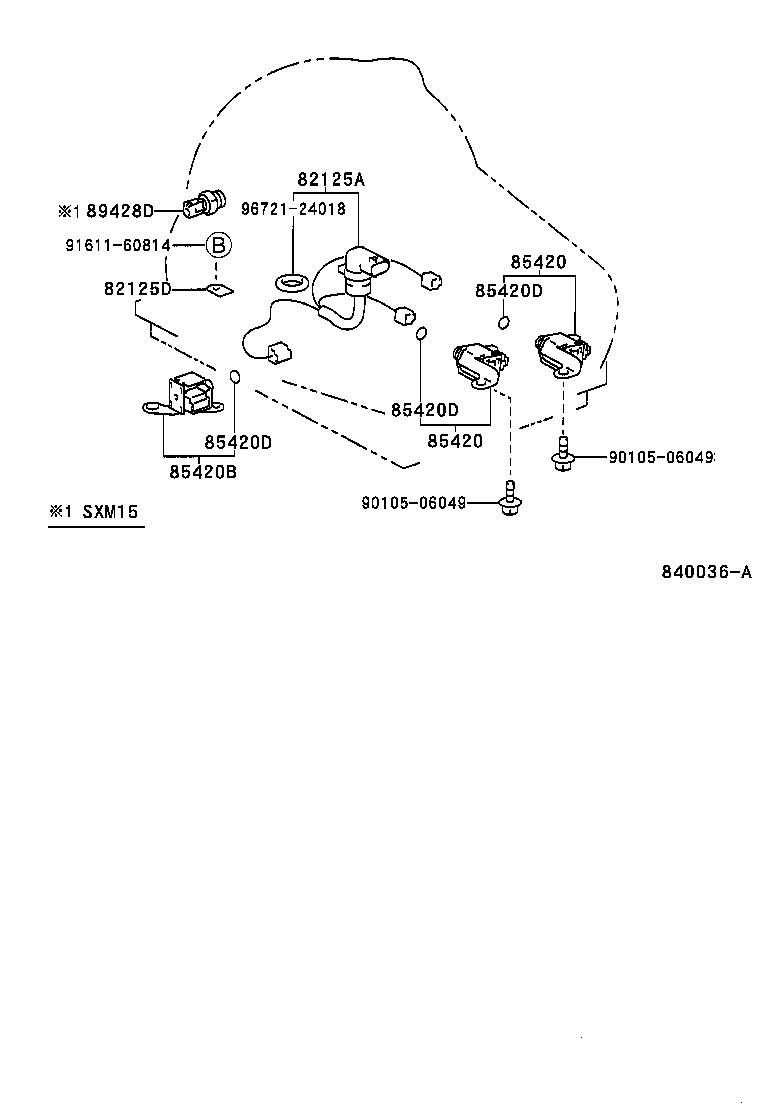

(9605-9804)CXM10,SXM10 ; (9804- )CXM10,SXM15
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82125A - WIRE, TRANSMISSION | ||||
| 82125-32050 |
SXM15 |
1 | ||
| 82125-20220 |
CXM10,SXM15 |
1 | ||
| 82125D - PLATE, TRANSMISSION WIRE LOCK | ||||
| 33485-30020 |
CXM10,SXM15 |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-32102 |
SXM15 |
1 | ||
| 85420-21100 |
SXM15 AISIN |
2 | ||
| 85420-21090 |
CXM10,SXM15 DENSO |
2 | ||
| 85420-21100 |
CXM10,SXM15 AISIN |
2 | ||
| 85420-21090 |
SXM15 DENSO |
2 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-32102 |
SXM15 |
1 | ||
| 85420-21100 |
SXM15 AISIN |
2 | ||
| 85420-21090 |
CXM10,SXM15 DENSO |
2 | ||
| 85420-21100 |
CXM10,SXM15 AISIN |
2 | ||
| 85420-21090 |
SXM15 DENSO |
2 | ||
| 85420B - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-32120 |
SXM15 |
1 | ||
| 85420-21070 |
CXM10,SXM15 DENSO |
1 | ||
| 85420-21070 |
SXM15 DENSO |
1 | ||
| 85420-21080 |
SXM15 AISIN |
1 | ||
| 85420-21070 |
CXM10,SXM15 |
1 | ||
| 85420-21080 |
CXM10,SXM15 AISIN |
1 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
SXM15 |
3 | ||
| 90301-06004 |
CXM10,SXM1# |
3 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
SXM15 |
3 | ||
| 90301-06004 |
CXM10,SXM1# |
3 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
SXM15 |
3 | ||
| 90301-06004 |
CXM10,SXM1# |
3 | ||
| 89428D - SWITCH, TEMPERATURE, NO.2 | ||||
| 89428-12140 |
SXM15 |
1 | ||
| Common parts | ||||
| 90105-06049 | ||||
| 91611-60814 | ||||
| 96721-24018 | ||||

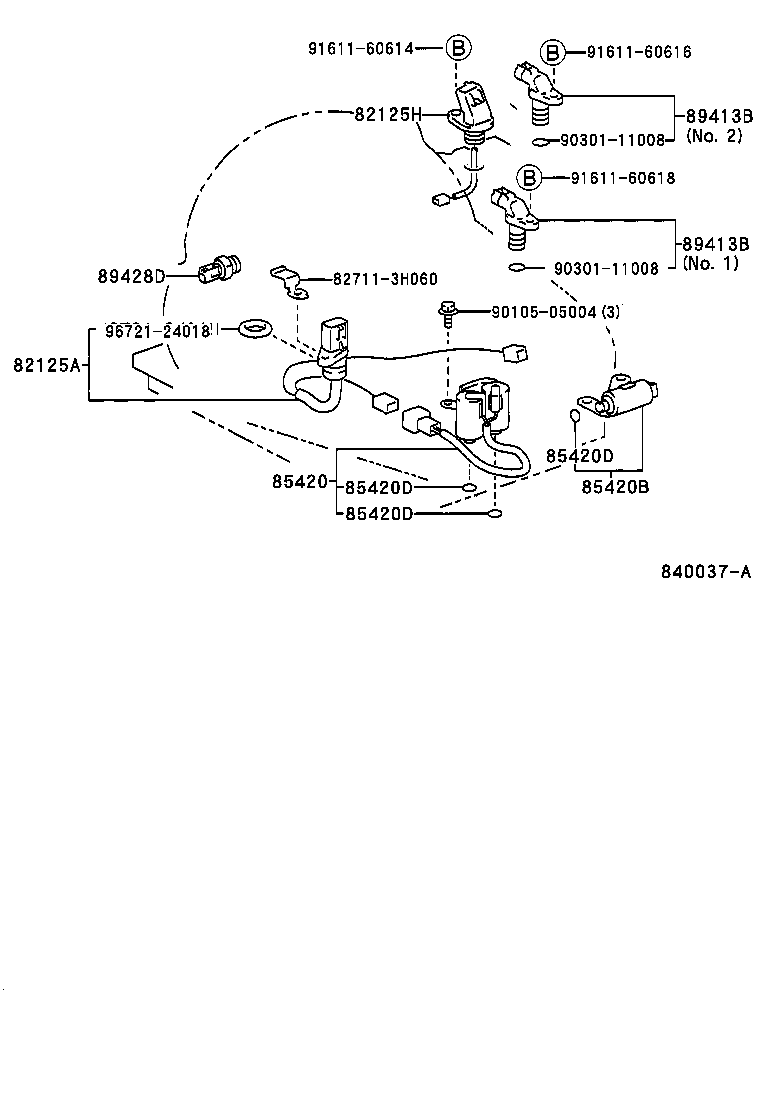

(9605-9804)SXM15
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82125A - WIRE, TRANSMISSION | ||||
| 82125-32050 |
SXM15 |
1 | ||
| 82125-20220 |
CXM10,SXM15 |
1 | ||
| 82125H - WIRE, TRANSMISSION(FOR 4WD CONTROL) | ||||
| 82125-20210 |
SXM15 |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-32102 |
SXM15 |
1 | ||
| 85420-21100 |
SXM15 AISIN |
2 | ||
| 85420-21090 |
CXM10,SXM15 DENSO |
2 | ||
| 85420-21100 |
CXM10,SXM15 AISIN |
2 | ||
| 85420-21090 |
SXM15 DENSO |
2 | ||
| 85420B - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-32120 |
SXM15 |
1 | ||
| 85420-21070 |
CXM10,SXM15 DENSO |
1 | ||
| 85420-21070 |
SXM15 DENSO |
1 | ||
| 85420-21080 |
SXM15 AISIN |
1 | ||
| 85420-21070 |
CXM10,SXM15 |
1 | ||
| 85420-21080 |
CXM10,SXM15 AISIN |
1 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
SXM15 |
3 | ||
| 90301-06004 |
CXM10,SXM1# |
3 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
SXM15 |
3 | ||
| 90301-06004 |
CXM10,SXM1# |
3 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
SXM15 |
3 | ||
| 90301-06004 |
CXM10,SXM1# |
3 | ||
| 89413B - SENSOR, TRANSMISSION REVOLUTION | ||||
| 89413-32010 |
SXM15 |
1 | ||
| 89413B - SENSOR, TRANSMISSION REVOLUTION | ||||
| 89413-32010 |
SXM15 |
1 | ||
| 89428D - SWITCH, TEMPERATURE, NO.2 | ||||
| 89428-12140 |
SXM15 |
1 | ||
| Common parts | ||||
| 82711-3H060 | ||||
| 90105-05004 | ||||
| 90301-11008 | ||||
| 91611-60614 | ||||
| 91611-60616 | ||||
| 91611-60618 | ||||
| 96721-24018 | ||||
