SXM15G-ARSSK (1997)

Toyota Ipsum

Production Aug 1997 - May 2001
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

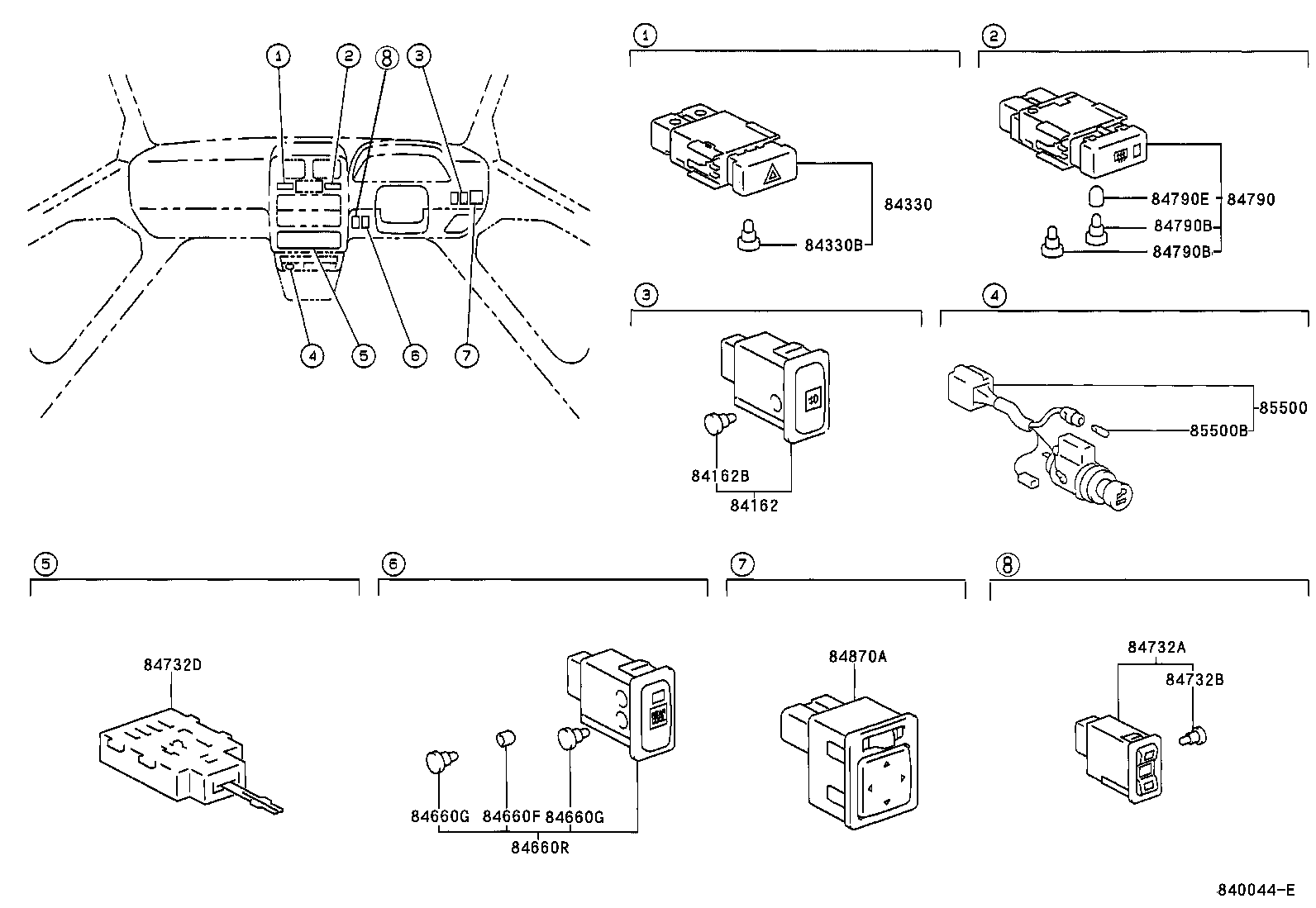

ILLUST NO. 3 OF 6(9605-9804)

Click highlighted areas on diagram

ｲﾝﾊﾟﾈ ｽｲﾂﾁ

diagram 84162 84162B 84330 84330B 84660F 84660G 84660G 84660R 84732A 84732B 84732D 84790 84790B 84790B 84790E 84870A 85500 85500B
Part # Description Qty Price
84162 - SWITCH, FRONT FOG LAMP
84160-95D00

CXM10,SXM1#

 1
84160-44020

CXM10,SXM1#

 1
84162B - BULB, FOG LAMP SWITCH
84999-10320

CXM10,SXM1#

14V 0.84W

 1
84999-10310

CXM10,SXM1#

14V 0.91W

 2
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-20350

CXM10,SXM1#

ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ)

 1
84332-20350

CXM10,SXM1#

 1
84332-44010

CXM10,SXM1#

 1
84330B - BULB, HAZARD WARNING SIGNAL SWITCH
84999-10860

CXM10,SXM1#

14V 0.91W

 1
84660F - CAP, COOLER SWITCH BULB
84998-10090

SXM1#

 1
84998-10090

CXM10,SXM1#..ATG,IPSUM,L

 1
84660G - BULB(FOR REAR COOLER SWITCH)
84999-10320

SXM1#

14V 0.84W

 2
84999-10320

CXM10,SXM1#..ATG,IPSUM,L

14V 0.84W

 2
84660G - BULB(FOR REAR COOLER SWITCH)
84999-10320

SXM1#

14V 0.84W

 2
84999-10320

CXM10,SXM1#..ATG,IPSUM,L

14V 0.84W

 2
84660R - SWITCH, COOLER(REAR)
84660-44010

CXM10,SXM1#..ATG,IPSUM,L

 1
84660-44010

SXM1#

 1
84732A - SWITCH, REAR HEATER BLOWER
84730-44010

CXM10;SXM1#..ATG

 1
84730-44010

CXM10,SXM1#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
84732B - BULB, REAR HEATER BLOWER SWITCH
84999-10190

CXM10;SXM1#..ATG

12V 0.87W

 1
84999-10190

CXM10,SXM1#

12V 0.87W

 1
84732D - SWITCH, HEATER BLOWER
84732-20270

CXM10,SXM1#..E

 1
84790 - SWITCH ASSY, REAR WINDOW DEFOGGER
84790-10200

CXM10,SXM1#..E

 1
84790-10200

SXM1#

 1
84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH)
84999-10310

CXM10,SXM1#..E

14V 0.91W

 2
84999-10310

SXM1#

14V 0.91W

 2
84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH)
84999-10310

CXM10,SXM1#..E

14V 0.91W

 2
84999-10310

SXM1#

14V 0.91W

 2
84790E - CAP, BULB(FOR REAR WINDOW DEFOGGER SWITCH)
84998-10760

SXM1#

 1
84998-10760

CXM10,SXM1#..E

 1
84870A - SWITCH ASSY, OUTER MIRROR
84870-16020

CXM10,SXM1#..E

 1
84870-16040

CXM10,SXM1#..ATG,IPSUM,L

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-44010

CXM10,SXM1#

 1
85500B - BULB, CIGARETTE LIGHTER
90981-11014

CXM10,SXM1#

14V 1.4W

 1

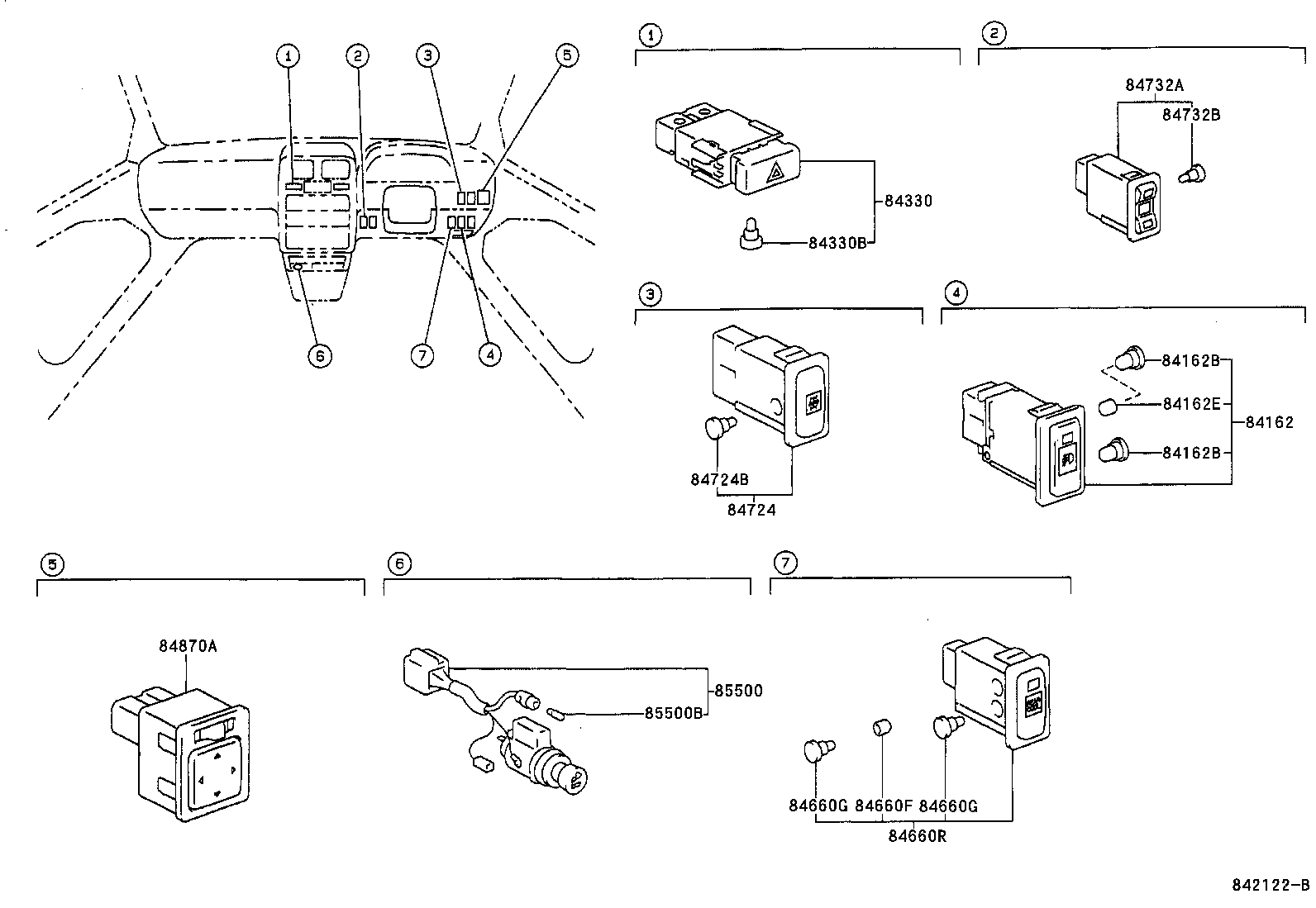

ILLUST NO. 3 OF 6(9804- )

Click highlighted areas on diagram

ｲﾝﾊﾟﾈ ｽｲﾂﾁ

diagram 84162 84162B 84162B 84162E 84330 84330B 84660F 84660G 84660G 84660R 84724 84724B 84732A 84732B 84870A 85500 85500B
Part # Description Qty Price
84162 - SWITCH, FRONT FOG LAMP
84160-95D00

CXM10,SXM1#

 1
84160-44020

CXM10,SXM1#

 1
84162B - BULB, FOG LAMP SWITCH
84999-10320

CXM10,SXM1#

14V 0.84W

 1
84999-10310

CXM10,SXM1#

14V 0.91W

 2
84162B - BULB, FOG LAMP SWITCH
84999-10320

CXM10,SXM1#

14V 0.84W

 1
84999-10310

CXM10,SXM1#

14V 0.91W

 2
84162E - CAP, FOG LAMP BULB
84998-10740

CXM10,SXM1#

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-20350

CXM10,SXM1#

ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ)

 1
84332-20350

CXM10,SXM1#

 1
84332-44010

CXM10,SXM1#

 1
84330B - BULB, HAZARD WARNING SIGNAL SWITCH
84999-10860

CXM10,SXM1#

14V 0.91W

 1
84660F - CAP, COOLER SWITCH BULB
84998-10090

SXM1#

 1
84998-10090

CXM10,SXM1#..ATG,IPSUM,L

 1
84660G - BULB(FOR REAR COOLER SWITCH)
84999-10320

SXM1#

14V 0.84W

 2
84999-10320

CXM10,SXM1#..ATG,IPSUM,L

14V 0.84W

 2
84660G - BULB(FOR REAR COOLER SWITCH)
84999-10320

SXM1#

14V 0.84W

 2
84999-10320

CXM10,SXM1#..ATG,IPSUM,L

14V 0.84W

 2
84660R - SWITCH, COOLER(REAR)
84660-44010

CXM10,SXM1#..ATG,IPSUM,L

 1
84660-44010

SXM1#

 1
84724 - SWITCH, 4 WHEEL DRIVE CONTROL
84724-44010

SXM15

 1
84724B - BULB, 4 WHEEL DRIVE CONTROL SWITCH
84999-10320

SXM15

 1
84732A - SWITCH, REAR HEATER BLOWER
84730-44010

CXM10;SXM1#..ATG

 1
84730-44010

CXM10,SXM1#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
84732B - BULB, REAR HEATER BLOWER SWITCH
84999-10190

CXM10;SXM1#..ATG

12V 0.87W

 1
84999-10190

CXM10,SXM1#

12V 0.87W

 1
84870A - SWITCH ASSY, OUTER MIRROR
84870-16020

CXM10,SXM1#..E

 1
84870-16040

CXM10,SXM1#..ATG,IPSUM,L

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-44010

CXM10,SXM1#

 1
85500B - BULB, CIGARETTE LIGHTER
90981-11014

CXM10,SXM1#

14V 1.4W

 1
