SXM15G-ARSSK (1997)

Toyota Ipsum

Production Aug 1997 - May 2001
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9605-9804)

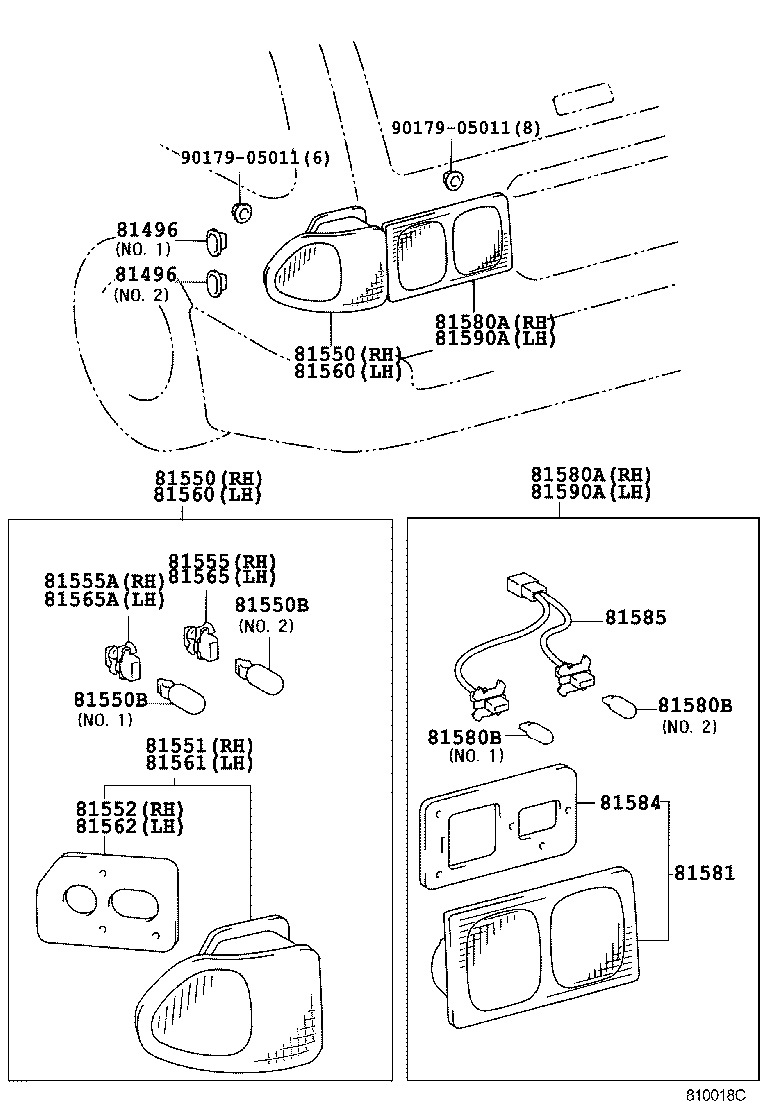

Click highlighted areas on diagram

diagram 81496 81496 81550 81550 81550B 81550B 81551 81552 81555 81555A 81560 81560 81561 81562 81565 81565A 81580A 81580A 81580B 81580B 81581 81584 81585 81590A 81590A 9017905011 9017905011
Part # Description Qty Price
81496 - GUIDE, REAR COMBINATION LAMP
81496-44020

CXM10,SXM1#

NO.2

 2
81496-44010

CXM10,SXM1#

NO.1

 2
81496 - GUIDE, REAR COMBINATION LAMP
81496-44020

CXM10,SXM1#

NO.2

 2
81496-44010

CXM10,SXM1#

NO.1

 2
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-44010

CXM10,SXM1#

 1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-44010

CXM10,SXM1#

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13044

CXM10,SXM1#

12V 21/5W,NO.2

 2
90981-13043

CXM10,SXM1#

12V 21W,NO.1

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13044

CXM10,SXM1#

12V 21/5W,NO.2

 2
90981-13043

CXM10,SXM1#

12V 21W,NO.1

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-44040

CXM10,SXM1#

 1
81551-44010

CXM10,SXM1#

 1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-44010

CXM10,SXM1#

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
90075-60002

CXM10,SXM1#

 1
81555A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
90075-60003

CXM10,SXM1#

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-44010

CXM10,SXM1#

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-44010

CXM10,SXM1#

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-44040

CXM10,SXM1#

 1
81561-44010

CXM10,SXM1#

 1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81552-44010

CXM10,SXM1#

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
90075-60002

CXM10,SXM1#

 1
81565A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
90075-60003

CXM10,SXM1#

 1
81580A - LAMP ASSY, REAR
81580-44010

CXM10,SXM1#

 1
81580A - LAMP ASSY, REAR
81580-44010

CXM10,SXM1#

 1
81580B - BULB (FOR REAR LAMP)
90981-13044

CXM10,SXM1#

12V 21/5W,NO.2

 2
90981-13043

CXM10,SXM1#

12V 21W,NO.1

 2
90981-11039

CXM10,SXM1#

12V 16W,NO.1

 2
81580B - BULB (FOR REAR LAMP)
90981-13044

CXM10,SXM1#

12V 21/5W,NO.2

 2
90981-13043

CXM10,SXM1#

12V 21W,NO.1

 2
90981-11039

CXM10,SXM1#

12V 16W,NO.1

 2
81581 - LENS, REAR LAMP
81581-44010

CXM10,SXM1#

右側

 1
81591-44010

CXM10,SXM1#

左側

 1
81591-44040

CXM10,SXM1#

左側

 1
81581-44040

CXM10,SXM1#

右側

 1
81584 - PACKING, REAR LAMP RH
81584-44010

CXM10,SXM1#

 2
81585 - SOCKET & WIRE, REAR LAMP
81585-44010

CXM10,SXM1#

 2
81585-44040

CXM10,SXM1#

 2
81590A - LAMP ASSY, REAR, LH
81590-44010

CXM10,SXM1#

 1
81590A - LAMP ASSY, REAR, LH
81590-44010

CXM10,SXM1#

 1
Common parts
90179-05011

(9804- )

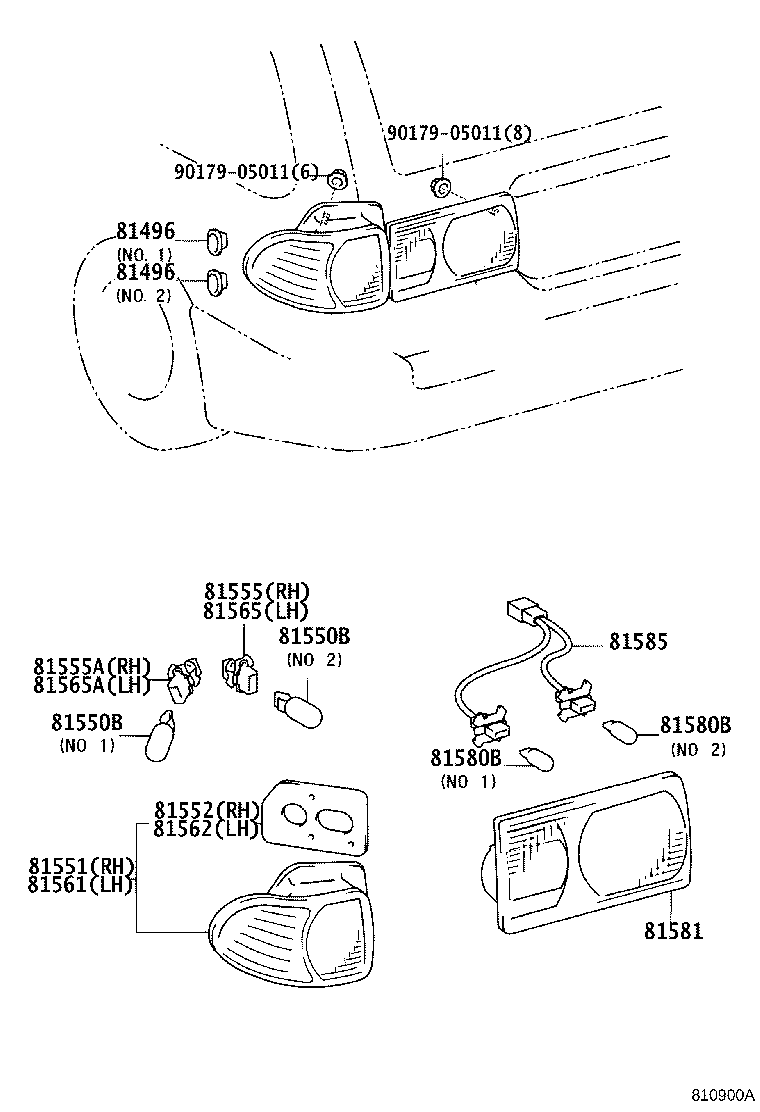

Click highlighted areas on diagram

diagram 81496 81496 81550B 81550B 81551 81552 81555 81555A 81561 81562 81565 81565A 81580B 81580B 81581 81585 9017905011 9017905011
Part # Description Qty Price
81496 - GUIDE, REAR COMBINATION LAMP
81496-44020

CXM10,SXM1#

NO.2

 2
81496-44010

CXM10,SXM1#

NO.1

 2
81496 - GUIDE, REAR COMBINATION LAMP
81496-44020

CXM10,SXM1#

NO.2

 2
81496-44010

CXM10,SXM1#

NO.1

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13044

CXM10,SXM1#

12V 21/5W,NO.2

 2
90981-13043

CXM10,SXM1#

12V 21W,NO.1

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13044

CXM10,SXM1#

12V 21/5W,NO.2

 2
90981-13043

CXM10,SXM1#

12V 21W,NO.1

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-44040

CXM10,SXM1#

 1
81551-44010

CXM10,SXM1#

 1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-44010

CXM10,SXM1#

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
90075-60002

CXM10,SXM1#

 1
81555A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
90075-60003

CXM10,SXM1#

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-44040

CXM10,SXM1#

 1
81561-44010

CXM10,SXM1#

 1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81552-44010

CXM10,SXM1#

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
90075-60002

CXM10,SXM1#

 1
81565A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
90075-60003

CXM10,SXM1#

 1
81580B - BULB (FOR REAR LAMP)
90981-13044

CXM10,SXM1#

12V 21/5W,NO.2

 2
90981-13043

CXM10,SXM1#

12V 21W,NO.1

 2
90981-11039

CXM10,SXM1#

12V 16W,NO.1

 2
81580B - BULB (FOR REAR LAMP)
90981-13044

CXM10,SXM1#

12V 21/5W,NO.2

 2
90981-13043

CXM10,SXM1#

12V 21W,NO.1

 2
90981-11039

CXM10,SXM1#

12V 16W,NO.1

 2
81581 - LENS, REAR LAMP
81581-44010

CXM10,SXM1#

右側

 1
81591-44010

CXM10,SXM1#

左側

 1
81591-44040

CXM10,SXM1#

左側

 1
81581-44040

CXM10,SXM1#

右側

 1
81585 - SOCKET & WIRE, REAR LAMP
81585-44010

CXM10,SXM1#

 2
81585-44040

CXM10,SXM1#

 2
Common parts
90179-05011
