SXM15G-ARSSK (1997)

Toyota Ipsum

Production Aug 1997 - May 2001
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9605-9804)

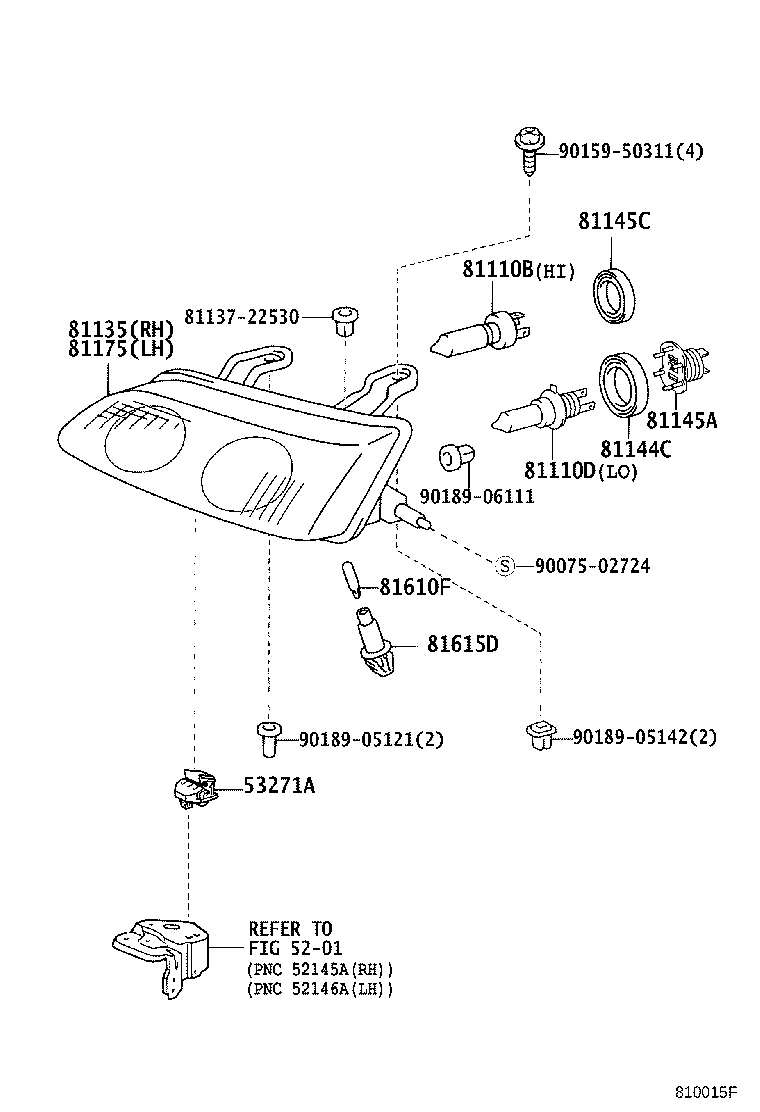

Click highlighted areas on diagram

diagram 5201 53271A 81110B 81110D 81135 8113722530 81144C 81145A 81145C 81175 81610F 81615D 9007502724 9015950311 9018905121 9018905142 9018906111
Part # Description Qty Price
53271A - BRACKET, HEADLAMP MOUNTING
53271-44010

CXM10,SXM1#

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13046

CXM10,SXM1#

12V65W(SAE),60W(ECE)

 2
90080-81041

CXM10,SXM1#

12V 65W

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13047

CXM10,SXM1#

12V 55W,ﾊﾛｹﾞﾝ

 2
90981-13059

CXM10,SXM1#

12V 55W,ﾊﾛｹﾞﾝ

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-44050

CXM10,SXM1#

 1
81130-44010

SXM1#

 1
81130-44090

CXM10,SXM1#

 1
81144C - COVER, HEADLAMP SOCKET
90075-65002

CXM10,SXM1#

 2
81145A - ADAPTER ASSY
90075-99117

CXM10,SXM1#

 2
81145C - COVER, HEADLAMP SOCKET, NO.2
90075-65006

CXM10,SXM1#

 2
90075-65006

CXM10,SXM1#

 4
81175 - UNIT ASSY, HEADLAMP, LH
81170-44090

CXM10,SXM1#

 1
81170-44050

CXM10,SXM1#

 1
81170-44010

SXM1#

 1
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

CXM10,SXM1#

12V 5W

 2
81615D - SOCKET, CLEARANCE LAMP
90075-60020

CXM10,SXM1#

 2
90075-60007

CXM10,SXM1#

 2
Common parts
81137-22530
90075-02724
90159-50311
90189-05121
90189-05142
90189-06111
Linked diagrams
5201

(9804- )

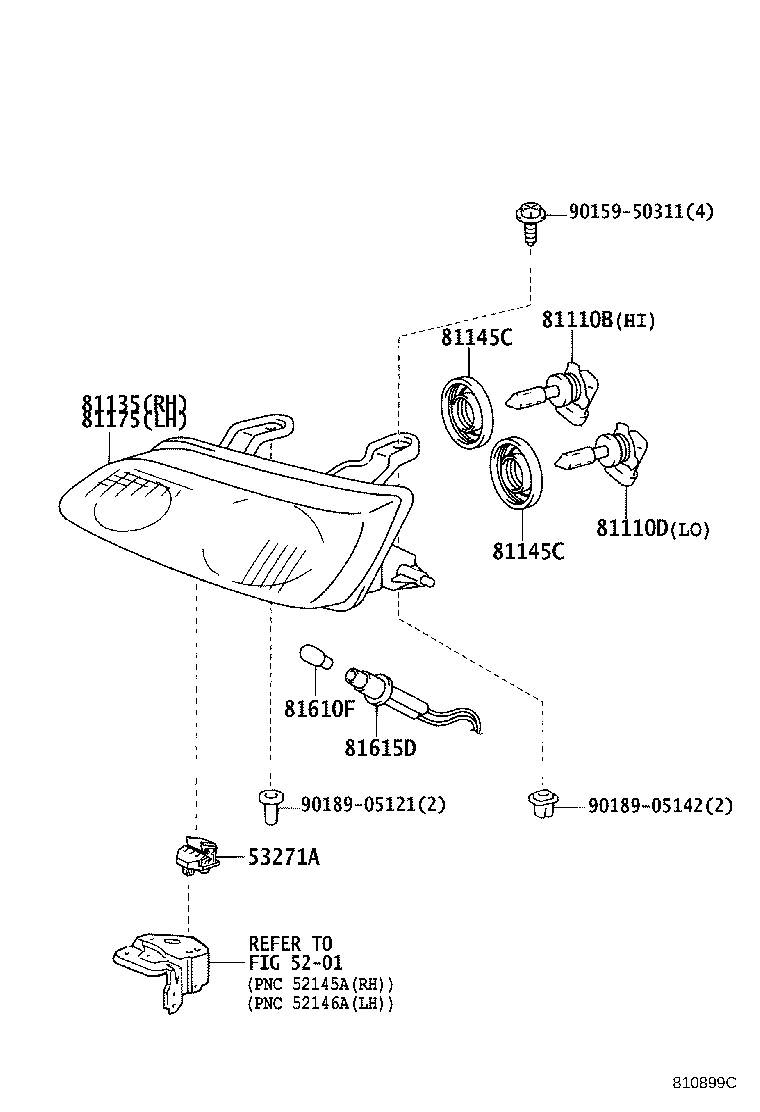

Click highlighted areas on diagram

diagram 5201 53271A 81110B 81110D 81135 81145C 81145C 81175 81610F 81615D 9015950311 9018905121 9018905142
Part # Description Qty Price
53271A - BRACKET, HEADLAMP MOUNTING
53271-44010

CXM10,SXM1#

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13046

CXM10,SXM1#

12V65W(SAE),60W(ECE)

 2
90080-81041

CXM10,SXM1#

12V 65W

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13047

CXM10,SXM1#

12V 55W,ﾊﾛｹﾞﾝ

 2
90981-13059

CXM10,SXM1#

12V 55W,ﾊﾛｹﾞﾝ

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-44050

CXM10,SXM1#

 1
81130-44010

SXM1#

 1
81130-44090

CXM10,SXM1#

 1
81145C - COVER, HEADLAMP SOCKET, NO.2
90075-65006

CXM10,SXM1#

 2
90075-65006

CXM10,SXM1#

 4
81145C - COVER, HEADLAMP SOCKET, NO.2
90075-65006

CXM10,SXM1#

 2
90075-65006

CXM10,SXM1#

 4
81175 - UNIT ASSY, HEADLAMP, LH
81170-44090

CXM10,SXM1#

 1
81170-44050

CXM10,SXM1#

 1
81170-44010

SXM1#

 1
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

CXM10,SXM1#

12V 5W

 2
81615D - SOCKET, CLEARANCE LAMP
90075-60020

CXM10,SXM1#

 2
90075-60007

CXM10,SXM1#

 2
Common parts
90159-50311
90189-05121
90189-05142
Linked diagrams
5201
