SXM15G-ARSSK (1997)
Toyota Ipsum
(9605-9804)

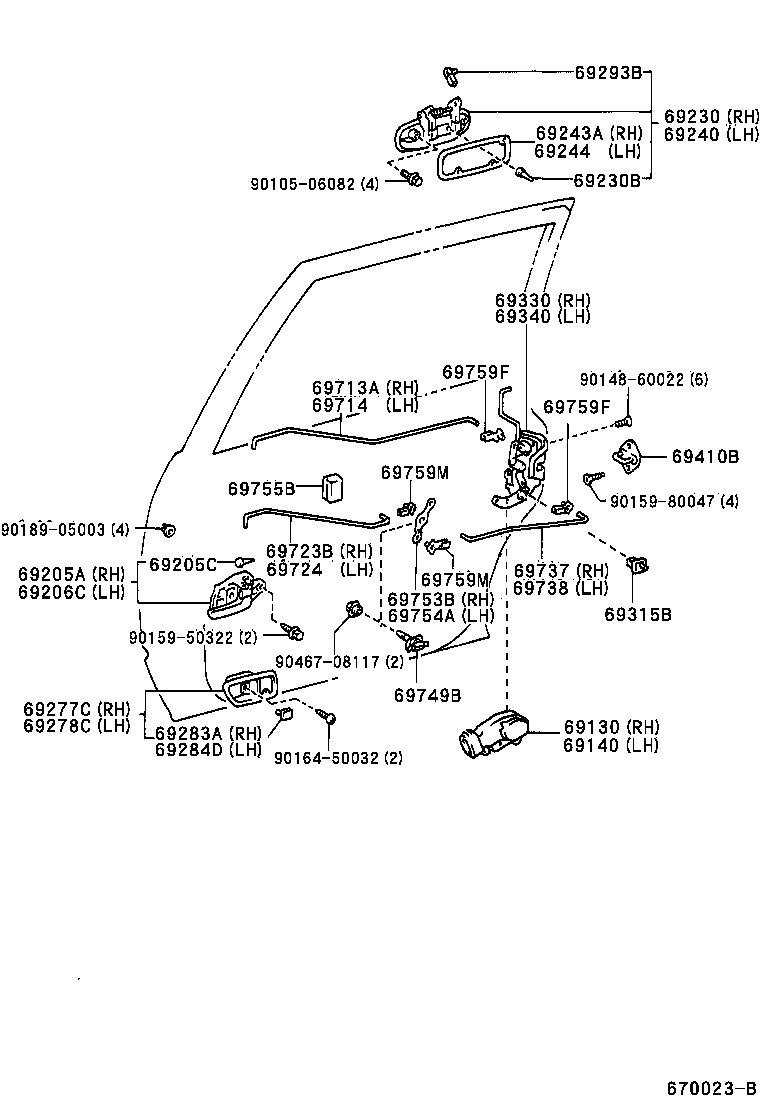

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69130 - ACTUATOR ASSY, REAR DOOR LOCK, RH | ||||
| 69130-44010 |
CXM10,SXM1# |
1 | ||
| 69140 - ACTUATOR ASSY, REAR DOOR LOCK, LH | ||||
| 69140-44010 |
CXM10,SXM1# |
1 | ||
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69205-30120B3 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 69205-44030 |
SXM1#..ATG |
1 | ||
| 69205-44010B1 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 69205-44010B1 |
CXM10,SXM1#..E,IPSUM,L MD.MOON MIST,TRIM1# |
1 | ||
| 69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE) | ||||
| 90541-04014 |
CXM10,SXM1# |
2 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69206-44010B1 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 69206-30120B3 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 69206-44010B1 |
CXM10,SXM1#..E,IPSUM,L MD.MOON MIST,TRIM1# |
1 | ||
| 69206-44030 |
SXM1#..ATG |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69230-12180K0 |
SXM1# PURPLE M.M.OP.GR.,934 |
1 | ||
| 69230-12180D1 |
CXM10,SXM1#..E,IPSUM,L WINE RED MC,3J8 |
1 | ||
| 69230-12180G4 |
CXM10,SXM1#..E,IPSUM,L GREEN ME.OP.,6P4 |
1 | ||
| 69230-12180B2 |
CXM10,SXM1#..E,IPSUM,L SILVER ME,199 |
1 | ||
| 69230-12230B3 |
CXM10,SXM1#..E,IPSUM,L SILVER ME,199 |
1 | ||
| 69230-12180J4 |
CXM10,SXM1#..E,IPSUM,L PURPLISH BLUE M.M.,8K9 |
1 | ||
| 69230-12180J3 |
CXM10,SXM1#..E,IPSUM,L DK.BLUE MM.GR.,8K5 |
1 | ||
| 69230-12180A1 |
CXM10,SXM1# WHITE,056 |
1 | ||
| 69230-12230H1 |
CXM10,SXM1#..E,IPSUM,L DK.TURQUOISE MC.,760 |
1 | ||
| 69230-12180G3 |
CXM10,SXM1#..E,IPSUM,L DK.GREEN M.M.,6N5 |
1 | ||
| 69230-12230A3 |
CXM10,SXM1# WHITE PM.,057 |
1 | ||
| 69230-44020B0 |
CXM10,SXM1#..E,IPSUM,L SILVER ME,199 |
1 | ||
| 69230-12230D3 |
CXM10,SXM1#..E,IPSUM,L WINE RED MC,3J8 |
1 | ||
| 69230-12230C1 |
SXM1#..ATG BLACK,202 |
1 | ||
| 69230-12180C1 |
SXM1#..ATG BLACK,202 |
1 | ||
| 69230-12230J5 |
CXM10,SXM1#..E,IPSUM,L BLUE ME.AMC.,8N2 |
1 | ||
| 69230-12230J4 |
CXM10,SXM1#..E,IPSUM,L DK.BLUE MM.GR.,8K5 |
1 | ||
| 69230-44020D0 |
CXM10,SXM1#..E,IPSUM,L WINE RED MC,3J8 |
1 | ||
| 69230-44020A1 |
CXM10,SXM1# WHITE PM.,057 |
1 | ||
| 69230-44020J1 |
CXM10,SXM1#..E,IPSUM,L BLUE ME.AMC.,8N2 |
1 | ||
| 69230-44020H0 |
CXM10,SXM1#..E,IPSUM,L DK.TURQUOISE MC.,760 |
1 | ||
| 69230-44020C0 |
SXM1#..ATG BLACK,202 |
1 | ||
| 69230-44020B0 |
CXM10,SXM1# SILVER ME,199 |
1 | ||
| 69230-44020H1 |
CXM10,SXM1#..E,IPSUM,L TURQUOISE ME.,765 |
1 | ||
| 69230-44020J0 |
CXM10,SXM1#..E,IPSUM,L DK.BLUE MM.GR.,8K5 |
1 | ||
| 69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE) | ||||
| 90541-04018 |
CXM10,SXM1# |
4 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69240-12180K0 |
SXM1# PURPLE M.M.OP.GR.,934 |
1 | ||
| 69240-12180J4 |
CXM10,SXM1#..E,IPSUM,L PURPLISH BLUE M.M.,8K9 |
1 | ||
| 69240-12180D1 |
CXM10,SXM1#..E,IPSUM,L WINE RED MC,3J8 |
1 | ||
| 69240-12180A1 |
CXM10,SXM1# WHITE,056 |
1 | ||
| 69240-12180G4 |
CXM10,SXM1#..E,IPSUM,L GREEN ME.OP.,6P4 |
1 | ||
| 69240-12180B2 |
CXM10,SXM1#..E,IPSUM,L SILVER ME,199 |
1 | ||
| 69240-12180G3 |
CXM10,SXM1#..E,IPSUM,L DK.GREEN M.M.,6N5 |
1 | ||
| 69240-12230C1 |
SXM1#..ATG BLACK,202 |
1 | ||
| 69240-12180C1 |
SXM1#..ATG BLACK,202 |
1 | ||
| 69240-12230D3 |
CXM10,SXM1#..E,IPSUM,L WINE RED MC,3J8 |
1 | ||
| 69240-12180J3 |
CXM10,SXM1#..E,IPSUM,L DK.BLUE MM.GR.,8K5 |
1 | ||
| 69240-12230H1 |
CXM10,SXM1#..E,IPSUM,L DK.TURQUOISE MC.,760 |
1 | ||
| 69240-12230J5 |
CXM10,SXM1#..E,IPSUM,L BLUE ME.AMC.,8N2 |
1 | ||
| 69240-12230J4 |
CXM10,SXM1#..E,IPSUM,L DK.BLUE MM.GR.,8K5 |
1 | ||
| 69240-44020B0 |
CXM10,SXM1#..E,IPSUM,L SILVER ME,199 |
1 | ||
| 69240-12230A3 |
CXM10,SXM1# WHITE PM.,057 |
1 | ||
| 69240-12230B3 |
CXM10,SXM1#..E,IPSUM,L SILVER ME,199 |
1 | ||
| 69240-44020C0 |
SXM1#..ATG BLACK,202 |
1 | ||
| 69240-44020J1 |
CXM10,SXM1#..E,IPSUM,L BLUE ME.AMC.,8N2 |
1 | ||
| 69240-44020J0 |
CXM10,SXM1#..E,IPSUM,L DK.BLUE MM.GR.,8K5 |
1 | ||
| 69240-44020A1 |
CXM10,SXM1# WHITE PM.,057 |
1 | ||
| 69240-44020D0 |
CXM10,SXM1#..E,IPSUM,L WINE RED MC,3J8 |
1 | ||
| 69240-44020B0 |
CXM10,SXM1# SILVER ME,199 |
1 | ||
| 69240-44020H1 |
CXM10,SXM1#..E,IPSUM,L TURQUOISE ME.,765 |
1 | ||
| 69240-44020H0 |
CXM10,SXM1#..E,IPSUM,L DK.TURQUOISE MC.,760 |
1 | ||
| 69243A - PAD, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69243-12020 |
CXM10,SXM1# |
1 | ||
| 69244 - PAD, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69244-12020 |
CXM10,SXM1# |
1 | ||
| 69277C - BEZEL, REAR DOOR INSIDE HANDLE, RH | ||||
| 69277-30150B2 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 69277-30150B2 |
CXM10,SXM1#..E,IPSUM,L MD.MOON MIST,TRIM1# |
1 | ||
| 69277-44060 |
SXM1#..ATG |
1 | ||
| 69278C - BEZEL, REAR DOOR INSIDE HANDLE, LH | ||||
| 69278-30080B2 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 69278-44060 |
SXM1#..ATG |
1 | ||
| 69278-30080B2 |
CXM10,SXM1#..E,IPSUM,L MD.MOON MIST,TRIM1# |
1 | ||
| 69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-30040B2 |
CXM10,SXM1#..E,IPSUM,L MD.MOON MIST,TRIM1# |
1 | ||
| 69283-30040B2 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 69283-44030 |
SXM1#..ATG |
1 | ||
| 69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-30040B2 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 69283-44030 |
SXM1#..ATG |
1 | ||
| 69284-30040B2 |
CXM10,SXM1#..E,IPSUM,L MD.MOON MIST,TRIM1# |
1 | ||
| 69293B - SNAP, REAR DOOR OUTSIDE HANDLE | ||||
| 69293-12040 |
CXM10,SXM1# 左側 |
1 | ||
| 69293-12030 |
CXM10,SXM1# 右側 |
1 | ||
| 69315B - RETAINER, REAR DOOR LOCK SOLENOID | ||||
| 69315-33030 |
CXM10,SXM1# |
2 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-44010 |
CXM10,SXM1# |
1 | ||
| 69050-44030 |
CXM10,SXM1# |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-44010 |
CXM10,SXM1# |
1 | ||
| 69060-44030 |
CXM10,SXM1# |
1 | ||
| 69410B - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-87001 |
CXM10,SXM1# |
2 | ||
| 69410-20110 |
CXM10,SXM1# |
2 | ||
| 69713A - LINK, REAR DOOR LOCK REMOTE CONTROL, RH | ||||
| 69713-44010 |
CXM10,SXM1# |
1 | ||
| 69714 - LINK, REAR DOOR LOCK REMOTE CONTROL, LH | ||||
| 69714-44010 |
CXM10,SXM1# |
1 | ||
| 69723B - LINK, REAR DOOR INSIDE LOCKING, NO.3 RH | ||||
| 69723-44010 |
CXM10,SXM1# |
1 | ||
| 69724 - LINK, REAR DOOR INSIDE LOCKING, NO.3 LH | ||||
| 69724-44010 |
CXM10,SXM1# |
1 | ||
| 69737 - LINK, REAR DOOR INSIDE LOCKING, RH | ||||
| 69737-44010 |
CXM10,SXM1# |
1 | ||
| 69738 - LINK, REAR DOOR INSIDE LOCKING, LH | ||||
| 69738-44010 |
CXM10,SXM1# |
1 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-30050 |
CXM10,SXM1# |
2 | ||
| 69749-32030 |
CXM10,SXM1# |
2 | ||
| 69753B - BELLCRANK, REAR DOOR LOCK CONTROL, RH | ||||
| 69753-32070 |
CXM10,SXM1# |
1 | ||
| 69754A - BELLCRANK, REAR DOOR LOCK CONTROL, LH | ||||
| 69753-32070 |
CXM10,SXM1# |
1 | ||
| 69755B - SILENCER, REAR DOOR LOCK LINK | ||||
| 69759-20390 |
CXM10,SXM1# |
2 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-24050 |
SXM1# 左側 |
2 | ||
| 69759-24060 |
SXM1# 右側 |
2 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-24050 |
SXM1# 左側 |
2 | ||
| 69759-24060 |
SXM1# 右側 |
2 | ||
| 69759M - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-20380 |
CXM10,SXM1# 右側 |
2 | ||
| 69759-24030 |
CXM10,SXM1# 左側 |
2 | ||
| 69759M - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-20380 |
CXM10,SXM1# 右側 |
2 | ||
| 69759-24030 |
CXM10,SXM1# 左側 |
2 | ||
| Common parts | ||||
| 90105-06082 | ||||
| 90148-60022 | ||||
| 90159-50322 | ||||
| 90159-80047 | ||||
| 90164-50032 | ||||
| 90189-05003 | ||||
| 90467-08117 | ||||
(9804- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69205-30120B3 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 69205-44030 |
SXM1#..ATG |
1 | ||
| 69205-44010B1 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 69205-44010B1 |
CXM10,SXM1#..E,IPSUM,L MD.MOON MIST,TRIM1# |
1 | ||
| 69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE) | ||||
| 90541-04014 |
CXM10,SXM1# |
2 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69206-44010B1 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 69206-30120B3 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 69206-44010B1 |
CXM10,SXM1#..E,IPSUM,L MD.MOON MIST,TRIM1# |
1 | ||
| 69206-44030 |
SXM1#..ATG |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69230-12180K0 |
SXM1# PURPLE M.M.OP.GR.,934 |
1 | ||
| 69230-12180D1 |
CXM10,SXM1#..E,IPSUM,L WINE RED MC,3J8 |
1 | ||
| 69230-12180G4 |
CXM10,SXM1#..E,IPSUM,L GREEN ME.OP.,6P4 |
1 | ||
| 69230-12180B2 |
CXM10,SXM1#..E,IPSUM,L SILVER ME,199 |
1 | ||
| 69230-12230B3 |
CXM10,SXM1#..E,IPSUM,L SILVER ME,199 |
1 | ||
| 69230-12180J4 |
CXM10,SXM1#..E,IPSUM,L PURPLISH BLUE M.M.,8K9 |
1 | ||
| 69230-12180J3 |
CXM10,SXM1#..E,IPSUM,L DK.BLUE MM.GR.,8K5 |
1 | ||
| 69230-12180A1 |
CXM10,SXM1# WHITE,056 |
1 | ||
| 69230-12230H1 |
CXM10,SXM1#..E,IPSUM,L DK.TURQUOISE MC.,760 |
1 | ||
| 69230-12180G3 |
CXM10,SXM1#..E,IPSUM,L DK.GREEN M.M.,6N5 |
1 | ||
| 69230-12230A3 |
CXM10,SXM1# WHITE PM.,057 |
1 | ||
| 69230-44020B0 |
CXM10,SXM1#..E,IPSUM,L SILVER ME,199 |
1 | ||
| 69230-12230D3 |
CXM10,SXM1#..E,IPSUM,L WINE RED MC,3J8 |
1 | ||
| 69230-12230C1 |
SXM1#..ATG BLACK,202 |
1 | ||
| 69230-12180C1 |
SXM1#..ATG BLACK,202 |
1 | ||
| 69230-12230J5 |
CXM10,SXM1#..E,IPSUM,L BLUE ME.AMC.,8N2 |
1 | ||
| 69230-12230J4 |
CXM10,SXM1#..E,IPSUM,L DK.BLUE MM.GR.,8K5 |
1 | ||
| 69230-44020D0 |
CXM10,SXM1#..E,IPSUM,L WINE RED MC,3J8 |
1 | ||
| 69230-44020A1 |
CXM10,SXM1# WHITE PM.,057 |
1 | ||
| 69230-44020J1 |
CXM10,SXM1#..E,IPSUM,L BLUE ME.AMC.,8N2 |
1 | ||
| 69230-44020H0 |
CXM10,SXM1#..E,IPSUM,L DK.TURQUOISE MC.,760 |
1 | ||
| 69230-44020C0 |
SXM1#..ATG BLACK,202 |
1 | ||
| 69230-44020B0 |
CXM10,SXM1# SILVER ME,199 |
1 | ||
| 69230-44020H1 |
CXM10,SXM1#..E,IPSUM,L TURQUOISE ME.,765 |
1 | ||
| 69230-44020J0 |
CXM10,SXM1#..E,IPSUM,L DK.BLUE MM.GR.,8K5 |
1 | ||
| 69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE) | ||||
| 90541-04018 |
CXM10,SXM1# |
4 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69240-12180K0 |
SXM1# PURPLE M.M.OP.GR.,934 |
1 | ||
| 69240-12180J4 |
CXM10,SXM1#..E,IPSUM,L PURPLISH BLUE M.M.,8K9 |
1 | ||
| 69240-12180D1 |
CXM10,SXM1#..E,IPSUM,L WINE RED MC,3J8 |
1 | ||
| 69240-12180A1 |
CXM10,SXM1# WHITE,056 |
1 | ||
| 69240-12180G4 |
CXM10,SXM1#..E,IPSUM,L GREEN ME.OP.,6P4 |
1 | ||
| 69240-12180B2 |
CXM10,SXM1#..E,IPSUM,L SILVER ME,199 |
1 | ||
| 69240-12180G3 |
CXM10,SXM1#..E,IPSUM,L DK.GREEN M.M.,6N5 |
1 | ||
| 69240-12230C1 |
SXM1#..ATG BLACK,202 |
1 | ||
| 69240-12180C1 |
SXM1#..ATG BLACK,202 |
1 | ||
| 69240-12230D3 |
CXM10,SXM1#..E,IPSUM,L WINE RED MC,3J8 |
1 | ||
| 69240-12180J3 |
CXM10,SXM1#..E,IPSUM,L DK.BLUE MM.GR.,8K5 |
1 | ||
| 69240-12230H1 |
CXM10,SXM1#..E,IPSUM,L DK.TURQUOISE MC.,760 |
1 | ||
| 69240-12230J5 |
CXM10,SXM1#..E,IPSUM,L BLUE ME.AMC.,8N2 |
1 | ||
| 69240-12230J4 |
CXM10,SXM1#..E,IPSUM,L DK.BLUE MM.GR.,8K5 |
1 | ||
| 69240-44020B0 |
CXM10,SXM1#..E,IPSUM,L SILVER ME,199 |
1 | ||
| 69240-12230A3 |
CXM10,SXM1# WHITE PM.,057 |
1 | ||
| 69240-12230B3 |
CXM10,SXM1#..E,IPSUM,L SILVER ME,199 |
1 | ||
| 69240-44020C0 |
SXM1#..ATG BLACK,202 |
1 | ||
| 69240-44020J1 |
CXM10,SXM1#..E,IPSUM,L BLUE ME.AMC.,8N2 |
1 | ||
| 69240-44020J0 |
CXM10,SXM1#..E,IPSUM,L DK.BLUE MM.GR.,8K5 |
1 | ||
| 69240-44020A1 |
CXM10,SXM1# WHITE PM.,057 |
1 | ||
| 69240-44020D0 |
CXM10,SXM1#..E,IPSUM,L WINE RED MC,3J8 |
1 | ||
| 69240-44020B0 |
CXM10,SXM1# SILVER ME,199 |
1 | ||
| 69240-44020H1 |
CXM10,SXM1#..E,IPSUM,L TURQUOISE ME.,765 |
1 | ||
| 69240-44020H0 |
CXM10,SXM1#..E,IPSUM,L DK.TURQUOISE MC.,760 |
1 | ||
| 69243A - PAD, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69243-12020 |
CXM10,SXM1# |
1 | ||
| 69244 - PAD, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69244-12020 |
CXM10,SXM1# |
1 | ||
| 69277C - BEZEL, REAR DOOR INSIDE HANDLE, RH | ||||
| 69277-30150B2 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 69277-30150B2 |
CXM10,SXM1#..E,IPSUM,L MD.MOON MIST,TRIM1# |
1 | ||
| 69277-44060 |
SXM1#..ATG |
1 | ||
| 69278C - BEZEL, REAR DOOR INSIDE HANDLE, LH | ||||
| 69278-30080B2 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 69278-44060 |
SXM1#..ATG |
1 | ||
| 69278-30080B2 |
CXM10,SXM1#..E,IPSUM,L MD.MOON MIST,TRIM1# |
1 | ||
| 69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-30040B2 |
CXM10,SXM1#..E,IPSUM,L MD.MOON MIST,TRIM1# |
1 | ||
| 69283-30040B2 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 69283-44030 |
SXM1#..ATG |
1 | ||
| 69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-30040B2 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 69283-44030 |
SXM1#..ATG |
1 | ||
| 69284-30040B2 |
CXM10,SXM1#..E,IPSUM,L MD.MOON MIST,TRIM1# |
1 | ||
| 69293B - SNAP, REAR DOOR OUTSIDE HANDLE | ||||
| 69293-12040 |
CXM10,SXM1# 左側 |
1 | ||
| 69293-12030 |
CXM10,SXM1# 右側 |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-44010 |
CXM10,SXM1# |
1 | ||
| 69050-44030 |
CXM10,SXM1# |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-44010 |
CXM10,SXM1# |
1 | ||
| 69060-44030 |
CXM10,SXM1# |
1 | ||
| 69410B - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-87001 |
CXM10,SXM1# |
2 | ||
| 69410-20110 |
CXM10,SXM1# |
2 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-30050 |
CXM10,SXM1# |
2 | ||
| 69749-32030 |
CXM10,SXM1# |
2 | ||
| 69759W - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-44030 |
CXM10,SXM1# |
2 | ||
| Common parts | ||||
| 90105-06082 | ||||
| 90148-60022 | ||||
| 90159-50322 | ||||
| 90159-80047 | ||||
| 90164-50032 | ||||
| 90189-05003 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
