SXM15G-ARSSK (1997)
Toyota Ipsum
(9605-9804)

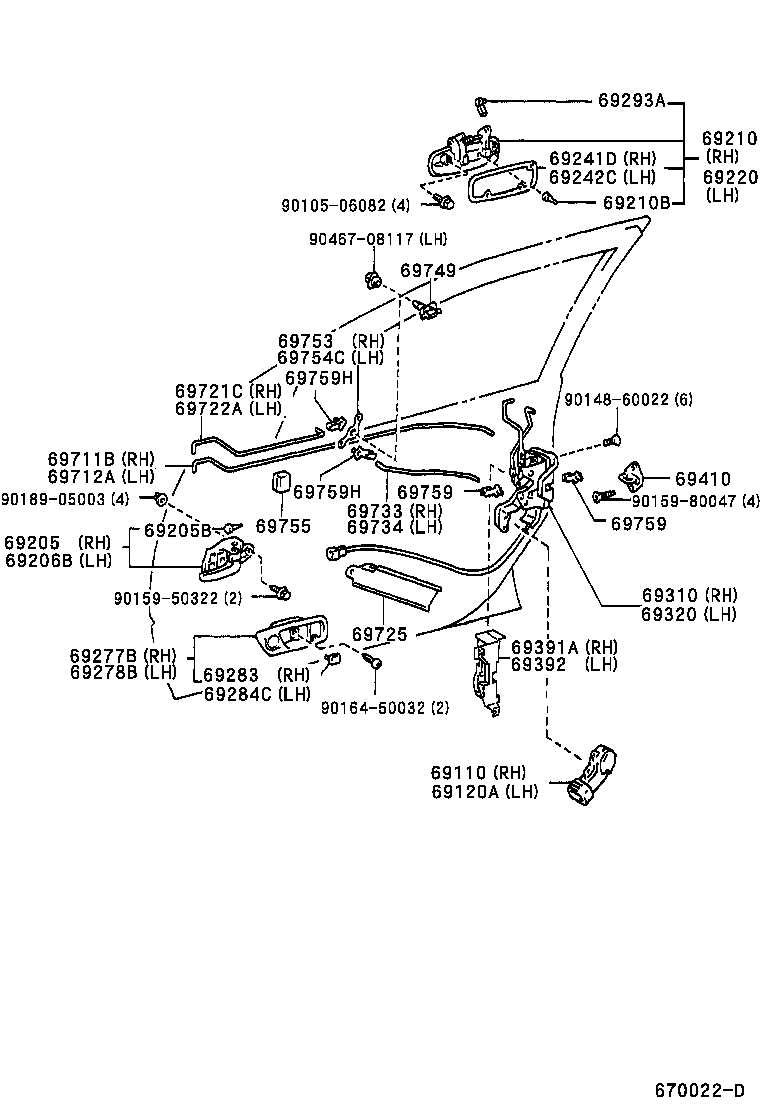

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69110 - ACTUATOR ASSY, FRONT DOOR LOCK, RH | ||||
| 69110-44010 |
CXM10,SXM1# |
1 | ||
| 69120A - ACTUATOR ASSY, FRONT DOOR LOCK, LH | ||||
| 69120-44010 |
CXM10,SXM1# |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-44010B1 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 69205-44030 |
SXM1#..ATG |
1 | ||
| 69205-30120B3 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 69205-44010B1 |
CXM10,SXM1#..E,IPSUM,L MD.MOON MIST,TRIM1# |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90541-04014 |
CXM10,SXM1# |
2 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-44010B1 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 69206-44010B1 |
CXM10,SXM1#..E,IPSUM,L MD.MOON MIST,TRIM1# |
1 | ||
| 69206-30120B3 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 69206-44030 |
SXM1#..ATG |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-12200G4 |
CXM10,SXM1#..E,IPSUM,L GREEN ME.OP.,6P4 |
1 | ||
| 69210-12200G3 |
CXM10,SXM1#..E,IPSUM,L DK.GREEN M.M.,6N5 |
1 | ||
| 69210-12200A1 |
CXM10,SXM1# WHITE,056 |
1 | ||
| 69210-12200C1 |
SXM1#..ATG BLACK,202 |
1 | ||
| 69210-12200K0 |
SXM1# PURPLE M.M.OP.GR.,934 |
1 | ||
| 69210-12200D1 |
CXM10,SXM1#..E,IPSUM,L WINE RED MC,3J8 |
1 | ||
| 69210-12290B3 |
CXM10,SXM1#..E,IPSUM,L SILVER ME,199 |
1 | ||
| 69210-12200B3 |
CXM10,SXM1#..E,IPSUM,L SILVER ME,199 |
1 | ||
| 69210-12200J4 |
CXM10,SXM1#..E,IPSUM,L DK.BLUE MM.GR.,8K5 |
1 | ||
| 69210-12290A3 |
CXM10,SXM1# WHITE PM.,057 |
1 | ||
| 69210-12290J5 |
CXM10,SXM1#..E,IPSUM,L DK.BLUE MM.GR.,8K5 |
1 | ||
| 69210-44020B0 |
CXM10,SXM1#..E,IPSUM,L SILVER ME,199 |
1 | ||
| 69210-12290J6 |
CXM10,SXM1#..E,IPSUM,L BLUE ME.AMC.,8N2 |
1 | ||
| 69210-12290D3 |
CXM10,SXM1#..E,IPSUM,L WINE RED MC,3J8 |
1 | ||
| 69210-44020J1 |
CXM10,SXM1#..E,IPSUM,L BLUE ME.AMC.,8N2 |
1 | ||
| 69210-12200J5 |
CXM10,SXM1#..E,IPSUM,L PURPLISH BLUE M.M.,8K9 |
1 | ||
| 69210-12290C1 |
SXM1#..ATG BLACK,202 |
1 | ||
| 69210-44020A1 |
CXM10,SXM1# WHITE PM.,057 |
1 | ||
| 69210-12290H1 |
CXM10,SXM1#..E,IPSUM,L DK.TURQUOISE MC.,760 |
1 | ||
| 69210-44020C0 |
SXM1#..ATG BLACK,202 |
1 | ||
| 69210-44020H0 |
CXM10,SXM1#..E,IPSUM,L DK.TURQUOISE MC.,760 |
1 | ||
| 69210-44020J0 |
CXM10,SXM1#..E,IPSUM,L DK.BLUE MM.GR.,8K5 |
1 | ||
| 69210-44020H1 |
CXM10,SXM1#..E,IPSUM,L TURQUOISE ME.,765 |
1 | ||
| 69210-44020B0 |
CXM10,SXM1# SILVER ME,199 |
1 | ||
| 69210-44020D0 |
CXM10,SXM1#..E,IPSUM,L WINE RED MC,3J8 |
1 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-04018 |
CXM10,SXM1# |
4 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-12190C1 |
SXM1#..ATG BLACK,202 |
1 | ||
| 69220-12190K0 |
SXM1# PURPLE M.M.OP.GR.,934 |
1 | ||
| 69220-12190B3 |
CXM10,SXM1#..E,IPSUM,L SILVER ME,199 |
1 | ||
| 69220-12190G3 |
CXM10,SXM1#..E,IPSUM,L DK.GREEN M.M.,6N5 |
1 | ||
| 69220-12190G4 |
CXM10,SXM1#..E,IPSUM,L GREEN ME.OP.,6P4 |
1 | ||
| 69220-12190D1 |
CXM10,SXM1#..E,IPSUM,L WINE RED MC,3J8 |
1 | ||
| 69220-12290A3 |
CXM10,SXM1# WHITE PM.,057 |
1 | ||
| 69220-12190J4 |
CXM10,SXM1#..E,IPSUM,L DK.BLUE MM.GR.,8K5 |
1 | ||
| 69220-12290C1 |
SXM1#..ATG BLACK,202 |
1 | ||
| 69220-12190A1 |
CXM10,SXM1# WHITE,056 |
1 | ||
| 69220-12290J6 |
CXM10,SXM1#..E,IPSUM,L BLUE ME.AMC.,8N2 |
1 | ||
| 69220-12290B3 |
CXM10,SXM1#..E,IPSUM,L SILVER ME,199 |
1 | ||
| 69220-12290H1 |
CXM10,SXM1#..E,IPSUM,L DK.TURQUOISE MC.,760 |
1 | ||
| 69220-12290J5 |
CXM10,SXM1#..E,IPSUM,L DK.BLUE MM.GR.,8K5 |
1 | ||
| 69220-12290D3 |
CXM10,SXM1#..E,IPSUM,L WINE RED MC,3J8 |
1 | ||
| 69220-44020J1 |
CXM10,SXM1#..E,IPSUM,L BLUE ME.AMC.,8N2 |
1 | ||
| 69220-44020D0 |
CXM10,SXM1#..E,IPSUM,L WINE RED MC,3J8 |
1 | ||
| 69220-44020C0 |
SXM1#..ATG BLACK,202 |
1 | ||
| 69220-44020B0 |
CXM10,SXM1#..E,IPSUM,L SILVER ME,199 |
1 | ||
| 69220-44020H0 |
CXM10,SXM1#..E,IPSUM,L DK.TURQUOISE MC.,760 |
1 | ||
| 69220-44020B0 |
CXM10,SXM1# SILVER ME,199 |
1 | ||
| 69220-44020A1 |
CXM10,SXM1# WHITE PM.,057 |
1 | ||
| 69220-44020J0 |
CXM10,SXM1#..E,IPSUM,L DK.BLUE MM.GR.,8K5 |
1 | ||
| 69220-12190J5 |
CXM10,SXM1#..E,IPSUM,L PURPLISH BLUE M.M.,8K9 |
1 | ||
| 69220-44020H1 |
CXM10,SXM1#..E,IPSUM,L TURQUOISE ME.,765 |
1 | ||
| 69241D - PAD, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69241-12100 |
CXM10,SXM1# |
1 | ||
| 69242C - PAD, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69242-12050 |
CXM10,SXM1# |
1 | ||
| 69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH | ||||
| 69277-30150B2 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 69277-44010B0 |
CXM10,SXM1#..E,IPSUM,L ｱﾘ(6 ｽﾋﾟ-ｶ),MD.MOON MIST,TRIM1# |
1 | ||
| 69277-44070 |
SXM1#..ATG ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ) |
1 | ||
| 69277-44010B0 |
CXM10,SXM1# ｱﾘ(6 ｽﾋﾟ-ｶ),MD.MOON MIST,TRIM1# |
1 | ||
| 69277-44060 |
SXM1#..ATG |
1 | ||
| 69277-30150B2 |
CXM10,SXM1#..E,IPSUM,L MD.MOON MIST,TRIM1# |
1 | ||
| 69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH | ||||
| 69278-44010B0 |
CXM10,SXM1# ｱﾘ(6 ｽﾋﾟ-ｶ),MD.MOON MIST,TRIM1# |
1 | ||
| 69278-30080B2 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 69278-30080B2 |
CXM10,SXM1#..E,IPSUM,L MD.MOON MIST,TRIM1# |
1 | ||
| 69278-44060 |
SXM1#..ATG |
1 | ||
| 69278-44010B0 |
CXM10,SXM1#..E,IPSUM,L ｱﾘ(6 ｽﾋﾟ-ｶ),MD.MOON MIST,TRIM1# |
1 | ||
| 69278-44070 |
SXM1#..ATG ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ) |
1 | ||
| 69283 - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-30040B2 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 69283-44030 |
SXM1#..ATG |
1 | ||
| 69283-30040B2 |
CXM10,SXM1#..E,IPSUM,L MD.MOON MIST,TRIM1# |
1 | ||
| 69284C - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69283-30040B2 |
CXM10,SXM1#..ATG,E,IPSUM ｱﾘ(6 ｽﾋﾟ-ｶ),MD.MOON MIST,TRIM1# |
1 | ||
| 69284-30040B2 |
CXM10,SXM1#..ATG,E,IPSUM MD.MOON MIST,TRIM1# |
1 | ||
| 69283-44030 |
SXM1#..ATG |
1 | ||
| 69284-30040B2 |
CXM10,SXM1#..E,IPSUM MD.MOON MIST,TRIM1# |
1 | ||
| 69283-30040B2 |
CXM10,SXM1#..E,IPSUM ｱﾘ(6 ｽﾋﾟ-ｶ),MD.MOON MIST,TRIM1# |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12040 |
CXM10,SXM1# 左側 |
1 | ||
| 69293-12030 |
CXM10,SXM1# 右側 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-44010 |
CXM10,SXM1# |
1 | ||
| 69030-44040 |
CXM10,SXM1# |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-44010 |
CXM10,SXM1# |
1 | ||
| 69040-44040 |
CXM10,SXM1# |
1 | ||
| 69391A - COVER, FRONT DOOR LOCK, OUTER RH | ||||
| 69391-44010 |
CXM10,SXM1# |
1 | ||
| 69392 - COVER, FRONT DOOR LOCK, OUTER LH | ||||
| 69392-44010 |
CXM10,SXM1# |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-87001 |
CXM10,SXM1# |
2 | ||
| 69410-20110 |
CXM10,SXM1# |
2 | ||
| 69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69711-44010 |
CXM10,SXM1# |
1 | ||
| 69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69712-44010 |
CXM10,SXM1# |
1 | ||
| 69721C - LINK, FRONT DOOR INSIDE LOCKING, NO.3 RH | ||||
| 69721-44010 |
CXM10,SXM1# |
1 | ||
| 69722A - LINK, FRONT DOOR INSIDE LOCKING, NO.3 LH | ||||
| 69722-44010 |
CXM10,SXM1# |
1 | ||
| 69725 - PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH | ||||
| 69725-44010 |
CXM10,SXM1# |
1 | ||
| 69733 - LINK, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69733-44010 |
CXM10,SXM1# |
1 | ||
| 69734 - LINK, FRONT DOOR INSIDE LOCKING, LH | ||||
| 69734-44010 |
CXM10,SXM1# |
1 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-32030 |
CXM10,SXM1# |
2 | ||
| 69749-30050 |
CXM10,SXM1# |
2 | ||
| 69753 - BELLCRANK, DOOR LOCK CONTROL, RH | ||||
| 69753-20070 |
CXM10,SXM1# |
1 | ||
| 69754C - BELLCRANK, DOOR LOCK CONTROL, LH | ||||
| 69753-20070 |
CXM10,SXM1# |
1 | ||
| 69755 - SILENCER, FRONT DOOR LOCK LINK | ||||
| 69759-20390 |
CXM10,SXM1# |
2 | ||
| 69759-44030 |
CXM10,SXM1# |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24010 |
SXM1# ﾎﾜｲﾄ |
1 | ||
| 69759-24060 |
SXM1# ｸﾞﾚｰ |
2 | ||
| 69759-24020 |
SXM1# ﾌﾞﾙｰ |
1 | ||
| 69759-24050 |
SXM1# ｸﾞﾘｰﾝ |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24010 |
SXM1# ﾎﾜｲﾄ |
1 | ||
| 69759-24060 |
SXM1# ｸﾞﾚｰ |
2 | ||
| 69759-24020 |
SXM1# ﾌﾞﾙｰ |
1 | ||
| 69759-24050 |
SXM1# ｸﾞﾘｰﾝ |
2 | ||
| 69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2 | ||||
| 69759-20380 |
CXM10,SXM1# ﾌﾞﾗｯｸ |
2 | ||
| 69759-24030 |
CXM10,SXM1# ﾚｯﾄﾞ |
2 | ||
| 69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2 | ||||
| 69759-20380 |
CXM10,SXM1# ﾌﾞﾗｯｸ |
2 | ||
| 69759-24030 |
CXM10,SXM1# ﾚｯﾄﾞ |
2 | ||
| Common parts | ||||
| 90105-06082 | ||||
| 90148-60022 | ||||
| 90159-50322 | ||||
| 90159-80047 | ||||
| 90164-50032 | ||||
| 90189-05003 | ||||
| 90467-08117 | ||||
(9804- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-44010B1 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 69205-44030 |
SXM1#..ATG |
1 | ||
| 69205-30120B3 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 69205-44010B1 |
CXM10,SXM1#..E,IPSUM,L MD.MOON MIST,TRIM1# |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90541-04014 |
CXM10,SXM1# |
2 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-44010B1 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 69206-44010B1 |
CXM10,SXM1#..E,IPSUM,L MD.MOON MIST,TRIM1# |
1 | ||
| 69206-30120B3 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 69206-44030 |
SXM1#..ATG |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-12200G4 |
CXM10,SXM1#..E,IPSUM,L GREEN ME.OP.,6P4 |
1 | ||
| 69210-12200G3 |
CXM10,SXM1#..E,IPSUM,L DK.GREEN M.M.,6N5 |
1 | ||
| 69210-12200A1 |
CXM10,SXM1# WHITE,056 |
1 | ||
| 69210-12200C1 |
SXM1#..ATG BLACK,202 |
1 | ||
| 69210-12200K0 |
SXM1# PURPLE M.M.OP.GR.,934 |
1 | ||
| 69210-12200D1 |
CXM10,SXM1#..E,IPSUM,L WINE RED MC,3J8 |
1 | ||
| 69210-12290B3 |
CXM10,SXM1#..E,IPSUM,L SILVER ME,199 |
1 | ||
| 69210-12200B3 |
CXM10,SXM1#..E,IPSUM,L SILVER ME,199 |
1 | ||
| 69210-12200J4 |
CXM10,SXM1#..E,IPSUM,L DK.BLUE MM.GR.,8K5 |
1 | ||
| 69210-12290A3 |
CXM10,SXM1# WHITE PM.,057 |
1 | ||
| 69210-12290J5 |
CXM10,SXM1#..E,IPSUM,L DK.BLUE MM.GR.,8K5 |
1 | ||
| 69210-44020B0 |
CXM10,SXM1#..E,IPSUM,L SILVER ME,199 |
1 | ||
| 69210-12290J6 |
CXM10,SXM1#..E,IPSUM,L BLUE ME.AMC.,8N2 |
1 | ||
| 69210-12290D3 |
CXM10,SXM1#..E,IPSUM,L WINE RED MC,3J8 |
1 | ||
| 69210-44020J1 |
CXM10,SXM1#..E,IPSUM,L BLUE ME.AMC.,8N2 |
1 | ||
| 69210-12200J5 |
CXM10,SXM1#..E,IPSUM,L PURPLISH BLUE M.M.,8K9 |
1 | ||
| 69210-12290C1 |
SXM1#..ATG BLACK,202 |
1 | ||
| 69210-44020A1 |
CXM10,SXM1# WHITE PM.,057 |
1 | ||
| 69210-12290H1 |
CXM10,SXM1#..E,IPSUM,L DK.TURQUOISE MC.,760 |
1 | ||
| 69210-44020C0 |
SXM1#..ATG BLACK,202 |
1 | ||
| 69210-44020H0 |
CXM10,SXM1#..E,IPSUM,L DK.TURQUOISE MC.,760 |
1 | ||
| 69210-44020J0 |
CXM10,SXM1#..E,IPSUM,L DK.BLUE MM.GR.,8K5 |
1 | ||
| 69210-44020H1 |
CXM10,SXM1#..E,IPSUM,L TURQUOISE ME.,765 |
1 | ||
| 69210-44020B0 |
CXM10,SXM1# SILVER ME,199 |
1 | ||
| 69210-44020D0 |
CXM10,SXM1#..E,IPSUM,L WINE RED MC,3J8 |
1 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-04018 |
CXM10,SXM1# |
4 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-44020J1 |
CXM10,SXM1#..E,IPSUM,L BLUE ME.AMC.,8N2 |
1 | ||
| 69220-12190C1 |
SXM1#..ATG BLACK,202 |
1 | ||
| 69220-12190K0 |
SXM1# PURPLE M.M.OP.GR.,934 |
1 | ||
| 69220-12190B3 |
CXM10,SXM1#..E,IPSUM,L SILVER ME,199 |
1 | ||
| 69220-12190G3 |
CXM10,SXM1#..E,IPSUM,L DK.GREEN M.M.,6N5 |
1 | ||
| 69220-12190G4 |
CXM10,SXM1#..E,IPSUM,L GREEN ME.OP.,6P4 |
1 | ||
| 69220-12190D1 |
CXM10,SXM1#..E,IPSUM,L WINE RED MC,3J8 |
1 | ||
| 69220-12290A3 |
CXM10,SXM1# WHITE PM.,057 |
1 | ||
| 69220-12190J4 |
CXM10,SXM1#..E,IPSUM,L DK.BLUE MM.GR.,8K5 |
1 | ||
| 69220-12290C1 |
SXM1#..ATG BLACK,202 |
1 | ||
| 69220-12190A1 |
CXM10,SXM1# WHITE,056 |
1 | ||
| 69220-12290J6 |
CXM10,SXM1#..E,IPSUM,L BLUE ME.AMC.,8N2 |
1 | ||
| 69220-12290B3 |
CXM10,SXM1#..E,IPSUM,L SILVER ME,199 |
1 | ||
| 69220-12290H1 |
CXM10,SXM1#..E,IPSUM,L DK.TURQUOISE MC.,760 |
1 | ||
| 69220-12290J5 |
CXM10,SXM1#..E,IPSUM,L DK.BLUE MM.GR.,8K5 |
1 | ||
| 69220-12290D3 |
CXM10,SXM1#..E,IPSUM,L WINE RED MC,3J8 |
1 | ||
| 69220-44020D0 |
CXM10,SXM1#..E,IPSUM,L WINE RED MC,3J8 |
1 | ||
| 69220-44020C0 |
SXM1#..ATG BLACK,202 |
1 | ||
| 69220-44020B0 |
CXM10,SXM1#..E,IPSUM,L SILVER ME,199 |
1 | ||
| 69220-44020H0 |
CXM10,SXM1#..E,IPSUM,L DK.TURQUOISE MC.,760 |
1 | ||
| 69220-44020B0 |
CXM10,SXM1# SILVER ME,199 |
1 | ||
| 69220-44020A1 |
CXM10,SXM1# WHITE PM.,057 |
1 | ||
| 69220-44020J0 |
CXM10,SXM1#..E,IPSUM,L DK.BLUE MM.GR.,8K5 |
1 | ||
| 69220-12190J5 |
CXM10,SXM1#..E,IPSUM,L PURPLISH BLUE M.M.,8K9 |
1 | ||
| 69220-44020H1 |
CXM10,SXM1#..E,IPSUM,L TURQUOISE ME.,765 |
1 | ||
| 69241D - PAD, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69241-12100 |
CXM10,SXM1# |
1 | ||
| 69242C - PAD, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69242-12050 |
CXM10,SXM1# |
1 | ||
| 69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH | ||||
| 69277-30150B2 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 69277-44010B0 |
CXM10,SXM1#..E,IPSUM,L ｱﾘ(6 ｽﾋﾟ-ｶ),MD.MOON MIST,TRIM1# |
1 | ||
| 69277-44070 |
SXM1#..ATG ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ) |
1 | ||
| 69277-44010B0 |
CXM10,SXM1# ｱﾘ(6 ｽﾋﾟ-ｶ),MD.MOON MIST,TRIM1# |
1 | ||
| 69277-44060 |
SXM1#..ATG |
1 | ||
| 69277-30150B2 |
CXM10,SXM1#..E,IPSUM,L MD.MOON MIST,TRIM1# |
1 | ||
| 69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH | ||||
| 69278-44010B0 |
CXM10,SXM1# ｱﾘ(6 ｽﾋﾟ-ｶ),MD.MOON MIST,TRIM1# |
1 | ||
| 69278-30080B2 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 69278-30080B2 |
CXM10,SXM1#..E,IPSUM,L MD.MOON MIST,TRIM1# |
1 | ||
| 69278-44060 |
SXM1#..ATG |
1 | ||
| 69278-44010B0 |
CXM10,SXM1#..E,IPSUM,L ｱﾘ(6 ｽﾋﾟ-ｶ),MD.MOON MIST,TRIM1# |
1 | ||
| 69278-44070 |
SXM1#..ATG ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ) |
1 | ||
| 69283 - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-30040B2 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 69283-44030 |
SXM1#..ATG |
1 | ||
| 69283-30040B2 |
CXM10,SXM1#..E,IPSUM,L MD.MOON MIST,TRIM1# |
1 | ||
| 69284C - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69283-30040B2 |
CXM10,SXM1#..ATG,E,IPSUM ｱﾘ(6 ｽﾋﾟ-ｶ),MD.MOON MIST,TRIM1# |
1 | ||
| 69284-30040B2 |
CXM10,SXM1#..ATG,E,IPSUM MD.MOON MIST,TRIM1# |
1 | ||
| 69283-44030 |
SXM1#..ATG |
1 | ||
| 69284-30040B2 |
CXM10,SXM1#..E,IPSUM MD.MOON MIST,TRIM1# |
1 | ||
| 69283-30040B2 |
CXM10,SXM1#..E,IPSUM ｱﾘ(6 ｽﾋﾟ-ｶ),MD.MOON MIST,TRIM1# |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12040 |
CXM10,SXM1# 左側 |
1 | ||
| 69293-12030 |
CXM10,SXM1# 右側 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-44010 |
CXM10,SXM1# |
1 | ||
| 69030-44040 |
CXM10,SXM1# |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-44010 |
CXM10,SXM1# |
1 | ||
| 69040-44040 |
CXM10,SXM1# |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-87001 |
CXM10,SXM1# |
2 | ||
| 69410-20110 |
CXM10,SXM1# |
2 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-32030 |
CXM10,SXM1# |
2 | ||
| 69749-30050 |
CXM10,SXM1# |
2 | ||
| 69755 - SILENCER, FRONT DOOR LOCK LINK | ||||
| 69759-20390 |
CXM10,SXM1# |
2 | ||
| 69759-44030 |
CXM10,SXM1# |
2 | ||
| Common parts | ||||
| 90105-06082 | ||||
| 90148-60022 | ||||
| 90159-50322 | ||||
| 90159-80047 | ||||
| 90164-50032 | ||||
| 90189-05003 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
