SXM15G-ARSSK (1997)
Toyota Ipsum

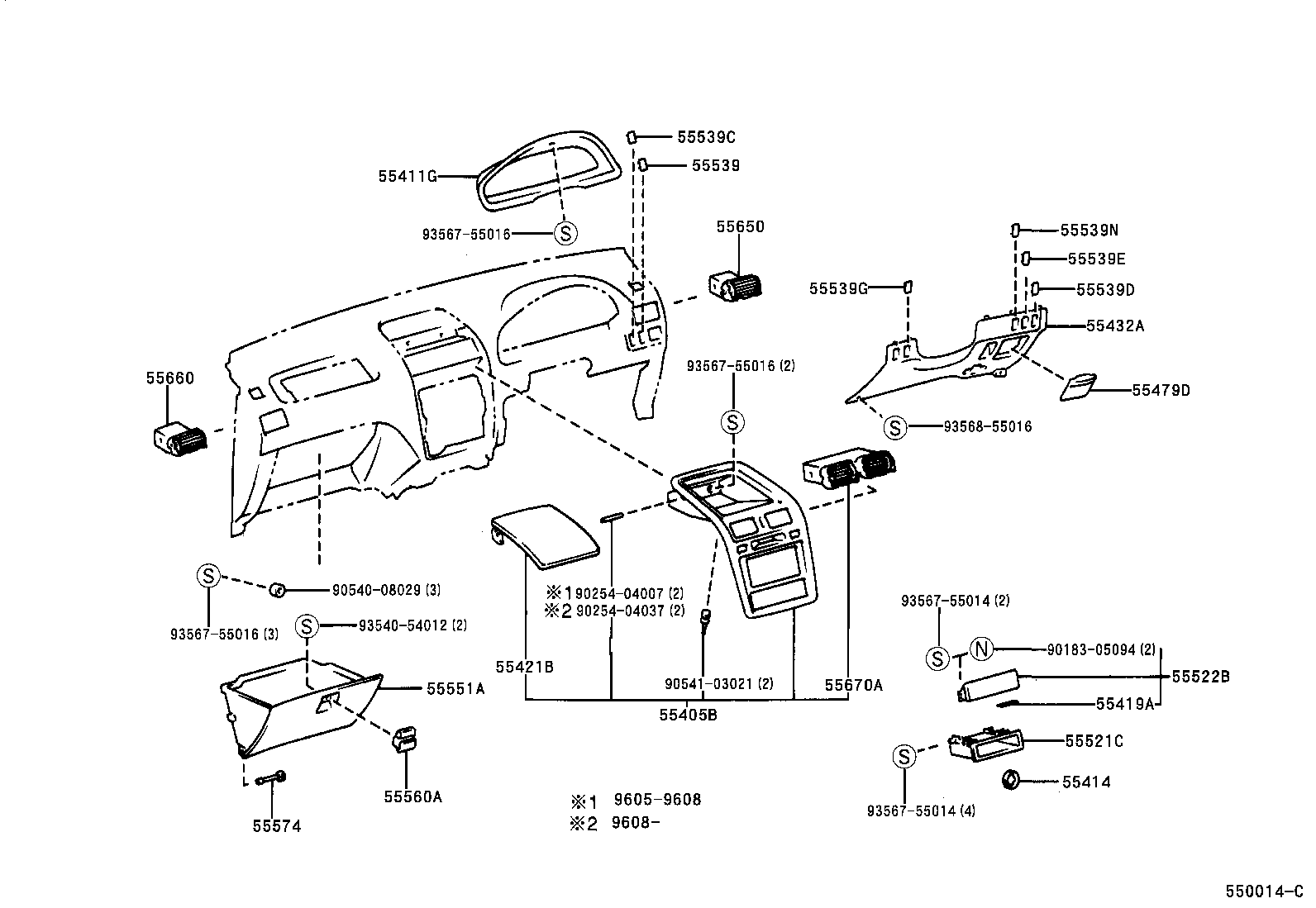

ILLUST NO. 2 OF 2(9605-9804)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-44050B0 |
CXM10,SXM1# ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ),MD.MOON MIST,TRIM1# |
1 | ||
| 55405-44010B0 |
SXM1# DK.BLUE GRAY,TRIM1# |
1 | ||
| 55405-44040B0 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-44010B0 |
CXM10,SXM1# DK.BLUE GRAY,TRIM1# |
1 | ||
| 55411-44010C1 |
CXM10,SXM1# BLACK,TRIM1# |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-26010 |
CXM10,SXM1# |
1 | ||
| 55419A - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-14020 |
SXM1# |
2 | ||
| 55421B - PANEL, INSTRUMENT CLUSTER FINISH, UPPER | ||||
| 55421-44010B0 |
SXM1# DK.BLUE GRAY,TRIM1# |
1 | ||
| 55421-44020B0 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55432-44010B0 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 55479D - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, LOWER | ||||
| 55479-44010B0 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
CXM10,SXM1# |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-32010 |
SXM1# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-12130B2 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-12130B2 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-12130B2 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 55539E - COVER, SPARE SWITCH HOLE | ||||
| 55539-12130B2 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 55539G - COVER, SPARE SWITCH HOLE | ||||
| 55539-12130B2 |
SXM1#..E,IPSUM MD.MOON MIST,TRIM1# |
1 | ||
| 55539-12130B2 |
CXM10,SXM1#..E MD.MOON MIST,TRIM1# |
1 | ||
| 55539N - COVER, SPARE SWITCH HOLE | ||||
| 55539-12130B2 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 55551A - DOOR, GLOVE COMPARTMENT, OUTER | ||||
| 55551-44010B0 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 55550-44010B1 |
CXM10,SXM1# MD.MOON NIST,TRIM1# |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-12080B2 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
CXM10,SXM1# |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-44010B0 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-44010B0 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-44010B0 |
CXM10,SXM1# DK.BLUE GRAY,TRIM1# |
1 | ||
| 55670-44030 |
CXM10,SXM1# ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| Common parts | ||||
| 90183-05094 | ||||
| 90254-04007 | ||||
| 90254-04037 | ||||
| 90540-08029 | ||||
| 90541-03021 | ||||
| 93540-54012 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
| 93568-55016 | ||||

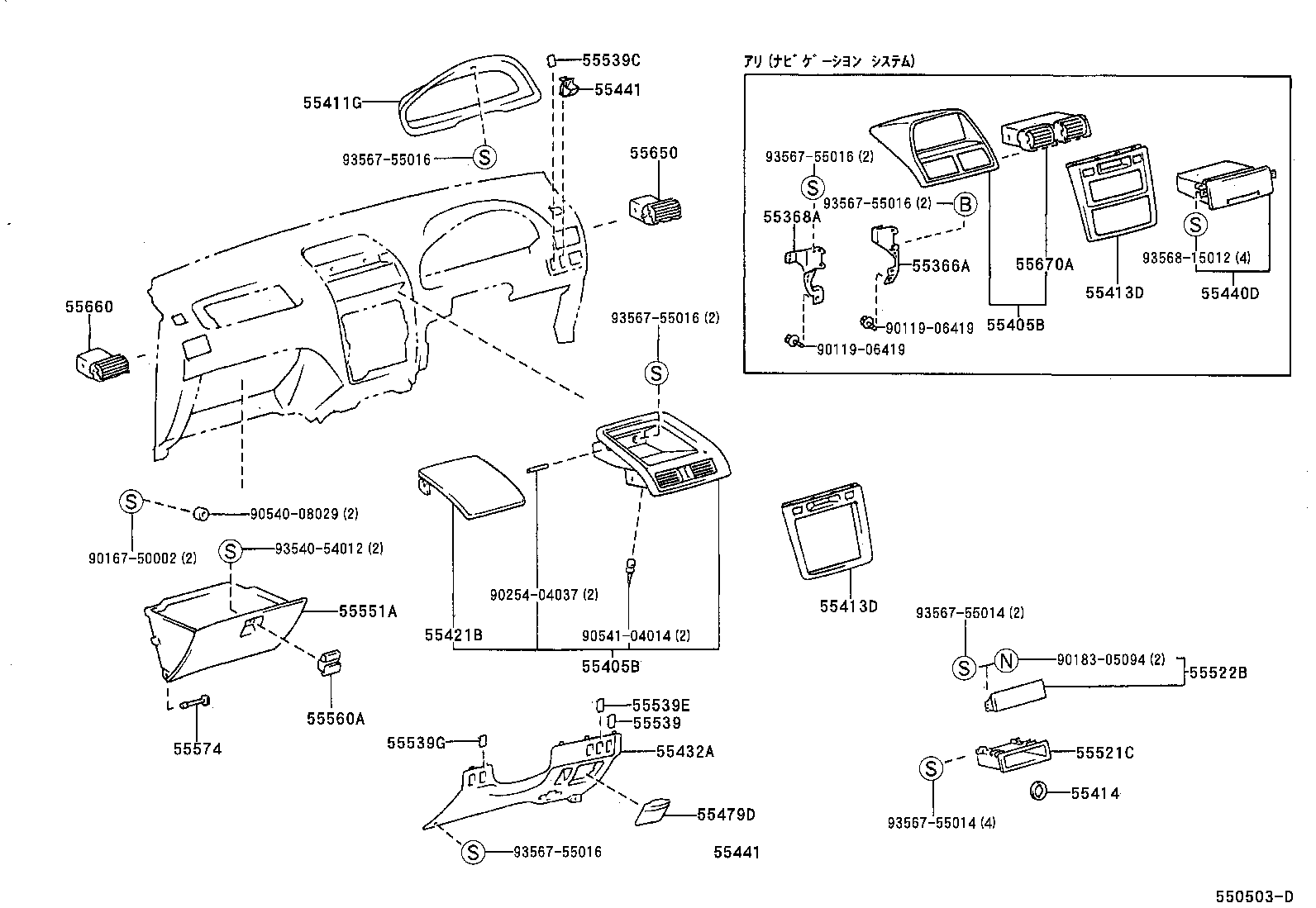

ILLUST NO. 2 OF 2(9804- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55366A - BRACKET, RADIO MOUNTING, NO.1 | ||||
| 55366-44010 |
CXM10,SXM1# |
1 | ||
| 55368A - BRACKET, RADIO MOUNTING, NO.2 | ||||
| 55368-44010 |
CXM10,SXM1# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-44050B0 |
CXM10,SXM1# ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ),MD.MOON MIST,TRIM1# |
1 | ||
| 55405-44010B0 |
SXM1# DK.BLUE GRAY,TRIM1# |
1 | ||
| 55405-44040B0 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-44050B0 |
CXM10,SXM1# ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ),MD.MOON MIST,TRIM1# |
1 | ||
| 55405-44010B0 |
SXM1# DK.BLUE GRAY,TRIM1# |
1 | ||
| 55405-44040B0 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-44010B0 |
CXM10,SXM1# DK.BLUE GRAY,TRIM1# |
1 | ||
| 55411-44010C1 |
CXM10,SXM1# BLACK,TRIM1# |
1 | ||
| 55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER | ||||
| 55413-44040 |
SXM1#..ATG |
1 | ||
| 55413-44030 |
CXM10,SXM1#..E,IPSUM,L |
1 | ||
| 55413-44160 |
SXM1#..ATG ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 55413-44050 |
CXM10,SXM1#..E,IPSUM,L ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 55413-44060 |
SXM1#..ATG ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 55413-44150 |
SXM1#..ATG |
1 | ||
| 55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER | ||||
| 55413-44040 |
SXM1#..ATG |
1 | ||
| 55413-44030 |
CXM10,SXM1#..E,IPSUM,L |
1 | ||
| 55413-44160 |
SXM1#..ATG ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 55413-44050 |
CXM10,SXM1#..E,IPSUM,L ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 55413-44060 |
SXM1#..ATG ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 55413-44150 |
SXM1#..ATG |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-26010 |
CXM10,SXM1# |
1 | ||
| 55421B - PANEL, INSTRUMENT CLUSTER FINISH, UPPER | ||||
| 55421-44010B0 |
SXM1# DK.BLUE GRAY,TRIM1# |
1 | ||
| 55421-44020B0 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55432-44010B0 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 55440D - BOX ASSY, INSTRUMENT PANEL | ||||
| 55440-44060 |
SXM1#..ATG |
1 | ||
| 55440-44020 |
CXM10,SXM1#..E,IPSUM,L |
1 | ||
| 55440-44030 |
SXM1#..ATG |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-20140B2 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-20140B2 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 55479D - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, LOWER | ||||
| 55479-44010B0 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
CXM10,SXM1# |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-32010 |
SXM1# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-12130B2 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-12130B2 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 55539E - COVER, SPARE SWITCH HOLE | ||||
| 55539-12130B2 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 55539G - COVER, SPARE SWITCH HOLE | ||||
| 55539-12130B2 |
SXM1#..E,IPSUM MD.MOON MIST,TRIM1# |
1 | ||
| 55539-12130B2 |
CXM10,SXM1#..E MD.MOON MIST,TRIM1# |
1 | ||
| 55551A - DOOR, GLOVE COMPARTMENT, OUTER | ||||
| 55551-44010B0 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 55550-44010B1 |
CXM10,SXM1# MD.MOON NIST,TRIM1# |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-12080B2 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
CXM10,SXM1# |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-44010B0 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-44010B0 |
CXM10,SXM1# MD.MOON MIST,TRIM1# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-44010B0 |
CXM10,SXM1# DK.BLUE GRAY,TRIM1# |
1 | ||
| 55670-44030 |
CXM10,SXM1# ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| Common parts | ||||
| 90119-06419 | ||||
| 90167-50002 | ||||
| 90183-05094 | ||||
| 90254-04037 | ||||
| 90540-08029 | ||||
| 90541-04014 | ||||
| 93540-54012 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
| 93568-15012 | ||||
