SXM15G-ARSSK (1997)
Toyota Ipsum
(9605-9804)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

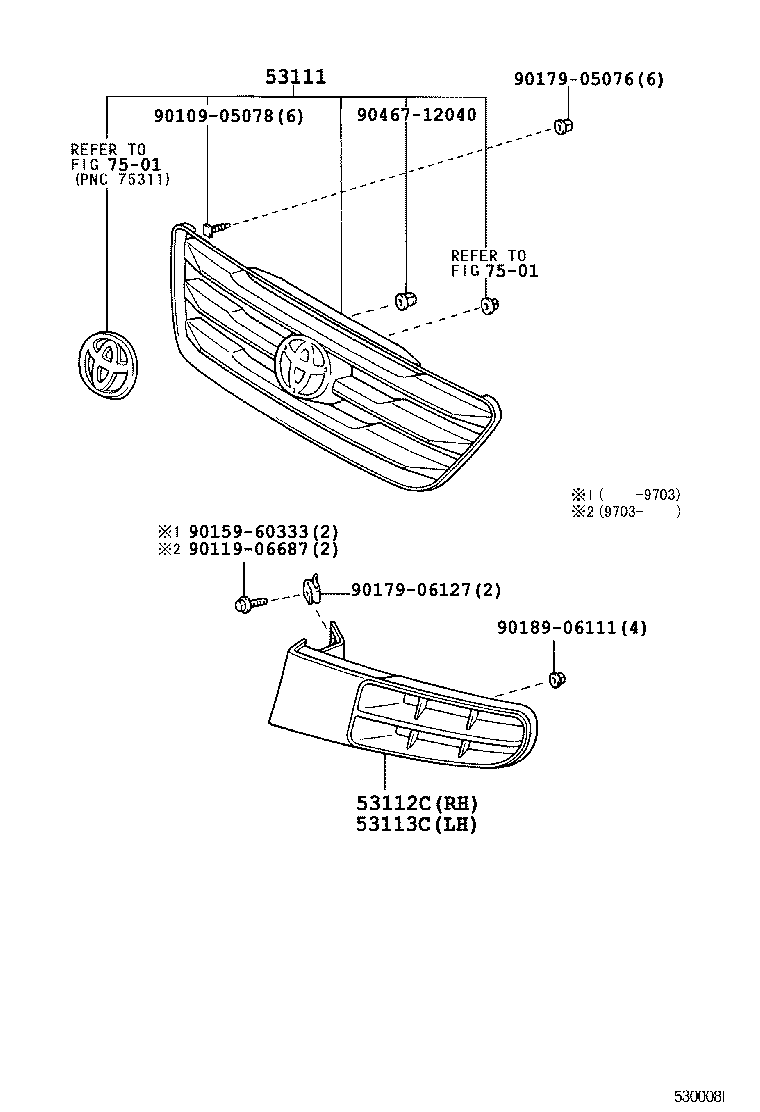

| 53111 - GRILLE, RADIATOR | ||||
| 53101-44010D0 |
CXM10,SXM1#..E,IPSUM,L WINE RED MC,3J8 |
1 | ||
| 53101-44010J1 |
CXM10,SXM1#..E,IPSUM,L DK.BLUE MM.GR.,8K5 |
1 | ||
| 53101-44010A0 |
CXM10,SXM1# WHITE,056 |
1 | ||
| 53101-44010B0 |
CXM10,SXM1#..E,IPSUM,L SILVER ME,199 |
1 | ||
| 53101-44010J2 |
CXM10,SXM1#..E,IPSUM,L PURPLISH BLUE M.M.,8K9 |
1 | ||
| 53101-44010G1 |
CXM10,SXM1#..E,IPSUM,L GREEN ME.OP.,6P4 |
1 | ||
| 53101-44050C0 |
SXM1#..ATG BLACK,202 |
1 | ||
| 53101-44010C1 |
SXM1#..ATG BLACK,202 |
1 | ||
| 53101-44050A0 |
CXM10,SXM1# WHITE PM.,057 |
1 | ||
| 53101-44010K0 |
SXM1# PURPLE M.M.OP.GR.,934 |
1 | ||
| 53101-44050J0 |
CXM10,SXM1#..E,IPSUM,L DK.BLUE MM.GR.,8K5 |
1 | ||
| 53101-44050J1 |
CXM10,SXM1#..E,IPSUM,L BLUE ME.AMC.,8N2 |
1 | ||
| 53101-44010G0 |
CXM10,SXM1#..E,IPSUM,L DK.GREEN M.M.,6N5 |
1 | ||
| 53101-44050B0 |
CXM10,SXM1#..E,IPSUM,L SILVER ME,199 |
1 | ||
| 53101-44050H0 |
CXM10,SXM1#..E,IPSUM,L DK.TURQUOISE MC.,760 |
1 | ||
| 53101-44050D0 |
CXM10,SXM1#..E,IPSUM,L WINE RED MC,3J8 |
1 | ||
| 53101-44110 |
SXM1#..ATG |
1 | ||
| 53101-44050H1 |
CXM10,SXM1#..E,IPSUM,L TURQUOISE ME.,765 |
1 | ||
| 53101-44050A0 |
CXM10,SXM1#..E,IPSUM,L WHITE PM.,057 |
1 | ||
| 53112C - GRILLE, RADIATOR, LOWER RH | ||||
| 53112-44010G0 |
CXM10,SXM1#..E,IPSUM,L YELLOW SILVER,TRIM1#&057 ,3J8 ,760 |
1 | ||
| 53112-44010A0 |
SXM1# SILVER ME,199 ,3J8 ,6N5 ,6P4 ,8K5 ,8K9 ,934 |
1 | ||
| 53112-44010A0 |
CXM10,SXM1#..E,IPSUM,L SILVER ME,199 ,8K5 ,8K9 |
1 | ||
| 53112-44010G0 |
CXM10,SXM1#..E,IPSUM,L YELLOW SILVER,056 ,3J8 ,6N5 ,6P4 |
1 | ||
| 53112-44010A0 |
CXM10,SXM1#..E,IPSUM,L SILVER ME,TRIM1#&199 ,8K5 ,8N2 |
1 | ||
| 53112-44040A0 |
SXM1#..ATG WHITE,056 |
1 | ||
| 53112-44010G2 |
CXM10,SXM1#..E,IPSUM,L YELLOW SILVER,057 ,3J8 ,760 |
1 | ||
| 53112-44010A4 |
CXM10,SXM1#..E,IPSUM,L SILVER ME,199 ,765 ,8K5 |
1 | ||
| 53112-44010C1 |
SXM1#..ATG BLACK,202 |
1 | ||
| 53112-44010A4 |
SXM1#..ATG SILVER ME,199 |
1 | ||
| 53112-44050A0 |
CXM10,SXM1# WHITE RM.,057 |
1 | ||
| 53113C - GRILLE, RADIATOR, LOWER LH | ||||
| 53113-44010G0 |
CXM10,SXM1#..E,IPSUM,L YELLOW SILVER,056 ,3J8 ,6N5 ,6P4 |
1 | ||
| 53113-44010A0 |
SXM1# SILVER ME,199 ,3J8 ,6N5 ,6P4 ,8K5 ,8K9 ,934 |
1 | ||
| 53113-44010A0 |
CXM10,SXM1#..E,IPSUM,L SILVER ME,199 ,8K5 ,8K9 |
1 | ||
| 53113-44010A0 |
CXM10,SXM1#..E,IPSUM,L SILVER ME,TRIM1#&199 ,8K5 ,8N2 |
1 | ||
| 53113-44010A4 |
SXM1#..ATG SILVER ME,199 |
1 | ||
| 53113-44010G0 |
CXM10,SXM1#..E,IPSUM,L YELLOW SILVER,TRIM1#&057 ,3J8 ,760 |
1 | ||
| 53113-44010G2 |
CXM10,SXM1#..E,IPSUM,L YELLOW SILVER,057 ,3J8 ,760 |
1 | ||
| 53113-44050A0 |
CXM10,SXM1# WHITE RM.,057 |
1 | ||
| 53113-44040A0 |
SXM1#..ATG WHITE,056 |
1 | ||
| 53113-44010C1 |
SXM1#..ATG BLACK,202 |
1 | ||
| 53113-44010A4 |
CXM10,SXM1#..E,IPSUM,L SILVER ME,199 ,765 ,8K5 |
1 | ||
| Common parts | ||||
| 90109-05078 | ||||
| 90119-06687 | ||||
| 90159-60333 | ||||
| 90179-05076 | ||||
| 90179-06127 | ||||
| 90189-06111 | ||||
| 90467-12040 | ||||
| Linked diagrams | ||||
| 7501 | ||||
(9804- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

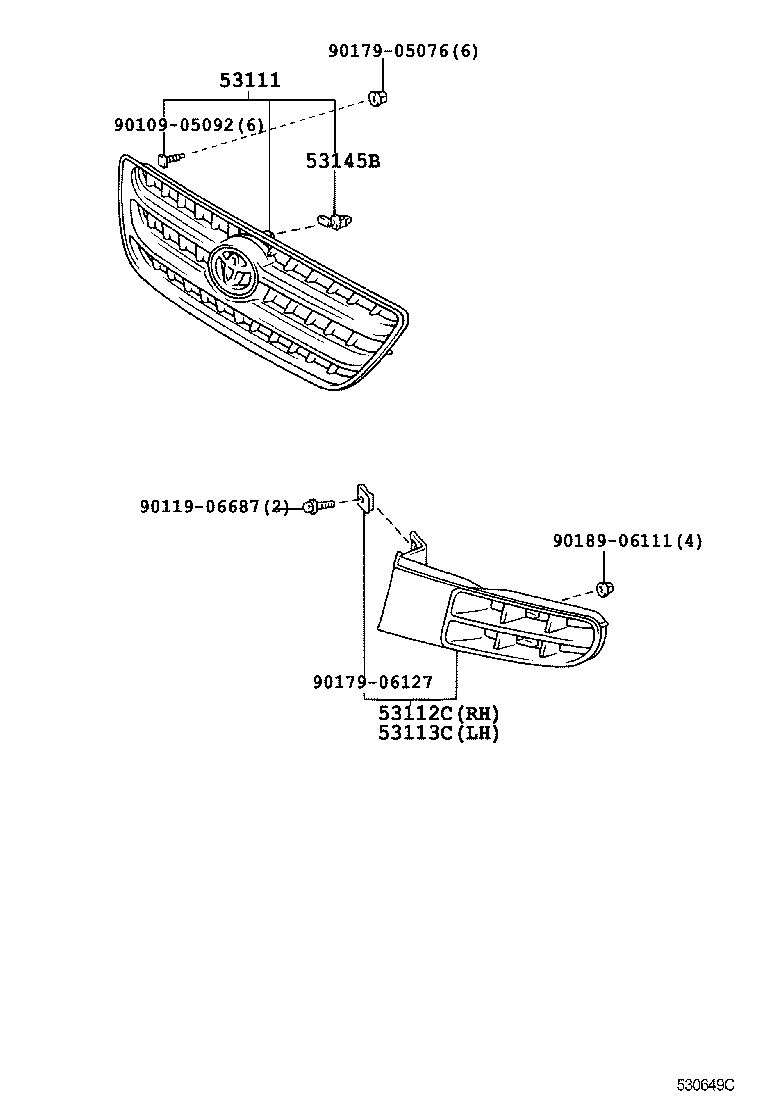

| 53111 - GRILLE, RADIATOR | ||||
| 53101-44010D0 |
CXM10,SXM1#..E,IPSUM,L WINE RED MC,3J8 |
1 | ||
| 53101-44010J1 |
CXM10,SXM1#..E,IPSUM,L DK.BLUE MM.GR.,8K5 |
1 | ||
| 53101-44010A0 |
CXM10,SXM1# WHITE,056 |
1 | ||
| 53101-44010B0 |
CXM10,SXM1#..E,IPSUM,L SILVER ME,199 |
1 | ||
| 53101-44010J2 |
CXM10,SXM1#..E,IPSUM,L PURPLISH BLUE M.M.,8K9 |
1 | ||
| 53101-44010G1 |
CXM10,SXM1#..E,IPSUM,L GREEN ME.OP.,6P4 |
1 | ||
| 53101-44050C0 |
SXM1#..ATG BLACK,202 |
1 | ||
| 53101-44010C1 |
SXM1#..ATG BLACK,202 |
1 | ||
| 53101-44050A0 |
CXM10,SXM1# WHITE PM.,057 |
1 | ||
| 53101-44010K0 |
SXM1# PURPLE M.M.OP.GR.,934 |
1 | ||
| 53101-44050J0 |
CXM10,SXM1#..E,IPSUM,L DK.BLUE MM.GR.,8K5 |
1 | ||
| 53101-44050J1 |
CXM10,SXM1#..E,IPSUM,L BLUE ME.AMC.,8N2 |
1 | ||
| 53101-44010G0 |
CXM10,SXM1#..E,IPSUM,L DK.GREEN M.M.,6N5 |
1 | ||
| 53101-44050B0 |
CXM10,SXM1#..E,IPSUM,L SILVER ME,199 |
1 | ||
| 53101-44050H0 |
CXM10,SXM1#..E,IPSUM,L DK.TURQUOISE MC.,760 |
1 | ||
| 53101-44050D0 |
CXM10,SXM1#..E,IPSUM,L WINE RED MC,3J8 |
1 | ||
| 53101-44110 |
SXM1#..ATG |
1 | ||
| 53101-44050H1 |
CXM10,SXM1#..E,IPSUM,L TURQUOISE ME.,765 |
1 | ||
| 53101-44050A0 |
CXM10,SXM1#..E,IPSUM,L WHITE PM.,057 |
1 | ||
| 53112C - GRILLE, RADIATOR, LOWER RH | ||||
| 53112-44010G0 |
CXM10,SXM1#..E,IPSUM,L YELLOW SILVER,TRIM1#&057 ,3J8 ,760 |
1 | ||
| 53112-44010A0 |
SXM1# SILVER ME,199 ,3J8 ,6N5 ,6P4 ,8K5 ,8K9 ,934 |
1 | ||
| 53112-44010A0 |
CXM10,SXM1#..E,IPSUM,L SILVER ME,199 ,8K5 ,8K9 |
1 | ||
| 53112-44010G0 |
CXM10,SXM1#..E,IPSUM,L YELLOW SILVER,056 ,3J8 ,6N5 ,6P4 |
1 | ||
| 53112-44010A0 |
CXM10,SXM1#..E,IPSUM,L SILVER ME,TRIM1#&199 ,8K5 ,8N2 |
1 | ||
| 53112-44040A0 |
SXM1#..ATG WHITE,056 |
1 | ||
| 53112-44010G2 |
CXM10,SXM1#..E,IPSUM,L YELLOW SILVER,057 ,3J8 ,760 |
1 | ||
| 53112-44010A4 |
CXM10,SXM1#..E,IPSUM,L SILVER ME,199 ,765 ,8K5 |
1 | ||
| 53112-44010C1 |
SXM1#..ATG BLACK,202 |
1 | ||
| 53112-44010A4 |
SXM1#..ATG SILVER ME,199 |
1 | ||
| 53112-44050A0 |
CXM10,SXM1# WHITE RM.,057 |
1 | ||
| 53113C - GRILLE, RADIATOR, LOWER LH | ||||
| 53113-44010G0 |
CXM10,SXM1#..E,IPSUM,L YELLOW SILVER,056 ,3J8 ,6N5 ,6P4 |
1 | ||
| 53113-44010A0 |
SXM1# SILVER ME,199 ,3J8 ,6N5 ,6P4 ,8K5 ,8K9 ,934 |
1 | ||
| 53113-44010A0 |
CXM10,SXM1#..E,IPSUM,L SILVER ME,199 ,8K5 ,8K9 |
1 | ||
| 53113-44010A0 |
CXM10,SXM1#..E,IPSUM,L SILVER ME,TRIM1#&199 ,8K5 ,8N2 |
1 | ||
| 53113-44010A4 |
SXM1#..ATG SILVER ME,199 |
1 | ||
| 53113-44010G0 |
CXM10,SXM1#..E,IPSUM,L YELLOW SILVER,TRIM1#&057 ,3J8 ,760 |
1 | ||
| 53113-44010G2 |
CXM10,SXM1#..E,IPSUM,L YELLOW SILVER,057 ,3J8 ,760 |
1 | ||
| 53113-44050A0 |
CXM10,SXM1# WHITE RM.,057 |
1 | ||
| 53113-44040A0 |
SXM1#..ATG WHITE,056 |
1 | ||
| 53113-44010C1 |
SXM1#..ATG BLACK,202 |
1 | ||
| 53113-44010A4 |
CXM10,SXM1#..E,IPSUM,L SILVER ME,199 ,765 ,8K5 |
1 | ||
| 53145B - CLIP, RADIATOR GRILLE GARNISH | ||||
| 53145-44010 |
CXM10,SXM1# |
1 | ||
| Common parts | ||||
| 90109-05092 | ||||
| 90119-06687 | ||||
| 90179-05076 | ||||
| 90179-06127 | ||||
| 90189-06111 | ||||
