SXM15G-ARSSK (1997)
Toyota Ipsum
Production
Aug 1997
-
May 2001
Engine
3SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

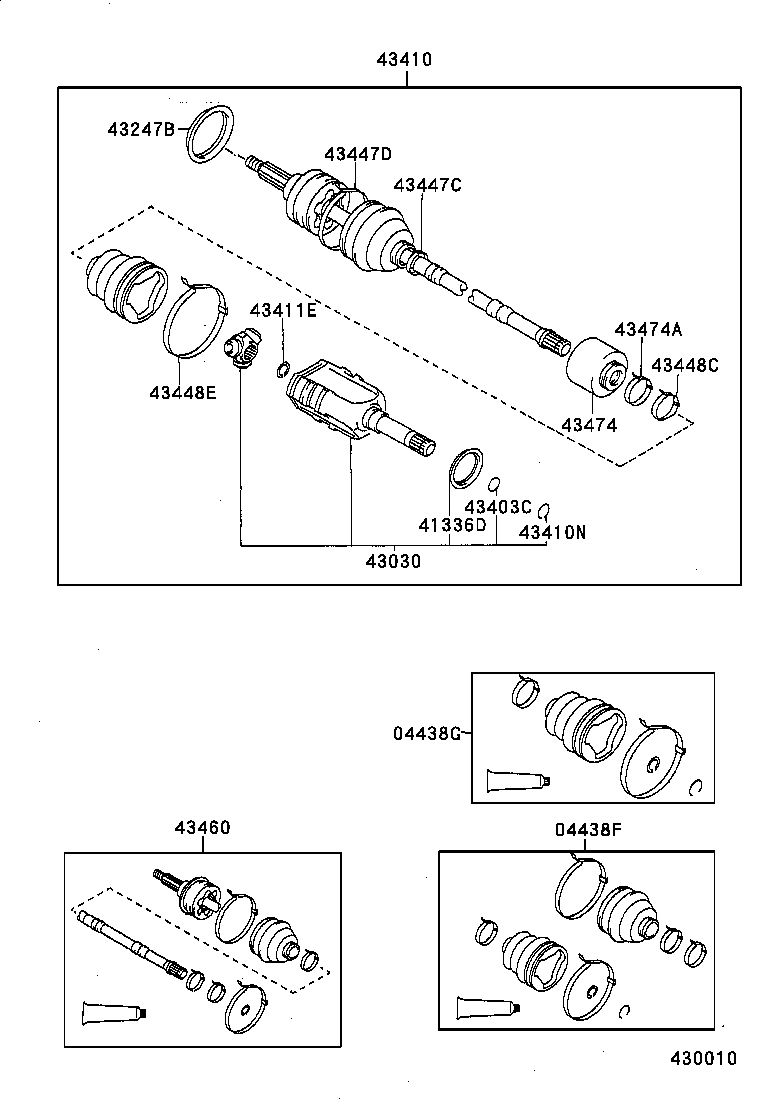

(9605-9804)SXM15
Click highlighted areas on diagram
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04438-12300 |
SXM15 |
1 | ||
| 04438-21040 |
SXM15 |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-32230 |
SXM15 |
1 | ||
| 04438-21030 |
SXM15 |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-20040 |
SXM15 |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43403-12050 |
SXM15 |
1 | ||
| 43030-21020 |
SXM15 |
1 | ||
| 43247B - DEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2 | ||||
| 43247-12010 |
CXM10,SXM1# |
1 | ||
| 43403C - RING, O (FOR FRONT DRIVE INBOARD JOINT) | ||||
| 90301-26006 |
SXM15 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-12411 |
SXM15 |
1 | ||
| 43410-21031 |
SXM15 |
1 | ||
| 43410-12410 |
SXM15 |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90520-33008 |
CXM10,SXM1# |
1 | ||
| 90521-26004 |
SXM15 |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 90520-22005 |
SXM1# |
1 | ||
| 90520-25034 |
SXM15 |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-16030 |
SXM15..ATG |
1 | ||
| 42345-14010 |
SXM1# ε εΎ=35.75 |
1 | ||
| 90949-01A65 |
CXM10,SXM15 |
1 | ||
| 42345-16030 |
SXM1#..ATG |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-16040 |
SXM1# |
1 | ||
| 90949-01937 |
CXM10,SXM15 |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90949-01108 |
CXM10,SXM15 |
1 | ||
| 42345-16010 |
SXM1# |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-16040 |
SXM1# |
1 | ||
| 42346-22010 |
CXM10,SXM15 |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-19307 |
SXM15 |
1 | ||
| 43460-29336 |
SXM15 |
1 | ||
| 43474 - DAMPER, DRIVE SHAFT | ||||
| 43474-12030 |
CXM10,SXM15 |
1 | ||
| 43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING) | ||||
| 90949-01696 |
CXM10,SXM15 |
1 | ||

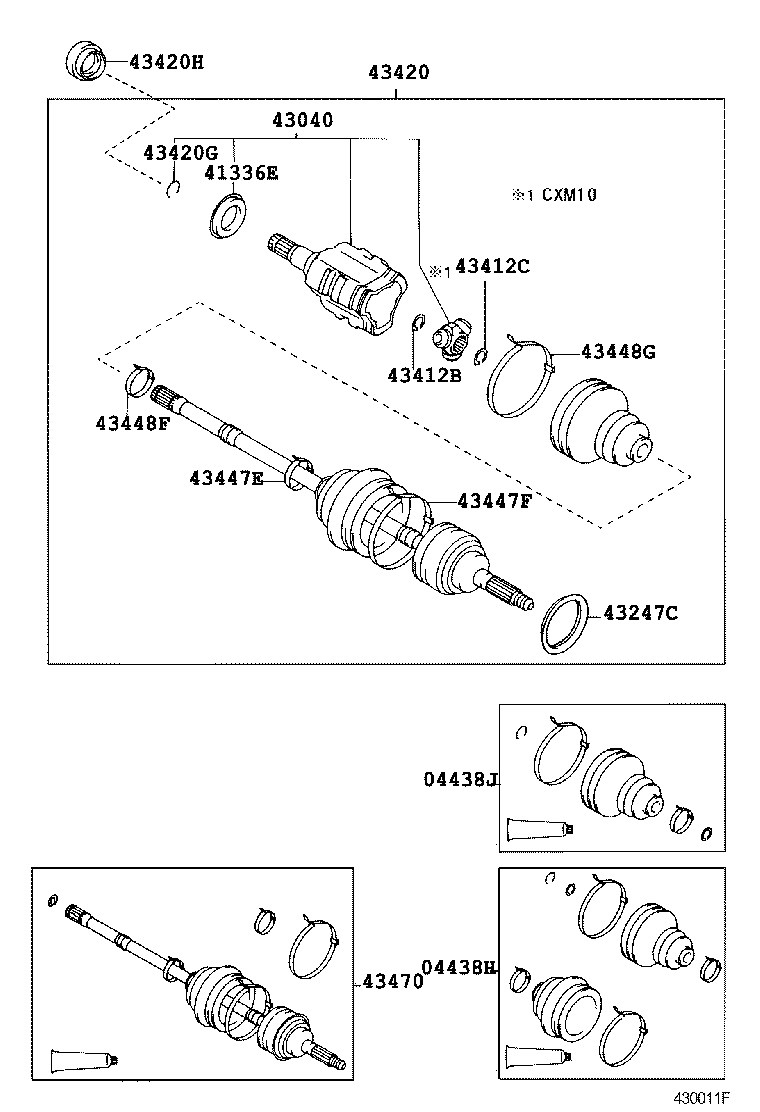

(9605-9804) ; (9804- )CXM10,SXM10
Click highlighted areas on diagram
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04438-32171 |
SXM15 |
1 | ||
| 04438-21060 |
SXM15 |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-32230 |
SXM15 |
1 | ||
| 04438-21050 |
SXM15 |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-12040 |
SXM15 |
1 | ||
| 41336-32020 |
CXM10,SXM1# |
1 | ||
| 41336-32020 |
CXM10,SXM15 |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43403-12060 |
SXM15 |
1 | ||
| 43040-32010 |
SXM15 |
1 | ||
| 43247C - DEFLECTOR, FRONT WHEEL BEARING DUST, LH NO.2 | ||||
| 43247-12010 |
CXM10,SXM1# |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 90520-25034 |
SXM15 |
1 | ||
| 90520-22005 |
SXM1# |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-21021 |
SXM15 |
1 | ||
| 43420-32161 |
SXM15 |
1 | ||
| 43420-32162 |
SXM15 |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90521-26004 |
SXM15 |
1 | ||
| 90521-27005 |
CXM10,SXM1# |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-35047 |
CXM10,SXM1# |
1 | ||
| 90311-35020 |
CXM10,SXM1# |
1 | ||
| 90311-44003 |
SXM15 |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-14010 |
SXM1# ε εΎ=35.75 |
1 | ||
| 42345-16030 |
SXM15..ATG |
1 | ||
| 42345-16030 |
SXM1#..ATG |
1 | ||
| 90949-01A65 |
CXM10,SXM15 |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-16040 |
SXM1# |
1 | ||
| 90949-01937 |
CXM10,SXM15 |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-16010 |
SXM1# |
1 | ||
| 90949-01108 |
CXM10,SXM15 |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-16040 |
SXM1# |
1 | ||
| 42346-22010 |
CXM10,SXM15 |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-19306 |
SXM15 |
1 | ||
| 43470-29506 |
SXM15 |
1 | ||
| 43470-19307 |
SXM15 |
1 | ||

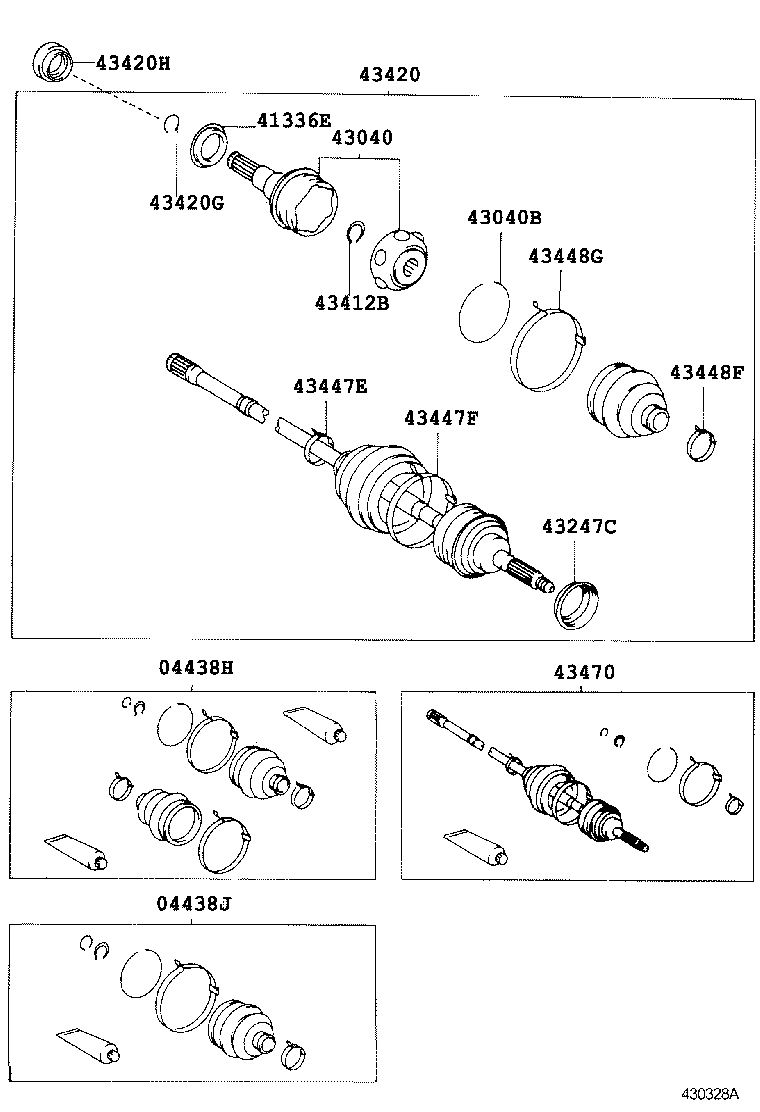

(9804- )SXM15
Click highlighted areas on diagram
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04438-32171 |
SXM15 |
1 | ||
| 04438-21060 |
SXM15 |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-32230 |
SXM15 |
1 | ||
| 04438-21050 |
SXM15 |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-12040 |
SXM15 |
1 | ||
| 41336-32020 |
CXM10,SXM1# |
1 | ||
| 41336-32020 |
CXM10,SXM15 |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43403-12060 |
SXM15 |
1 | ||
| 43040-32010 |
SXM15 |
1 | ||
| 43040B - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT LH) | ||||
| 90521-79001 |
SXM15 |
1 | ||
| 43247C - DEFLECTOR, FRONT WHEEL BEARING DUST, LH NO.2 | ||||
| 43247-12010 |
CXM10,SXM1# |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 90520-25034 |
SXM15 |
1 | ||
| 90520-22005 |
SXM1# |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-21021 |
SXM15 |
1 | ||
| 43420-32161 |
SXM15 |
1 | ||
| 43420-32162 |
SXM15 |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90521-26004 |
SXM15 |
1 | ||
| 90521-27005 |
CXM10,SXM1# |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-35047 |
CXM10,SXM1# |
1 | ||
| 90311-35020 |
CXM10,SXM1# |
1 | ||
| 90311-44003 |
SXM15 |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-14010 |
SXM1# ε εΎ=35.75 |
1 | ||
| 42345-16030 |
SXM15..ATG |
1 | ||
| 42345-16030 |
SXM1#..ATG |
1 | ||
| 90949-01A65 |
CXM10,SXM15 |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-16040 |
SXM1# |
1 | ||
| 90949-01937 |
CXM10,SXM15 |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 90949-01108 |
CXM10,SXM15 |
1 | ||
| 42345-16010 |
SXM1# |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-16040 |
SXM1# |
1 | ||
| 42346-22010 |
CXM10,SXM15 |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-19306 |
SXM15 |
1 | ||
| 43470-29506 |
SXM15 |
1 | ||
| 43470-19307 |
SXM15 |
1 | ||

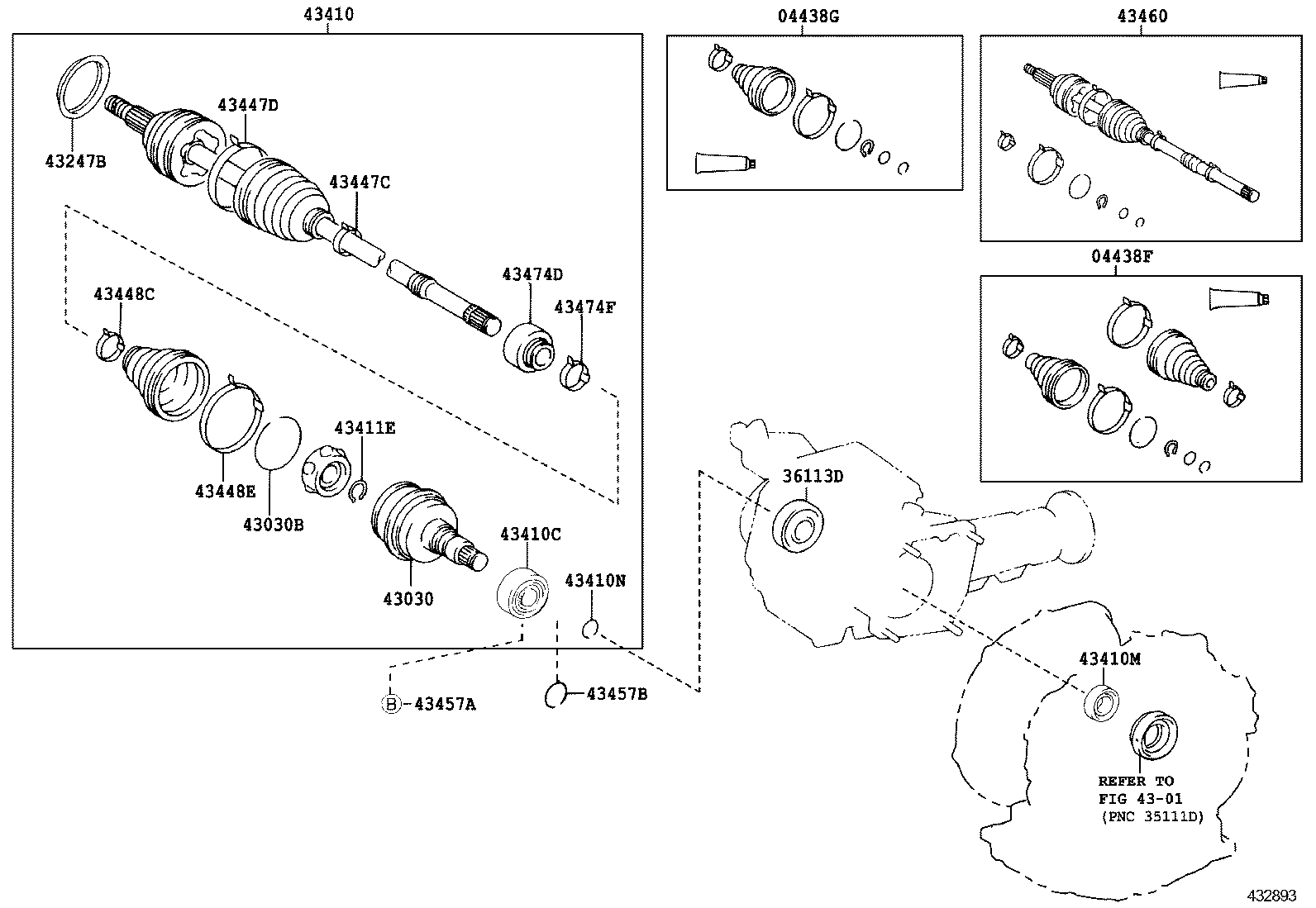

(9804- )SXM15
Click highlighted areas on diagram
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04438-12300 |
SXM15 |
1 | ||
| 04438-21040 |
SXM15 |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-32230 |
SXM15 |
1 | ||
| 04438-21030 |
SXM15 |
1 | ||
| 36113D - SEAL, OIL (FOR TRANSFER CASE RH) | ||||
| 90311-36006 |
SXM15 |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43403-12050 |
SXM15 |
1 | ||
| 43030-21020 |
SXM15 |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43403-12050 |
SXM15 |
1 | ||
| 43030-21020 |
SXM15 |
1 | ||
| 43030B - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH) | ||||
| 90521-79001 |
SXM15 |
1 | ||
| 43247B - DEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2 | ||||
| 43247-12010 |
CXM10,SXM1# |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-12411 |
SXM15 |
1 | ||
| 43410-21031 |
SXM15 |
1 | ||
| 43410-12410 |
SXM15 |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90363-36001 |
CXM10,SXM1# |
1 | ||
| 90363-36006 |
SXM15 |
1 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90316-28003 |
SXM15 |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90520-33008 |
CXM10,SXM1# |
1 | ||
| 90521-26004 |
SXM15 |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 90520-22005 |
SXM1# |
1 | ||
| 90520-25034 |
SXM15 |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-16030 |
SXM15..ATG |
1 | ||
| 42345-14010 |
SXM1# ε εΎ=35.75 |
1 | ||
| 90949-01A65 |
CXM10,SXM15 |
1 | ||
| 42345-16030 |
SXM1#..ATG |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-16040 |
SXM1# |
1 | ||
| 90949-01937 |
CXM10,SXM15 |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90949-01108 |
CXM10,SXM15 |
1 | ||
| 42345-16010 |
SXM1# |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-16040 |
SXM1# |
1 | ||
| 42346-22010 |
CXM10,SXM15 |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90901-19060 |
SXM15 *10β1.25PX28.5β14.8 |
1 | ||
| 43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) | ||||
| 90521-75002 |
CXM10,SXM15 |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-19307 |
SXM15 |
1 | ||
| 43460-29336 |
SXM15 |
1 | ||
| 43474D - DAMPER, FRONT DRIVE SHAFT, RH | ||||
| 43474-20090 |
SXM15 |
1 | ||
| 43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) | ||||
| 90949-01696 |
SXM15 |
1 | ||
| Linked diagrams | ||||
| 4301 | ||||
