SXM15G-ARSSK (1997)
Toyota Ipsum
Production
Aug 1997
-
May 2001
Engine
3SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

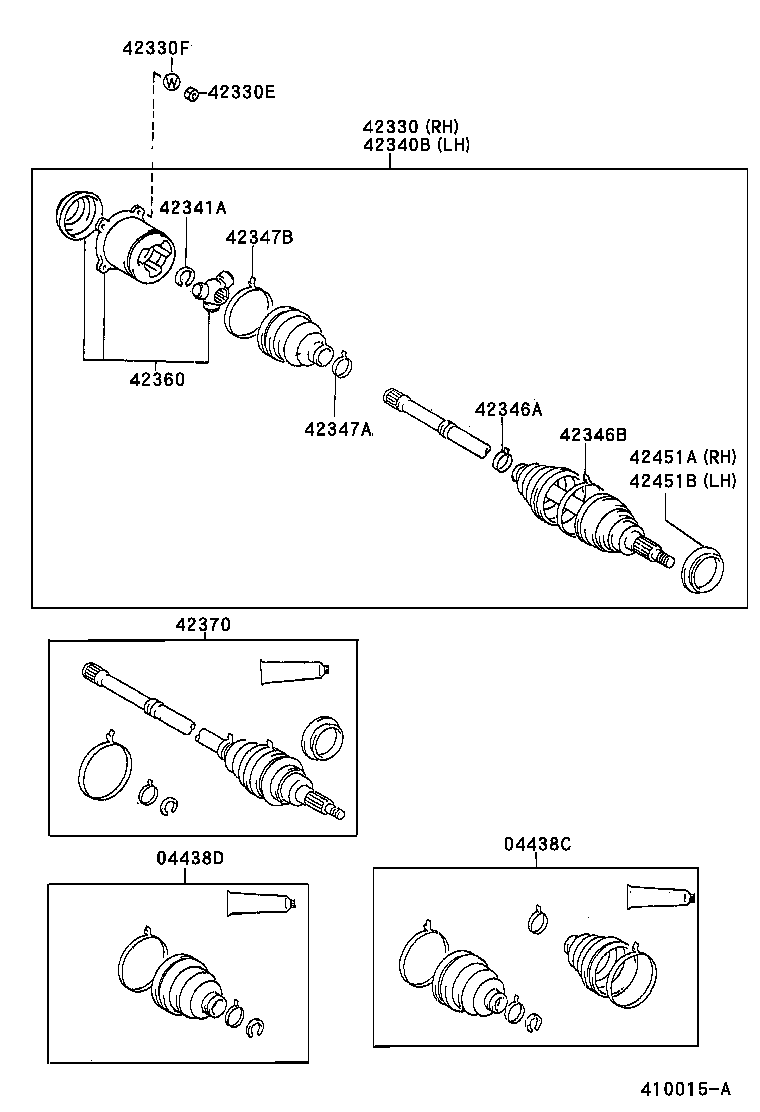

ILLUST NO. 1 OF 2(9605-9804)SXM15
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438C - BOOT KIT, REAR DRIVE SHAFT | ||||
| 04437-28040 |
SXM15 |
2 | ||
| 04438D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT | ||||
| 04438-28011 |
SXM15 |
2 | ||
| 42330 - SHAFT ASSY, REAR DRIVE, RH | ||||
| 42340-44020 |
SXM15 |
1 | ||
| 42340-44021 |
SXM15 |
1 | ||
| 42340-44010 |
SXM15 |
1 | ||
| 42330E - NUT(FOR REAR DRIVE SHAFT) | ||||
| 90170-10191 |
SXM15 |
8 | ||
| 42330F - WASHER(FOR REAR DRIVE SHAFT) | ||||
| 94511-01000 |
SXM15 |
8 | ||
| 42340B - SHAFT ASSY, REAR DRIVE, LH | ||||
| 42340-44010 |
SXM15 |
1 | ||
| 42340-44020 |
SXM15 |
1 | ||
| 42340-44021 |
SXM15 |
1 | ||
| 42341A - RING, SNAP (FOR REAR DRIVE SHAFT) | ||||
| 90520-26028 |
SXM15 |
2 | ||
| 42346A - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT) | ||||
| 42345-16010 |
SXM15 内径=32.7 |
2 | ||
| 42346B - CLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT) | ||||
| 42345-16020 |
SXM15 |
2 | ||
| 42346B - CLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT) | ||||
| 42345-16020 |
SXM15 |
2 | ||
| 42347A - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) | ||||
| 42345-16030 |
SXM15 内径=35.75 |
2 | ||
| 42347B - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) | ||||
| 42345-16090 |
SXM15 |
2 | ||
| 42360 - JOINT ASSY, REAR DRIVE SHAFT INBOARD | ||||
| 42360-30011 |
SXM15 |
2 | ||
| 42370 - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT | ||||
| 42370-49046 |
SXM15 |
2 | ||
| 42370-49045 |
SXM15 |
2 | ||
| 42451A - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH | ||||
| 43247-12010 |
SXM15 |
1 | ||
| 42451B - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH | ||||
| 43247-12010 |
SXM15 |
1 | ||

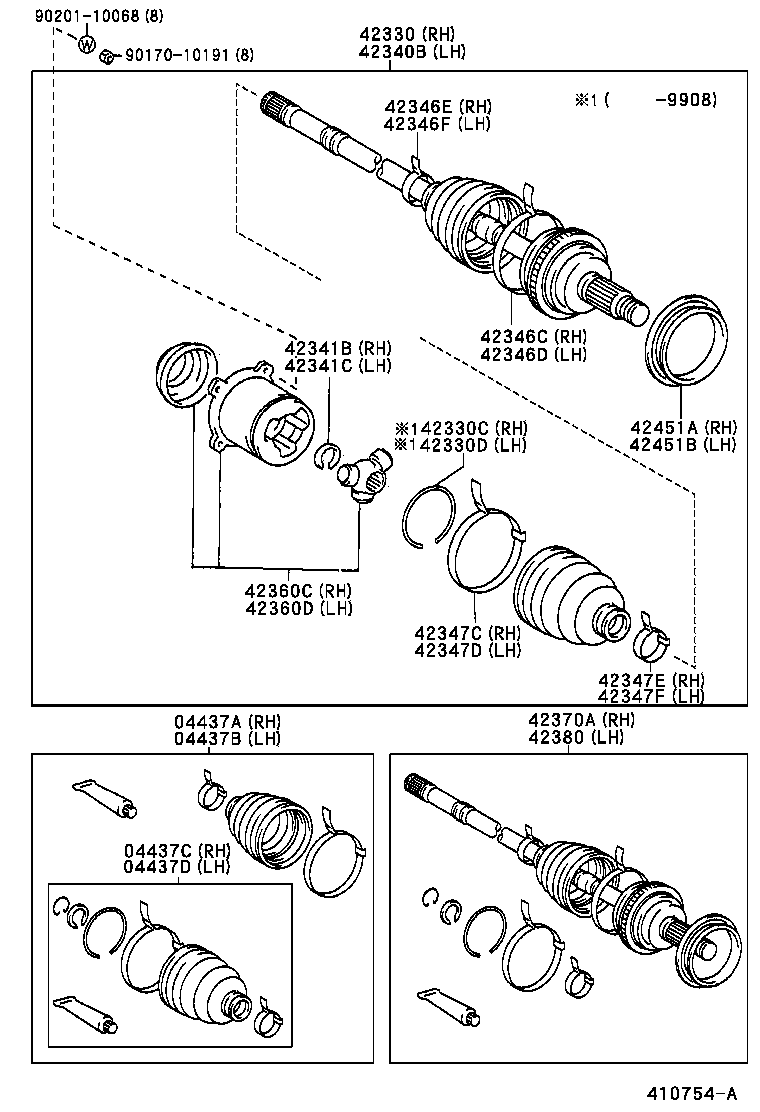

ILLUST NO. 1 OF 2(9804- )SXM15
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04437A - BOOT KIT, REAR DRIVE SHAFT, RH | ||||
| 04437-21022 |
SXM15 |
1 | ||
| 04437-44020 |
SXM15 |
1 | ||
| 04437B - BOOT KIT, REAR DRIVE SHAFT, LH | ||||
| 04437-44020 |
SXM15 |
1 | ||
| 04437-21022 |
SXM15 |
1 | ||
| 04437C - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04437-44010 |
SXM15 |
1 | ||
| 04437-21012 |
SXM15 |
1 | ||
| 04437D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04437-44010 |
SXM15 |
1 | ||
| 04437-21012 |
SXM15 |
1 | ||
| 42330 - SHAFT ASSY, REAR DRIVE, RH | ||||
| 42340-44020 |
SXM15 |
1 | ||
| 42340-44021 |
SXM15 |
1 | ||
| 42340-44010 |
SXM15 |
1 | ||
| 42330C - RING, HOLE SNAP(FOR REAR DRIVE SHAFT) | ||||
| 90521-64001 |
SXM15 |
1 | ||
| 42330D - RING, SHAFT SNAP(FOR REAR DRIVE SHAFT) | ||||
| 90521-64001 |
SXM15 |
1 | ||
| 42340B - SHAFT ASSY, REAR DRIVE, LH | ||||
| 42340-44010 |
SXM15 |
1 | ||
| 42340-44020 |
SXM15 |
1 | ||
| 42340-44021 |
SXM15 |
1 | ||
| 42341B - RING, SNAP (FOR REAR DRIVE SHAFT RH) | ||||
| 90520-21020 |
SXM15 |
1 | ||
| 42341C - RING, SNAP (FOR REAR DRIVE SHAFT LH) | ||||
| 90520-21020 |
SXM15 |
1 | ||
| 42346C - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH) | ||||
| 42345-12120 |
SXM15 |
1 | ||
| 42345-12120 |
SXM15 内径=74.3 |
1 | ||
| 42346D - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH) | ||||
| 42345-12120 |
SXM15 |
1 | ||
| 42345-12120 |
SXM15 内径=74.3 |
1 | ||
| 42346E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT R | ||||
| 42345-12130 |
SXM15 |
1 | ||
| 42345-33020 |
SXM15 |
1 | ||
| 42346F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT L | ||||
| 42345-12130 |
SXM15 |
1 | ||
| 42345-33020 |
SXM15 |
1 | ||
| 42347C - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH) | ||||
| 42345-12120 |
SXM15 内径=74.3 |
1 | ||
| 42345-12120 |
SXM15 |
1 | ||
| 42347D - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH) | ||||
| 42345-12120 |
SXM15 |
1 | ||
| 42345-12120 |
SXM15 内径=74.3 |
1 | ||
| 42347E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH | ||||
| 42345-12130 |
SXM15 |
1 | ||
| 42345-33020 |
SXM15 |
1 | ||
| 42347F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH | ||||
| 42345-33020 |
SXM15 |
1 | ||
| 42345-12130 |
SXM15 |
1 | ||
| 42360C - JOINT ASSY, REAR DRIVE SHAFT INBOARD, RH | ||||
| 42360-44010 |
SXM15 |
1 | ||
| 42360-28010 |
SXM15 |
1 | ||
| 42360D - JOINT ASSY, REAR DRIVE SHAFT INBOARD, LH | ||||
| 42360-28010 |
SXM15 |
1 | ||
| 42360-44010 |
SXM15 |
1 | ||
| 42370A - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH | ||||
| 42370-49065 |
SXM15 |
1 | ||
| 42370-49066 |
SXM15 |
1 | ||
| 42380 - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH | ||||
| 42370-49065 |
SXM15 |
1 | ||
| 42370-49066 |
SXM15 |
1 | ||
| 42451A - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH | ||||
| 43247-12010 |
SXM15 |
1 | ||
| 42451B - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH | ||||
| 43247-12010 |
SXM15 |
1 | ||
| Common parts | ||||
| 90170-10191 | ||||
| 90201-10068 | ||||
