SXM15G-ARSSK (1997)

Toyota Ipsum

Production Aug 1997 - May 2001
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

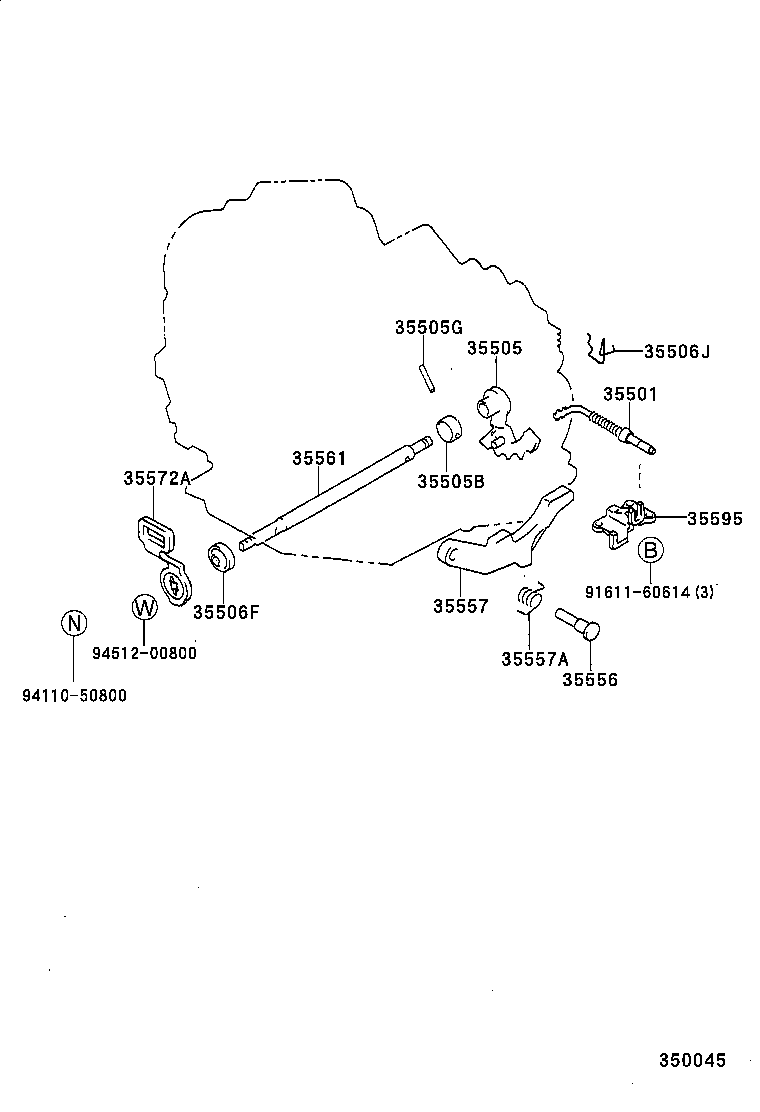

ILLUST NO. 1 OF 2(9605-9804)SXM15

Click highlighted areas on diagram

A540H

diagram 35501 35505 35505B 35505G 35506F 35506J 35556 35557 35557A 35561 35572A 35595 9161160614 9411050800 9451200800
Part # Description Qty Price
35501 - ROD SUB-ASSY, PARKING LOCK
35501-12010

CXM10,SXM1#

 1
35501-32040

SXM15

 1
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-32030

SXM15

 1
35505-20040

CXM10,SXM15

 1
35505B - SPACER (FOR MANUAL VALVE LEVER)
90560-20006

CXM10,SXM1#

 1
35505G - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)
90254-04011

CXM10,SXM1#

 1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-12002

CXM10,SXM1#

 1
35506J - SPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)
90524-09001

SXM15

 1
90524-11001

CXM10,SXM1#

 1
35556 - SHAFT, PARKING LOCK PAWL
35556-32020

SXM15

 1
35556-12020

CXM10,SXM1#

 1
35557 - PAWL, PARKING LOCK
35557-32031

SXM15

 1
35557-12020

CXM10,SXM1#

 1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90508-21003

CXM10,SXM1#

 1
90949-03043

SXM15

 1
35561 - SHAFT, MANUAL VALVE LEVER
35561-32010

SXM15

 1
35561-12020

CXM10,SXM15

 1
35572A - LEVER, TRANSMISSION CONTROL SHAFT
35572-44020

SXM15

 1
35572-44010

SXM15

 1
35595 - BRACKET, PARKING LOCK PAWL
35595-32020

SXM15

 1
Common parts
91611-60614
94110-50800
94512-00800

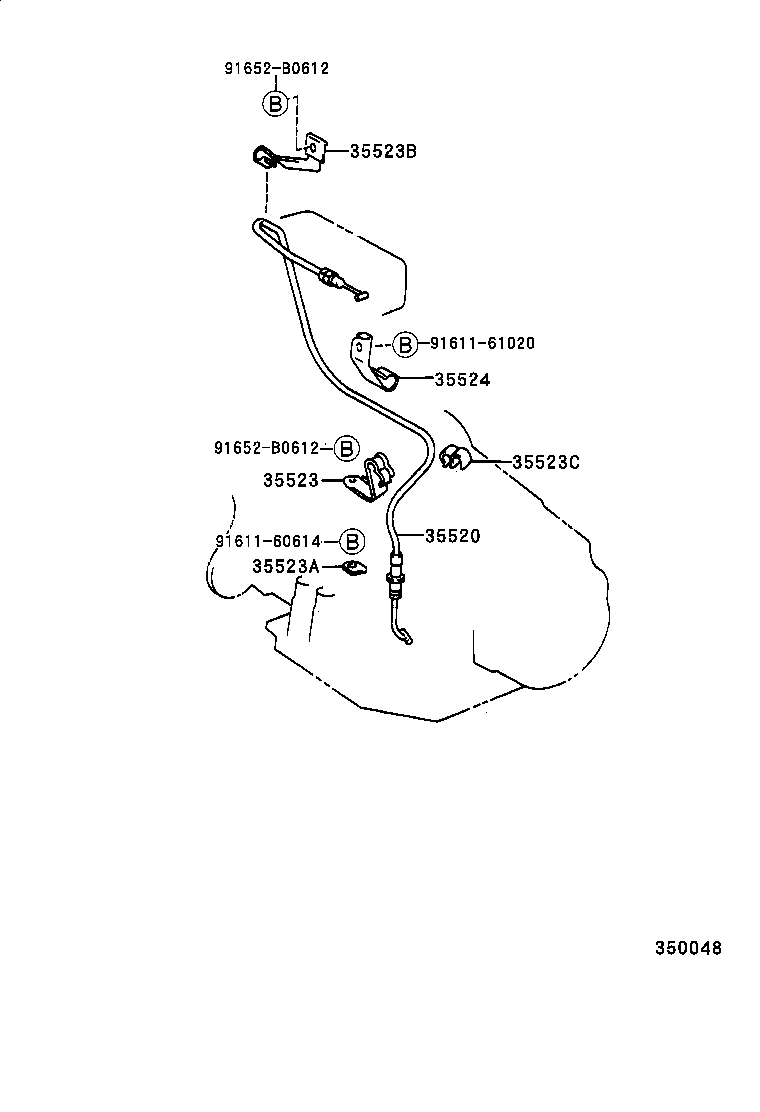

ILLUST NO. 2 OF 2(9605-9804)SXM15

Click highlighted areas on diagram

A540H

diagram 35520 35523 35523A 35523B 35523C 35524 9161160614 9161161020 91652B0612 91652B0612
Part # Description Qty Price
35520 - CABLE ASSY, THROTTLE
35520-44020

SXM15

 1
35520-44040

SXM15

 1
35523 - CLAMP, THROTTLE CABLE
35523-32210

SXM15

 1
35523A - CLAMP, THROTTLE CABLE, NO.1
35523-12080

CXM10,SXM15

 1
35523-12080

CXM10,SXM1#

 1
35523-32010

SXM15

 1
35523B - CLAMP, THROTTLE CABLE, NO.3
35523-20311

SXM1#

 1
35523C - CLAMP, THROTTLE CABLE, NO.4
90464-00535

SXM15

 1
35524 - CLAMP, THROTTLE CABLE, NO.2
35523-20380

SXM15

 1
Common parts
91611-60614
91611-61020
91652-B0612

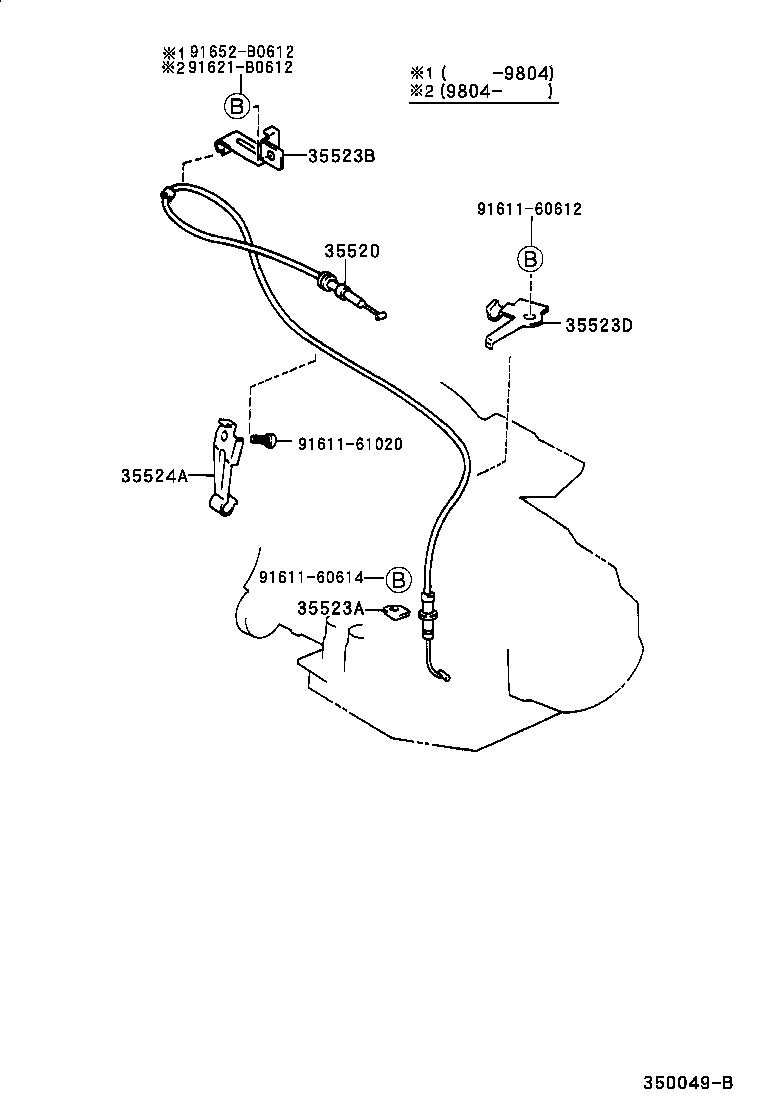

ILLUST NO. 2 OF 2(9605-9804)SXM10 ; (9804- )SXM15

Click highlighted areas on diagram

A241E,A243F

diagram 35520 35523A 35523B 35523D 35524A 9161160612 9161160614 9161161020 91621B0612 91652B0612
Part # Description Qty Price
35520 - CABLE ASSY, THROTTLE
35520-44020

SXM15

 1
35520-44040

SXM15

 1
35523A - CLAMP, THROTTLE CABLE, NO.1
35523-12080

CXM10,SXM15

 1
35523-12080

CXM10,SXM1#

 1
35523-32010

SXM15

 1
35523B - CLAMP, THROTTLE CABLE, NO.3
35523-20311

SXM1#

 1
35523D - CLAMP, THROTTLE CABLE, NO.5
35523-20420

SXM15

 1
35524A - CLAMP, THROTTLE CABLE, NO.6
35523-20350

SXM1#

 1
Common parts
91611-60612
91611-60614
91611-61020
91621-B0612
91652-B0612
