SXM15G-ARSSK (1997)
Toyota Ipsum
Production
Aug 1997
-
May 2001
Engine
3SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

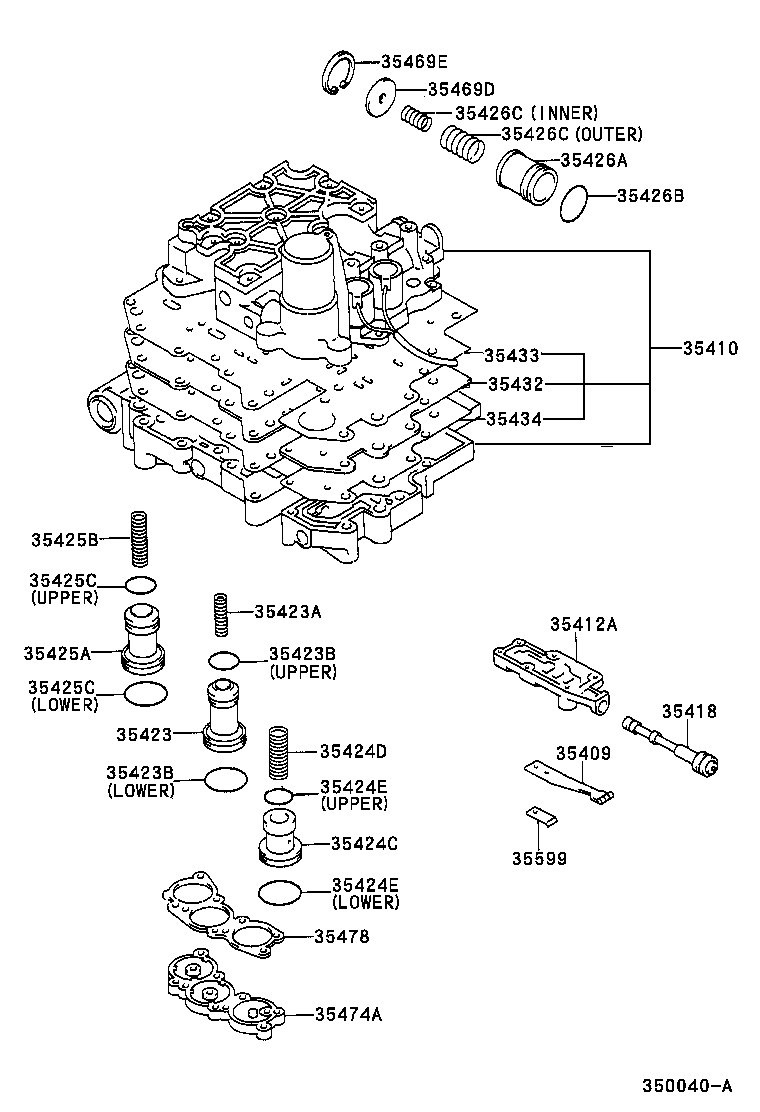

ILLUST NO. 1 OF 5(9605-9804)SXM15
Click highlighted areas on diagram
A540H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-32030 |
SXM15 |
1 | ||
| 35409-20010 |
CXM10,SXM15 |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-32155 |
SXM15 |
1 | ||
| 35410-21040 |
SXM15 |
1 | ||
| 35412A - BODY, MANUAL VALVE | ||||
| 35412-32020 |
SXM15 |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-32010 |
SXM15 |
1 | ||
| 35418-12020 |
CXM10,SXM15 |
1 | ||
| 35423 - PISTON, B-2 ACCUMULATOR | ||||
| 35403-33010 |
SXM15 |
1 | ||
| 35423-20030 |
CXM10,SXM15 |
1 | ||
| 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90501-25031 |
SXM15 |
1 | ||
| 90501-23102 |
SXM15 |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-22185 |
CXM10,SXM1# 上側 |
1 | ||
| 90301-29187 |
CXM10,SXM1# 下側 |
1 | ||
| 90301-30005 |
SXM15 下側 |
1 | ||
| 90301-22185 |
CXM10,SXM15 上側 |
1 | ||
| 90301-21006 |
SXM15 上側 |
1 | ||
| 90301-29187 |
CXM10,SXM15 下側 |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-22185 |
CXM10,SXM1# 上側 |
1 | ||
| 90301-29187 |
CXM10,SXM1# 下側 |
1 | ||
| 90301-30005 |
SXM15 下側 |
1 | ||
| 90301-22185 |
CXM10,SXM15 上側 |
1 | ||
| 90301-21006 |
SXM15 上側 |
1 | ||
| 90301-29187 |
CXM10,SXM15 下側 |
1 | ||
| 35424C - PISTON, C-1 ACCUMULATOR | ||||
| 35424-32021 |
SXM15 |
1 | ||
| 35424-20030 |
CXM10,SXM15 |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-29028 |
SXM15 |
1 | ||
| 90501-19026 |
CXM10,SXM15 外側 |
1 | ||
| 90501-23127 |
CXM10,SXM15 内側 |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-30005 |
SXM15 上側 |
1 | ||
| 90301-23194 |
CXM10,SXM1# 上側 |
1 | ||
| 90301-36006 |
SXM15 下側 |
1 | ||
| 90301-29187 |
CXM10,SXM15 下側 |
1 | ||
| 90301-29187 |
CXM10,SXM1# 下側 |
1 | ||
| 90301-23194 |
CXM10,SXM15 上側 |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-30005 |
SXM15 上側 |
1 | ||
| 90301-23194 |
CXM10,SXM1# 上側 |
1 | ||
| 90301-36006 |
SXM15 下側 |
1 | ||
| 90301-29187 |
CXM10,SXM15 下側 |
1 | ||
| 90301-29187 |
CXM10,SXM1# 下側 |
1 | ||
| 90301-23194 |
CXM10,SXM15 上側 |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35405-32010 |
SXM15 |
1 | ||
| 35425-20020 |
CXM10,SXM15 |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-20094 |
SXM15 |
1 | ||
| 90501-22018 |
CXM10,SXM15 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-34007 |
SXM15 下側 |
1 | ||
| 90301-25002 |
SXM15 上側 |
1 | ||
| 90301-23194 |
CXM10,SXM15 上側 |
1 | ||
| 90301-29187 |
CXM10,SXM1# 下側 |
1 | ||
| 90301-29187 |
CXM10,SXM15 下側 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-34007 |
SXM15 下側 |
1 | ||
| 90301-25002 |
SXM15 上側 |
1 | ||
| 90301-23194 |
CXM10,SXM15 上側 |
1 | ||
| 90301-29187 |
CXM10,SXM1# 下側 |
1 | ||
| 90301-29187 |
CXM10,SXM15 下側 |
1 | ||
| 35426A - PISTON, C-0 ACCUMULATOR | ||||
| 35426-32020 |
SXM15 |
1 | ||
| 35426B - RING, O (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90301-30005 |
SXM15 |
1 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-29019 |
SXM15 外側 |
1 | ||
| 90501-26036 |
SXM15 内側 |
1 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-29019 |
SXM15 外側 |
1 | ||
| 90501-26036 |
SXM15 内側 |
1 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-20310 |
CXM10,SXM15 |
1 | ||
| 35432-32093 |
SXM15 |
1 | ||
| 35433 - GASKET, VALVE BODY, NO.1 | ||||
| 35433-42010 |
SXM15 |
1 | ||
| 35433-16030 |
CXM10,SXM15 |
1 | ||
| 35434 - GASKET, VALVE BODY, NO.2 | ||||
| 35434-42010 |
SXM15 |
1 | ||
| 35434-16030 |
CXM10,SXM15 |
1 | ||
| 35469D - SPACER (FOR C-0 ACCUMULATOR PISTON) | ||||
| 35469-32020 |
SXM15 |
1 | ||
| 35469E - RING, SNAP (FOR C-0 ACCUMULATOR PISTON SPACER) | ||||
| 96151-03700 |
SXM15 |
1 | ||
| 35474A - COVER, ACCUMULATOR | ||||
| 35474-32030 |
SXM15 |
1 | ||
| 35474-12010 |
CXM10,SXM15 |
1 | ||
| 35478 - GASKET, ACCUMULATOR COVER | ||||
| 35478-32010 |
CXM10,SXM15 |
1 | ||
| 35478-32020 |
SXM15 |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-32020 |
SXM15 |
1 | ||
| 35599-12010 |
CXM10,SXM15 |
1 | ||

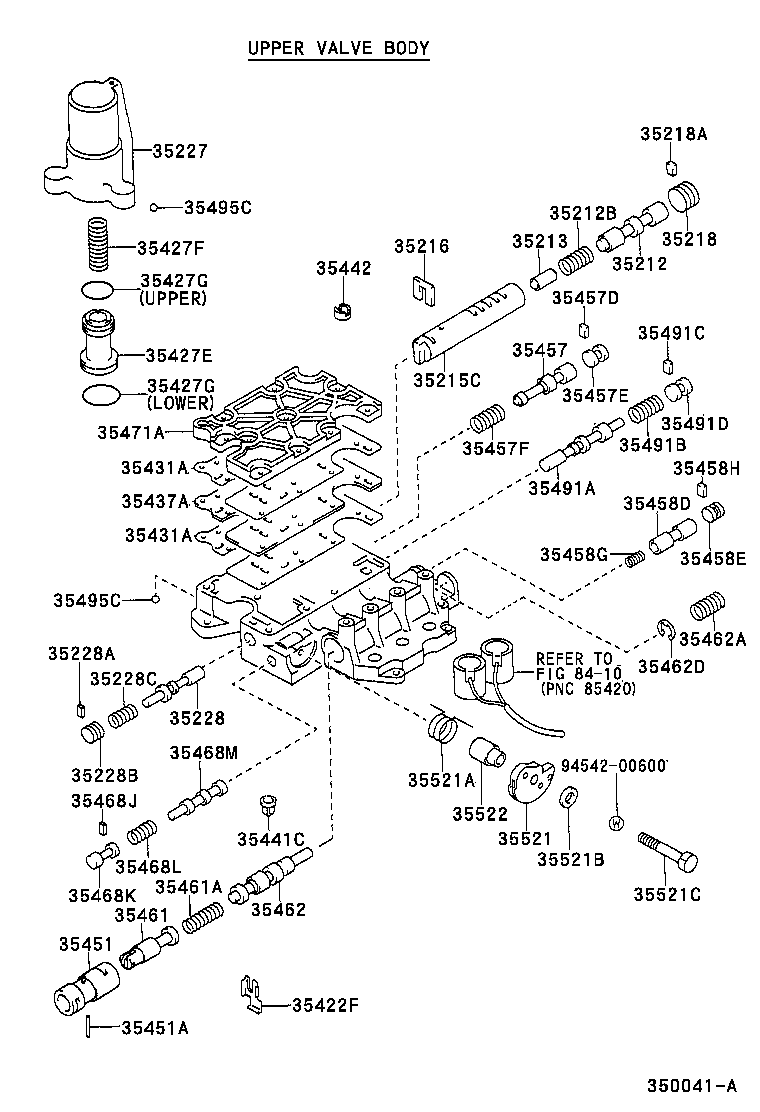

ILLUST NO. 2 OF 5(9605-9804)SXM15
Click highlighted areas on diagram
A540H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35212 - VALVE, LOCK UP RELAY | ||||
| 35212-12010 |
CXM10,SXM1# |
1 | ||
| 35212-32010 |
SXM15 |
1 | ||
| 35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE) | ||||
| 90501-07023 |
SXM15 |
1 | ||
| 90501-16077 |
CXM10,SXM15 |
1 | ||
| 35213 - VALVE, LOCK UP RELAY CONTROL | ||||
| 35213-32010 |
SXM15 |
1 | ||
| 35213-12010 |
CXM10,SXM15 |
1 | ||
| 35215C - SLEEVE, LOCK UP RELAY VALVE, NO.1 | ||||
| 35215-32010 |
SXM15 |
1 | ||
| 35215-12021 |
CXM10,SXM15 |
1 | ||
| 35216 - STOPPER, VALVE SLEEVE | ||||
| 35216-32020 |
SXM15 |
1 | ||
| 35218 - PLUG, LOCK UP RELAY VALVE | ||||
| 35218-32010 |
SXM15 |
1 | ||
| 35218A - KEY, STRAIGHT (FOR LOCK UP RELAY VALVE PLUG) | ||||
| 90282-03011 |
SXM15 |
1 | ||
| 35227 - CYLINDER, B-0 ACCUMULATOR | ||||
| 35227-32011 |
SXM15 |
1 | ||
| 35228 - VALVE, 2ND MODULATOR | ||||
| 35228-32010 |
SXM15 |
1 | ||
| 35228A - KEY, STRAIGHT (FOR 2ND MODULATOR VALVE) | ||||
| 90282-03011 |
SXM15 |
1 | ||
| 35228B - PLUG (FOR 2ND MODULATOR VALVE) | ||||
| 90339-04025 |
SXM15 |
1 | ||
| 35228C - SPRING, COMPRESSION (FOR 2ND MODULATOR VALVE) | ||||
| 90501-09122 |
SXM15 |
1 | ||
| 35422F - STOPPER, VALVE VIBRATING | ||||
| 35422-22010 |
CXM10,SXM15 |
1 | ||
| 35422-32020 |
SXM15 |
1 | ||
| 35427E - PISTON, B-0 ACCUMULATOR | ||||
| 35401-32012 |
SXM15 |
1 | ||
| 35427F - SPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90501-17023 |
SXM15 |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-20002 |
SXM15 上側 |
1 | ||
| 90301-25002 |
SXM15 下側 |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-20002 |
SXM15 上側 |
1 | ||
| 90301-25002 |
SXM15 下側 |
1 | ||
| 35431A - GASKET, UPPER VALVE BODY COVER | ||||
| 35431-32023 |
SXM15 |
2 | ||
| 35431A - GASKET, UPPER VALVE BODY COVER | ||||
| 35431-32023 |
SXM15 |
2 | ||
| 35437A - PLATE, UPPER VALVE BODY COVER | ||||
| 35437-32021 |
SXM15 |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-32020 |
SXM15 |
3 | ||
| 35441-12010 |
CXM10,SXM15 |
1 | ||
| 35442 - STRAINER, THROTTLE MODULATOR OIL | ||||
| 35442-32020 |
SXM15 |
1 | ||
| 35442-32010 |
CXM10,SXM15 |
2 | ||
| 35451 - SLEEVE, THROTTLE VALVE | ||||
| 35451-32010 |
CXM10,SXM1# |
1 | ||
| 35451-32010 |
CXM10,SXM15 |
1 | ||
| 35451A - PIN, STRAIGHT (FOR THROTTLE VALVE SLEEVE) | ||||
| 90250-03045 |
CXM10,SXM15 |
1 | ||
| 90250-03036 |
SXM15 |
1 | ||
| 35457 - VALVE, THROTTLE MODULATOR | ||||
| 35457-12010 |
CXM10,SXM15 |
1 | ||
| 35457-32010 |
SXM15 |
1 | ||
| 35457D - KEY, STRAIGHT (FOR THROTTLE MODULATOR VALVE) | ||||
| 90282-03011 |
SXM15 |
1 | ||
| 35457E - PLUG (FOR THROTTLE MODULATOR VALVE) | ||||
| 90339-04003 |
SXM15 |
1 | ||
| 90339-05006 |
CXM10,SXM15 |
1 | ||
| 35457F - SPRING, COMPRESSION (FOR THROTTLE MODULATOR VALVE) | ||||
| 90501-09037 |
SXM15 |
1 | ||
| 90501-09040 |
CXM10,SXM15 |
1 | ||
| 35458D - VALVE, CUT BACK | ||||
| 35458-32010 |
SXM15 |
1 | ||
| 35458-32020 |
CXM10,SXM15 |
1 | ||
| 35458E - PLUG (FOR CUT BACK VALVE) | ||||
| 90339-04028 |
SXM15 |
1 | ||
| 90339-04002 |
CXM10,SXM15 |
1 | ||
| 35458G - SPRING, COMPRESSION (FOR CUT BACK VALVE) | ||||
| 90501-06026 |
SXM15 |
1 | ||
| 35458H - KEY, STRAIGHT (FOR CUT BACK VALVE) | ||||
| 90282-03017 |
SXM15 |
1 | ||
| 90282-03010 |
CXM10,SXM15 |
1 | ||
| 35461 - PLUG, DOWN SHIFT | ||||
| 35408-32010 |
CXM10,SXM15 |
1 | ||
| 35408-32010 |
CXM10,SXM1# |
1 | ||
| 35461A - SPRING, COMPRESSION (FOR DOWN SHIFT PLUG) | ||||
| 90501-10054 |
SXM15 |
1 | ||
| 90501-10131 |
CXM10,SXM15 |
1 | ||
| 35462 - VALVE, THROTTLE | ||||
| 35462-12030 |
CXM10,SXM15 |
1 | ||
| 35462-32010 |
SXM15 |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-07022 |
SXM15 |
1 | ||
| 90501-07027 |
CXM10,SXM15 長さ=29.18 |
1 | ||
| 35462D - RING, E (FOR THROTTLE VALVE) | ||||
| 90523-06023 |
CXM10,SXM15 |
1 | ||
| 90523-06023 |
CXM10,SXM1# |
1 | ||
| 35468J - KEY, STRAIGHT (FOR B-1 ORIFICE CONTROL VALVE) | ||||
| 90282-03001 |
SXM15 |
1 | ||
| 35468K - PLUG (FOR B-1 ORIFICE CONTROL VALVE) | ||||
| 90339-04022 |
SXM15 |
1 | ||
| 35468L - SPRING, COMPRESSION (FOR B-1 ORIFICE CONTROL VALVE) | ||||
| 90501-08100 |
SXM15 |
1 | ||
| 35468M - VALVE, B-1 ORIFICE CONTROL | ||||
| 35468-32020 |
SXM15 |
1 | ||
| 35471A - COVER, UPPER VALVE BODY | ||||
| 35471-32020 |
SXM15 |
1 | ||
| 35491A - VALVE, ACCUMULATOR CONTROL, NO.1 | ||||
| 35491-32020 |
SXM15 |
1 | ||
| 35491-20010 |
CXM10,SXM15 |
1 | ||
| 35491B - SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1 | ||||
| 90501-10172 |
SXM15 |
1 | ||
| 90501-09110 |
CXM10,SXM15 |
1 | ||
| 35491C - KEY, STRAIGHT (FOR ACCUMULATOR CONTROL VALVE NO.1) | ||||
| 90282-03011 |
SXM15 |
1 | ||
| 90282-03003 |
CXM10,SXM15 |
1 | ||
| 35491D - PLUG (FOR ACCUMULATOR CONTROL VALVE NO.1) | ||||
| 90339-04042 |
CXM10,SXM15 |
1 | ||
| 90339-04025 |
SXM15 |
1 | ||
| 35495C - BALL, CHECK, NO.1 | ||||
| 35495-22020 |
SXM15 |
8 | ||
| 35495C - BALL, CHECK, NO.1 | ||||
| 35495-22020 |
SXM15 |
8 | ||
| 35521 - CAM, THROTTLE VALVE | ||||
| 35521-20040 |
SXM15 |
1 | ||
| 35521-32040 |
SXM15 |
1 | ||
| 35521A - SPRING (FOR THROTTLE VALVE CAM RETURN) | ||||
| 90508-11003 |
CXM10,SXM1# |
1 | ||
| 90508-11003 |
CXM10,SXM15 |
1 | ||
| 35521B - WASHER (FOR THROTTLE VALVE CAM SET) | ||||
| 90201-06472 |
CXM10,SXM1# |
1 | ||
| 35521C - BOLT (FOR THROTTLE VALVE CAM SET) | ||||
| 90101-06026 |
SXM15 |
1 | ||
| 90105-06018 |
CXM10,SXM15 |
1 | ||
| 35522 - PIN, THROTTLE VALVE CAM | ||||
| 35522-22010 |
CXM10,SXM15 |
1 | ||
| 35522-22010 |
CXM10,SXM1# |
1 | ||
| Common parts | ||||
| 94542-00600 | ||||
| Linked diagrams | ||||
| 8410 | ||||

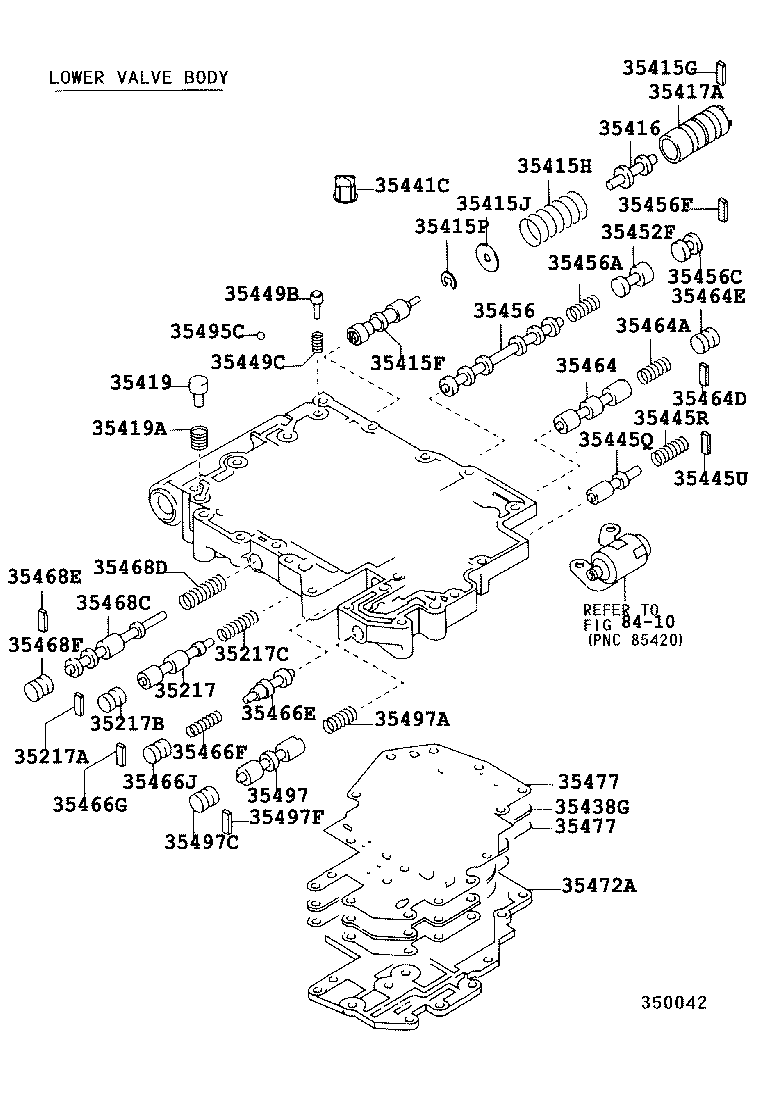

ILLUST NO. 3 OF 5(9605-9804)SXM15
Click highlighted areas on diagram
A540H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35217 - VALVE, ACCUMULATOR CONTROL, NO.2 | ||||
| 35217-32010 |
SXM15 |
1 | ||
| 35217A - KEY, STRAIGHT (FOR ACCUMULATOR CONTROL VALVE NO.2) | ||||
| 90282-03017 |
SXM15 |
1 | ||
| 35217B - PLUG (FOR ACCUMULATOR CONTROL VALVE NO.2) | ||||
| 90339-04003 |
SXM15 |
1 | ||
| 35217C - SPRING, COMPRESSION | ||||
| 90501-06034 |
SXM15 |
1 | ||
| 35415F - VALVE, PRIMARY REGULATOR | ||||
| 35415-12020 |
CXM10,SXM15 |
1 | ||
| 35415-32024 |
SXM15 |
1 | ||
| 35415G - KEY, STRAIGHT (FOR PRIMARY REGULATOR VALVE) | ||||
| 90282-03017 |
SXM15 |
1 | ||
| 35415H - SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE) | ||||
| 90501-16077 |
CXM10,SXM15 |
1 | ||
| 90501-16120 |
SXM15 |
1 | ||
| 35415J - WASHER (FOR PRIMARY REGULATOR VALVE) | ||||
| 94614-10600 |
SXM15 |
1 | ||
| 90201-08021 |
CXM10,SXM15 |
1 | ||
| 35415P - RING, E (FOR PRIMARY REGULATOR VALVE) | ||||
| 90523-06004 |
SXM15 |
1 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-32031 |
SXM15 |
1 | ||
| 35416-17010 |
CXM10,SXM15 |
1 | ||
| 35417A - SLEEVE, PRIMARY REGULATOR VALVE | ||||
| 35417-12020 |
CXM10,SXM15 |
1 | ||
| 35417-32032 |
SXM15 |
1 | ||
| 35419 - VALVE, CHECK, NO.1 | ||||
| 35419-32010 |
SXM15 |
1 | ||
| 35419-12030 |
CXM10,SXM15 |
1 | ||
| 35419 - VALVE, CHECK, NO.1 | ||||
| 35419-32010 |
SXM15 |
1 | ||
| 35419-12030 |
CXM10,SXM15 |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-10056 |
SXM15 |
1 | ||
| 90501-10079 |
CXM10,SXM15 |
1 | ||
| 35438G - PLATE, VALVE BODY, NO.2 | ||||
| 35438-32011 |
SXM15 |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-32020 |
SXM15 |
3 | ||
| 35441-12010 |
CXM10,SXM15 |
1 | ||
| 35445Q - VALVE, LOW COAST MODULATOR | ||||
| 35445-12010 |
CXM10,SXM15 |
1 | ||
| 35445-32010 |
SXM15 |
1 | ||
| 35445R - SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE) | ||||
| 90501-09086 |
SXM15 |
1 | ||
| 90501-10081 |
CXM10,SXM15 |
1 | ||
| 35445U - KEY, STRAIGHT (FOR LOW COAST MODULATOR VALVE) | ||||
| 90282-03002 |
SXM15 |
1 | ||
| 35449B - VALVE, PRESSURE RELIEF | ||||
| 35449-32010 |
CXM10,SXM15 |
1 | ||
| 35449-32010 |
CXM10,SXM1# |
1 | ||
| 35449C - SPRING, COMPRESSION (FOR VALVE PRESSURE RELIEF) | ||||
| 90501-09032 |
CXM10,SXM1# |
1 | ||
| 90501-09032 |
CXM10,SXM15 |
1 | ||
| 35452F - PLUG, 2-3 SHIFT VALVE | ||||
| 35452-32010 |
SXM15 |
1 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-32030 |
SXM15 |
1 | ||
| 35456-12010 |
CXM10,SXM15 |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-09088 |
SXM15 |
1 | ||
| 90501-09053 |
CXM10,SXM15 |
1 | ||
| 35456C - PLUG (FOR 2-3 SHIFT VALVE) | ||||
| 90339-05017 |
SXM15 |
1 | ||
| 90339-03004 |
CXM10,SXM15 |
1 | ||
| 35456F - KEY, STRAIGHT (FOR 2-3 SHIFT VALVE) | ||||
| 90282-03002 |
CXM10,SXM1# |
1 | ||
| 90282-03017 |
SXM15 |
1 | ||
| 35464 - VALVE, 1-2 SHIFT | ||||
| 35464-12030 |
CXM10,SXM15 |
1 | ||
| 35464-32030 |
SXM15 |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-09116 |
SXM15 |
1 | ||
| 90501-09053 |
CXM10,SXM15 |
1 | ||
| 35464D - KEY, STRAIGHT (FOR 1-2 SHIFT VALVE) | ||||
| 90282-03002 |
CXM10,SXM1# |
1 | ||
| 90282-03011 |
SXM15 |
1 | ||
| 35464E - PLUG (FOR 1-2 SHIFT VALVE) | ||||
| 90339-03004 |
CXM10,SXM15 |
1 | ||
| 90339-04025 |
SXM15 |
1 | ||
| 35466E - VALVE, 2ND LOCK | ||||
| 35466-32010 |
SXM15 |
1 | ||
| 35466F - SPRING, COMPRESSION (FOR 2ND LOCK VALVE) | ||||
| 90501-06047 |
SXM15 |
1 | ||
| 35466G - KEY, STRAIGHT (FOR 2ND LOCK VALVE) | ||||
| 90282-03002 |
SXM15 |
1 | ||
| 35466J - PLUG (FOR 2ND LOCK VALVE) | ||||
| 90339-04028 |
SXM15 |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35468-32031 |
SXM15 |
1 | ||
| 35468-12020 |
CXM10,SXM15 |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-14115 |
SXM15 |
1 | ||
| 90501-14105 |
CXM10,SXM15 |
1 | ||
| 35468E - KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE) | ||||
| 90282-03001 |
CXM10,SXM15 |
1 | ||
| 90282-03003 |
SXM15 |
1 | ||
| 35468F - PLUG (FOR SECONDARY REGULATOR VALVE) | ||||
| 90339-03004 |
CXM10,SXM15 |
1 | ||
| 90339-04025 |
SXM15 |
1 | ||
| 35472A - COVER, LOWER VALVE BODY | ||||
| 35472-12010 |
CXM10,SXM15 |
1 | ||
| 35472-32060 |
SXM15 |
1 | ||
| 35477 - GASKET, VALVE BODY COVER | ||||
| 35477-12010 |
CXM10,SXM15 |
2 | ||
| 35477-32043 |
SXM15 |
2 | ||
| 35477 - GASKET, VALVE BODY COVER | ||||
| 35477-12010 |
CXM10,SXM15 |
2 | ||
| 35477-32043 |
SXM15 |
2 | ||
| 35495C - BALL, CHECK, NO.1 | ||||
| 35495-22020 |
SXM15 |
8 | ||
| 35497 - VALVE, 3-4 SHIFT | ||||
| 35497-12010 |
CXM10,SXM15 |
1 | ||
| 35497-32030 |
SXM15 |
1 | ||
| 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) | ||||
| 90501-09083 |
SXM15 |
1 | ||
| 90501-09053 |
CXM10,SXM15 |
1 | ||
| 35497C - PLUG (FOR 3-4 SHIFT VALVE) | ||||
| 90339-04025 |
SXM15 |
1 | ||
| 90339-03004 |
CXM10,SXM15 |
1 | ||
| 35497F - KEY, STRAIGHT (FOR 3-4 SHIFT VALVE) | ||||
| 90282-03002 |
CXM10,SXM1# |
1 | ||
| 90282-03011 |
SXM15 |
1 | ||
| Linked diagrams | ||||
| 8410 | ||||
ILLUST NO. 4 OF 5(9605-9804)SXM15
Click highlighted areas on diagram
A540H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-12020 |
CXM10,SXM15 |
1 | ||
| 35330-32031 |
SXM15 |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 35339-12010 |
CXM10,SXM15 |
1 | ||
| 35339-32020 |
SXM15 |
1 | ||
| 35843A - TUBE, TRANSFER LUBRICATION APPLY | ||||
| 35843-33020 |
SXM15 |
1 | ||
| 35844A - TUBE, ACCUMULATOR BACK PRESSURE, NO.1 | ||||
| 35844-32030 |
SXM15 |
1 | ||
| 35844-12030 |
CXM10,SXM15 |
1 | ||
| 35845 - TUBE, RR CLUTCH ACCUMULATOR | ||||
| 35845-32020 |
SXM15 |
1 | ||
| 35846 - TUBE, BRAKE ACCUMULATOR | ||||
| 35846-32030 |
SXM15 |
1 | ||
| 35846-12040 |
CXM10,SXM15 |
1 | ||
| 35848 - TUBE, FORWARD CLUTCH ACCUMULATOR | ||||
| 35848-32020 |
SXM15 |
1 | ||
| 35848-12030 |
CXM10,SXM15 |
1 | ||
| 35862 - BRACKET, ACCUMULATOR APPLY TUBE | ||||
| 35862-32020 |
SXM15 |
1 | ||
| 35862-12020 |
CXM10,SXM15 |
1 | ||
| 35882B - TUBE, REAR SERVO APPLY | ||||
| 35882-32010 |
SXM15 |
1 | ||
| 35894 - SUPPORT, ACCUMULATOR TUBE | ||||
| 35894-32010 |
SXM15 |
1 | ||
| 35897A - TUBE, 1ST & REVERSE BRAKE, NO.1 | ||||
| 35897-32010 |
SXM15 |
1 | ||
| 35898A - TUBE, ACCUMULATOR BACK PRESSURE, NO.2 | ||||
| 35898-32010 |
SXM15 |
1 | ||
| Common parts | ||||
| 90105-05023 | ||||

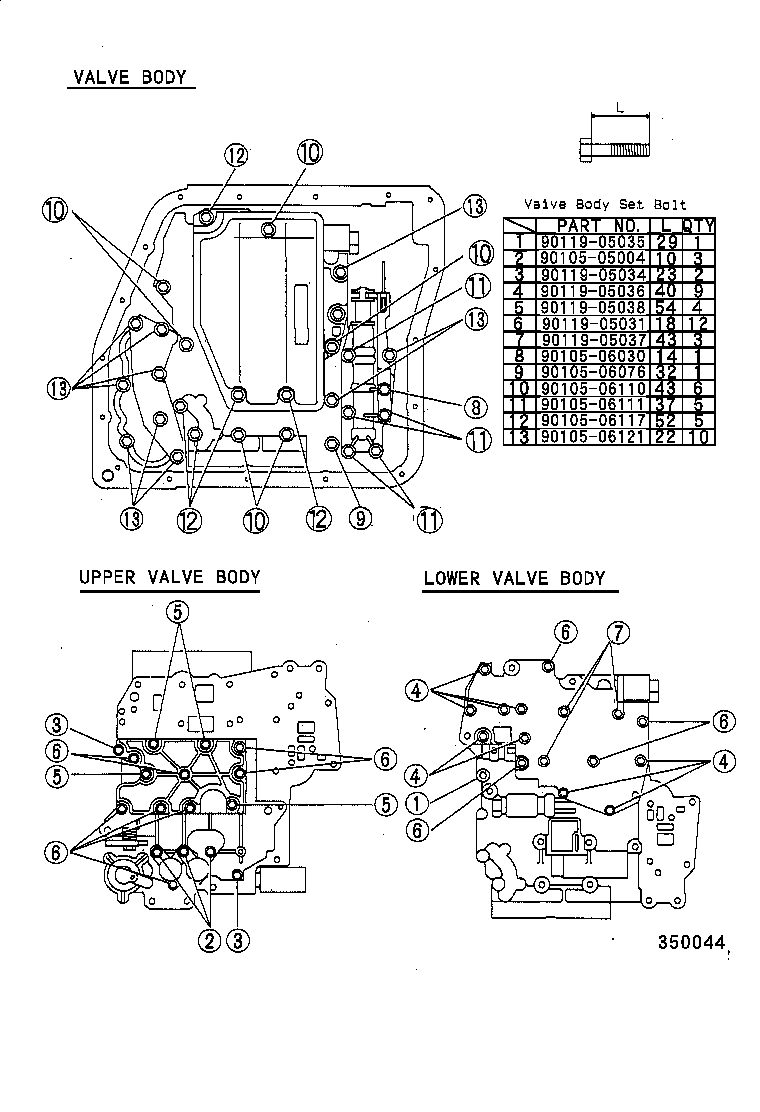

ILLUST NO. 5 OF 5(9605-9804)SXM15
Click highlighted areas on diagram
A540H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-05004 | ||||
| 90105-06030 | ||||
| 90105-06076 | ||||
| 90105-06110 | ||||
| 90105-06111 | ||||
| 90105-06117 | ||||
| 90105-06121 | ||||
| 90119-05031 | ||||
| 90119-05034 | ||||
| 90119-05035 | ||||
| 90119-05036 | ||||
| 90119-05037 | ||||
| 90119-05038 | ||||
ILLUST NO. 1 OF 5(9605-9804)CXM10,SXM10 ; (9804- )CXM10,SXM15
Click highlighted areas on diagram
A241E,A243F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35156A - PLATE, TRANSMISSION CASE, NO.2 | ||||
| 35108-20070 |
CXM10,SXM15 |
1 | ||
| 35156B - BOLT(FOR TRANSMISSION CASE NO.2 PLATE) | ||||
| 90105-06049 |
CXM10,SXM1# |
3 | ||
| 35156C - SCREW(FOR TRANSMISSION CASE NO.2 PLATE) | ||||
| 90149-60041 |
CXM10,SXM1# |
6 | ||
| 35158 - GASKET, TRANSMISSION CASE, NO.2 PLATE | ||||
| 35158-20020 |
CXM10,SXM1# |
1 | ||
| 35208 - SPRING SUB-ASSY, B-2 ACCUMULATOR | ||||
| 35205-16020 |
SXM15 |
1 | ||
| 35209 - SPRING SUB-ASSY, C-2 ACCUMULATOR | ||||
| 35209-20010 |
CXM10,SXM15 |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-12020 |
CXM10,SXM15 |
1 | ||
| 35330-32031 |
SXM15 |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 35339-12010 |
CXM10,SXM15 |
1 | ||
| 35339-32020 |
SXM15 |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-32030 |
SXM15 |
1 | ||
| 35409-20010 |
CXM10,SXM15 |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-32155 |
SXM15 |
1 | ||
| 35410-21040 |
SXM15 |
1 | ||
| 35423 - PISTON, B-2 ACCUMULATOR | ||||
| 35403-33010 |
SXM15 |
1 | ||
| 35423-20030 |
CXM10,SXM15 |
1 | ||
| 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90501-25031 |
SXM15 |
1 | ||
| 90501-23102 |
SXM15 |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-22185 |
CXM10,SXM1# 上側 |
1 | ||
| 90301-29187 |
CXM10,SXM1# 下側 |
1 | ||
| 90301-30005 |
SXM15 下側 |
1 | ||
| 90301-22185 |
CXM10,SXM15 上側 |
1 | ||
| 90301-21006 |
SXM15 上側 |
1 | ||
| 90301-29187 |
CXM10,SXM15 下側 |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-22185 |
CXM10,SXM1# 上側 |
1 | ||
| 90301-29187 |
CXM10,SXM1# 下側 |
1 | ||
| 90301-30005 |
SXM15 下側 |
1 | ||
| 90301-22185 |
CXM10,SXM15 上側 |
1 | ||
| 90301-21006 |
SXM15 上側 |
1 | ||
| 90301-29187 |
CXM10,SXM15 下側 |
1 | ||
| 35424C - PISTON, C-1 ACCUMULATOR | ||||
| 35424-32021 |
SXM15 |
1 | ||
| 35424-20030 |
CXM10,SXM15 |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-29028 |
SXM15 |
1 | ||
| 90501-19026 |
CXM10,SXM15 外側 |
1 | ||
| 90501-23127 |
CXM10,SXM15 内側 |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-29028 |
SXM15 |
1 | ||
| 90501-19026 |
CXM10,SXM15 外側 |
1 | ||
| 90501-23127 |
CXM10,SXM15 内側 |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-30005 |
SXM15 上側 |
1 | ||
| 90301-23194 |
CXM10,SXM1# 上側 |
1 | ||
| 90301-36006 |
SXM15 下側 |
1 | ||
| 90301-29187 |
CXM10,SXM15 下側 |
1 | ||
| 90301-29187 |
CXM10,SXM1# 下側 |
1 | ||
| 90301-23194 |
CXM10,SXM15 上側 |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-30005 |
SXM15 上側 |
1 | ||
| 90301-23194 |
CXM10,SXM1# 上側 |
1 | ||
| 90301-36006 |
SXM15 下側 |
1 | ||
| 90301-29187 |
CXM10,SXM15 下側 |
1 | ||
| 90301-29187 |
CXM10,SXM1# 下側 |
1 | ||
| 90301-23194 |
CXM10,SXM15 上側 |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35405-32010 |
SXM15 |
1 | ||
| 35425-20020 |
CXM10,SXM15 |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-20094 |
SXM15 |
1 | ||
| 90501-22018 |
CXM10,SXM15 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-34007 |
SXM15 下側 |
1 | ||
| 90301-25002 |
SXM15 上側 |
1 | ||
| 90301-23194 |
CXM10,SXM15 上側 |
1 | ||
| 90301-29187 |
CXM10,SXM1# 下側 |
1 | ||
| 90301-29187 |
CXM10,SXM15 下側 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-34007 |
SXM15 下側 |
1 | ||
| 90301-25002 |
SXM15 上側 |
1 | ||
| 90301-23194 |
CXM10,SXM15 上側 |
1 | ||
| 90301-29187 |
CXM10,SXM1# 下側 |
1 | ||
| 90301-29187 |
CXM10,SXM15 下側 |
1 | ||
| 35426D - PISTON, C-3 ACCUMULATOR | ||||
| 35426-20040 |
CXM10,SXM15 |
1 | ||
| 35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90501-29003 |
SXM15 |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-20002 |
CXM10,SXM15 上側 |
1 | ||
| 90301-29187 |
CXM10,SXM1# 下側 |
1 | ||
| 90301-29187 |
CXM10,SXM15 下側 |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-20002 |
CXM10,SXM15 上側 |
1 | ||
| 90301-29187 |
CXM10,SXM1# 下側 |
1 | ||
| 90301-29187 |
CXM10,SXM15 下側 |
1 | ||
| 35427A - SPRING, COMPRESSION (FOR B-4 ACCUMULATOR PISTON) | ||||
| 90501-26040 |
SXM15 |
1 | ||
| 35427B - RING, O (FOR B-4 ACCUMULATOR PISTON) | ||||
| 90301-22185 |
CXM10,SXM1# |
1 | ||
| 90301-22185 |
CXM10,SXM15 |
1 | ||
| 35427C - PISTON, B-4 ACCUMULATOR | ||||
| 35427-12010 |
CXM10,SXM15 |
1 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-20310 |
CXM10,SXM15 |
1 | ||
| 35432-32093 |
SXM15 |
1 | ||
| 35433 - GASKET, VALVE BODY, NO.1 | ||||
| 35433-42010 |
SXM15 |
1 | ||
| 35433-16030 |
CXM10,SXM15 |
1 | ||
| 35434 - GASKET, VALVE BODY, NO.2 | ||||
| 35434-42010 |
SXM15 |
1 | ||
| 35434-16030 |
CXM10,SXM15 |
1 | ||
| 35474A - COVER, ACCUMULATOR | ||||
| 35474-32030 |
SXM15 |
1 | ||
| 35474-12010 |
CXM10,SXM15 |
1 | ||
| 35478 - GASKET, ACCUMULATOR COVER | ||||
| 35478-32010 |
CXM10,SXM15 |
1 | ||
| 35478-32020 |
SXM15 |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-32020 |
SXM15 |
1 | ||
| 35599-12010 |
CXM10,SXM15 |
1 | ||
| 35862 - BRACKET, ACCUMULATOR APPLY TUBE | ||||
| 35862-32020 |
SXM15 |
1 | ||
| 35862-12020 |
CXM10,SXM15 |
1 | ||
ILLUST NO. 2 OF 5(9605-9804)CXM10,SXM10 ; (9804- )CXM10,SXM15
Click highlighted areas on diagram
A241E,A243F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35212 - VALVE, LOCK UP RELAY | ||||
| 35212-12010 |
CXM10,SXM1# |
1 | ||
| 35212-32010 |
SXM15 |
1 | ||
| 35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE) | ||||
| 90501-07023 |
SXM15 |
1 | ||
| 90501-16077 |
CXM10,SXM15 |
1 | ||
| 35213 - VALVE, LOCK UP RELAY CONTROL | ||||
| 35213-32010 |
SXM15 |
1 | ||
| 35213-12010 |
CXM10,SXM15 |
1 | ||
| 35215B - PIN, STRAIGHT (FOR LOCK UP RELAY VALVE SLEEVE) | ||||
| 90250-03038 |
CXM10,SXM15 |
1 | ||
| 35215C - SLEEVE, LOCK UP RELAY VALVE, NO.1 | ||||
| 35215-32010 |
SXM15 |
1 | ||
| 35215-12021 |
CXM10,SXM15 |
1 | ||
| 35415F - VALVE, PRIMARY REGULATOR | ||||
| 35415-12020 |
CXM10,SXM15 |
1 | ||
| 35415-32024 |
SXM15 |
1 | ||
| 35415H - SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE) | ||||
| 90501-16077 |
CXM10,SXM15 |
1 | ||
| 90501-16120 |
SXM15 |
1 | ||
| 35415J - WASHER (FOR PRIMARY REGULATOR VALVE) | ||||
| 94614-10600 |
SXM15 |
1 | ||
| 90201-08021 |
CXM10,SXM15 |
1 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-32031 |
SXM15 |
1 | ||
| 35416-17010 |
CXM10,SXM15 |
1 | ||
| 35417A - SLEEVE, PRIMARY REGULATOR VALVE | ||||
| 35417-12020 |
CXM10,SXM15 |
1 | ||
| 35417-32032 |
SXM15 |
1 | ||
| 35417B - PIN, STRAIGHT (FOR PRIMARY REGULATOR VALVE SLEEVE) | ||||
| 90250-03038 |
CXM10,SXM15 |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-32010 |
SXM15 |
1 | ||
| 35418-12020 |
CXM10,SXM15 |
1 | ||
| 35418A - PIN, STRAIGHT (FOR MANUAL VALVE) | ||||
| 90250-02007 |
CXM10,SXM15 |
1 | ||
| 35418B - PLUG (FOR MANUAL VALVE) | ||||
| 90339-04007 |
CXM10,SXM15 |
1 | ||
| 35422F - STOPPER, VALVE VIBRATING | ||||
| 35422-22010 |
CXM10,SXM15 |
1 | ||
| 35422-32020 |
SXM15 |
1 | ||
| 35438H - SEAT, LOW COAST MODULATOR VALVE SPRING | ||||
| 35438-22020 |
CXM10,SXM1# |
1 | ||
| 35442 - STRAINER, THROTTLE MODULATOR OIL | ||||
| 35442-32020 |
SXM15 |
1 | ||
| 35442-32010 |
CXM10,SXM15 |
2 | ||
| 35445H - VALVE, 2ND COAST MODULATOR | ||||
| 35445-12010 |
CXM10,SXM15 |
1 | ||
| 35445J - PLUG (FOR 2ND COAST MODULATOR VALVE) | ||||
| 90339-04002 |
CXM10,SXM15 |
1 | ||
| 35445P - SPRING, COMPRESSION (FOR 2ND COAST MODULATOR VALVE) | ||||
| 90501-09062 |
CXM10,SXM15 |
1 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 90360-06023 |
CXM10,SXM15 外径=5.56,STEEL |
6 | ||
| 35451 - SLEEVE, THROTTLE VALVE | ||||
| 35451-32010 |
CXM10,SXM1# |
1 | ||
| 35451-32010 |
CXM10,SXM15 |
1 | ||
| 35451A - PIN, STRAIGHT (FOR THROTTLE VALVE SLEEVE) | ||||
| 90250-03045 |
CXM10,SXM15 |
1 | ||
| 90250-03036 |
SXM15 |
1 | ||
| 35457 - VALVE, THROTTLE MODULATOR | ||||
| 35457-12010 |
CXM10,SXM15 |
1 | ||
| 35457-32010 |
SXM15 |
1 | ||
| 35457E - PLUG (FOR THROTTLE MODULATOR VALVE) | ||||
| 90339-04003 |
SXM15 |
1 | ||
| 90339-05006 |
CXM10,SXM15 |
1 | ||
| 35457F - SPRING, COMPRESSION (FOR THROTTLE MODULATOR VALVE) | ||||
| 90501-09037 |
SXM15 |
1 | ||
| 90501-09040 |
CXM10,SXM15 |
1 | ||
| 35457G - PIN, STRAIGHT (FOR THROTTLE MODULATOR VALVE) | ||||
| 90250-02007 |
CXM10,SXM15 |
1 | ||
| 35458D - VALVE, CUT BACK | ||||
| 35458-32010 |
SXM15 |
1 | ||
| 35458-32020 |
CXM10,SXM15 |
1 | ||
| 35458E - PLUG (FOR CUT BACK VALVE) | ||||
| 90339-04028 |
SXM15 |
1 | ||
| 90339-04002 |
CXM10,SXM15 |
1 | ||
| 35458H - KEY, STRAIGHT (FOR CUT BACK VALVE) | ||||
| 90282-03017 |
SXM15 |
1 | ||
| 90282-03010 |
CXM10,SXM15 |
1 | ||
| 35461 - PLUG, DOWN SHIFT | ||||
| 35408-32010 |
CXM10,SXM15 |
1 | ||
| 35408-32010 |
CXM10,SXM1# |
1 | ||
| 35461A - SPRING, COMPRESSION (FOR DOWN SHIFT PLUG) | ||||
| 90501-10054 |
SXM15 |
1 | ||
| 90501-10131 |
CXM10,SXM15 |
1 | ||
| 35462 - VALVE, THROTTLE | ||||
| 35462-12030 |
CXM10,SXM15 |
1 | ||
| 35462-32010 |
SXM15 |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-07022 |
SXM15 |
1 | ||
| 90501-07027 |
CXM10,SXM15 長さ=29.18 |
1 | ||
| 35462D - RING, E (FOR THROTTLE VALVE) | ||||
| 90523-06023 |
CXM10,SXM15 |
1 | ||
| 90523-06023 |
CXM10,SXM1# |
1 | ||
| 35465A - SLEEVE, PRIMARY REGULATOR VALVE PLUNGER | ||||
| 35465-17010 |
CXM10,SXM15 |
1 | ||
| 35491A - VALVE, ACCUMULATOR CONTROL, NO.1 | ||||
| 35491-32020 |
SXM15 |
1 | ||
| 35491-20010 |
CXM10,SXM15 |
1 | ||
| 35491B - SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1 | ||||
| 90501-10172 |
SXM15 |
1 | ||
| 90501-09110 |
CXM10,SXM15 |
1 | ||
| 35491C - KEY, STRAIGHT (FOR ACCUMULATOR CONTROL VALVE NO.1) | ||||
| 90282-03011 |
SXM15 |
1 | ||
| 90282-03003 |
CXM10,SXM15 |
1 | ||
| 35491D - PLUG (FOR ACCUMULATOR CONTROL VALVE NO.1) | ||||
| 90339-04042 |
CXM10,SXM15 |
1 | ||
| 90339-04025 |
SXM15 |
1 | ||
| 35521 - CAM, THROTTLE VALVE | ||||
| 35521-20040 |
SXM15 |
1 | ||
| 35521-32040 |
SXM15 |
1 | ||
| 35521A - SPRING (FOR THROTTLE VALVE CAM RETURN) | ||||
| 90508-11003 |
CXM10,SXM1# |
1 | ||
| 90508-11003 |
CXM10,SXM15 |
1 | ||
| 35521B - WASHER (FOR THROTTLE VALVE CAM SET) | ||||
| 90201-06472 |
CXM10,SXM1# |
1 | ||
| 35521C - BOLT (FOR THROTTLE VALVE CAM SET) | ||||
| 90101-06026 |
SXM15 |
1 | ||
| 90105-06018 |
CXM10,SXM15 |
1 | ||
| 35522 - PIN, THROTTLE VALVE CAM | ||||
| 35522-22010 |
CXM10,SXM15 |
1 | ||
| 35522-22010 |
CXM10,SXM1# |
1 | ||
| 35554 - ROD, MANUAL VALVE CONNECTING | ||||
| 35554-12011 |
CXM10,SXM15 |
1 | ||
| 35554A - RING, E (FOR MANUAL VALVE CONNECTING ROD) | ||||
| 96160-00400 |
CXM10,SXM1# |
1 | ||
ILLUST NO. 3 OF 5(9605-9804)CXM10,SXM10 ; (9804- )CXM10,SXM15
Click highlighted areas on diagram
A241E,A243F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35211 - VALVE, LOCK UP SIGNAL | ||||
| 35211-32020 |
CXM10,SXM15 |
1 | ||
| 35211B - SPRING, COMPRESSION (FOR LOCK UP SIGNAL VALVE) | ||||
| 90501-07028 |
CXM10,SXM15 |
1 | ||
| 35211C - KEY, STRAIGHT (FOR LOCK UP SIGNAL VALVE) | ||||
| 90282-03002 |
CXM10,SXM15 |
1 | ||
| 35219 - PLUG, LOCK UP SIGNAL VALVE | ||||
| 90339-04002 |
CXM10,SXM15 |
1 | ||
| 35419 - VALVE, CHECK, NO.1 | ||||
| 35419-32010 |
SXM15 |
1 | ||
| 35419-12030 |
CXM10,SXM15 |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-10056 |
SXM15 |
1 | ||
| 90501-10079 |
CXM10,SXM15 |
1 | ||
| 35437B - PLATE, VALVE BODY COVER | ||||
| 35437-12020 |
CXM10,SXM15 |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-32020 |
SXM15 |
3 | ||
| 35441-12010 |
CXM10,SXM15 |
1 | ||
| 35445Q - VALVE, LOW COAST MODULATOR | ||||
| 35445-12010 |
CXM10,SXM15 |
1 | ||
| 35445-32010 |
SXM15 |
1 | ||
| 35445R - SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE) | ||||
| 90501-09086 |
SXM15 |
1 | ||
| 90501-10081 |
CXM10,SXM15 |
1 | ||
| 35445S - KEY, STRAIGHT (FOR 2ND COAST MODULATOR VALVE) | ||||
| 90282-03002 |
CXM10,SXM15 |
1 | ||
| 35445V - PLUG (FOR LOW COAST MODULATOR VALVE) | ||||
| 90339-04002 |
CXM10,SXM15 |
1 | ||
| 35449B - VALVE, PRESSURE RELIEF | ||||
| 35449-32010 |
CXM10,SXM15 |
1 | ||
| 35449-32010 |
CXM10,SXM1# |
1 | ||
| 35449C - SPRING, COMPRESSION (FOR VALVE PRESSURE RELIEF) | ||||
| 90501-09032 |
CXM10,SXM1# |
1 | ||
| 90501-09032 |
CXM10,SXM15 |
1 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-32030 |
SXM15 |
1 | ||
| 35456-12010 |
CXM10,SXM15 |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-09088 |
SXM15 |
1 | ||
| 90501-09053 |
CXM10,SXM15 |
1 | ||
| 35456C - PLUG (FOR 2-3 SHIFT VALVE) | ||||
| 90339-05017 |
SXM15 |
1 | ||
| 90339-03004 |
CXM10,SXM15 |
1 | ||
| 35456F - KEY, STRAIGHT (FOR 2-3 SHIFT VALVE) | ||||
| 90282-03002 |
CXM10,SXM1# |
1 | ||
| 90282-03017 |
SXM15 |
1 | ||
| 35464 - VALVE, 1-2 SHIFT | ||||
| 35464-12030 |
CXM10,SXM15 |
1 | ||
| 35464-32030 |
SXM15 |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-09116 |
SXM15 |
1 | ||
| 90501-09053 |
CXM10,SXM15 |
1 | ||
| 35464D - KEY, STRAIGHT (FOR 1-2 SHIFT VALVE) | ||||
| 90282-03002 |
CXM10,SXM1# |
1 | ||
| 90282-03011 |
SXM15 |
1 | ||
| 35464E - PLUG (FOR 1-2 SHIFT VALVE) | ||||
| 90339-03004 |
CXM10,SXM15 |
1 | ||
| 90339-04025 |
SXM15 |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35468-32031 |
SXM15 |
1 | ||
| 35468-12020 |
CXM10,SXM15 |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-14115 |
SXM15 |
1 | ||
| 90501-14105 |
CXM10,SXM15 |
1 | ||
| 35468E - KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE) | ||||
| 90282-03001 |
CXM10,SXM15 |
1 | ||
| 90282-03003 |
SXM15 |
1 | ||
| 35468F - PLUG (FOR SECONDARY REGULATOR VALVE) | ||||
| 90339-03004 |
CXM10,SXM15 |
1 | ||
| 90339-04025 |
SXM15 |
1 | ||
| 35472A - COVER, LOWER VALVE BODY | ||||
| 35472-12010 |
CXM10,SXM15 |
1 | ||
| 35472-32060 |
SXM15 |
1 | ||
| 35477 - GASKET, VALVE BODY COVER | ||||
| 35477-12010 |
CXM10,SXM15 |
2 | ||
| 35477-32043 |
SXM15 |
2 | ||
| 35477 - GASKET, VALVE BODY COVER | ||||
| 35477-12010 |
CXM10,SXM15 |
2 | ||
| 35477-32043 |
SXM15 |
2 | ||
| 35497 - VALVE, 3-4 SHIFT | ||||
| 35497-12010 |
CXM10,SXM15 |
1 | ||
| 35497-32030 |
SXM15 |
1 | ||
| 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) | ||||
| 90501-09083 |
SXM15 |
1 | ||
| 90501-09053 |
CXM10,SXM15 |
1 | ||
| 35497C - PLUG (FOR 3-4 SHIFT VALVE) | ||||
| 90339-04025 |
SXM15 |
1 | ||
| 90339-03004 |
CXM10,SXM15 |
1 | ||
| 35497F - KEY, STRAIGHT (FOR 3-4 SHIFT VALVE) | ||||
| 90282-03002 |
CXM10,SXM1# |
1 | ||
| 90282-03011 |
SXM15 |
1 | ||
| Linked diagrams | ||||
| 8410 | ||||
ILLUST NO. 4 OF 5(9605-9804)CXM10,SXM10 ; (9804- )CXM10,SXM15
Click highlighted areas on diagram
A241E,A243F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35171 - COVER, TRANSAXLE HOUSING | ||||
| 35171-12010 |
CXM10,SXM15 |
1 | ||
| 35172 - GASKET, TRANSAXLE HOUSING COVER | ||||
| 35172-12010 |
CXM10,SXM15 |
1 | ||
| 35195A - CLAMP, TRANSAXLE APPLY TUBE, NO.1 | ||||
| 35195-12010 |
CXM10,SXM15 |
1 | ||
| 35196 - CLAMP, TRANSAXLE APPLY TUBE, NO.2 | ||||
| 35196-21020 |
SXM15 |
1 | ||
| 35197 - CLAMP, TRANSAXLE APPLY TUBE, NO.3 | ||||
| 35197-12010 |
CXM10,SXM15 |
1 | ||
| 35198 - CLAMP, TRANSAXLE APPLY TUBE, NO.4 | ||||
| 35198-20010 |
CXM10,SXM15 |
1 | ||
| 35429 - TUBE, LINE PRESSURE | ||||
| 35429-12030 |
CXM10,SXM15 |
1 | ||
| 35844A - TUBE, ACCUMULATOR BACK PRESSURE, NO.1 | ||||
| 35844-32030 |
SXM15 |
1 | ||
| 35844-12030 |
CXM10,SXM15 |
1 | ||
| 35845A - TUBE, DIRECT CLUTCH ACCUMULATOR | ||||
| 35845-12030 |
CXM10,SXM15 |
1 | ||
| 35846 - TUBE, BRAKE ACCUMULATOR | ||||
| 35846-32030 |
SXM15 |
1 | ||
| 35846-12040 |
CXM10,SXM15 |
1 | ||
| 35847 - TUBE, TRANSMISSION LUBE APPLY | ||||
| 35847-21030 |
SXM15 |
1 | ||
| 35848 - TUBE, FORWARD CLUTCH ACCUMULATOR | ||||
| 35848-32020 |
SXM15 |
1 | ||
| 35848-12030 |
CXM10,SXM15 |
1 | ||
| 35882A - TUBE, DIFFERENTIAL GEAR LUBE APPLY | ||||
| 35882-21020 |
CXM10,SXM15 |
1 | ||
| Common parts | ||||
| 90105-06020 | ||||
| 90949-01136 | ||||
| 90949-01444 | ||||
| 91611-60614 | ||||
| 91611-60620 | ||||
ILLUST NO. 5 OF 5(9605-9804)CXM10,SXM10 ; (9804- )CXM10,SXM15
Click highlighted areas on diagram
A241E,A243F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-05003 | ||||
| 90105-05007 | ||||
| 90105-05009 | ||||
| 90105-05010 | ||||
| 90105-05014 | ||||
| 90105-06014 | ||||
| 90105-06017 | ||||
| 90105-06020 | ||||
| 90105-06026 | ||||
| 90105-06049 | ||||
| 90105-06053 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
