SXM15G-ARSSK (1997)
Toyota Ipsum
(9605-9804)SXM15

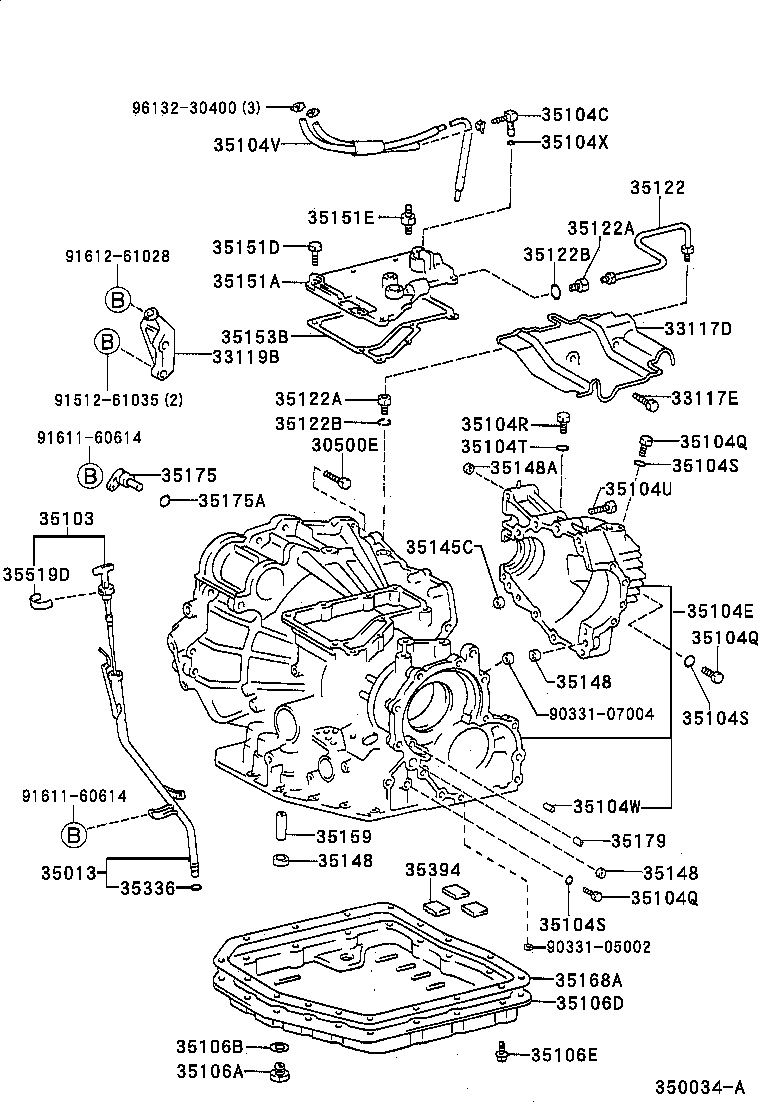

A540H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 90105-08040 |
SXM1# *8−1.25PX18−15 |
1 | ||
| 90105-10077 |
CXM10,SXM1# *10−1.25PX43−26 |
1 | ||
| 90105-08040 |
CXM10,SXM15 *8−1.25PX18−15 |
2 | ||
| 91619-61245 |
CXM10,SXM1# *12−1.25PX45−30 |
3 | ||
| 91621-61020 |
SXM15 *10−1.25PX20−20 |
1 | ||
| 33117D - PROTECTOR, AUTOMATIC TRANSMISSION CASE | ||||
| 33117-32050 |
SXM15 |
1 | ||
| 33117-12030 |
CXM10,SXM1# |
1 | ||
| 33117E - BOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR) | ||||
| 90105-08040 |
CXM10,SXM1# |
2 | ||
| 33119B - PLATE, STIFFENER, LH(ATM) | ||||
| 33119-32020 |
SXM15 |
1 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-44030 |
SXM15 |
1 | ||
| 35013-44050 |
SXM15 |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-44060 |
SXM15 |
1 | ||
| 35103-44020 |
SXM15 |
1 | ||
| 35104C - PLUG, BREATHER, NO.2 (ATM) | ||||
| 90930-03094 |
SXM15 |
1 | ||
| 35104E - CASE SUB-ASSY, AUTOMATIC TRANSAXLE | ||||
| 35104-32065 |
SXM15 |
1 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
CXM10,SXM1# |
1 | ||
| 90341-08001 |
SXM15 |
3 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
CXM10,SXM1# |
1 | ||
| 90341-08001 |
SXM15 |
3 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
CXM10,SXM1# |
1 | ||
| 90341-08001 |
SXM15 |
3 | ||
| 35104R - PLUG, NO.2 (FOR TRANSAXLE CASE) | ||||
| 90341-13003 |
SXM15 |
1 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
CXM10,SXM1# |
1 | ||
| 90301-06196 |
SXM15 |
3 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
CXM10,SXM1# |
1 | ||
| 90301-06196 |
SXM15 |
3 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
CXM10,SXM1# |
1 | ||
| 90301-06196 |
SXM15 |
3 | ||
| 35104T - RING, O (FOR TRANSAXLE CASE PLUG NO.2) | ||||
| 90301-10189 |
SXM15 |
1 | ||
| 35104U - BOLT (FOR TRANSAXLE CASE) | ||||
| 90105-10223 |
SXM15 *10−1.25PX75−30 |
2 | ||
| 90105-10222 |
SXM15 *10−1.25PX65−30 |
9 | ||
| 90105-10224 |
SXM15 *10−1.25PX100−30 |
2 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 35121-44010 |
SXM15 |
1 | ||
| 90447-11017 |
CXM10,SXM15 |
1 | ||
| 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) | ||||
| 90250-10232 |
SXM15 |
2 | ||
| 90250-11001 |
CXM10,SXM1# NO.2 |
2 | ||
| 90250-10021 |
CXM10,SXM1# NO.1 |
2 | ||
| 35104X - RING, O (FOR BREATHER PLUG) | ||||
| 90301-06005 |
SXM15 |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-18016 |
SXM15 |
1 | ||
| 90341-10006 |
CXM10,SXM15 |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
CXM10,SXM1# |
1 | ||
| 90430-18008 |
SXM15 |
1 | ||
| 35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL | ||||
| 35106-12070 |
SXM15 |
1 | ||
| 35106-32032 |
SXM15 |
1 | ||
| 35106-12070 |
CXM10,SXM15 |
1 | ||
| 35106E - BOLT (FOR TRANSAXLE OIL PAN) | ||||
| 90119-06173 |
CXM10,SXM1# |
18 | ||
| 90119-06173 |
SXM15 |
17 | ||
| 35122 - TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE) | ||||
| 35122-32010 |
SXM15 |
1 | ||
| 35122A - UNION (FOR AUTOMATIC TRANSAXLE BREATHER TUBE) | ||||
| 90404-14007 |
SXM15 |
2 | ||
| 35122A - UNION (FOR AUTOMATIC TRANSAXLE BREATHER TUBE) | ||||
| 90404-14007 |
SXM15 |
2 | ||
| 35122B - RING, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION) | ||||
| 90301-10189 |
SXM15 |
2 | ||
| 35122B - RING, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION) | ||||
| 90301-10189 |
SXM15 |
2 | ||
| 35145C - GASKET, TRANSAXLE CASE | ||||
| 35145-32020 |
SXM15 |
1 | ||
| 35148 - GASKET, GOVERNOR APPLY, NO.1 | ||||
| 35148-16010 |
SXM15 |
3 | ||
| 35148-16010 |
CXM10,SXM1# |
1 | ||
| 35148 - GASKET, GOVERNOR APPLY, NO.1 | ||||
| 35148-16010 |
SXM15 |
3 | ||
| 35148-16010 |
CXM10,SXM1# |
1 | ||
| 35148 - GASKET, GOVERNOR APPLY, NO.1 | ||||
| 35148-16010 |
SXM15 |
3 | ||
| 35148-16010 |
CXM10,SXM1# |
1 | ||
| 35148A - GASKET, GOVERNOR APPLY, NO.2 | ||||
| 35148-12010 |
CXM10,SXM1# |
1 | ||
| 35151A - COVER, TRANSAXLE CASE, UPPER | ||||
| 35151-32023 |
SXM15 |
1 | ||
| 35151D - BOLT (FOR TRANSAXLE CASE UPPER COVER) | ||||
| 90105-08174 |
SXM15 *8−1.25PX28−18 |
1 | ||
| 90105-06113 |
SXM15 *6−1.00PX20−18 |
7 | ||
| 35151E - BOLT (FOR TRANSAXLE CASE UPPER COVER) | ||||
| 90109-08179 |
SXM15 |
1 | ||
| 35153B - GASKET, TRANSAXLE CASE UPPER COVER | ||||
| 35153-32010 |
SXM15 |
1 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-32011 |
SXM15 |
1 | ||
| 35159-20010 |
CXM10,SXM1# |
1 | ||
| 35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN | ||||
| 35168-12020 |
CXM10,SXM15 |
1 | ||
| 35168-32020 |
SXM15 |
1 | ||
| 35175 - CAP, TRANSAXLE CASE, NO.2 | ||||
| 35175-32010 |
SXM15 |
1 | ||
| 35175A - RING, O (FOR TRANSAXLE CASE CAP) | ||||
| 90301-21002 |
SXM15 |
1 | ||
| 35179 - GASKET, OVERDRIVE BRAKE | ||||
| 35179-32010 |
SXM15 |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
CXM10,SXM1# |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
CXM10,SXM1# |
2 | ||
| 35394-30011 |
SXM15 |
3 | ||
| 35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION | ||||
| 35519-16040 |
SXM15 |
1 | ||
| 35519-42010 |
SXM15 |
1 | ||
| Common parts | ||||
| 90331-05002 | ||||
| 90331-07004 | ||||
| 91512-61035 | ||||
| 91611-60614 | ||||
| 91612-61028 | ||||
| 96132-30400 | ||||

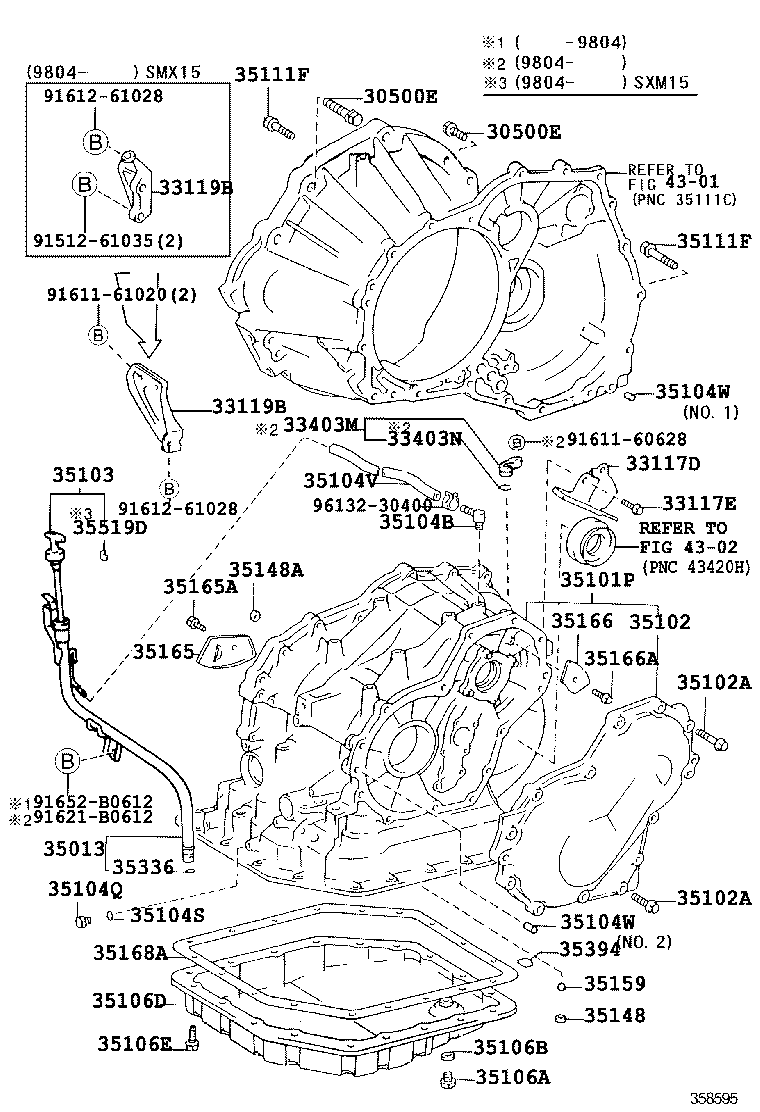

(9605-9804)CXM10,SXM10 ; (9804- )CXM10,SXM15
A241E,A243F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 90105-08040 |
SXM1# *8−1.25PX18−15 |
1 | ||
| 90105-10077 |
CXM10,SXM1# *10−1.25PX43−26 |
1 | ||
| 90105-08040 |
CXM10,SXM15 *8−1.25PX18−15 |
2 | ||
| 91619-61245 |
CXM10,SXM1# *12−1.25PX45−30 |
3 | ||
| 91621-61020 |
SXM15 *10−1.25PX20−20 |
1 | ||
| 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 90105-08040 |
SXM1# *8−1.25PX18−15 |
1 | ||
| 90105-10077 |
CXM10,SXM1# *10−1.25PX43−26 |
1 | ||
| 90105-08040 |
CXM10,SXM15 *8−1.25PX18−15 |
2 | ||
| 91619-61245 |
CXM10,SXM1# *12−1.25PX45−30 |
3 | ||
| 91621-61020 |
SXM15 *10−1.25PX20−20 |
1 | ||
| 33117D - PROTECTOR, AUTOMATIC TRANSMISSION CASE | ||||
| 33117-32050 |
SXM15 |
1 | ||
| 33117-12030 |
CXM10,SXM1# |
1 | ||
| 33117E - BOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR) | ||||
| 90105-08040 |
CXM10,SXM1# |
2 | ||
| 33119B - PLATE, STIFFENER, LH(ATM) | ||||
| 33119-32020 |
SXM15 |
1 | ||
| 33119B - PLATE, STIFFENER, LH(ATM) | ||||
| 33119-32020 |
SXM15 |
1 | ||
| 33403M - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM) | ||||
| 33403-20230 |
CXM10,SXM1# |
1 | ||
| 33403N - RING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER) | ||||
| 96711-24018 |
CXM10,SXM1# |
1 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-44030 |
SXM15 |
1 | ||
| 35013-44050 |
SXM15 |
1 | ||
| 35101P - CASE & COVER SUB-ASSY, TRANSAXLE | ||||
| 35101-20034 |
CXM10,SXM15 |
1 | ||
| 35102 - COVER SUB-ASSY, TRANSAXLE REAR | ||||
| 35102-20031 |
CXM10,SXM15 |
1 | ||
| 35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING) | ||||
| 90105-08065 |
CXM10,SXM15 *8−1.25PX45−35 |
10 | ||
| 90105-08068 |
CXM10,SXM15 *8−1.25PX35−30 |
3 | ||
| 35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING) | ||||
| 90105-08065 |
CXM10,SXM15 *8−1.25PX45−35 |
10 | ||
| 90105-08068 |
CXM10,SXM15 *8−1.25PX35−30 |
3 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-44060 |
SXM15 |
1 | ||
| 35103-44020 |
SXM15 |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03101 |
CXM10,SXM15 |
1 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
CXM10,SXM1# |
1 | ||
| 90341-08001 |
SXM15 |
3 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
CXM10,SXM1# |
1 | ||
| 90301-06196 |
SXM15 |
3 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 35121-44010 |
SXM15 |
1 | ||
| 90447-11017 |
CXM10,SXM15 |
1 | ||
| 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) | ||||
| 90250-10232 |
SXM15 |
2 | ||
| 90250-11001 |
CXM10,SXM1# NO.2 |
2 | ||
| 90250-10021 |
CXM10,SXM1# NO.1 |
2 | ||
| 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) | ||||
| 90250-10232 |
SXM15 |
2 | ||
| 90250-11001 |
CXM10,SXM1# NO.2 |
2 | ||
| 90250-10021 |
CXM10,SXM1# NO.1 |
2 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-18016 |
SXM15 |
1 | ||
| 90341-10006 |
CXM10,SXM15 |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
CXM10,SXM1# |
1 | ||
| 90430-18008 |
SXM15 |
1 | ||
| 35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL | ||||
| 35106-12070 |
SXM15 |
1 | ||
| 35106-32032 |
SXM15 |
1 | ||
| 35106-12070 |
CXM10,SXM15 |
1 | ||
| 35106E - BOLT (FOR TRANSAXLE OIL PAN) | ||||
| 90119-06173 |
CXM10,SXM1# |
18 | ||
| 90119-06173 |
SXM15 |
17 | ||
| 35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) | ||||
| 90105-08071 |
CXM10,SXM15 *8−1.25PX30−25 |
2 | ||
| 90105-08066 |
CXM10,SXM15 *8−1.25PX72−30 |
2 | ||
| 90105-08065 |
CXM10,SXM15 *8−1.25PX45−35 |
10 | ||
| 90105-08068 |
CXM10,SXM15 *8−1.25PX35−30 |
5 | ||
| 35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) | ||||
| 90105-08071 |
CXM10,SXM15 *8−1.25PX30−25 |
2 | ||
| 90105-08066 |
CXM10,SXM15 *8−1.25PX72−30 |
2 | ||
| 90105-08065 |
CXM10,SXM15 *8−1.25PX45−35 |
10 | ||
| 90105-08068 |
CXM10,SXM15 *8−1.25PX35−30 |
5 | ||
| 35148 - GASKET, GOVERNOR APPLY, NO.1 | ||||
| 35148-16010 |
SXM15 |
3 | ||
| 35148-16010 |
CXM10,SXM1# |
1 | ||
| 35148A - GASKET, GOVERNOR APPLY, NO.2 | ||||
| 35148-12010 |
CXM10,SXM1# |
1 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-32011 |
SXM15 |
1 | ||
| 35159-20010 |
CXM10,SXM1# |
1 | ||
| 35165 - PLATE, TRANSMISSION CASE, NO.1 | ||||
| 35165-20010 |
CXM10,SXM1# |
1 | ||
| 35165A - BOLT (FOR TRANSMISSION CASE PLATE NO.1) | ||||
| 90105-06049 |
CXM10,SXM1# |
1 | ||
| 35166 - PLATE, TRANSMISSION CASE, NO.3 | ||||
| 35166-12020 |
CXM10,SXM1# |
1 | ||
| 35166A - BOLT (FOR TRANSMISSION CASE PLATE NO.3) | ||||
| 90105-06049 |
CXM10,SXM1# |
1 | ||
| 35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN | ||||
| 35168-12020 |
CXM10,SXM15 |
1 | ||
| 35168-32020 |
SXM15 |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
CXM10,SXM1# |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
CXM10,SXM1# |
2 | ||
| 35394-30011 |
SXM15 |
3 | ||
| 35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION | ||||
| 35519-16040 |
SXM15 |
1 | ||
| 35519-42010 |
SXM15 |
1 | ||
| Common parts | ||||
| 91512-61035 | ||||
| 91611-60628 | ||||
| 91611-61020 | ||||
| 91612-61028 | ||||
| 91621-B0612 | ||||
| 91652-B0612 | ||||
| 96132-30400 | ||||
| Linked diagrams | ||||
| 4301 | ||||
| 4302 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
