SXM15G-ARSGK (1996)

Toyota Ipsum

Production May 1996 - May 2001
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9605- )

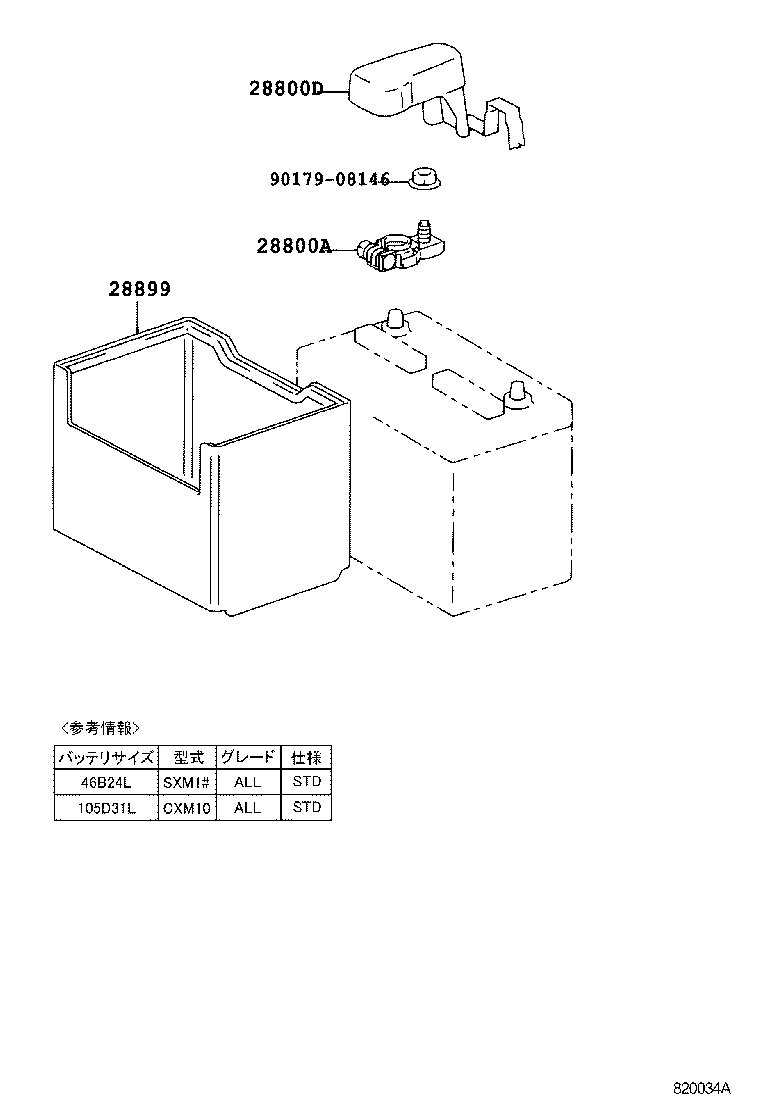

Click highlighted areas on diagram

diagram 28800A 28800D 28899 9017908146
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05034

3SFE..SXM1#

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-20350

3CTE,3SFE..CXM10,SXM1#

 1
28899 - INSULATOR, BATTERY
28899-46020

3SFE..SXM1#

 1
Common parts
90179-08146
