SXM15G-ARSGK (1996)
Toyota Ipsum

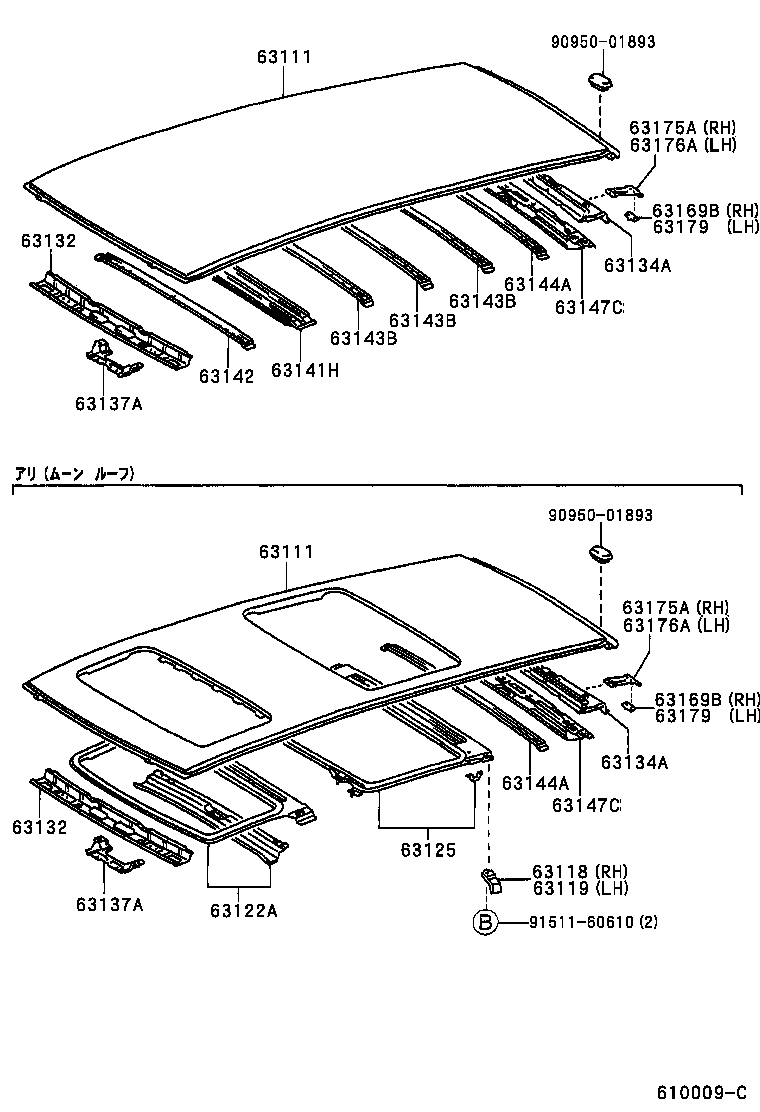

ILLUST NO. 1 OF 3(9605- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63111 - PANEL, ROOF | ||||
| 63111-44020 |
CXM10,SXM1# ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63111-44010 |
CXM10,SXM1# |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-44020 |
CXM10,SXM1# ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63111-44010 |
CXM10,SXM1# |
1 | ||
| 63118 - SUPPORT, ROOF PANEL, RH | ||||
| 63118-44010 |
CXM10,SXM1# |
1 | ||
| 63119 - SUPPORT, ROOF PANEL, LH | ||||
| 63118-44010 |
CXM10,SXM1# |
1 | ||
| 63122A - REINFORCEMENT, ROOF PANEL, FRONT | ||||
| 63103-44010 |
CXM10,SXM1# |
1 | ||
| 63125 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63104-44010 |
CXM10,SXM1# |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-44010 |
CXM10,SXM1# |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-44010 |
CXM10,SXM1# |
1 | ||
| 63134A - FRAME, BACK DOOR OPENING, UPPER | ||||
| 63134-44010 |
CXM10,SXM1# |
1 | ||
| 63134A - FRAME, BACK DOOR OPENING, UPPER | ||||
| 63134-44010 |
CXM10,SXM1# |
1 | ||
| 63137A - BRACKET, DOME LAMP, NO.1 | ||||
| 63137-44010 |
CXM10,SXM1# |
1 | ||
| 63137A - BRACKET, DOME LAMP, NO.1 | ||||
| 63137-44010 |
CXM10,SXM1# |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-44010 |
CXM10,SXM1# |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-44010 |
CXM10,SXM1# |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-44010 |
CXM10,SXM1# |
3 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-44010 |
CXM10,SXM1# |
3 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-44010 |
CXM10,SXM1# |
3 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-44010 |
CXM10,SXM1# |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-44010 |
CXM10,SXM1# |
1 | ||
| 63147C - REINFORCEMENT, BACK DOOR OPENING FRAME, UPPER CENTER | ||||
| 63147-44010 |
CXM10,SXM1# |
1 | ||
| 63147C - REINFORCEMENT, BACK DOOR OPENING FRAME, UPPER CENTER | ||||
| 63147-44010 |
CXM10,SXM1# |
1 | ||
| 63169B - PLATE, ROOF PANEL REINFORCEMENT, RH | ||||
| 63169-44010 |
CXM10,SXM1# |
1 | ||
| 63169B - PLATE, ROOF PANEL REINFORCEMENT, RH | ||||
| 63169-44010 |
CXM10,SXM1# |
1 | ||
| 63175A - REINFORCEMENT, BACK DOOR HINGE FEMALE, RH | ||||
| 63175-44010 |
CXM10,SXM1# |
1 | ||
| 63175A - REINFORCEMENT, BACK DOOR HINGE FEMALE, RH | ||||
| 63175-44010 |
CXM10,SXM1# |
1 | ||
| 63176A - REINFORCEMENT, BACK DOOR HINGE FEMALE, LH | ||||
| 63176-44010 |
CXM10,SXM1# |
1 | ||
| 63176A - REINFORCEMENT, BACK DOOR HINGE FEMALE, LH | ||||
| 63176-44010 |
CXM10,SXM1# |
1 | ||
| 63179 - PLATE, ROOF PANEL REINFORCEMENT, LH | ||||
| 63179-44010 |
CXM10,SXM1# |
1 | ||
| 63179 - PLATE, ROOF PANEL REINFORCEMENT, LH | ||||
| 63179-44010 |
CXM10,SXM1# |
1 | ||
| Common parts | ||||
| 90950-01893 | ||||
| 91511-60610 | ||||

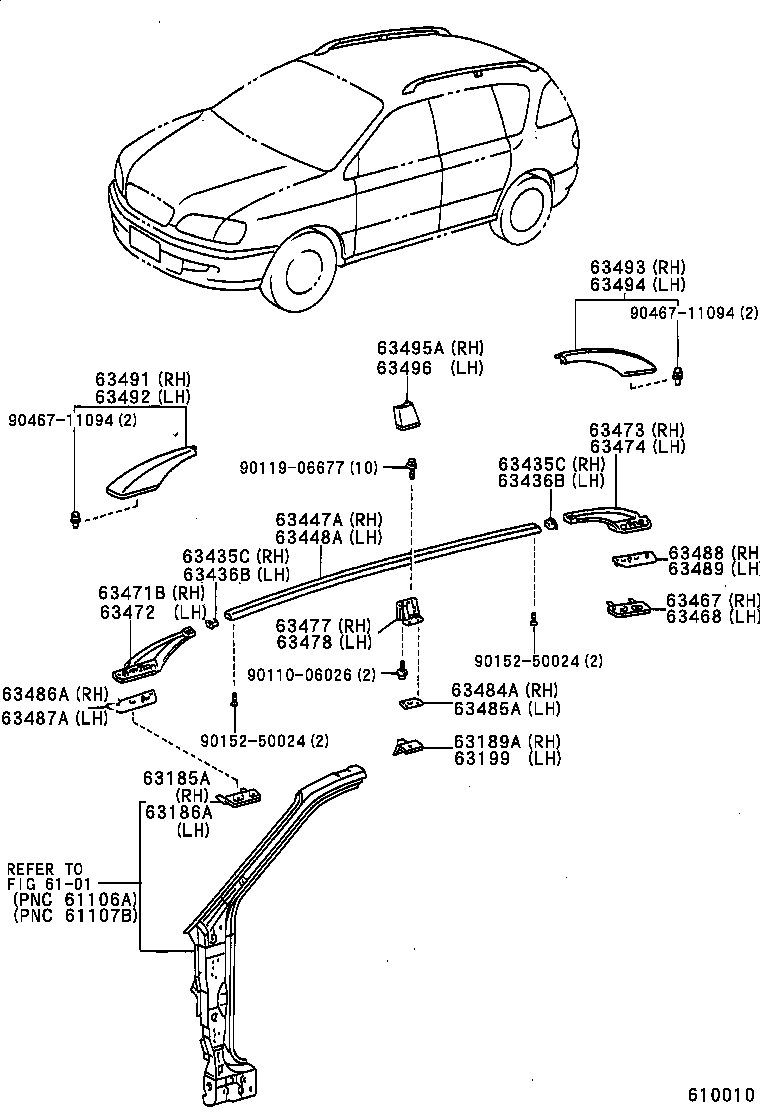

ILLUST NO. 2 OF 3(9605- )
ｱﾘ(ﾙ-ﾌ ﾚ-ﾙ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63185A - BRACKET, ROOF RACK, FRONT RH | ||||
| 63185-44010 |
CXM10,SXM1# |
1 | ||
| 63186A - BRACKET, ROOF RACK, FRONT LH | ||||
| 63186-44010 |
CXM10,SXM1# |
1 | ||
| 63189A - BRACKET, ROOF RACK, CENTER | ||||
| 63189-44010 |
CXM10,SXM1# |
1 | ||
| 63189-44011 |
CXM10,SXM1# |
1 | ||
| 63199 - BRACKET, ROOF RACK, CENTER LH | ||||
| 63199-44010 |
CXM10,SXM1# |
1 | ||
| 63199-44011 |
CXM10,SXM1# |
1 | ||
| 63435C - SEAL, ROOF CARRIER, NO.1 RH | ||||
| 63436-13030 |
CXM10,SXM1# ﾘﾔ |
1 | ||
| 63435-13020 |
CXM10,SXM1# ﾌﾛﾝﾄ |
1 | ||
| 63435C - SEAL, ROOF CARRIER, NO.1 RH | ||||
| 63436-13030 |
CXM10,SXM1# ﾘﾔ |
1 | ||
| 63435-13020 |
CXM10,SXM1# ﾌﾛﾝﾄ |
1 | ||
| 63436B - SEAL, ROOF CARRIER, NO.1 LH | ||||
| 63435-13020 |
CXM10,SXM1# ﾘﾔ |
1 | ||
| 63436-13030 |
CXM10,SXM1# ﾌﾛﾝﾄ |
1 | ||
| 63436B - SEAL, ROOF CARRIER, NO.1 LH | ||||
| 63435-13020 |
CXM10,SXM1# ﾘﾔ |
1 | ||
| 63436-13030 |
CXM10,SXM1# ﾌﾛﾝﾄ |
1 | ||
| 63447A - ROOF RAIL, RH | ||||
| 63447-44020B0 |
CXM10,SXM1#..E,IPSUM,L GRAY ME.,199 ,3J8 ,760 ,8K5 ,8N2 |
1 | ||
| 63447-44010 |
CXM10,SXM1# |
1 | ||
| 63447-44020A1 |
CXM10,SXM1# WHITE PM.,057 |
1 | ||
| 63447-44020B0 |
CXM10,SXM1#..E,IPSUM,L GRAY ME.,199 ,3J8 ,760 ,765 ,8K5 |
1 | ||
| 63448A - ROOF RAIL, LH | ||||
| 63448-44010 |
CXM10,SXM1# |
1 | ||
| 63448-44020A1 |
CXM10,SXM1# WHITE PM.,057 |
1 | ||
| 63448-44020B0 |
CXM10,SXM1#..E,IPSUM,L GRAY ME.,199 ,3J8 ,760 ,8K5 ,8N2 |
1 | ||
| 63448-44020B0 |
CXM10,SXM1#..E,IPSUM,L GRAY ME.,199 ,3J8 ,760 ,765 ,8K5 |
1 | ||
| 63467 - BRACKET, ROOF RACK, REAR RH | ||||
| 63467-44010 |
CXM10,SXM1# |
1 | ||
| 63468 - BRACKET, ROOF RACK, REAR LH | ||||
| 63468-44010 |
CXM10,SXM1# |
1 | ||
| 63471B - LEG, ROOF RACK, FRONT RH | ||||
| 63471-44020B0 |
CXM10,SXM1#..E,IPSUM,L GRAY ME.,199 ,3J8 ,760 ,8K5 ,8N2 |
1 | ||
| 63471-44010 |
CXM10,SXM1# |
1 | ||
| 63471-44020B0 |
CXM10,SXM1#..E,IPSUM,L GRAY ME.,199 ,3J8 ,760 ,765 ,8K5 |
1 | ||
| 63471-44020A1 |
CXM10,SXM1# WHITE PM.,057 |
1 | ||
| 63472 - LEG, ROOF RACK, FRONT LH | ||||
| 63472-44010 |
CXM10,SXM1# |
1 | ||
| 63472-44020A1 |
CXM10,SXM1# WHITE PM.,057 |
1 | ||
| 63472-44020B0 |
CXM10,SXM1#..E,IPSUM,L GRAY ME.,199 ,3J8 ,760 ,8K5 ,8N2 |
1 | ||
| 63472-44020B0 |
CXM10,SXM1#..E,IPSUM,L GRAY ME.,199 ,3J8 ,760 ,765 ,8K5 |
1 | ||
| 63473 - LEG, ROOF RACK, REAR RH | ||||
| 63473-44020B0 |
CXM10,SXM1#..E,IPSUM,L GRAY ME.,199 ,3J8 ,760 ,765 ,8K5 |
1 | ||
| 63473-44020A1 |
CXM10,SXM1# WHITE PM.,057 |
1 | ||
| 63473-44010 |
CXM10,SXM1# |
1 | ||
| 63473-44020B0 |
CXM10,SXM1#..E,IPSUM,L GRAY ME.,199 ,3J8 ,760 ,8K5 ,8N2 |
1 | ||
| 63474 - LEG, ROOF RACK, REAR LH | ||||
| 63474-44020B0 |
CXM10,SXM1#..E,IPSUM,L GRAY ME.,199 ,3J8 ,760 ,8K5 ,8N2 |
1 | ||
| 63474-44020A1 |
CXM10,SXM1# WHITE PM.,057 |
1 | ||
| 63474-44020B0 |
CXM10,SXM1#..E,IPSUM,L GRAY ME.,199 ,3J8 ,760 ,765 ,8K5 |
1 | ||
| 63474-44010 |
CXM10,SXM1# |
1 | ||
| 63477 - SUPPORT, ROOF RACK, CENTER RH | ||||
| 63477-44020B0 |
CXM10,SXM1#..E,IPSUM,L GRAY ME.,199 ,3J8 ,760 ,8K5 ,8N2 |
1 | ||
| 63477-44010 |
CXM10,SXM1# |
1 | ||
| 63477-44020A1 |
CXM10,SXM1# WHITE PM.,057 |
1 | ||
| 63477-44020B0 |
CXM10,SXM1#..E,IPSUM,L GRAY ME.,199 ,3J8 ,760 ,765 ,8K5 |
1 | ||
| 63478 - SUPPORT, ROOF RACK, CENTER LH | ||||
| 63478-44020B0 |
CXM10,SXM1#..E,IPSUM,L GRAY ME.,199 ,3J8 ,760 ,8K5 ,8N2 |
1 | ||
| 63478-44010 |
CXM10,SXM1# |
1 | ||
| 63478-44020B0 |
CXM10,SXM1#..E,IPSUM,L GRAY ME.,199 ,3J8 ,760 ,765 ,8K5 |
1 | ||
| 63478-44020A1 |
CXM10,SXM1# WHITE PM.,057 |
1 | ||
| 63484A - CUSHION, ROOF RACK LEG, CENTER RH | ||||
| 63484-44010 |
CXM10,SXM1# |
1 | ||
| 63485A - CUSHION, ROOF RACK LEG, CENTER LH | ||||
| 63485-44010 |
CXM10,SXM1# |
1 | ||
| 63486A - CUSHION, ROOF RACK LEG, FRONT RH | ||||
| 63486-44010 |
CXM10,SXM1# |
1 | ||
| 63487A - CUSHION, ROOF RACK LEG, FRONT LH | ||||
| 63487-44010 |
CXM10,SXM1# |
1 | ||
| 63488 - CUSHION, ROOF RACK LEG, REAR RH | ||||
| 63488-44010 |
CXM10,SXM1# |
1 | ||
| 63489 - CUSHION, ROOF RACK LEG, REAR LH | ||||
| 63489-44010 |
CXM10,SXM1# |
1 | ||
| 63491 - COVER, ROOF RACK LEG, FRONT RH | ||||
| 63491-44020B0 |
CXM10,SXM1#..E,IPSUM,L GRAY ME.,199 ,3J8 ,760 ,8K5 ,8N2 |
1 | ||
| 63491-44010 |
SXM1# |
1 | ||
| 63491-44020A1 |
CXM10,SXM1# WHITE PM.,057 |
1 | ||
| 63491-44020B0 |
CXM10,SXM1#..E,IPSUM,L GRAY ME.,199 ,3J8 ,760 ,765 ,8K5 |
1 | ||
| 63491-44011 |
CXM10,SXM1# |
1 | ||
| 63492 - COVER, ROOF RACK LEG, FRONT LH | ||||
| 63492-44010 |
SXM1# |
1 | ||
| 63492-44020B0 |
CXM10,SXM1#..E,IPSUM,L GRAY ME.,199 ,3J8 ,760 ,8K5 ,8N2 |
1 | ||
| 63492-44011 |
CXM10,SXM1# |
1 | ||
| 63492-44020A1 |
CXM10,SXM1# WHITE PM.,057 |
1 | ||
| 63492-44020B0 |
CXM10,SXM1#..E,IPSUM,L GRAY ME.,199 ,3J8 ,760 ,765 ,8K5 |
1 | ||
| 63493 - COVER, ROOF RACK LEG, REAR RH | ||||
| 63493-44020B0 |
CXM10,SXM1#..E,IPSUM,L GRAY ME.,199 ,3J8 ,760 ,8K5 ,8N2 |
1 | ||
| 63493-44010 |
SXM1# |
1 | ||
| 63493-44011 |
CXM10,SXM1# |
1 | ||
| 63493-44020A1 |
CXM10,SXM1# WHITE PM.,057 |
1 | ||
| 63493-44020B0 |
CXM10,SXM1#..E,IPSUM,L GRAY ME.,199 ,3J8 ,760 ,765 ,8K5 |
1 | ||
| 63494 - COVER, ROOF RACK LEG, REAR LH | ||||
| 63494-44020B0 |
CXM10,SXM1#..E,IPSUM,L GRAY ME.,199 ,3J8 ,760 ,8K5 ,8N2 |
1 | ||
| 63494-44011 |
CXM10,SXM1# |
1 | ||
| 63494-44010 |
SXM1# |
1 | ||
| 63494-44020A1 |
CXM10,SXM1# WHITE PM.,057 |
1 | ||
| 63494-44020B0 |
CXM10,SXM1#..E,IPSUM,L GRAY ME.,199 ,3J8 ,760 ,765 ,8K5 |
1 | ||
| 63495A - COVER, ROOF RACK LEG, CENTER | ||||
| 63495-44010 |
SXM1# |
1 | ||
| 63495-44020B0 |
CXM10,SXM1#..E,IPSUM,L GRAY ME.,199 ,3J8 ,760 ,8K5 ,8N2 |
1 | ||
| 63495-44020A1 |
CXM10,SXM1# WHITE PM.,057 |
1 | ||
| 63495-44011 |
CXM10,SXM1# |
1 | ||
| 63495-44020B0 |
CXM10,SXM1#..E,IPSUM,L GRAY ME.,199 ,3J8 ,760 ,765 ,8K5 |
1 | ||
| 63496 - COVER, ROOF RACK LEG, CENTER LH | ||||
| 63496-44020B0 |
CXM10,SXM1#..E,IPSUM,L GRAY ME.,199 ,3J8 ,760 ,8K5 ,8N2 |
1 | ||
| 63496-44011 |
CXM10,SXM1# |
1 | ||
| 63496-44020B0 |
CXM10,SXM1#..E,IPSUM,L GRAY ME.,199 ,3J8 ,760 ,765 ,8K5 |
1 | ||
| 63496-44010 |
SXM1# |
1 | ||
| 63496-44020A1 |
CXM10,SXM1# WHITE PM.,057 |
1 | ||
| Common parts | ||||
| 90110-06026 | ||||
| 90119-06677 | ||||
| 90152-50024 | ||||
| 90467-11094 | ||||
| Linked diagrams | ||||
| 6101 | ||||

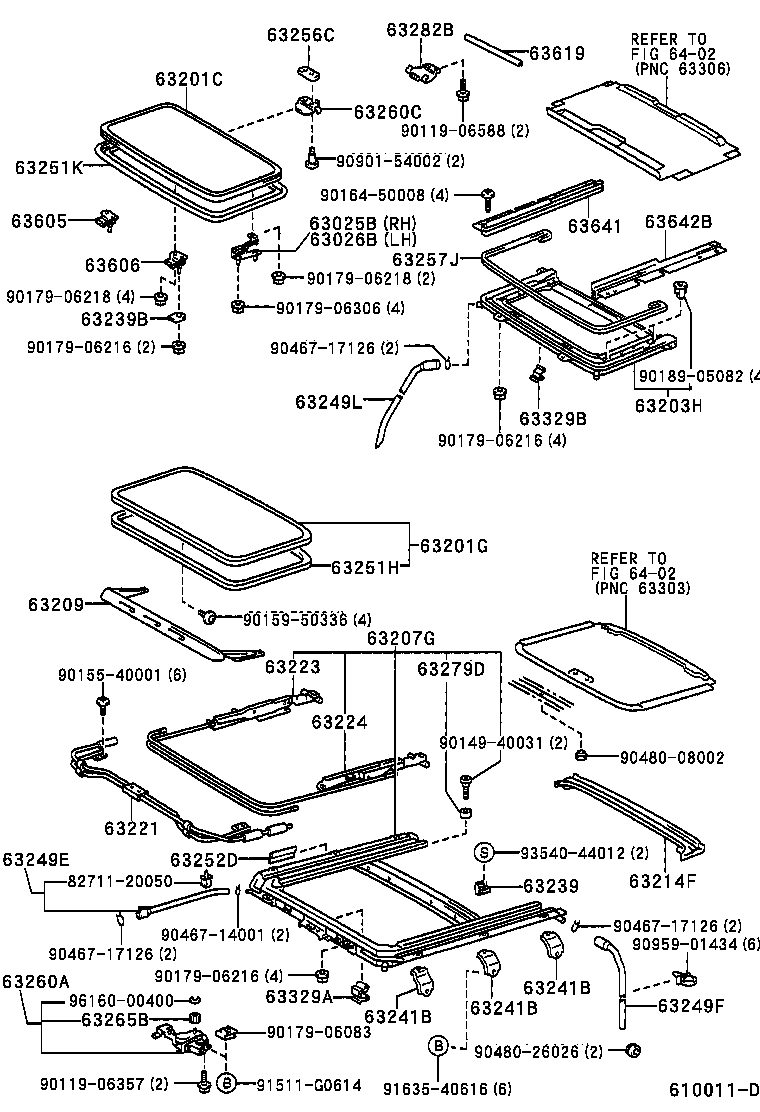

ILLUST NO. 3 OF 3(9605- )
ｱﾘ(ﾁﾙﾄ ﾙ-ﾌ & ﾑ-ﾝ ﾙ-ﾌ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63025B - LINK SUB-ASSY, TILT ROOF, RH | ||||
| 63025-44010 |
CXM10,SXM1# |
1 | ||
| 63026B - LINK SUB-ASSY, TILT ROOF, LH | ||||
| 63026-44010 |
CXM10,SXM1# |
1 | ||
| 63201C - GLASS SUB-ASSY, TILT ROOF | ||||
| 63204-44010 |
CXM10,SXM1# |
1 | ||
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-44020 |
CXM10,SXM1# *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 63203H - HOUSING SUB-ASSY, REMOVABLE ROOF | ||||
| 63203-44020 |
CXM10,SXM1# |
1 | ||
| 63207G - RAIL SUB-ASSY, SLIDING ROOF GUIDE | ||||
| 63207-44011 |
CXM10,SXM1# |
1 | ||
| 63207-44010 |
SXM1# |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-44010 |
CXM10,SXM1# |
1 | ||
| 63214F - CHANNEL, ROOF DRIP, REAR | ||||
| 63214-44010 |
CXM10,SXM1# |
1 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-44010 |
CXM10,SXM1# |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-44010 |
CXM10,SXM1# |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-44010 |
CXM10,SXM1# |
1 | ||
| 63239 - STOPPER, SLIDING ROOF PANEL | ||||
| 63239-12030 |
CXM10,SXM1# |
2 | ||
| 63239B - PAD, TILT ROOF GLASS | ||||
| 63239-26020 |
CXM10,SXM1# |
2 | ||
| 63241B - BRACKET, SLIDING ROOF HOUSING, NO.1 | ||||
| 63241-44010 |
CXM10,SXM1# ﾌﾛﾝﾄ |
2 | ||
| 63245-44010 |
CXM10,SXM1# ｾﾝﾀｰ & ﾘﾔ |
4 | ||
| 63241B - BRACKET, SLIDING ROOF HOUSING, NO.1 | ||||
| 63241-44010 |
CXM10,SXM1# ﾌﾛﾝﾄ |
2 | ||
| 63245-44010 |
CXM10,SXM1# ｾﾝﾀｰ & ﾘﾔ |
4 | ||
| 63241B - BRACKET, SLIDING ROOF HOUSING, NO.1 | ||||
| 63241-44010 |
CXM10,SXM1# ﾌﾛﾝﾄ |
2 | ||
| 63245-44010 |
CXM10,SXM1# ｾﾝﾀｰ & ﾘﾔ |
4 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-44020 |
CXM10,SXM1# 長さ=412 |
2 | ||
| 63249F - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-44030 |
SXM1# 長さ=1200 |
2 | ||
| 63249-44031 |
CXM10,SXM1# 長さ=1200 |
2 | ||
| 63249-44070 |
CXM10,SXM1# 長さ=1165 |
2 | ||
| 63249L - HOSE, TILT ROOF DRAIN | ||||
| 63249-44010 |
CXM10,SXM1# |
2 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-44020 |
CXM10,SXM1# |
1 | ||
| 63251K - WEATHERSTRIP, TILT ROOF | ||||
| 63251-44010 |
CXM10,SXM1# |
1 | ||
| 63252D - WEATHERSTRIP, SLIDING ROOF HOUSING | ||||
| 63252-44010 |
CXM10,SXM1# |
2 | ||
| 63256C - SEAL, TILT ROOF GLASS | ||||
| 63256-44010 |
CXM10,SXM1# |
1 | ||
| 63257J - SEAL, TILT ROOF HOUSING | ||||
| 63257-44010 |
CXM10,SXM1# |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-44010 |
CXM10,SXM1# |
1 | ||
| 63260C - HANDLE ASSY, TILT ROOF LOCK | ||||
| 63260-26030 |
CXM10,SXM1# |
1 | ||
| 63265B - GEAR, SLIDING ROOF DRIVE | ||||
| 63265-12040 |
CXM10,SXM1# |
1 | ||
| 63279D - STOPPER, SLIDING ROOF GUIDE RAIL | ||||
| 63279-12030 |
CXM10,SXM1# |
2 | ||
| 63282B - STRIKER, TILT ROOF LOCK | ||||
| 63282-44010 |
CXM10,SXM1# |
1 | ||
| 63329A - STOPPER, SUNSHADE LOCK | ||||
| 63329-12020 |
CXM10,SXM1# |
1 | ||
| 63329B - STOPPER, SUNSHADE LOCK, NO.1 | ||||
| 63329-95J07 |
CXM10,SXM1# |
1 | ||
| 63329-44030 |
CXM10,SXM1# |
1 | ||
| 63605 - HINGE SUB-ASSY, TILT ROOF, RH | ||||
| 63605-44010 |
CXM10,SXM1# |
1 | ||
| 63606 - HINGE SUB-ASSY, TILT ROOF, LH | ||||
| 63606-44010 |
CXM10,SXM1# |
1 | ||
| 63619 - COVER, TILT ROOF PANEL | ||||
| 63619-44010 |
CXM10,SXM1# |
2 | ||
| 63641 - RAIL, SUNSHADE, NO.1 FRONT RH | ||||
| 63641-44010 |
CXM10,SXM1# |
1 | ||
| 63642B - RAIL, SUNSHADE, NO.1 FRONT LH | ||||
| 63642-44010 |
CXM10,SXM1# |
1 | ||
| Common parts | ||||
| 82711-20050 | ||||
| 90119-06357 | ||||
| 90119-06588 | ||||
| 90149-40031 | ||||
| 90155-40001 | ||||
| 90159-50336 | ||||
| 90164-50008 | ||||
| 90179-06083 | ||||
| 90179-06216 | ||||
| 90179-06218 | ||||
| 90179-06306 | ||||
| 90189-05082 | ||||
| 90467-14001 | ||||
| 90467-17126 | ||||
| 90480-08002 | ||||
| 90480-26026 | ||||
| 90901-54002 | ||||
| 90959-01434 | ||||
| 91511-G0614 | ||||
| 91635-40616 | ||||
| 93540-44012 | ||||
| 96160-00400 | ||||
| Linked diagrams | ||||
| 6402 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
