SXM15G-ARSGK (1996)
Toyota Ipsum
(9605- )
A241E,243F,A247E,A540H

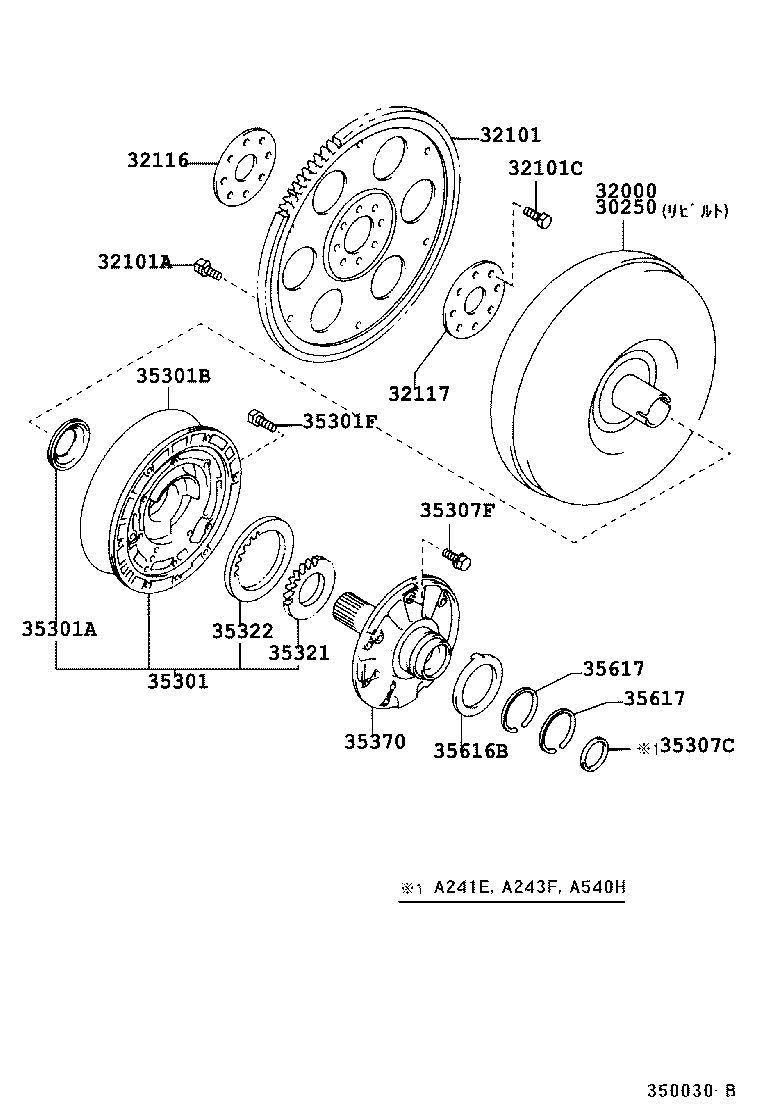

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30250 - CONVERTER ASSY, TORQUE, REBUILT | ||||
| 30250-44020 |
SXM15 |
1 | ||
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-42020 |
SXM15 |
1 | ||
| 32000-44020 |
SXM15 |
1 | ||
| 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-32051 |
SXM1# |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90119-08498 |
SXM1# *8−1.25PX12−8,ﾌﾞﾗｯｸ |
5 | ||
| 90109-08113 |
SXM1# *8−1.25PX12−8.4,ｵﾘｰﾌﾞ ｸﾞﾘｰﾝ |
1 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90109-10054 |
SXM1# *10−1.25PX22−16 |
8 | ||
| 32116 - SPACER, DRIVE PLATE, FRONT | ||||
| 32116-32011 |
SXM1# |
1 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-32010 |
SXM1# |
1 | ||
| 35301 - BODY SUB-ASSY, FRONT OIL PUMP | ||||
| 35035-12010 |
CXM10,SXM1# |
1 | ||
| 35035-32030 |
SXM15 |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-38020 |
CXM10,SXM1# |
1 | ||
| 90311-38082 |
CXM10,SXM1# |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 90301-99024 |
CXM10,SXM1# |
1 | ||
| 35301F - BOLT (FOR FRONT OIL PUMP SETTING) | ||||
| 90105-08050 |
SXM15 *8−1.25PX28−28 |
7 | ||
| 90105-08198 |
CXM10,SXM1# *8−1.25PX28−28 |
6 | ||
| 35307C - RACE, THRUST BEARING (FOR STATOR SHAFT) | ||||
| 35789-32020 |
CXM10,SXM1# 厚さ=0.8 |
1 | ||
| 35789-32030 |
CXM10,SXM1# 厚さ=1.4 |
1 | ||
| 35789-32020 |
CXM10,SXM15 厚さ=0.8 |
1 | ||
| 35789-12080 |
CXM10,SXM15 厚さ=1.0 |
1 | ||
| 35789-32030 |
CXM10,SXM15 厚さ=1.4 |
1 | ||
| 35307F - BOLT (FOR STATOR SHAFT) | ||||
| 90119-06808 |
CXM10,SXM1# |
11 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-12050 |
CXM10,SXM1# 厚さ=10.721−10.730 |
1 | ||
| 35321-12030 |
CXM10,SXM1# 厚さ=10.700−10.709 |
1 | ||
| 35321-12060 |
CXM10,SXM1# 厚さ=10.731−10.740 |
1 | ||
| 35321-12040 |
CXM10,SXM1# 厚さ=10.710−10.720 |
1 | ||
| 35321-12020 |
CXM10,SXM1# 厚さ=10.690−10.699 |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-12010 |
CXM10,SXM1# 厚さ=10.690−10.699 |
1 | ||
| 35322-12050 |
CXM10,SXM1# 厚さ=10.731−10.740 |
1 | ||
| 35322-12030 |
CXM10,SXM1# 厚さ=10.710−10.720 |
1 | ||
| 35322-12020 |
CXM10,SXM1# 厚さ=10.700−10.709 |
1 | ||
| 35322-12040 |
CXM10,SXM1# 厚さ=10.721−10.730 |
1 | ||
| 35370 - SHAFT ASSY, STATOR | ||||
| 35370-12040 |
CXM10,SXM1# |
1 | ||
| 35370-12040 |
CXM10,SXM15 |
1 | ||
| 35616B - WASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT) | ||||
| 35616-32010 |
CXM10,SXM1# |
1 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-32011 |
CXM10,SXM1# |
2 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-32011 |
CXM10,SXM1# |
2 | ||
