SXM15G-ARSGK (1996)
Toyota Ipsum
Production
May 1996
-
May 2001
Engine
3SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9605- )SXM1#

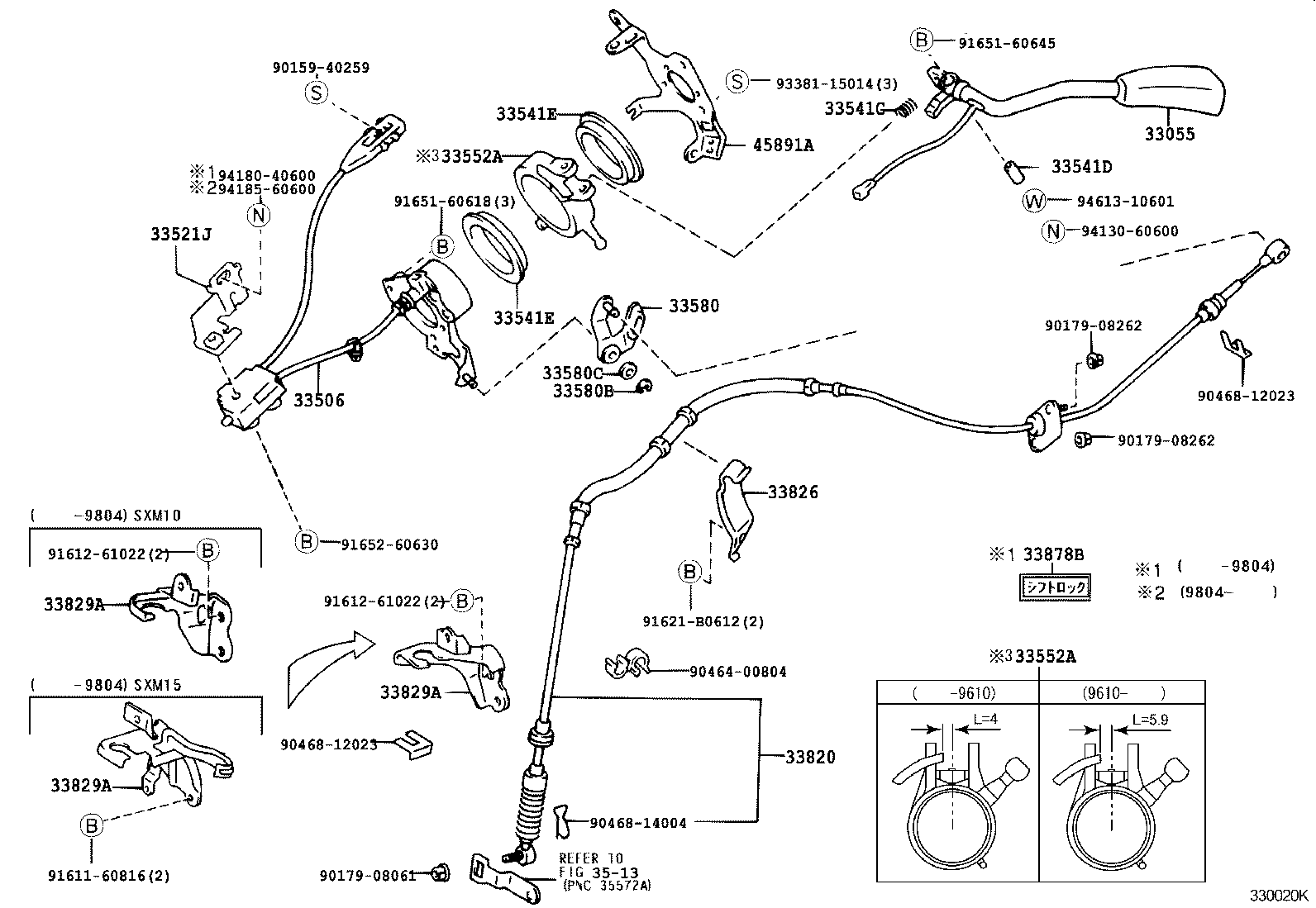

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33055 - LEVER SUB-ASSY, COLUMN SHIFT | ||||
| 33055-44030 |
CXM10,SXM1# |
1 | ||
| 33055-44011 |
CXM10,SXM1# |
1 | ||
| 33055-44010 |
SXM1# |
1 | ||
| 33506 - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR COLUMN SHIF | ||||
| 33506-44010 |
SXM1# |
1 | ||
| 33506-44040 |
CXM10,SXM1# |
1 | ||
| 33506-44011 |
CXM10,SXM1# |
1 | ||
| 33521J - HOUSING, SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 33521-44010 |
CXM10,SXM1# |
1 | ||
| 33541D - COLLAR (FOR COLUMN SHIFT LEVER) | ||||
| 90387-06062 |
CXM10,SXM1# |
1 | ||
| 33541E - BUSH (FOR COLUMN SHIFT LEVER) | ||||
| 90387-49001 |
CXM10,SXM1# |
2 | ||
| 33541E - BUSH (FOR COLUMN SHIFT LEVER) | ||||
| 90387-49001 |
CXM10,SXM1# |
2 | ||
| 33541G - SPRING, COMPRESSION (FOR COLUMN SHIFT LEVER) | ||||
| 90501-16150 |
CXM10,SXM1# |
1 | ||
| 33552A - ARM, SHIFT LEVER | ||||
| 33552-44011 |
CXM10,SXM1# |
1 | ||
| 33552-44010 |
SXM1# |
1 | ||
| 33552A - ARM, SHIFT LEVER | ||||
| 33552-44011 |
CXM10,SXM1# |
1 | ||
| 33552-44010 |
SXM1# |
1 | ||
| 33580 - BELLCRANK ASSY, SHIFTING (FOR COLUMN SHIFT) | ||||
| 33580-44010 |
CXM10,SXM1# |
1 | ||
| 33580B - RING, SHAFT SNAP (FOR SHIFTING BELLCRANK) | ||||
| 96160-01000 |
CXM10,SXM1# |
1 | ||
| 33580C - WASHER, PLATE (FOR SHIFTING BELL CRANK) | ||||
| 90560-11028 |
CXM10,SXM1# |
1 | ||
| 33820 - CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT) | ||||
| 33820-44070 |
SXM1# |
1 | ||
| 33820-44040 |
SXM15 |
1 | ||
| 33826 - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33826-44020 |
SXM1# |
1 | ||
| 33826-44030 |
SXM1# |
1 | ||
| 33829A - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-44020 |
SXM15 |
1 | ||
| 33829-44030 |
SXM1# |
1 | ||
| 33829A - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-44020 |
SXM15 |
1 | ||
| 33829-44030 |
SXM1# |
1 | ||
| 33829A - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-44020 |
SXM15 |
1 | ||
| 33829-44030 |
SXM1# |
1 | ||
| 33878B - LABEL, SHIFT LOCK INFORMATION, NO.2(FOR COLUMN SHIFT) | ||||
| 33878-27020 |
CXM10,SXM1# |
1 | ||
| 45891A - BRACKET, TURN SIGNAL | ||||
| 45891-44020 |
CXM10,SXM1# |
1 | ||
| Common parts | ||||
| 90159-40259 | ||||
| 90179-08061 | ||||
| 90179-08262 | ||||
| 90464-00804 | ||||
| 90468-12023 | ||||
| 90468-14004 | ||||
| 91611-60816 | ||||
| 91612-61022 | ||||
| 91621-B0612 | ||||
| 91651-60618 | ||||
| 91651-60645 | ||||
| 91652-60630 | ||||
| 93381-15014 | ||||
| 94130-60600 | ||||
| 94180-40600 | ||||
| 94185-60600 | ||||
| 94613-10601 | ||||
| Linked diagrams | ||||
| 3513 | ||||
