SXM15G-ARSEK (1996)

Toyota Ipsum

Production May 1996 - May 2001
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9605- )

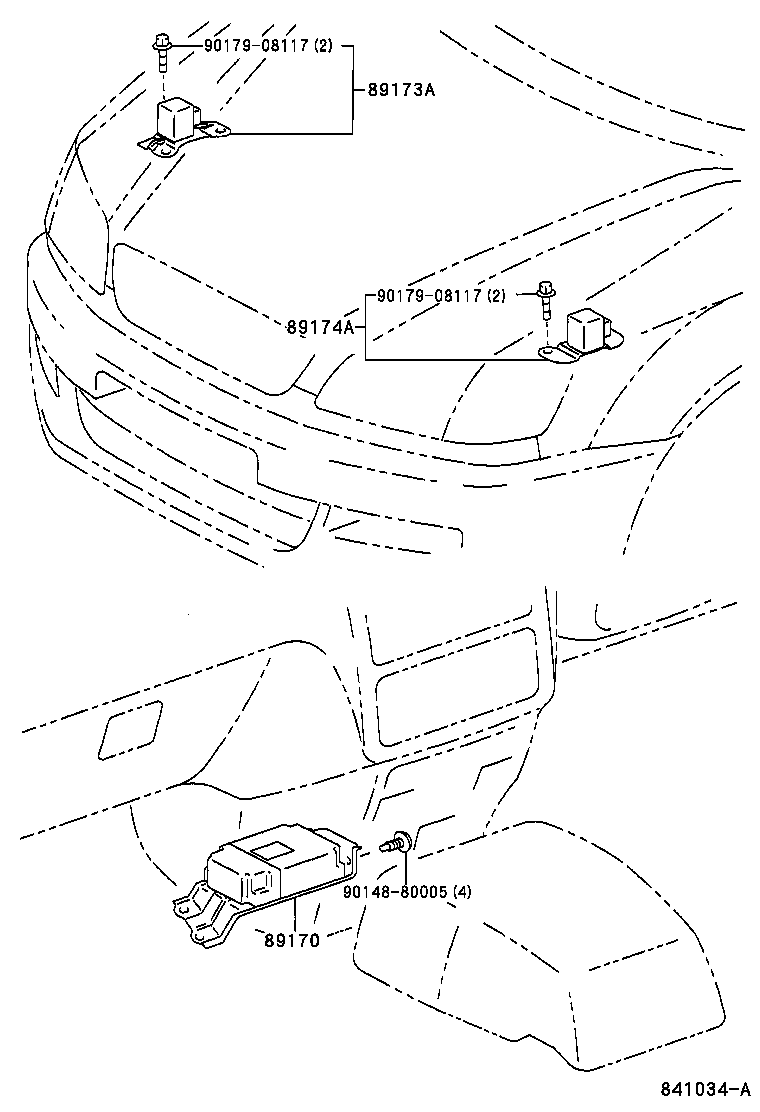

Click highlighted areas on diagram

diagram 89170 89173A 89174A 9014880005 9017908117 9017908117
Part # Description Qty Price
89170 - SENSOR ASSY, AIR BAG
89170-44020

CXM10,SXM1#

 1
89170-44030

CXM10,SXM1#

ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89170-44030

 1
89170-44021

CXM10,SXM1#

ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89170-44021

 1
89170-44010

SXM1#

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-49215

CXM10,SXM1#

 1
89173-49235

CXM10,SXM1#

 1
89173-49115

CXM10,SXM1#

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-49225

CXM10,SXM1#

 1
89173-49125

CXM10,SXM1#

 1
Common parts
90148-80005
90179-08117
