SXM15G-ARSEK (1996)

Toyota Ipsum

Production May 1996 - May 2001
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9605- )

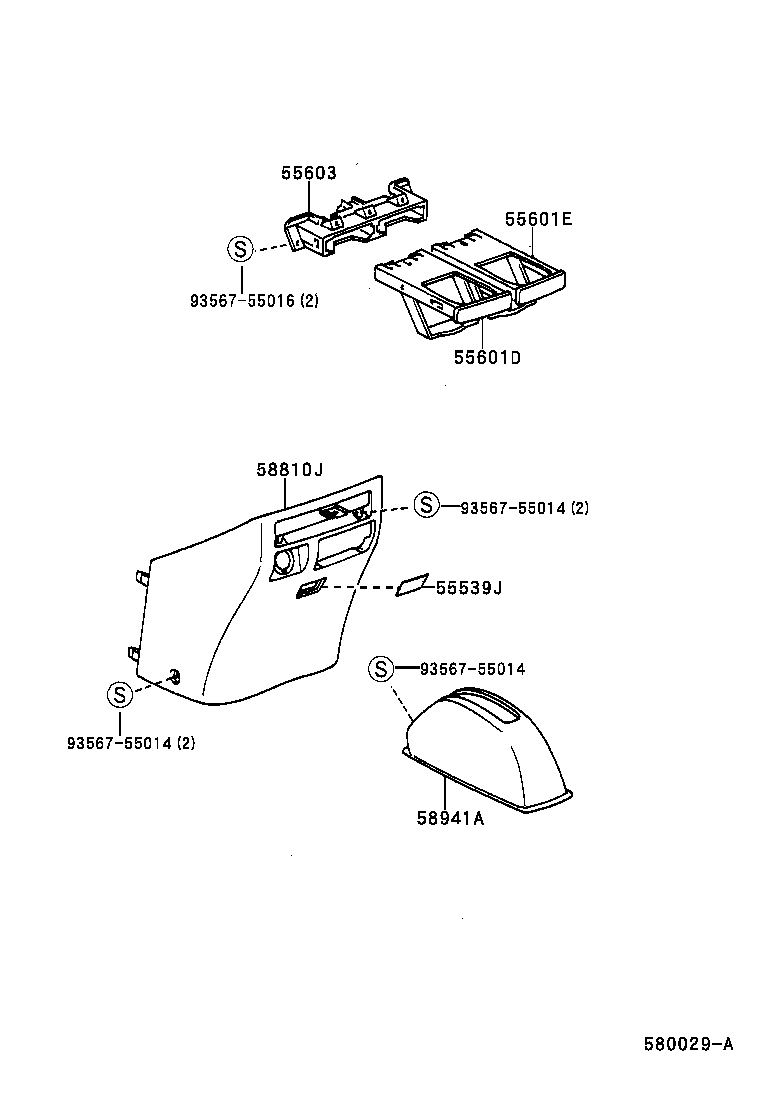

Click highlighted areas on diagram

diagram 55539J 55601D 55601E 55603 58810J 58941A 9356755014 9356755014 9356755014 9356755016
Part # Description Qty Price
55539J - COVER, SPARE SWITCH HOLE
55539-12130B4

SXM1#..IPSUM

ｴｸｾﾚﾝﾄﾊﾞ-ｼﾞﾖﾝ *(J),*(K),DK.CARCOAL,TRIM01

 1
55539-12130B4

SXM1#..IPSUM

ﾘﾐﾂｸｽ *(R),DK.CHARCOAL,TRIM0#

 1
55539-12130B4

SXM1#..IPSUM

ﾒﾓﾘｱﾙ ｴﾃﾞｲｼﾖﾝ *(F),DK.CHARCOAL,TRIM01

 1
55539-12130B2

CXM10,SXM1#

MD.MOON MIST,TRIM1#

 1
55539-12130B4

SXM1#..IPSUM

ｽﾍﾟｼﾔﾙ ﾊﾞ-ｼﾞﾖﾝ *(D),DK.CHARCOAL,TRIM01

 1
55601D - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER, LH
55601-44010B0

CXM10,SXM1#

MD.MOON MIST,TRIM1#

 1
55601-44010B1

SXM1#..IPSUM

ｽﾍﾟｼﾔﾙ ﾊﾞ-ｼﾞﾖﾝ *(D),DK.CHARCOAL,TRIM01

 1
55601-44010B1

SXM1#..IPSUM

ｴｸｾﾚﾝﾄﾊﾞ-ｼﾞﾖﾝ2 *(W) OR ｴｸｾﾚﾝﾊﾞ-ｼﾞﾖﾝ2 ﾅﾋﾞｽﾍﾟｼﾔﾙ *(V),DK.CHARCOAL,TRIM01

 1
55601-44010B1

SXM1#..IPSUM

ﾒﾓﾘｱﾙ ｴﾃﾞｲｼﾖﾝ *(F),DK.CHARCOAL,TRIM01

 1
55601-44010B1

SXM1#..IPSUM

ﾘﾐﾂｸｽ *(R),DK.CHARCOAL,TRIM0#

 1
55601-44010B1

SXM1#..IPSUM

ｴｸｾﾚﾝﾄﾊﾞ-ｼﾞﾖﾝ *(J),*(K),DK.CARCOAL,TRIM01

 1
55601E - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER, RH
55601-44030B1

SXM1#..IPSUM

ｽﾍﾟｼﾔﾙ ﾊﾞ-ｼﾞﾖﾝ *(D),DK.CHARCOAL,TRIM01

 1
55601-44030B1

SXM1#..IPSUM

ﾘﾐﾂｸｽ *(R),DK.CHARCOAL,TRIM0#

 1
55601-44030B1

SXM1#..IPSUM

ﾒﾓﾘｱﾙ ｴﾃﾞｲｼﾖﾝ *(F),DK.CHARCOAL,TRIM01

 1
55601-44030B0

CXM10,SXM1#

MD.MOON MIST,TRIM1#

 1
55601-44030B1

SXM1#..IPSUM

ｴｸｾﾚﾝﾄﾊﾞ-ｼﾞﾖﾝ *(J),*(K),DK.CARCOAL,TRIM01

 1
55601-44030B1

SXM1#..IPSUM

ｴｸｾﾚﾝﾄﾊﾞ-ｼﾞﾖﾝ2 *(W) OR ｴｸｾﾚﾝﾊﾞ-ｼﾞﾖﾝ2 ﾅﾋﾞｽﾍﾟｼﾔﾙ *(V),DK.CHARCOAL,TRIM01

 1
55603 - CASE SUB-ASSY, INSTRUMENT PANEL CUP HOLDER
55603-44010

CXM10,SXM1#

 1
58810J - BOX ASSY, CONSOLE
58810-44050B1

SXM1#..IPSUM

ｽﾍﾟｼﾔﾙ ﾊﾞ-ｼﾞﾖﾝ *(D) & ｱﾘ(ﾊﾞﾂｸﾓﾆﾀ-),DK.CHARCOAL,TRIM01

 1
58810-44010B1

SXM1#..IPSUM

ｽﾍﾟｼﾔﾙ ﾊﾞ-ｼﾞﾖﾝ *(D),DK.CHARCOAL,TRIM01

 1
58810-44010B1

SXM1#..IPSUM

ﾒﾓﾘｱﾙ ｴﾃﾞｲｼﾖﾝ *(F),DK.CHARCOAL,TRIM01

 1
58810-44050B1

SXM1#..IPSUM

ﾒﾓﾘｱﾙ ｴﾃﾞｲｼﾖﾝ *(F) & ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-),DK.CHARCOAL,TRIM01

 1
58810-44010B1

SXM1#..IPSUM

ｴｸｾﾚﾝﾄﾊﾞ-ｼﾞﾖﾝ2 *(W),DK.CHARCOAL,TRIM01

 1
58810-44010B1

SXM1#..IPSUM

ｴｸｾﾚﾝﾄﾊﾞ-ｼﾞﾖﾝ *(J),*(K),DK.CARCOAL,TRIM01

 1
58810-44010B0

CXM10,SXM1#

MD.MOON MIST,TRIM1#

 1
58810-44050B0

CXM10,SXM1#

ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-),MD.MOON MIST,TRIM1#

 1
58810-44010B1

SXM1#..IPSUM

ﾘﾐﾂｸｽ *(R),DK.CHARCOAL,TRIM0#

 1
58810-44050B1

SXM1#..IPSUM

ｴｸｾﾚﾝﾄﾊﾞ-ｼﾞﾖﾝ2 ﾅﾋﾞｽﾍﾟｼﾔﾙ *(V),DK.CHARCOAL,TRIM01

 1
58810-44050B1

SXM1#..IPSUM

ｴｸｾﾚﾝﾄﾊﾞ-ｼﾞﾖﾝ *(J),*(K) & ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-),DK.CARCOAL,TRIM01

 1
58941A - COVER, PARKING BRAKE HOLE
58904-44010A0

SXM1#..IPSUM

ｴｸｾﾚﾝﾄﾊﾞ-ｼﾞﾖﾝ *(J),*(K),IVORY,TRIM01

 1
58904-44010A0

SXM1#..IPSUM

ｽﾍﾟｼﾔﾙ ﾊﾞ-ｼﾞﾖﾝ *(D),IVORY,TRIM01

 1
58904-44010A0

SXM1#..IPSUM

ﾘﾐﾂｸｽ *(R),IVORY,TRIM0#

 1
58904-44010B0

CXM10,SXM1#

MD.MOON MIST,TRIM1#

 1
58904-44010A0

SXM1#..IPSUM

ﾒﾓﾘｱﾙ ｴﾃﾞｲｼﾖﾝ *(F),IVORY,TRIM01

 1
Common parts
93567-55014
93567-55016
