SXM15G-ARSEK (1996)
Toyota Ipsum
Production
May 1996
-
May 2001
Engine
3SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9605- )

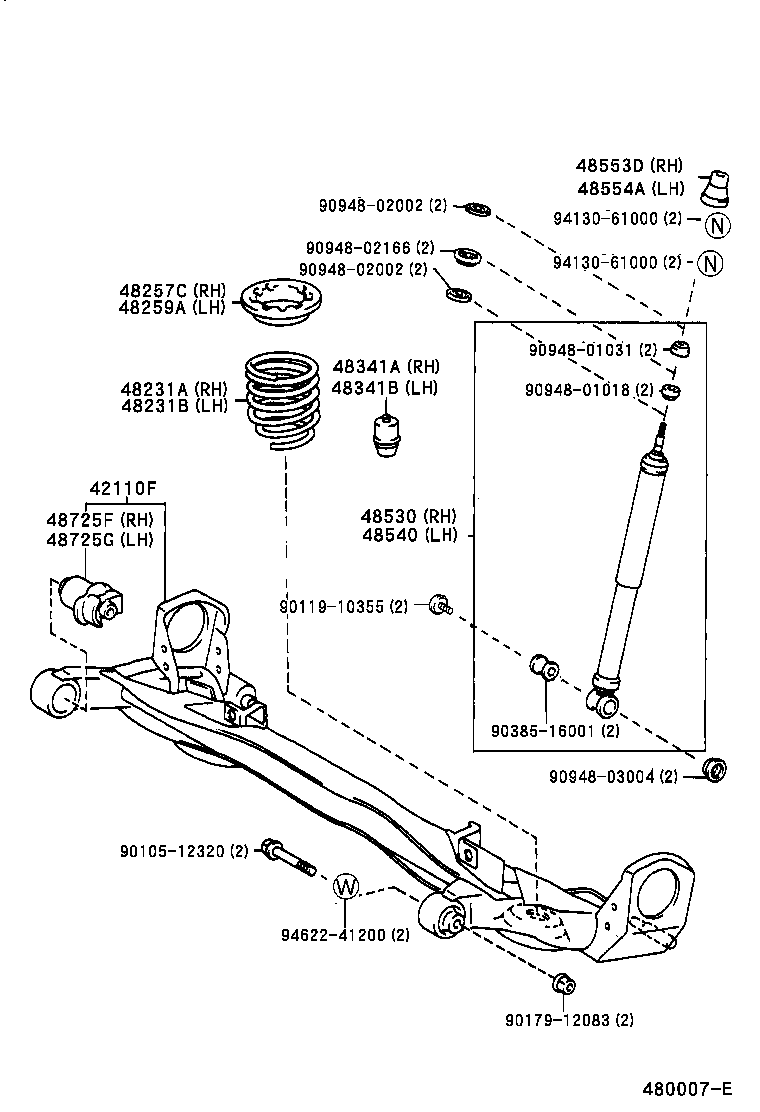

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42110F - BEAM ASSY, REAR AXLE | ||||
| 42110-44030 |
SXM15 |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-44020 |
SXM15 |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-44020 |
SXM15 |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-44010 |
CXM10,SXM1# |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-44010 |
CXM10,SXM1# |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-44020 |
SXM15 |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-44020 |
SXM15 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-49115 |
SXM15 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-49115 |
SXM15 |
1 | ||
| 48553D - CAP, REAR SHOCK ABSORBER, RH | ||||
| 48553-44010 |
CXM10,SXM1# |
1 | ||
| 48554A - CAP, REAR SHOCK ABSORBER, LH | ||||
| 48553-44010 |
CXM10,SXM1# |
1 | ||
| 48725F - BUSH, REAR AXLE CARRIER, RH | ||||
| 48725-44010 |
CXM10,SXM1# |
1 | ||
| 48725-44010 |
SXM1# |
1 | ||
| 48725G - BUSH, REAR AXLE CARRIER, LH | ||||
| 48725-44010 |
SXM1# |
1 | ||
| 48725-44010 |
CXM10,SXM1# |
1 | ||
| Common parts | ||||
| 90105-12320 | ||||
| 90119-10355 | ||||
| 90179-12083 | ||||
| 90385-16001 | ||||
| 90948-01018 | ||||
| 90948-01031 | ||||
| 90948-02002 | ||||
| 90948-02166 | ||||
| 90948-03004 | ||||
| 94130-61000 | ||||
| 94622-41200 | ||||
