SXM15G-ARSDK (1996)

Toyota Ipsum

Production May 1996 - Apr 1998
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

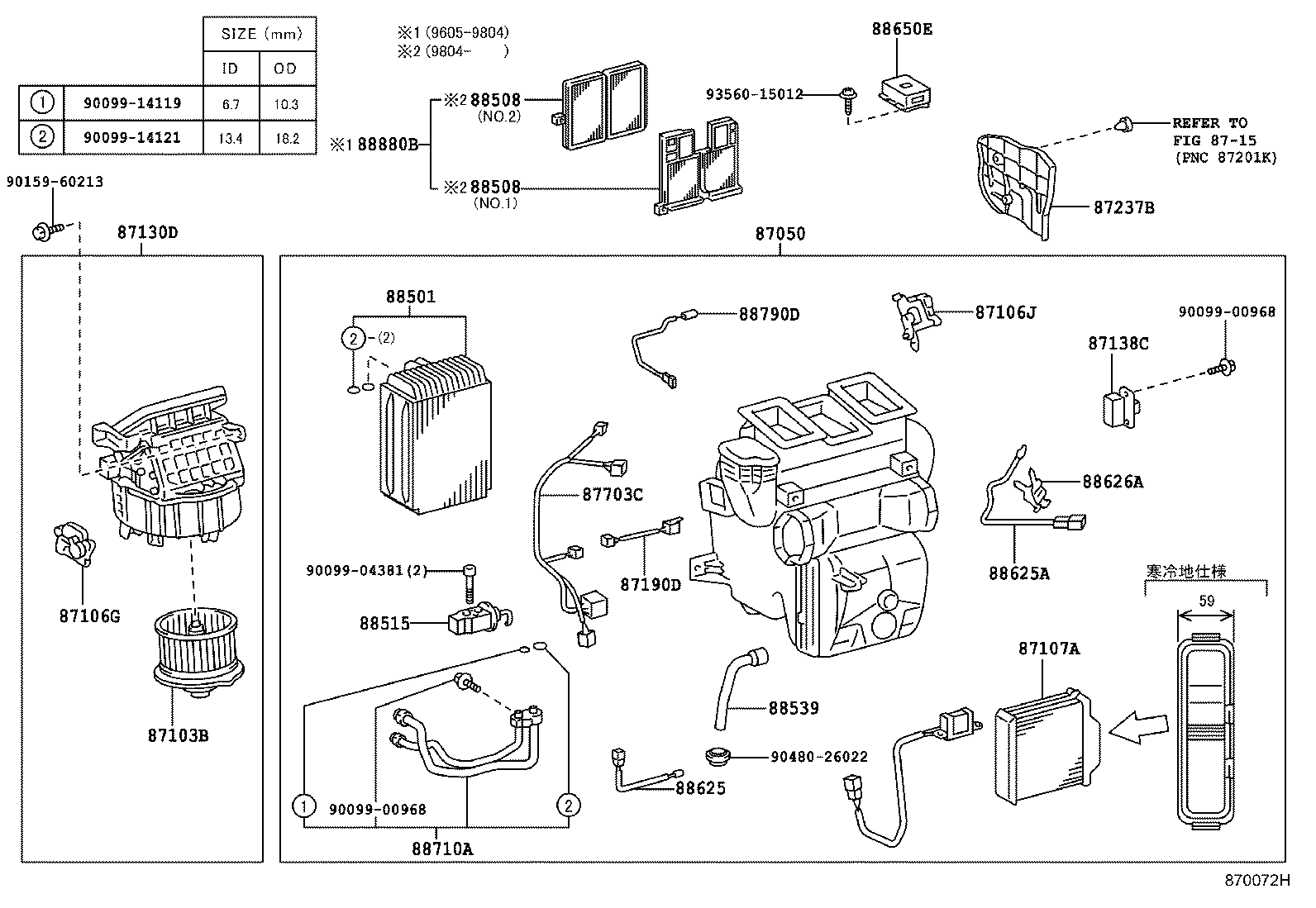

ILLUST NO. 1 OF 2(9605- )

Click highlighted areas on diagram

FRONT MANUAL

diagram 87050 87103B 87106G 87106J 87107A 87130D 87138C 8715 87190D 87237B 87703C 88501 88508 88508 88515 88539 88625 88625A 88626A 88650E 88710A 88790D 88880B 9009900968 9009900968 9009904381 9009914119 9009914121 9015960213 9048026022 9356015012
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-44030

SXM1#..E

 1
87050-44040

SXM1#..E

ｶﾝﾚｲﾁ ｼﾖｳ,ｲﾗｽﾄｻﾝｼﾖｳ

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-44010

CXM10,SXM1#

 1
87106G - SERVO SUB-ASSY, DAMPER(FOR BLOWER)
87106-44010

CXM10,SXM1#

 1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-20220

CXM10,SXM1#

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-44020

SXM1#

ｶﾝﾚｲﾁ ｼﾖｳ,ｲﾗｽﾄｻﾝｼﾖｳ

 1
87107-44010

SXM1#

 1
87130D - BLOWER ASSY
87130-44010

SXM1#

 1
87138C - RESISTOR, BLOWER
87138-44020

CXM10,SXM1#..E

 1
87237B - COVER, HEATER PIPING
87237-44010B0

CXM10,SXM1#

MD.MOON MIST,TRIM1#

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-20291

CXM10,SXM1#

 1
88515 - VALVE, COOLER EXPANSION
88515-20120

SXM1#

 1
88515-22240

CXM10,SXM1#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-44020

CXM10,SXM1#

 1
88625 - THERMISTOR, COOLER, NO.1
88625-3A090

CXM10,SXM1#

 1
88625A - THERMISTOR, COOLER NO.2
88625-16210

SXM1#..E,IPSUM,L

 1
88626A - HOLDER, THERMISTOR
88626-28010

SXM1#..E,IPSUM,L

 1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-44040

SXM1#..E

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-44070

CXM10,SXM1#

 1
88880B - FILTER ASSY, CLEAN AIR
88880-44010

CXM10,SXM1#

 1
Common parts
90099-00968
90099-04381
90099-14119
90099-14121
90159-60213
90480-26022
93560-15012
Linked diagrams
8715

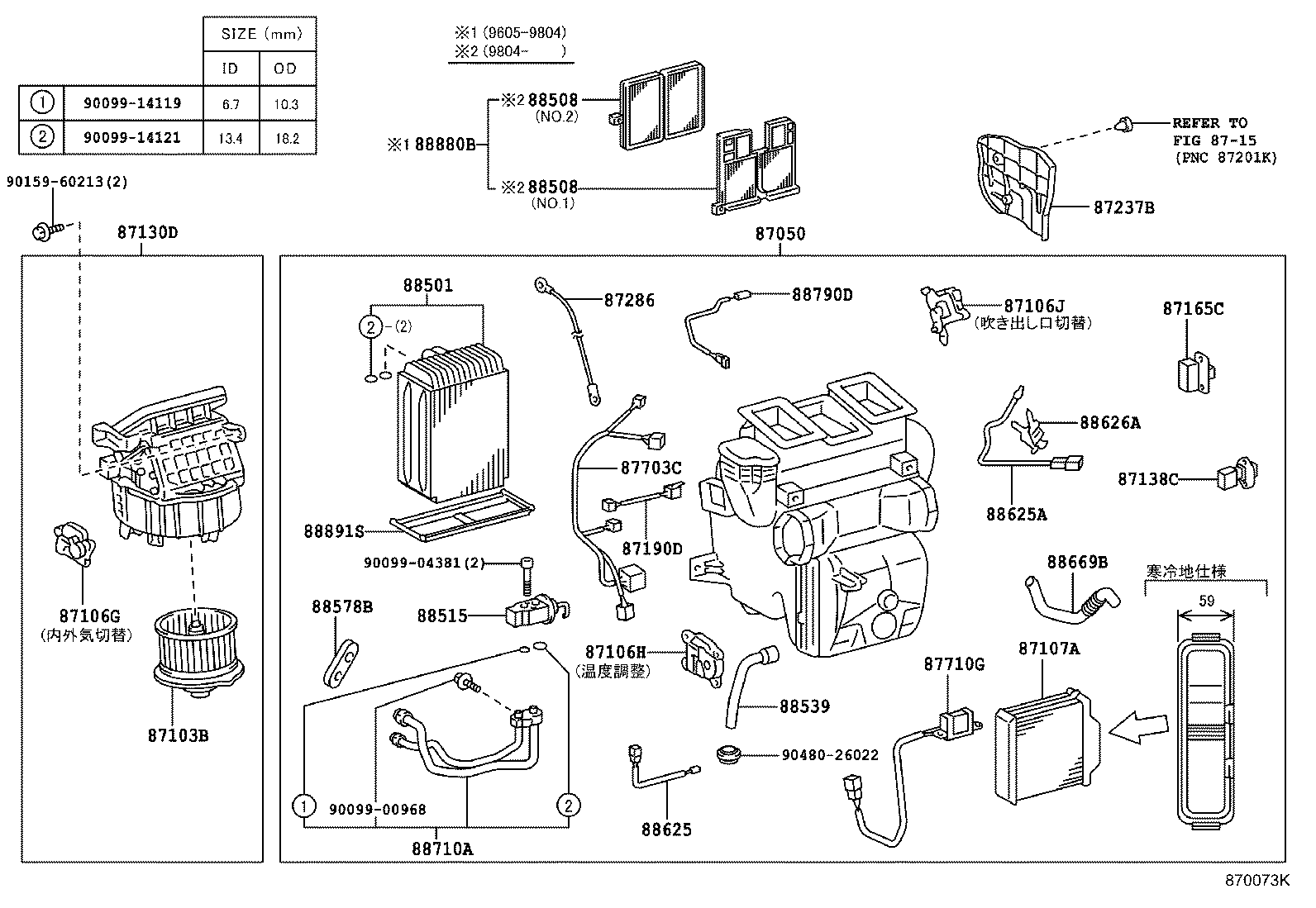

ILLUST NO. 1 OF 2(9605- )

Click highlighted areas on diagram

FRONT AUTO

diagram 87050 87103B 87106G 87106H 87106J 87107A 87130D 87138C 8715 87165C 87190D 87237B 87286 87703C 87710G 88501 88508 88508 88515 88539 88578B 88625 88625A 88626A 88669B 88710A 88790D 88880B 88891S 9009900968 9009904381 9009914119 9009914121 9015960213 9048026022
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-44030

SXM1#..E

 1
87050-44040

SXM1#..E

ｶﾝﾚｲﾁ ｼﾖｳ,ｲﾗｽﾄｻﾝｼﾖｳ

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-44010

CXM10,SXM1#

 1
87106G - SERVO SUB-ASSY, DAMPER(FOR BLOWER)
87106-44010

CXM10,SXM1#

 1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-20220

CXM10,SXM1#

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-44020

SXM1#

ｶﾝﾚｲﾁ ｼﾖｳ,ｲﾗｽﾄｻﾝｼﾖｳ

 1
87107-44010

SXM1#

 1
87130D - BLOWER ASSY
87130-44010

SXM1#

 1
87138C - RESISTOR, BLOWER
87138-44020

CXM10,SXM1#..E

 1
87237B - COVER, HEATER PIPING
87237-44010B0

CXM10,SXM1#

MD.MOON MIST,TRIM1#

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-20291

CXM10,SXM1#

 1
88515 - VALVE, COOLER EXPANSION
88515-20120

SXM1#

 1
88515-22240

CXM10,SXM1#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-44020

CXM10,SXM1#

 1
88578B - PACKING, COOLING UNIT, NO.1
88578-20590

CXM10,SXM1#

ﾌﾛﾝﾄ

 1
88578-44040

SXM1#

 1
88625 - THERMISTOR, COOLER, NO.1
88625-3A090

CXM10,SXM1#

 1
88625A - THERMISTOR, COOLER NO.2
88625-16210

SXM1#..E,IPSUM,L

 1
88626A - HOLDER, THERMISTOR
88626-28010

SXM1#..E,IPSUM,L

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-44070

CXM10,SXM1#

 1
88880B - FILTER ASSY, CLEAN AIR
88880-44010

CXM10,SXM1#

 1
Common parts
90099-00968
90099-04381
90099-14119
90099-14121
90159-60213
90480-26022
Linked diagrams
8715

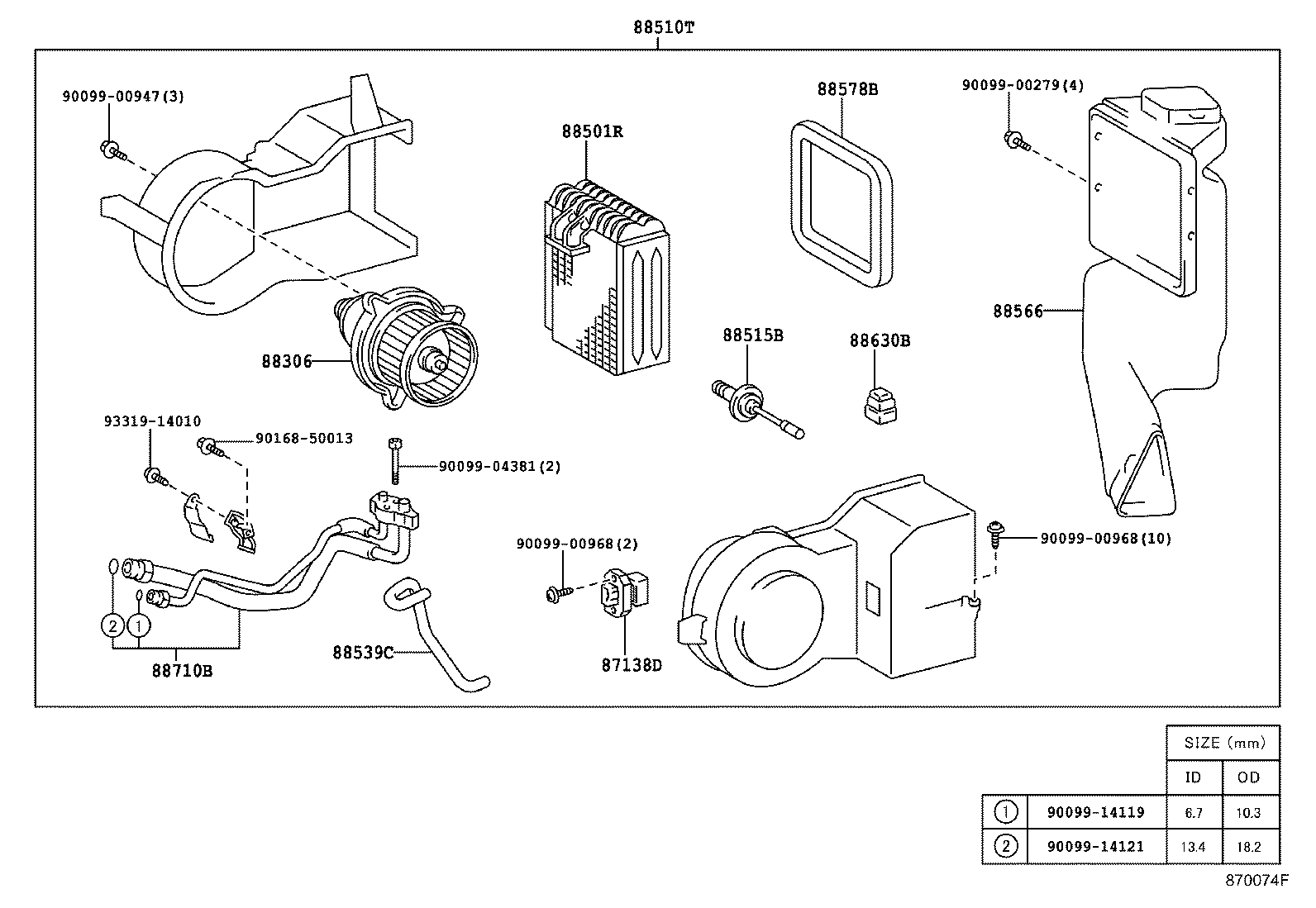

ILLUST NO. 2 OF 2(9605- )

Click highlighted areas on diagram

REAR

diagram 87138D 88306 88501R 88510T 88515B 88539C 88566 88578B 88630B 88710B 9009900279 9009900947 9009900968 9009900968 9009904381 9009914119 9009914121 9016850013 9331914010
Part # Description Qty Price
87138D - RESISTOR, BLOWER (REAR)
87138-44010

SXM1#

 1
88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1
87103-60160

SXM1#

 1
88501R - EVAPORATOR SUB-ASSY (REAR)
88501-60140

SXM1#

 1
88510T - UNIT ASSY, COOLING (REAR)
88500-44010

SXM1#

 1
88515B - VALVE, REAR COOLING UNIT EXPANSION
88515-28120

SXM1#

 1
88515-28050

SXM1#

 1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-44040

SXM1#

 1
88566 - DUCT, COOLER AIR, NO.1
88566-44010

SXM1#

 1
88578B - PACKING, COOLING UNIT, NO.1
88578-20590

CXM10,SXM1#

ﾌﾛﾝﾄ

 1
88578-44040

SXM1#

 1
88630B - RELAY ASSY, COOLER
88630-16090

SXM1#

 1
88710B - TUBE ASSY, AIR CONDITIONER
88710-44090

SXM1#;CXM10..IPSUM,L

 1
Common parts
90099-00279
90099-00947
90099-00968
90099-04381
90099-14119
90099-14121
90168-50013
93319-14010
