SXM15G-ARSDK (1996)

Toyota Ipsum

Production May 1996 - Apr 1998
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9605- )

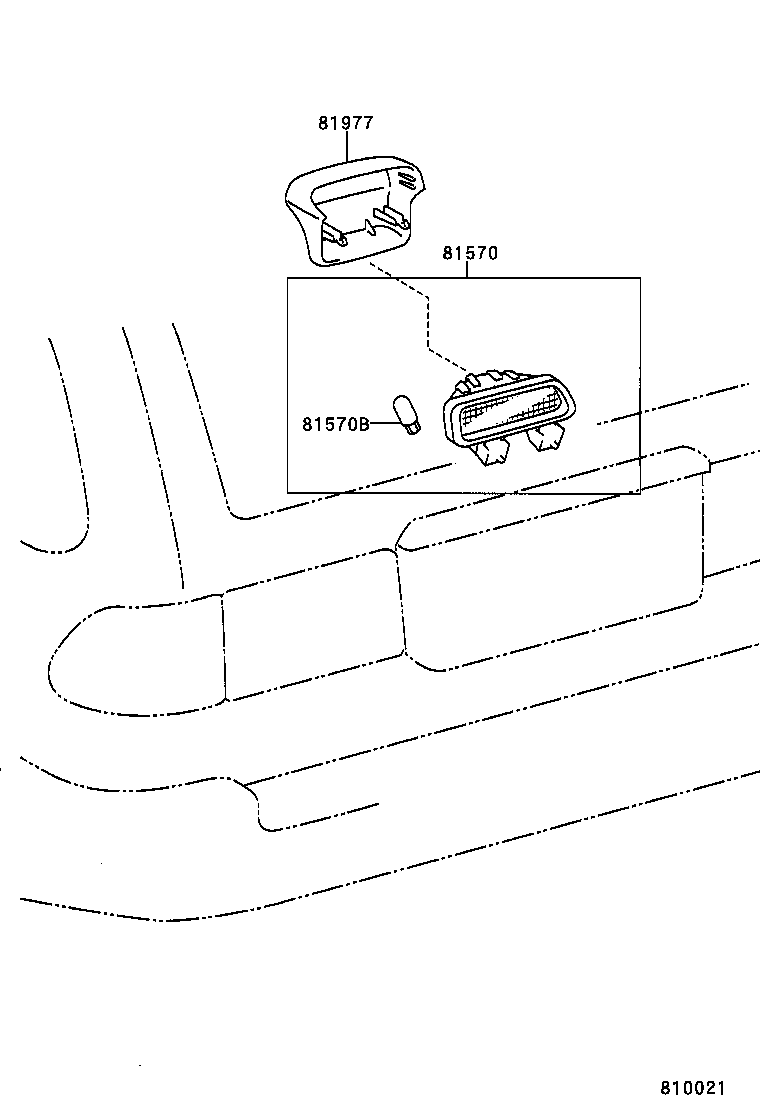

Click highlighted areas on diagram

diagram 81570 81570B 81977
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-44010

CXM10,SXM1#

 1
81570B - BULB (FOR CENTER STOP LAMP)
90981-13043

CXM10,SXM1#

12V 21W

 1
81977 - COVER, CENTER STOP LAMP
81977-44010

CXM10,SXM1#

 1
