SXM15G-ARSDK (1996)

Toyota Ipsum

Production May 1996 - Apr 1998
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

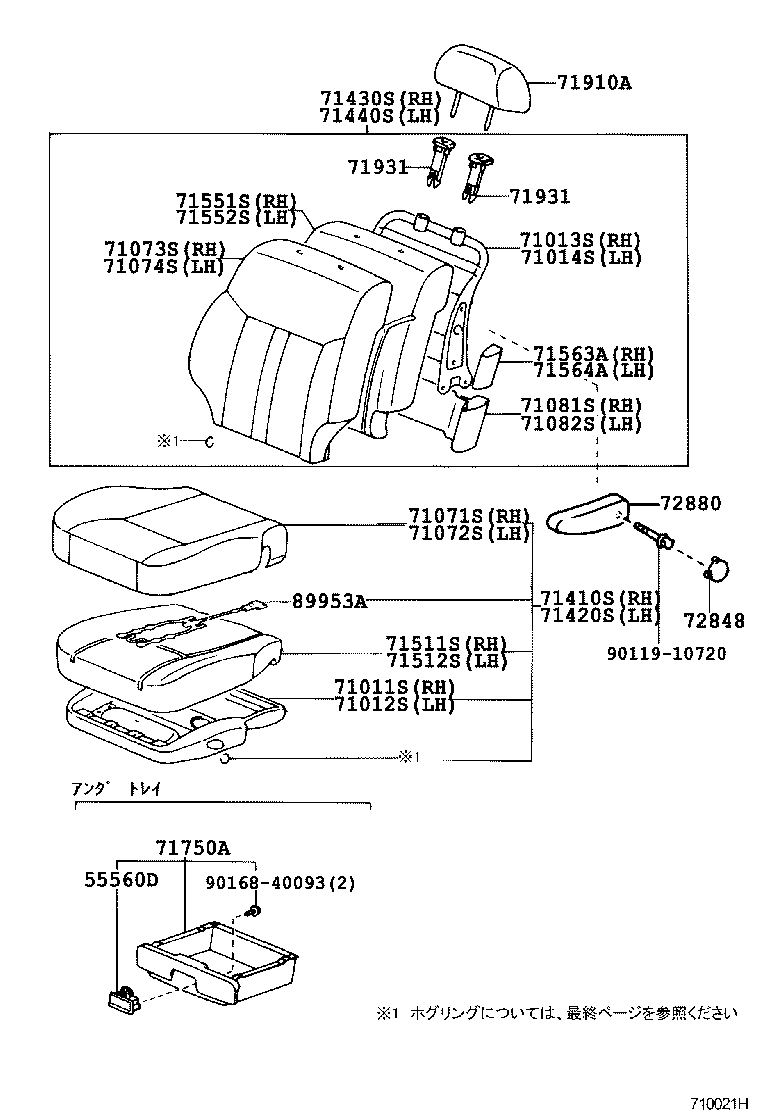

ILLUST NO. 1 OF 2(9605- )

Click highlighted areas on diagram

diagram 55560D 71011S 71012S 71013S 71014S 71071S 71072S 71073S 71074S 71081S 71082S 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71552S 71563A 71564A 71750A 71910A 71931 71931 72848 72880 89953A 9011910720 9016840093
Part # Description Qty Price
55560D - LOCK ASSY, SEAT UNDER TRAY
55560-95J00B1

SXM1#

MEDIUM MOON MIST,TRIM1#

 1
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-44010

SXM1#

 1
71011-44020

CXM10,SXM1#

 1
71011-44020

SXM1#;CXM10..E

 1
71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71011-44010

SXM1#;CXM10..E

 1
71011-44010

CXM10,SXM1#

 1
71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71013-44010

CXM10,SXM1#

 1
71013-44010

SXM1#;CXM10..E

 1
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71013-44010

SXM1#;CXM10..E

 1
71013-44010

CXM10,SXM1#

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-44011B0

CXM10,SXM1#..E

MEDIUM MOON MIST,TRIM1#

 1
71071-44010B0

SXM1#..E

MEDIUM MOON MIST,TRIM1#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-44040B0

CXM10,SXM1#..E,IPSUM,L

ｳｴﾙｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ) & ﾅｼ(ｼﾞﾖｼﾕｾｷ),MEDIUM MOON MIST,TRIM1#

 1
71071-44010B0

SXM1#..E

MEDIUM MOON MIST,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-44010B0

CXM10,SXM1#..E

MEDIUM MOON MIST,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-44010B0

CXM10,SXM1#..E

MEDIUM MOON MIST,TRIM1#

 1
71081S - COVER SUB-ASSY, FRONT SEAT BACK SIDE, RH
71081-44010

SXM1#

 1
71082S - COVER SUB-ASSY, FRONT SEAT BACK SIDE, LH
71081-44010

SXM1#

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-44010B0

SXM1#..E

***,MD.MOON MIST,TRIM1#

 1
71410-44011B0

CXM10,SXM1#..E

***,MEDIUM MOON MIST,TRIM1#

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71410-44010B0

SXM1#..E

***,MD.MOON MIST,TRIM1#

 1
71420-44040B0

CXM10,SXM1#..E,IPSUM,L

***,ｳｴﾙｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ) & ﾅｼ(ｼﾞﾖｼﾕｾｷ),MEDIUM MOON MIST,TRIM1#

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-44010B0

CXM10,SXM1#..E

***,MD.MOON MIST,TRIM1#

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-44010B0

CXM10,SXM1#..E

***,MEDIUM MOON MIST,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-44010

SXM1#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71511-44010

SXM1#

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-44010

SXM1#

 1
71551-44030

CXM10,SXM1#

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-44010

SXM1#

 1
71563A - PAD, FRONT SEAT BACK SIDE, RH
71563-44010

SXM1#

 2
71564A - PAD, FRONT SEAT BACK SIDE, LH
71564-44010

SXM1#

 2
71750A - TRAY ASSY, FRONT SEAT UNDER
71750-26010B1

SXM1#

MD.MOON MIST,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-44010B2

CXM10,SXM1#..E

ｳｴﾙｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ) & ﾅｼ(ｼﾞﾖｼﾕｾｷ),MEDIUM MOON MIST,FG11

 1
71910-44010B0

CXM10,SXM1#..E

MD.MOON MIST,TRIM1#

 2
71910-44010B0

CXM10,SXM1#..E

ｳｴﾙｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ) & ﾅｼ(ｼﾞﾖｼﾕｾｷ),MD.MOON MIST,TRIM1#

 1
71910-44010B1

CXM10,SXM1#..E

ｳｴﾙｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ) & ﾅｼ(ｼﾞﾖｼﾕｾｷ),MEDIUM MOON MIST,FF11

 1
71931 - SUPPORT, FRONT SEAT HEADREST
71931-32020B2

SXM1#

ﾛｯｸ無,BLUE GRAY,TRIM1#

 2
71931-12040P6

CXM10,SXM1#

ﾛｯｸ無,BLUE GRAY,TRIM1#

 2
71930-44010B0

CXM10,SXM1#

ﾛｯｸ付,BLUE GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-32020B2

SXM1#

ﾛｯｸ無,BLUE GRAY,TRIM1#

 2
71931-12040P6

CXM10,SXM1#

ﾛｯｸ無,BLUE GRAY,TRIM1#

 2
71930-44010B0

CXM10,SXM1#

ﾛｯｸ付,BLUE GRAY,TRIM1#

 2
Common parts
90119-10720
90168-40093

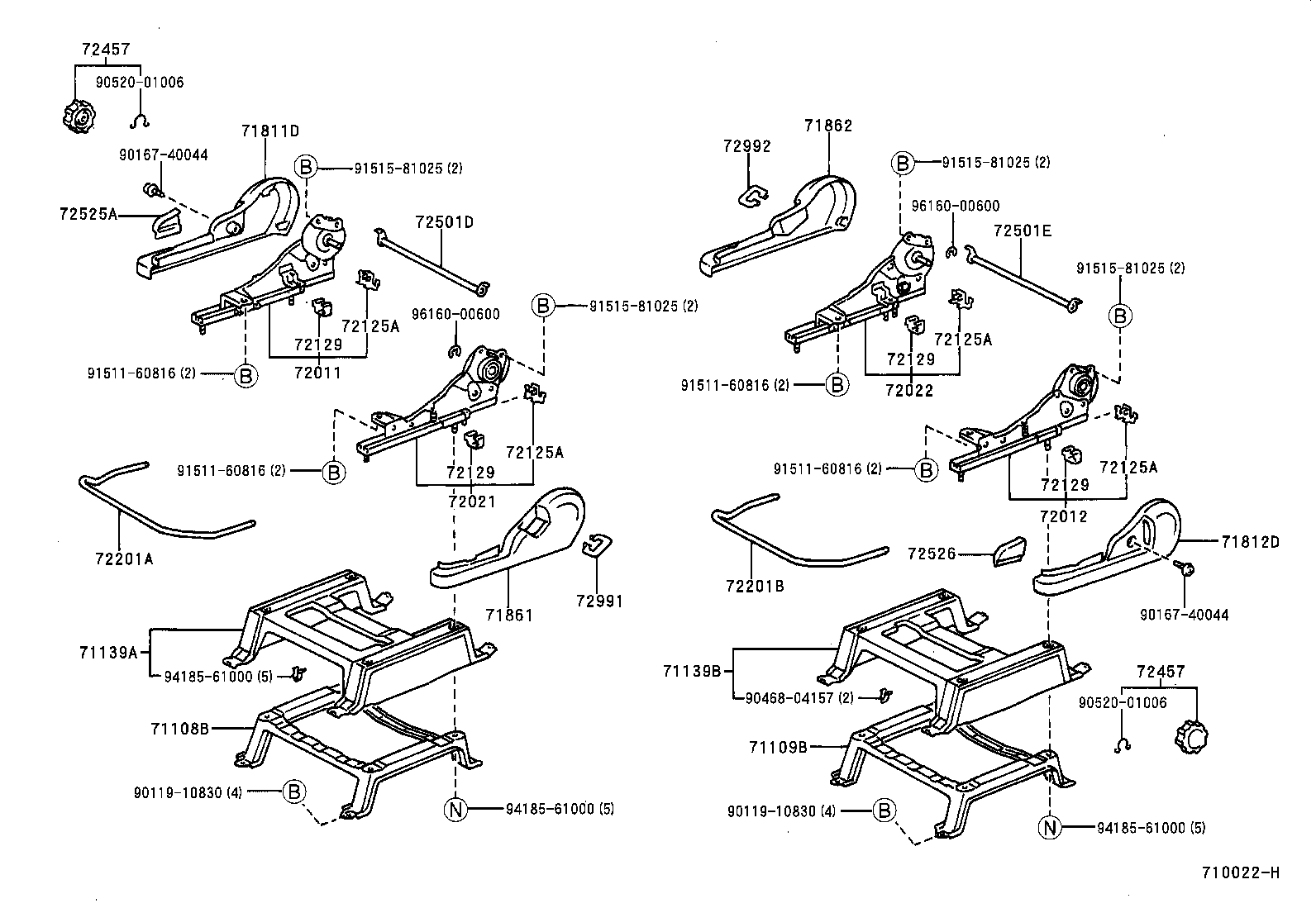

ILLUST NO. 2 OF 2(9605- )

Click highlighted areas on diagram

diagram 71108B 71109B 71139A 71139B 71811D 71812D 71861 71862 72011 72012 72021 72022 72125A 72125A 72125A 72125A 72129 72129 72129 72129 72201A 72201B 72457 72457 72501D 72501E 72525A 72526 72991 72992 9011910830 9011910830 9016740044 9016740044 9046804157 9052001006 9052001006 9151160816 9151160816 9151160816 9151160816 9151581025 9151581025 9151581025 9151581025 9418561000 9418561000 9418561000 9616000600 9616000600
Part # Description Qty Price
71108B - LEG SUB-ASSY, FRONT SEAT, RH
71108-44010

SXM1#

 1
71109B - LEG SUB-ASSY, FRONT SEAT, LH
71109-44010

SXM1#

 1
71139A - COVER, FRONT SEAT LEG, NO.1
71139-44010B0

SXM1#

MD.MOON MIST,TRIM1#

 1
71139B - COVER, FRONT SEAT LEG, NO.2
71139-44030B0

SXM1#

MD.MOON MIST,TRIM1#

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-44010B0

SXM1#

MD.MOON MIST,TRIM1#

 1
71811-44011B0

CXM10,SXM1#

MD.MOON MIST,TRIM1#

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-44010B0

SXM1#

MD.MOON MIST,TRIM1#

 1
71812-44011B0

CXM10,SXM1#

MD.MOON MIST,TRIM1#

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-44010B0

SXM1#

MD.MOON MIST,TRIM1#

 1
71861-44011B0

CXM10,SXM1#

MD.MOON MIST,TRIM1#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-44010B0

SXM1#

MD.MOON MIST,TRIM1#

 1
71862-44011B0

CXM10,SXM1#

MD.MOON MIST,TRIM1#

 1
72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH
72011-44010

SXM1#

 1
72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH
72012-44010

SXM1#

 1
72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH
72021-44010

SXM1#

 1
72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH
72022-44010

SXM1#

 1
72125A - COVER, SEAT TRACK, UPPER REAR
72125-10010

SXM1#

 4
72125-44010

CXM10,SXM1#

 4
72125A - COVER, SEAT TRACK, UPPER REAR
72125-10010

SXM1#

 4
72125-44010

CXM10,SXM1#

 4
72125A - COVER, SEAT TRACK, UPPER REAR
72125-10010

SXM1#

 4
72125-44010

CXM10,SXM1#

 4
72125A - COVER, SEAT TRACK, UPPER REAR
72125-10010

SXM1#

 4
72125-44010

CXM10,SXM1#

 4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-44010

CXM10,SXM1#

 4
72129-20040

SXM1#

 4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-44010

CXM10,SXM1#

 4
72129-20040

SXM1#

 4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-44010

CXM10,SXM1#

 4
72129-20040

SXM1#

 4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-44010

CXM10,SXM1#

 4
72129-20040

SXM1#

 4
72201A - HANDLE SUB-ASSY, SEAT TRACK RH
72201-44010

CXM10,SXM1#

 1
72201B - HANDLE SUB-ASSY, SEAT TRACK LH
72201-44010

CXM10,SXM1#

 1
72457 - KNOB, VERTICAL SEAT ADJUSTER
72457-44010B0

CXM10,SXM1#

MD.MOON MIST,TRIM1#

 1
72457 - KNOB, VERTICAL SEAT ADJUSTER
72457-44010B0

CXM10,SXM1#

MD.MOON MIST,TRIM1#

 1
72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH
72345-44050

CXM10,SXM1#

 1
72345-10020

SXM1#

 1
72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH
72345-10020

SXM1#

 1
72345-44050

CXM10,SXM1#

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-16010B7

CXM10,SXM1#

MD.MOON MIST,TRIM1#

 1
72525-44010B0

SXM1#

MD.MOON MIST,TRIM1#

 1
72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-44010B0

SXM1#

MD.MOON MIST,TRIM1#

 1
72526-16010B7

CXM10,SXM1#

MD.MOON MIST,TRIM1#

 1
72991 - COVER, FRONT SEAT CUSHION, RH
72991-44010B0

CXM10,SXM1#

MD.MOON MIST,TRIM1#

 1
72992 - COVER, FRONT SEAT CUSHION, LH
72992-44010B0

CXM10,SXM1#

MD.MOON MIST,TRIM1#

 1
Common parts
90119-10830
90167-40044
90468-04157
90520-01006
91511-60816
91515-81025
94185-61000
96160-00600

(9605- )

Click highlighted areas on diagram

ﾎｸﾞﾘﾝｸﾞ

diagram 9046816019 9046818008
Part # Description Qty Price
Common parts
90468-16019
90468-18008
