SXM15G-ARSDK (1996)

Toyota Ipsum

Production May 1996 - Apr 1998
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9605- )

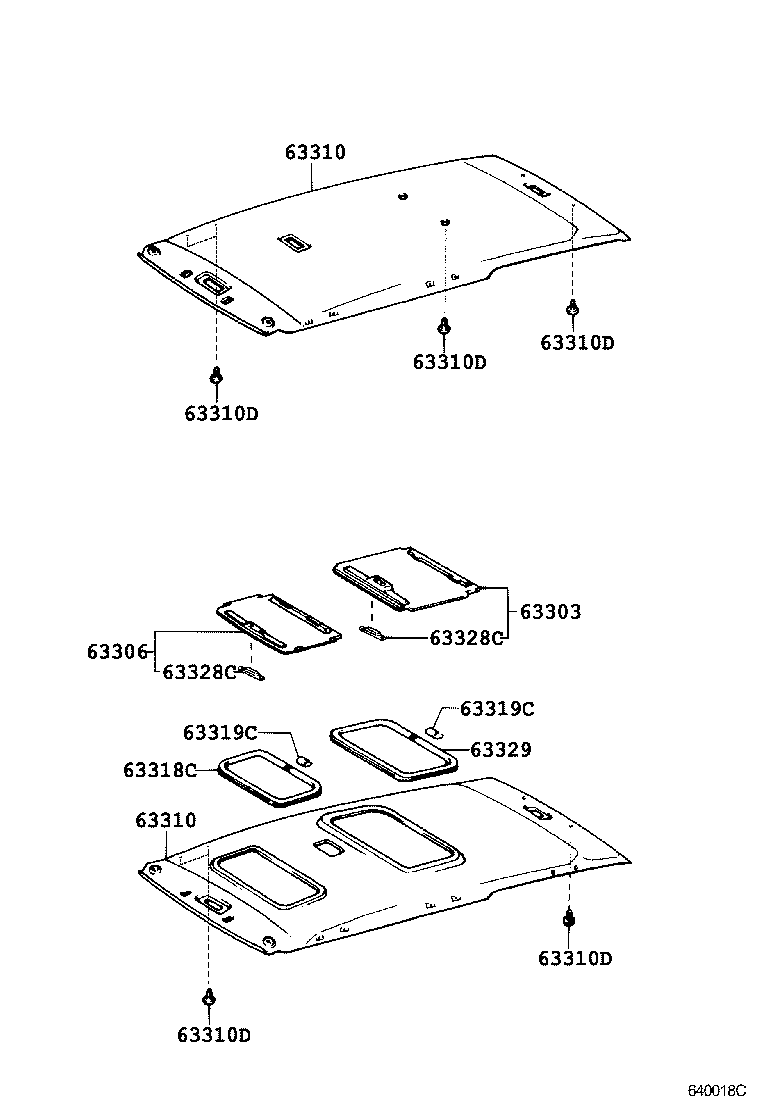

Click highlighted areas on diagram

diagram 63303 63306 63310 63310 63310D 63310D 63310D 63310D 63310D 63318C 63319C 63319C 63328C 63328C 63329
Part # Description Qty Price
63303 - TRIM SUB-ASSY, SUNSHADE, NO.2
63303-44010B0

CXM10,SXM1#

MOON MIST,TRIM1#

 1
63306 - TRIM SUB-ASSY, SUNSHADE
63306-44010B0

CXM10,SXM1#

MOON MIST,TRIM1#

 1
63310 - HEADLINING ASSY, ROOF
63310-44010B0

CXM10,SXM1#

MOON MIST,TRIM1#

 1
63310-44020B0

SXM1#..E,IPSUM,L

ｱﾘ(ﾂｲﾝ ﾑ-ﾝ ﾙ-ﾌ),MOON MIST,TRIM1#

 1
63310 - HEADLINING ASSY, ROOF
63310-44010B0

CXM10,SXM1#

MOON MIST,TRIM1#

 1
63310-44020B0

SXM1#..E,IPSUM,L

ｱﾘ(ﾂｲﾝ ﾑ-ﾝ ﾙ-ﾌ),MOON MIST,TRIM1#

 1
63310D - CLIP, ROOF HEADLINING
90467-05021B4

SXM1#

MOON MIST,TRIM1#

 6
90467-06177B0

SXM1#..E,IPSUM,L

ｱﾘ(ﾂｲﾝ ﾑ-ﾝ ﾙ-ﾌ),MOON MIST,TRIM1#

 4
90467-05021B4

SXM1#

ｱﾘ(ﾂｲﾝ ﾑ-ﾝ ﾙ-ﾌ),MOON MIST,TRIM1#

 4
90467-06177B0

CXM10,SXM1#

MOON MIST,TRIM1#

 6
63310D - CLIP, ROOF HEADLINING
90467-05021B4

SXM1#

MOON MIST,TRIM1#

 6
90467-06177B0

SXM1#..E,IPSUM,L

ｱﾘ(ﾂｲﾝ ﾑ-ﾝ ﾙ-ﾌ),MOON MIST,TRIM1#

 4
90467-05021B4

SXM1#

ｱﾘ(ﾂｲﾝ ﾑ-ﾝ ﾙ-ﾌ),MOON MIST,TRIM1#

 4
90467-06177B0

CXM10,SXM1#

MOON MIST,TRIM1#

 6
63310D - CLIP, ROOF HEADLINING
90467-05021B4

SXM1#

MOON MIST,TRIM1#

 6
90467-06177B0

SXM1#..E,IPSUM,L

ｱﾘ(ﾂｲﾝ ﾑ-ﾝ ﾙ-ﾌ),MOON MIST,TRIM1#

 4
90467-05021B4

SXM1#

ｱﾘ(ﾂｲﾝ ﾑ-ﾝ ﾙ-ﾌ),MOON MIST,TRIM1#

 4
90467-06177B0

CXM10,SXM1#

MOON MIST,TRIM1#

 6
63310D - CLIP, ROOF HEADLINING
90467-05021B4

SXM1#

MOON MIST,TRIM1#

 6
90467-06177B0

SXM1#..E,IPSUM,L

ｱﾘ(ﾂｲﾝ ﾑ-ﾝ ﾙ-ﾌ),MOON MIST,TRIM1#

 4
90467-05021B4

SXM1#

ｱﾘ(ﾂｲﾝ ﾑ-ﾝ ﾙ-ﾌ),MOON MIST,TRIM1#

 4
90467-06177B0

CXM10,SXM1#

MOON MIST,TRIM1#

 6
63310D - CLIP, ROOF HEADLINING
90467-05021B4

SXM1#

MOON MIST,TRIM1#

 6
90467-06177B0

SXM1#..E,IPSUM,L

ｱﾘ(ﾂｲﾝ ﾑ-ﾝ ﾙ-ﾌ),MOON MIST,TRIM1#

 4
90467-05021B4

SXM1#

ｱﾘ(ﾂｲﾝ ﾑ-ﾝ ﾙ-ﾌ),MOON MIST,TRIM1#

 4
90467-06177B0

CXM10,SXM1#

MOON MIST,TRIM1#

 6
63318C - MOULDING, SUN ROOF OPENING TRIM
63318-44010B0

CXM10,SXM1#

長さ=1992,MOON MIST,TRIM1#

 1
63319C - JOINT, SUN ROOF OPENING TRIM
63319-44010B1

CXM10,SXM1#

LT.BLUISH GRAY,TRIM1#

 2
63319C - JOINT, SUN ROOF OPENING TRIM
63319-44010B1

CXM10,SXM1#

LT.BLUISH GRAY,TRIM1#

 2
63328C - KNOB, SUNSHADE TRIM
63328-12030B1

CXM10,SXM1#

MOON MIST,TRIM1#

 2
63328C - KNOB, SUNSHADE TRIM
63328-12030B1

CXM10,SXM1#

MOON MIST,TRIM1#

 2
63329 - MOULDING, SUN ROOF OPENING TRIM, NO.2
63329-44010B0

CXM10,SXM1#

MOON MIST,TRIM1#

 2
