SXM15G-ARSDK (1996)
Toyota Ipsum
Production
May 1996
-
Apr 1998
Engine
3SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9605-9804)SXM15

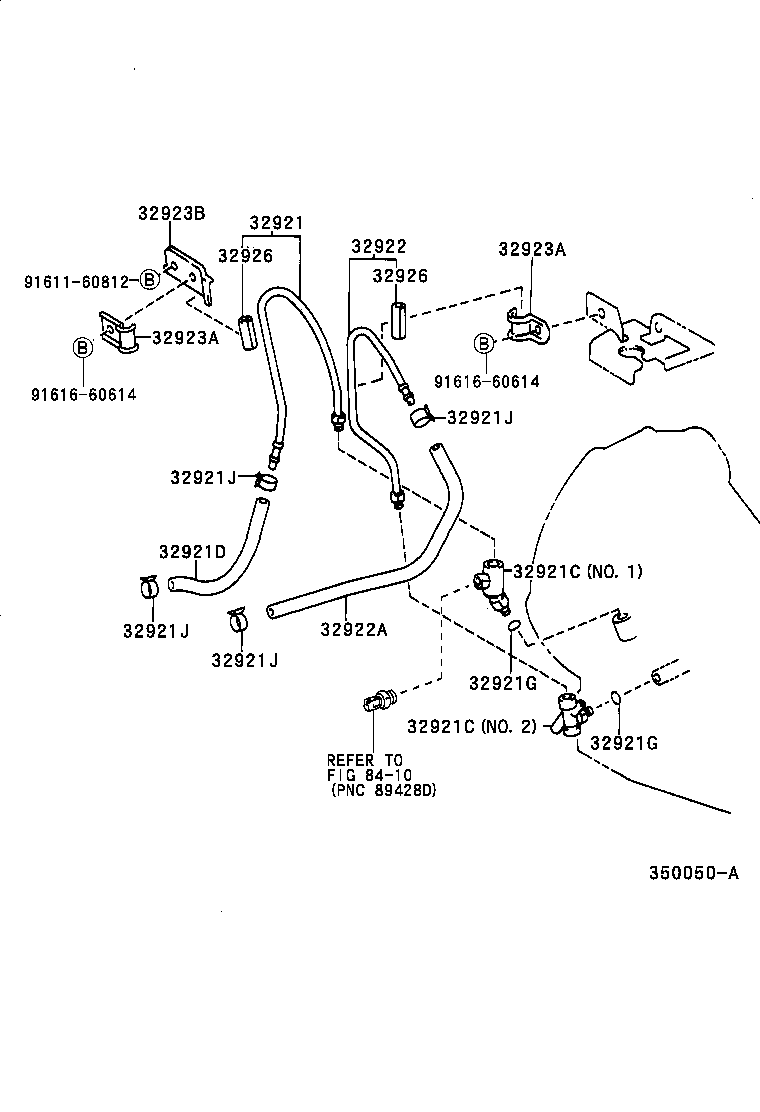

Click highlighted areas on diagram
A540H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-44030 |
SXM15 |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 32918-32010 |
SXM15 NO.1 |
1 | ||
| 32901-32050 |
SXM15 NO.2 |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 32918-32010 |
SXM15 NO.1 |
1 | ||
| 32901-32050 |
SXM15 NO.2 |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 90445-17103 |
SXM15 |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
CXM10,SXM1# |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
CXM10,SXM1# |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
CXM10,SXM1# |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
CXM10,SXM1# |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
CXM10,SXM1# |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
CXM10,SXM1# |
4 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-44030 |
SXM15 |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-17128 |
SXM1# |
1 | ||
| 32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 90462-12071 |
SXM15 |
2 | ||
| 32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 90462-12071 |
SXM15 |
2 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32923-32060 |
SXM15..E,IPSUM,L |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-20010 |
CXM10,SXM1# 長さ=25,内径=10 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-20010 |
CXM10,SXM1# 長さ=25,内径=10 |
2 | ||
| Common parts | ||||
| 91611-60812 | ||||
| 91616-60614 | ||||
| Linked diagrams | ||||
| 8410 | ||||
