SXM15G-ARSDK (1996)

Toyota Ipsum

Production May 1996 - Apr 1998
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9605- )3SFE

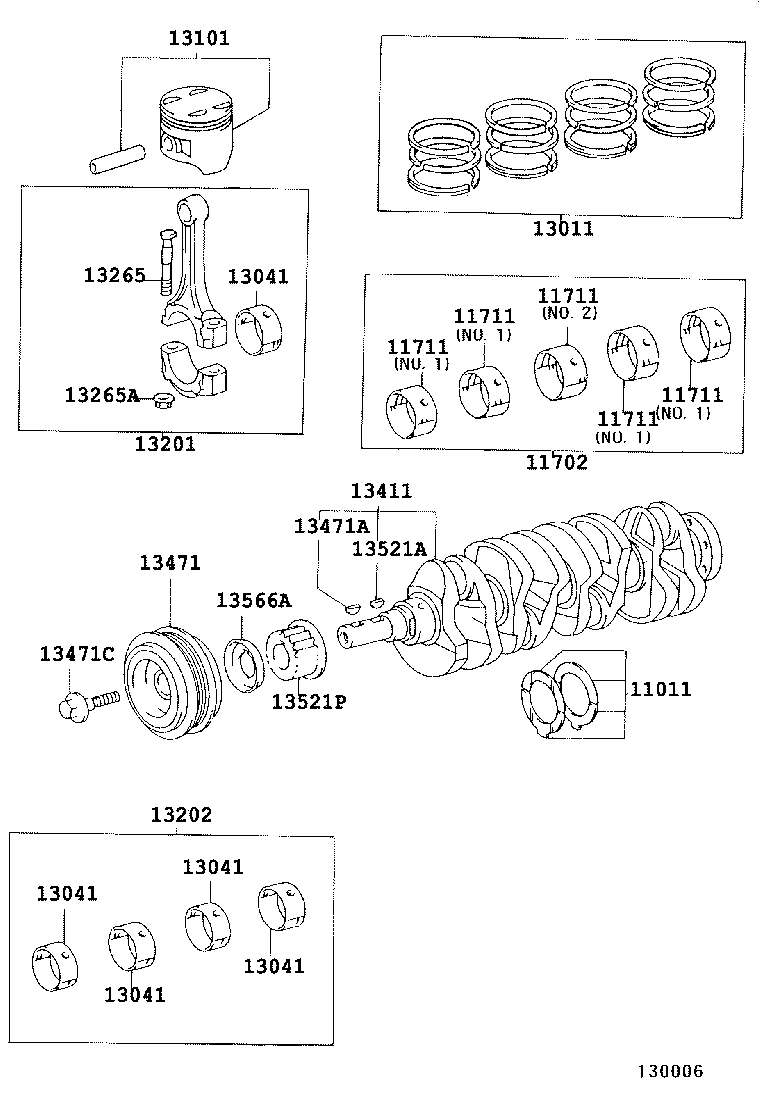

Click highlighted areas on diagram

diagram 11011 11702 11711 11711 11711 11711 11711 13011 13041 13041 13041 13041 13041 13101 13201 13202 13265 13265A 13411 13471 13471A 13471C 13521A 13521P 13566A
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11011-74020

3SFE..SXM1#

STD

 1
11702 - BEARING SET, CRANKSHAFT
11704-63021

3SFE..SXM1#

U/S 0.25

 1
11711 - BEARING, CRANKSHAFT
11071-6302002

3SFE..SXM1#

MARK 2,NO.2

 1
11071-6302003

3SFE..SXM1#

MARK 3,NO.2

 1
11071-6302001

3SFE..SXM1#

MARK 1,NO.2

 1
11071-6302005

3SFE..SXM1#

MARK 5,NO.2

 1
11701-6302105

3SFE..SXM1#

MARK 5,NO.1

 4
11701-6302102

3SFE..SXM1#

MARK 2,NO.1

 4
11071-6302004

3SFE..SXM1#

MARK 4,NO.2

 1
11701-6302104

3SFE..SXM1#

MARK 4,NO.1

 4
11701-6302103

3SFE..SXM1#

MARK 3,NO.1

 4
11701-6302101

3SFE..SXM1#

MARK 1,NO.1

 4
11711 - BEARING, CRANKSHAFT
11071-6302002

3SFE..SXM1#

MARK 2,NO.2

 1
11071-6302003

3SFE..SXM1#

MARK 3,NO.2

 1
11071-6302001

3SFE..SXM1#

MARK 1,NO.2

 1
11071-6302005

3SFE..SXM1#

MARK 5,NO.2

 1
11701-6302105

3SFE..SXM1#

MARK 5,NO.1

 4
11701-6302102

3SFE..SXM1#

MARK 2,NO.1

 4
11071-6302004

3SFE..SXM1#

MARK 4,NO.2

 1
11701-6302104

3SFE..SXM1#

MARK 4,NO.1

 4
11701-6302103

3SFE..SXM1#

MARK 3,NO.1

 4
11701-6302101

3SFE..SXM1#

MARK 1,NO.1

 4
11711 - BEARING, CRANKSHAFT
11071-6302002

3SFE..SXM1#

MARK 2,NO.2

 1
11071-6302003

3SFE..SXM1#

MARK 3,NO.2

 1
11071-6302001

3SFE..SXM1#

MARK 1,NO.2

 1
11071-6302005

3SFE..SXM1#

MARK 5,NO.2

 1
11701-6302105

3SFE..SXM1#

MARK 5,NO.1

 4
11701-6302102

3SFE..SXM1#

MARK 2,NO.1

 4
11071-6302004

3SFE..SXM1#

MARK 4,NO.2

 1
11701-6302104

3SFE..SXM1#

MARK 4,NO.1

 4
11701-6302103

3SFE..SXM1#

MARK 3,NO.1

 4
11701-6302101

3SFE..SXM1#

MARK 1,NO.1

 4
11711 - BEARING, CRANKSHAFT
11071-6302002

3SFE..SXM1#

MARK 2,NO.2

 1
11071-6302003

3SFE..SXM1#

MARK 3,NO.2

 1
11071-6302001

3SFE..SXM1#

MARK 1,NO.2

 1
11071-6302005

3SFE..SXM1#

MARK 5,NO.2

 1
11701-6302105

3SFE..SXM1#

MARK 5,NO.1

 4
11701-6302102

3SFE..SXM1#

MARK 2,NO.1

 4
11071-6302004

3SFE..SXM1#

MARK 4,NO.2

 1
11701-6302104

3SFE..SXM1#

MARK 4,NO.1

 4
11701-6302103

3SFE..SXM1#

MARK 3,NO.1

 4
11701-6302101

3SFE..SXM1#

MARK 1,NO.1

 4
11711 - BEARING, CRANKSHAFT
11071-6302002

3SFE..SXM1#

MARK 2,NO.2

 1
11071-6302003

3SFE..SXM1#

MARK 3,NO.2

 1
11071-6302001

3SFE..SXM1#

MARK 1,NO.2

 1
11071-6302005

3SFE..SXM1#

MARK 5,NO.2

 1
11701-6302105

3SFE..SXM1#

MARK 5,NO.1

 4
11701-6302102

3SFE..SXM1#

MARK 2,NO.1

 4
11071-6302004

3SFE..SXM1#

MARK 4,NO.2

 1
11701-6302104

3SFE..SXM1#

MARK 4,NO.1

 4
11701-6302103

3SFE..SXM1#

MARK 3,NO.1

 4
11701-6302101

3SFE..SXM1#

MARK 1,NO.1

 4
13011 - RING SET, PISTON
13011-74360

3SFE..SXM1#

STD

 1
13011-74361

3SFE..SXM1#

STD

 1
13013-74361

3SFE..SXM1#

O/S 0.50

 1
13013-74360

3SFE..SXM1#

O/S 0.50

 1
13041 - BEARING, CONNECTING ROD
13041-7404001

3SFE..SXM1#

MARK 1

 4
13041-7403003

3SFE..SXM1#

MARK 3

 4
13041-7403001

3SFE..SXM1#

MARK 1

 4
13041-7404003

3SFE..SXM1#

MARK 3

 4
13041-7403002

3SFE..SXM1#

MARK 2

 4
13041-7404002

3SFE..SXM1#

MARK 2

 4
13041 - BEARING, CONNECTING ROD
13041-7404001

3SFE..SXM1#

MARK 1

 4
13041-7403003

3SFE..SXM1#

MARK 3

 4
13041-7403001

3SFE..SXM1#

MARK 1

 4
13041-7404003

3SFE..SXM1#

MARK 3

 4
13041-7403002

3SFE..SXM1#

MARK 2

 4
13041-7404002

3SFE..SXM1#

MARK 2

 4
13041 - BEARING, CONNECTING ROD
13041-7404001

3SFE..SXM1#

MARK 1

 4
13041-7403003

3SFE..SXM1#

MARK 3

 4
13041-7403001

3SFE..SXM1#

MARK 1

 4
13041-7404003

3SFE..SXM1#

MARK 3

 4
13041-7403002

3SFE..SXM1#

MARK 2

 4
13041-7404002

3SFE..SXM1#

MARK 2

 4
13041 - BEARING, CONNECTING ROD
13041-7404001

3SFE..SXM1#

MARK 1

 4
13041-7403003

3SFE..SXM1#

MARK 3

 4
13041-7403001

3SFE..SXM1#

MARK 1

 4
13041-7404003

3SFE..SXM1#

MARK 3

 4
13041-7403002

3SFE..SXM1#

MARK 2

 4
13041-7404002

3SFE..SXM1#

MARK 2

 4
13041 - BEARING, CONNECTING ROD
13041-7404001

3SFE..SXM1#

MARK 1

 4
13041-7403003

3SFE..SXM1#

MARK 3

 4
13041-7403001

3SFE..SXM1#

MARK 1

 4
13041-7404003

3SFE..SXM1#

MARK 3

 4
13041-7403002

3SFE..SXM1#

MARK 2

 4
13041-7404002

3SFE..SXM1#

MARK 2

 4
13101 - PISTON SUB-ASSY, W/PIN
13101-7419102

3SFE..SXM1#

STD,MARK 2

 4
13101-7419103

3SFE..SXM1#

STD,MARK 3

 4
13101-7419101

3SFE..SXM1#

STD,MARK 1

 4
13103-74191

3SFE..SXM1#

O/S 0.50

 4
13201 - ROD SUB-ASSY, CONNECTING
13201-79306

3SFE..SXM1#

 4
13201-79305

3SFE..SXM1#

 4
13201-79405

3SFE..SXM1#

 4
13202 - BEARING SET, CONNECTING ROD
13204-74030

3SFE..SXM1#

U/S 0.25

 1
13204-74040

3SFE..SXM1#

U/S 0.25

 1
13265 - BOLT, CONNECTING ROD
13265-62030

3SFE..SXM1#

 8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90179-08118

3SFE..SXM1#

 8
13411 - CRANKSHAFT
13411-74908

3SFE..SXM1#

 1
13471 - PULLEY, CRANKSHAFT
13408-74041

3SFE..SXM1#

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
90280-05005

3SFE..SXM1#

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90119-14015

3SFE..SXM1#

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-05005

3SFE..SXM1#

 1
13521P - PULLEY, CRANKSHAFT TIMING
13521-74040

3SFE..SXM1#

 1
13566A - GUIDE, TIMING BELT
13567-74010

3SFE..SXM1#

 1
