SXM10G-ARSGK (1996)

Toyota Ipsum

Production May 1996 - May 2001
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9605- )SXM1#

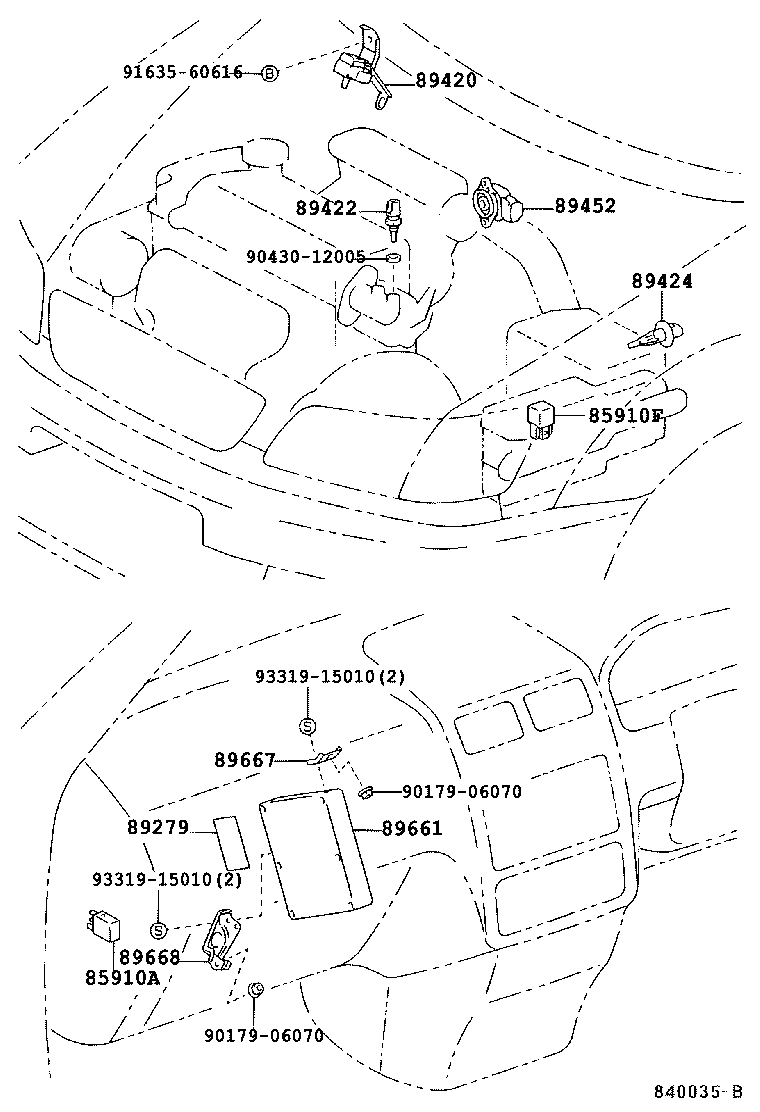

Click highlighted areas on diagram

diagram 85910A 85910F 89279 89420 89422 89424 89452 89661 89667 89668 9017906070 9017906070 9043012005 9163560616 9331915010 9331915010
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02012

SXM1#

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02009

SXM1#

 1
89279 - COVER, ENGINE CONTROL COMPUTER
89279-44010

SXM1#

 1
89420 - SENSOR ASSY, VACUUM
89420-44010

SXM1#

 1
89420-44040

SXM1#

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-22030

SXM1#

ﾏｰｸ 89422−22030 *369

 1
89422-16010

SXM1#

ﾏｰｸ 89422−16010 *369

 1
89422-35010

SXM1#

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-12010

SXM1#

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-20130

SXM1#

 1
89452-33030

SXM1#

 1
89661 - COMPUTER, ENGINE CONTROL
89661-44100

SXM10

 1
89661-44010

SXM10

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-44030

SXM1#

 1
89667-44010

SXM1#

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-44010

SXM1#

 1
89668-44030

SXM1#

 1
Common parts
90179-06070
90430-12005
91635-60616
93319-15010
