SXM10G-ARSGK (1996)

Toyota Ipsum

Production May 1996 - May 2001
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9605- )

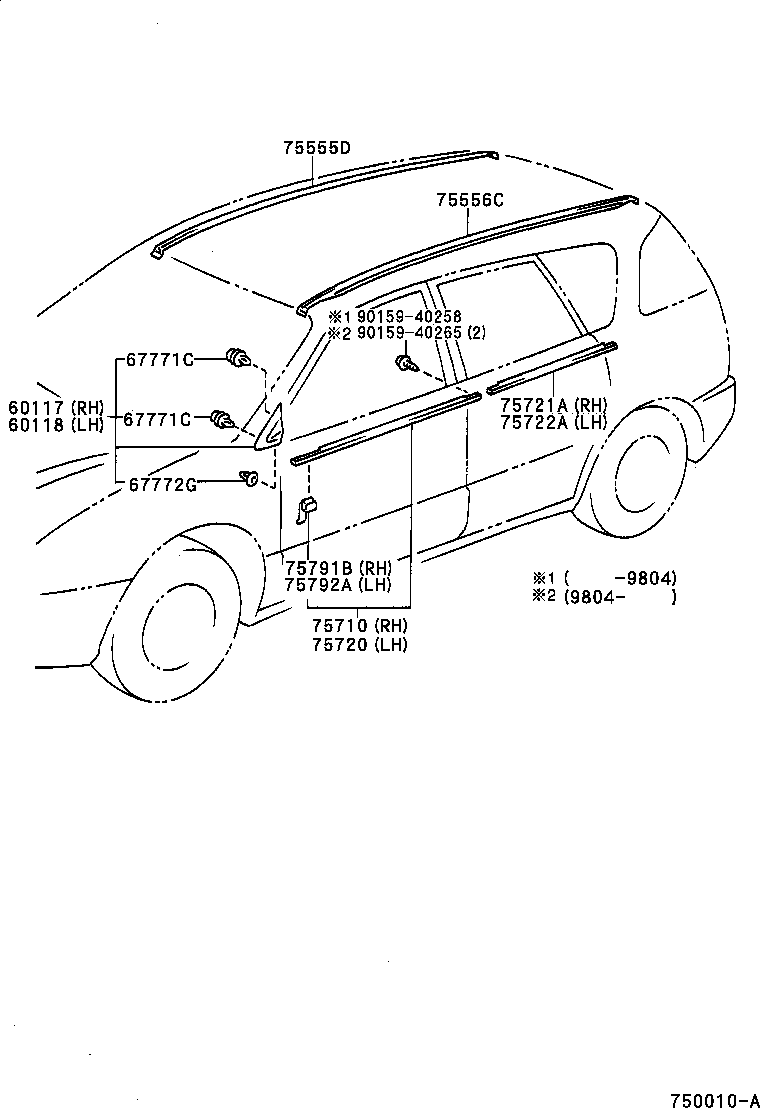

Click highlighted areas on diagram

diagram 60117 60118 67771C 67771C 67772G 75555D 75556C 75710 75720 75721A 75722A 75791B 75792A 9015940258 9015940265
Part # Description Qty Price
60117 - COVER SUB-ASSY, FRONT PILLAR, UPR RH
60117-44030B0

CXM10,SXM1#..IPSUM,L

SILVER ME,199

 1
60117-44010

CXM10,SXM1#

 1
60117-44010

SXM10..E

 1
60117-44030A0

CXM10,SXM1#..ATG,IPSUM,L

WHITE PM.,057

 1
60117-44030D0

CXM10,SXM1#..IPSUM,L

WINE RED MC,3J8

 1
60117-44030C1

SXM10..E

TECS=U.S. ｶｽﾀﾑ,BLACK ME.,205

 1
60117-44030F0

SXM10..E

TECS=U.S. ｶｽﾀﾑ,YELLOW,541

 1
60117-44030J1

CXM10,SXM1#..IPSUM,L

BLUE ME.AMC.,8N2

 1
60117-44030B0

SXM10..E

TECS=U.S. ｶｽﾀﾑ,SILVER ME.,199

 1
60117-44030H0

CXM10,SXM1#..IPSUM,L

DK.TURQUOISE MC.,760

 1
60117-44030J0

CXM10,SXM1#..IPSUM,L

DK.BLUE MM.GR.,8K5

 1
60117-44030H1

CXM10,SXM1#..IPSUM,L

TURQUOISE ME.,765

 1
60117-44030B0

CXM10,SXM1#..ATG,IPSUM,L

SILVER ME,199

 1
60118 - COVER SUB-ASSY, FRONT PILLAR, UPR LH
60118-44010

CXM10,SXM1#

 1
60118-44030B0

CXM10,SXM1#..IPSUM,L

SILVER ME,199

 1
60118-44030J1

CXM10,SXM1#..IPSUM,L

BLUE ME.AMC.,8N2

 1
60118-44030A0

CXM10,SXM1#..ATG,IPSUM,L

WHITE PM.,057

 1
60118-44030B0

SXM10..E

TECS=U.S. ｶｽﾀﾑ,SILVER ME.,199

 1
60118-44030D0

CXM10,SXM1#..IPSUM,L

WINE RED MC,3J8

 1
60118-44030C1

SXM10..E

TECS=U.S. ｶｽﾀﾑ,BLACK ME.,205

 1
60118-44030H0

CXM10,SXM1#..IPSUM,L

DK.TURQUOISE MC.,760

 1
60118-44030B0

CXM10,SXM1#..ATG,IPSUM,L

SILVER ME,199

 1
60118-44030H1

CXM10,SXM1#..IPSUM,L

TURQUOISE ME.,765

 1
60118-44010

SXM10..E

 1
60118-44030J0

CXM10,SXM1#..IPSUM,L

DK.BLUE MM.GR.,8K5

 1
60118-44030F0

SXM10..E

TECS=U.S. ｶｽﾀﾑ,YELLOW,541

 1
67771C - RETAINER, FRONT PILLAR COVER
67771-30070

SXM1#

下側

 2
67771-30070

CXM10,SXM1#

 4
67771-17020

SXM1#

上側

 2
67771C - RETAINER, FRONT PILLAR COVER
67771-30070

SXM1#

下側

 2
67771-30070

CXM10,SXM1#

 4
67771-17020

SXM1#

上側

 2
67772G - CAP, FRONT PILLAR COVER
67772-95J03

CXM10,SXM1#

 2
75555D - MOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75555-44010

CXM10,SXM1#

 1
75556C - MOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75556-44010

CXM10,SXM1#

 1
75710 - MOULDING ASSY, FRONT DOOR BELT, RH
75710-44011

CXM10,SXM1#

 1
75710-44010

CXM10,SXM1#

 1
75720 - MOULDING ASSY, FRONT DOOR BELT, LH
75720-44010

CXM10,SXM1#

 1
75720-44011

CXM10,SXM1#

 1
75721A - MOULDING, REAR DOOR BELT, RH
75721-44011

CXM10,SXM1#

 1
75721-44010

CXM10,SXM1#

 1
75722A - MOULDING, REAR DOOR BELT, LH
75722-44010

CXM10,SXM1#

 1
75722-44011

CXM10,SXM1#

 1
75791B - CLIP, BELT MOULDING SIDE
75791-44010

CXM10,SXM1#

 1
75792A - CLIP, BELT MOULDING SIDE, LH
75792-44010

CXM10,SXM1#

 1
Common parts
90159-40258
90159-40265
