SXM10G-ARSGK (1996)
Toyota Ipsum
Production
May 1996
-
May 2001
Engine
3SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

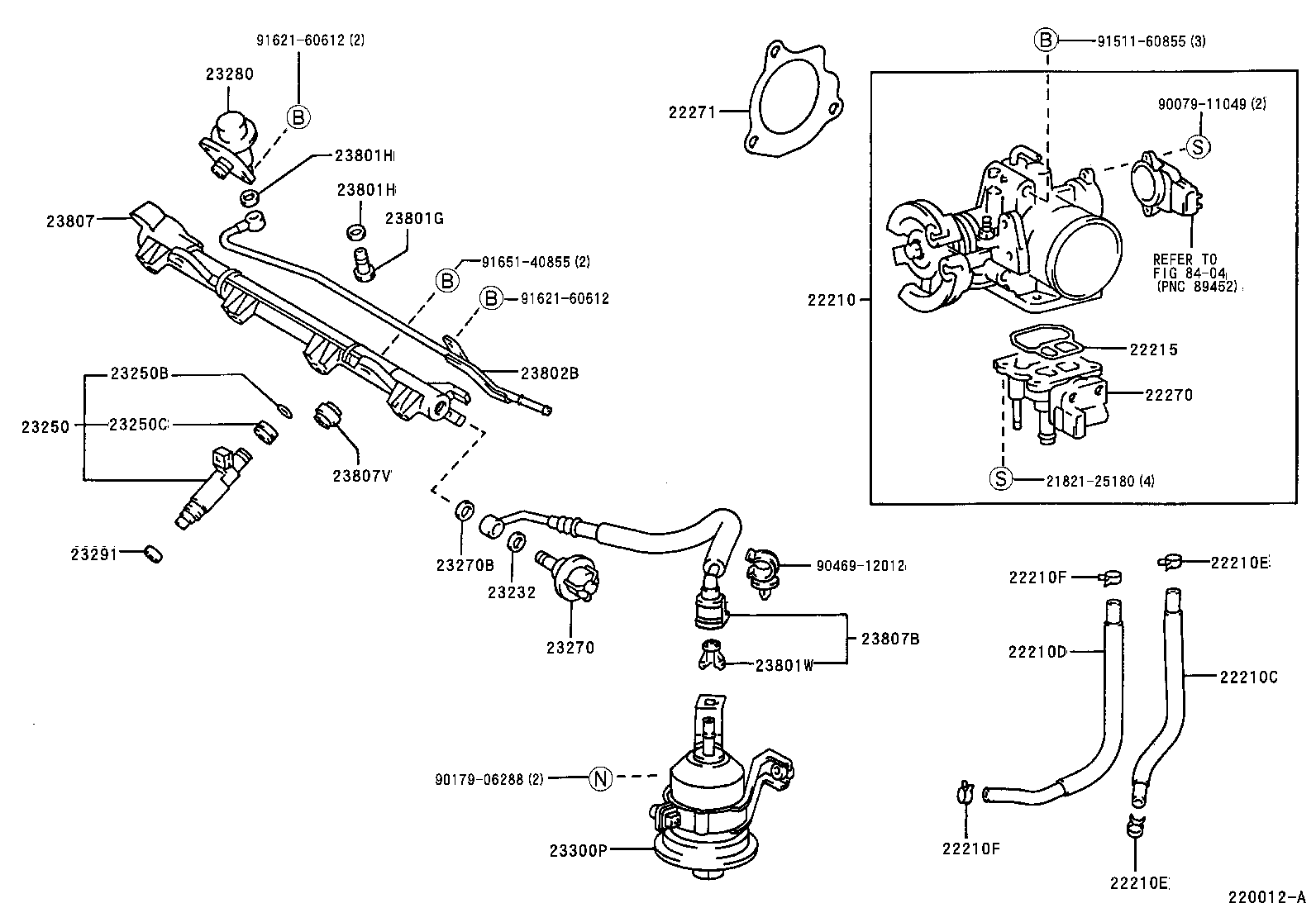

ILLUST NO. 1 OF 2(9605- )3SFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-7A560 |
3SFE..SXM1# |
1 | ||
| 22210C - HOSE, WATER BY-PASS, NO.1 | ||||
| 16283-74050 |
3SFE..SXM1# |
1 | ||
| 22210D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16282-74100 |
3SFE..SXM1# |
1 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13050 |
3SFE..SXM1# |
2 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13050 |
3SFE..SXM1# |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13050 |
3SFE..SXM1# |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13050 |
3SFE..SXM1# |
2 | ||
| 22215 - GASKET, THROTTLE BODY COVER | ||||
| 22215-74400 |
3SFE..SXM1# |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-74270 |
3SFE..SXM1# |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-74070 |
3SFE..SXM1# |
1 | ||
| 23232 - GASKET(FOR FUEL PUMP HOSE) | ||||
| 23279-74010 |
3SFE..SXM1# |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-74170 |
3SFE..SXM1# |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07024 |
3SFE..SXM1# |
4 | ||
| 90301-07001 |
3SFE..SXM1# |
4 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
3SFE..SXM1# |
4 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23207-46010 |
3SFE..SXM1# |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 23279-74010 |
3SFE..SXM1# |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-74151 |
3SFE..SXM1# |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
3SFE..SXM1# |
4 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-74300 |
3SFE..SXM1# |
1 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-08004 |
3SFE..SXM1# |
1 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-08014 |
3SFE..SXM1# |
2 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-08014 |
3SFE..SXM1# |
2 | ||
| 23801W - CLIP, FUEL TUBE CONNECTOR | ||||
| 90923-07002 |
3SFE..SXM1# |
1 | ||
| 23802B - PIPE SUB-ASSY, FUEL, NO.2 | ||||
| 23802-74070 |
3SFE..SXM1# |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23814-74110 |
3SFE..SXM1# |
1 | ||
| 23807B - HOSE, FUEL DELIVERY PIPE | ||||
| 23271-74530 |
3SFE..SXM1# |
1 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90561-08053 |
3SFE..SXM1# |
2 | ||
| Common parts | ||||
| 21821-25180 | ||||
| 90079-11049 | ||||
| 90179-06288 | ||||
| 90469-12012 | ||||
| 91511-60855 | ||||
| 91621-60612 | ||||
| 91651-40855 | ||||
| Linked diagrams | ||||
| 8404 | ||||

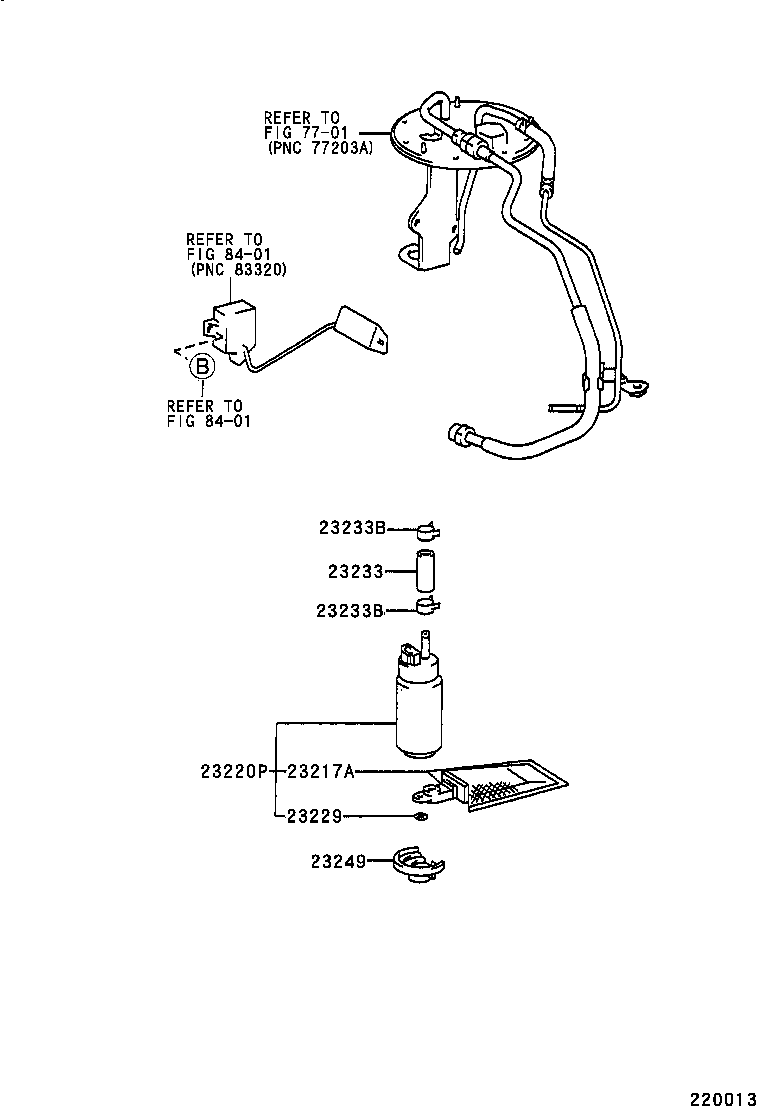

ILLUST NO. 2 OF 2(9605- )3SFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-74021 |
3SFE..SXM1# |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23220-74021 |
3SFE..SXM1# |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
3SFE..SXM1# |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23239-11010 |
3SFE..SXM1# |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-12067 |
3SFE..SXM1# |
2 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-12067 |
3SFE..SXM1# |
2 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74610 |
3SFE..SXM1# |
1 | ||
| Linked diagrams | ||||
| 7701 | ||||
| 8401 | ||||
