SXM10G-ARSEK (1996)

Toyota Ipsum

Production May 1996 - May 2001
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9605- )CXM10,SXM10

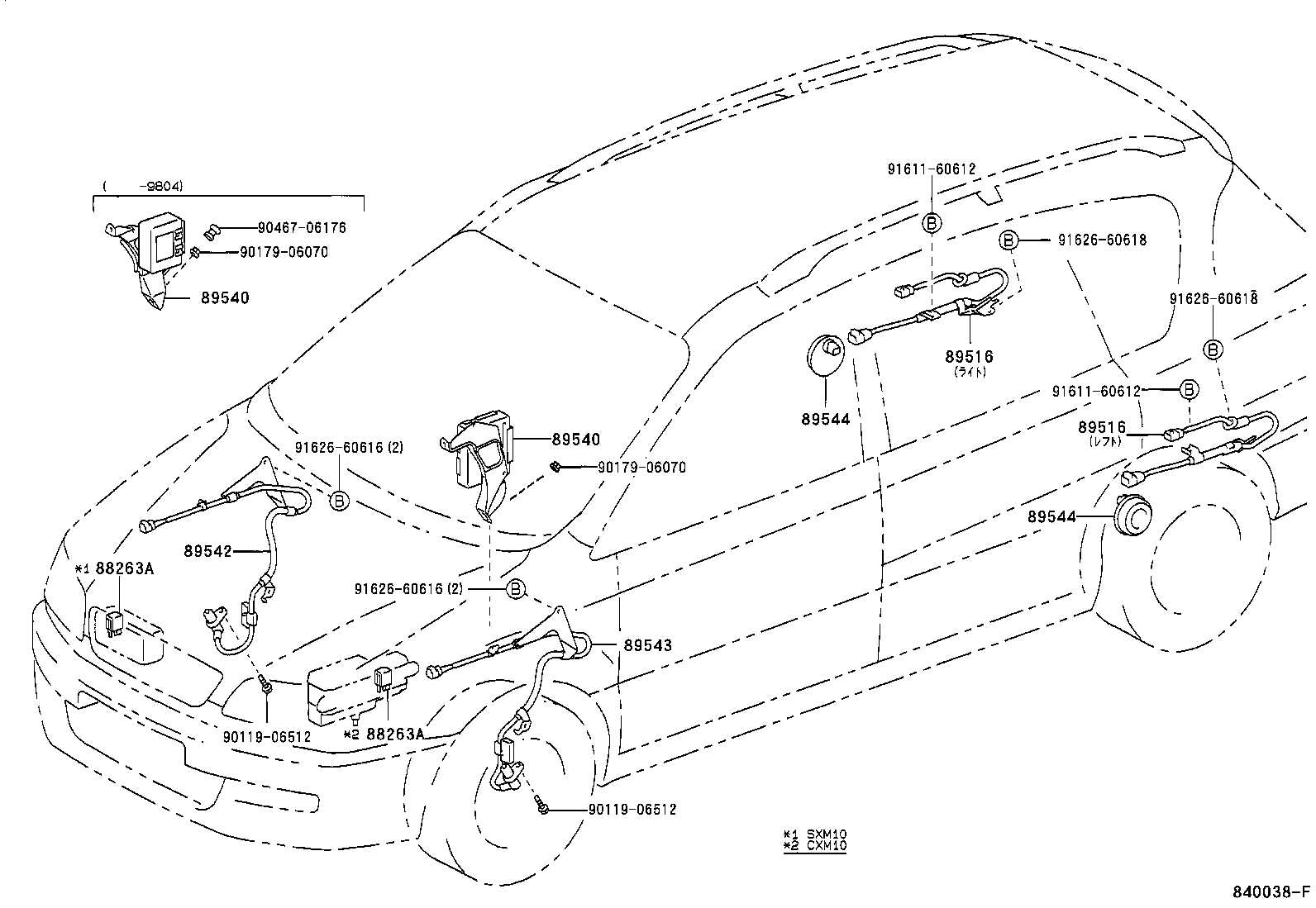

Click highlighted areas on diagram

diagram 88263A 88263A 89516 89516 89540 89540 89542 89543 89544 89544 9011906512 9011906512 9017906070 9017906070 9046706176 9161160612 9161160612 9162660616 9162660616 9162660618 9162660618
Part # Description Qty Price
88263A - RELAY, SKID CONTROL
88263-24030

CXM10,SXM1#

 1
88263A - RELAY, SKID CONTROL
88263-24030

CXM10,SXM1#

 1
89516 - WIRE, SKID CONTROL SENSOR
89516-44030

CXM10,SXM10

左側

 1
89516-44010

CXM10,SXM10

右側

 1
89516-44020

CXM10,SXM10

左側

 1
89516 - WIRE, SKID CONTROL SENSOR
89516-44030

CXM10,SXM10

左側

 1
89516-44010

CXM10,SXM10

右側

 1
89516-44020

CXM10,SXM10

左側

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-44010

SXM10

 1
89540-44070

CXM10,SXM10

 1
89540-44050

CXM10,SXM10

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-44010

SXM10

 1
89540-44070

CXM10,SXM10

 1
89540-44050

CXM10,SXM10

 1
89542 - SENSOR, SPEED, FRONT RH
89542-20130

CXM10,SXM1#

 1
89542-44010

CXM10,SXM1#

 1
89543 - SENSOR, SPEED, FRONT LH
89543-20130

CXM10,SXM1#

 1
89543-44010

CXM10,SXM1#

 1
89544 - SENSOR, SKID CONTROL
89544-44010

CXM10,SXM10

 2
89544 - SENSOR, SKID CONTROL
89544-44010

CXM10,SXM10

 2
Common parts
90119-06512
90179-06070
90467-06176
91611-60612
91626-60616
91626-60618
