SXM10G-ARSEK (1996)

Toyota Ipsum

Production May 1996 - May 2001
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9605- )

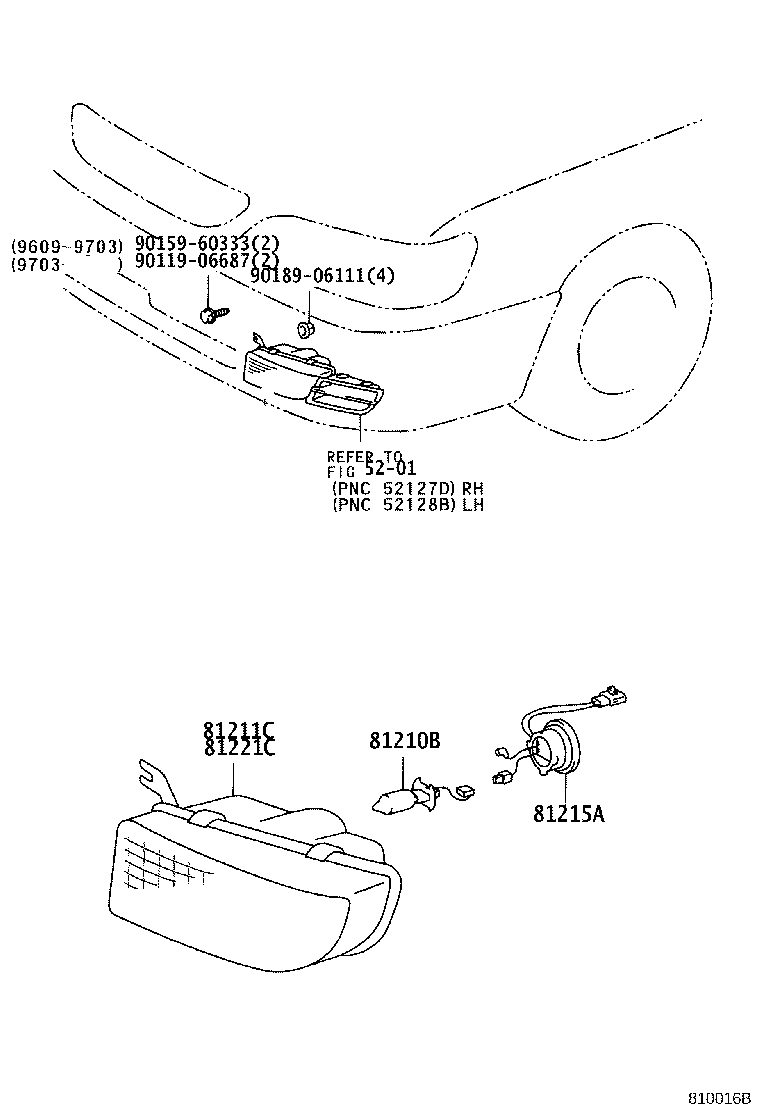

Click highlighted areas on diagram

diagram 5201 81210B 81211C 81215A 81221C 9011906687 9015960333 9018906111
Part # Description Qty Price
81210B - BULB, FOG LAMP
90981-13048

CXM10,SXM1#

12V 55W,ﾊﾛｹﾞﾝ

 2
90981-13071

CXM10,SXM1#

12V 55W,ﾊﾛｹﾞﾝ

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-44010

CXM10,SXM1#

 1
81211-44040

CXM10,SXM1#

 1
81215A - SOCKET & WIRE, FOG LAMP
81215-44010

CXM10,SXM1#

 2
81215-44040

CXM10,SXM1#

 2
81221C - LAMP UNIT, FOG LAMP, LH
81221-44040

CXM10,SXM1#

 1
81221-44010

CXM10,SXM1#

 1
Common parts
90119-06687
90159-60333
90189-06111
Linked diagrams
5201
