SXM10G-ARSDK (1996)

Toyota Ipsum

Production May 1996 - May 2001
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9605- )

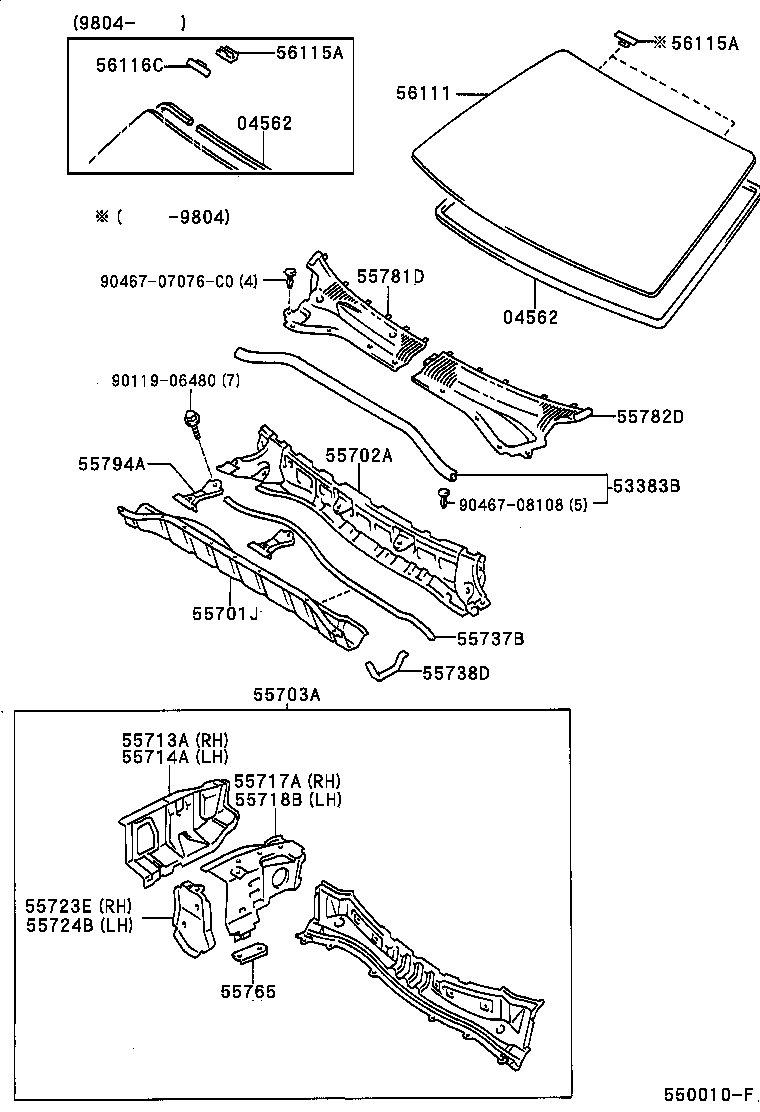

Click highlighted areas on diagram

diagram 04562 04562 53383B 55701J 55702A 55703A 55713A 55714A 55717A 55718B 55723E 55724B 55737B 55738D 55765 55781D 55782D 55794A 56111 56115A 56115A 56116C 9011906480 9046707076C0 9046708108
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-26010

CXM10,SXM1#

 1
04562 - DAM KIT, WINDSHIELD GLASS
04562-26010

CXM10,SXM1#

 1
53383B - SEAL, HOOD TO COWL TOP
53383-44010

CXM10,SXM1#

 1
53383-44012

CXM10,SXM1#

 1
55701J - PANEL SUB-ASSY, COWL TOP, OUTER
55712-44010

CXM10,SXM1#

 1
55702A - PANEL SUB-ASSY, COWL TOP, OUTER FRONT
55702-44010

CXM10,SXM1#

 1
55703A - PANEL SUB-ASSY, COWL TOP, INNER
55703-44900

CXM10,SXM1#

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-44010

CXM10,SXM1#

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-44010

CXM10,SXM1#

 1
55717A - PANEL, COWL TOP SIDE, INNER RH
55717-44010

CXM10,SXM1#

 1
55718B - PANEL, COWL TOP SIDE, INNER LH
55718-44010

CXM10,SXM1#

 1
55723E - GUSSET, FRONT PANEL, RH
55723-44010

CXM10,SXM1#

 1
55724B - GUSSET, FRONT PANEL, LH
55724-44010

CXM10,SXM1#

 1
55737B - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55737-44010

CXM10,SXM1#

 1
55738D - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2
55738-44010

CXM10,SXM1#

 2
55765 - BRACKET, HOOD DAMPER MOUNTING
55765-44010

CXM10,SXM1#

 2
55781D - LOUVER, COWL TOP VENTILATOR, RH
55708-44010

CXM10,SXM1#

 1
55708-44020

CXM10,SXM1#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
55782D - LOUVER, COWL TOP VENTILATOR, LH
55709-44010

CXM10,SXM1#

 1
55709-44020

CXM10,SXM1#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
55794A - BRACKET, WEATHERSTRIP WIPER PIVOT GUIDE, NO.2
55794-44010

CXM10,SXM1#

 2
56111 - GLASS, WINDSHIELD
56111-44030

CXM10,SXM1#..E

*TL,T=4.7,ｸﾞﾘｰﾝ

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56116-35050

CXM10,SXM1#

 2
56115-30100

CXM10,SXM1#

 2
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56116-35050

CXM10,SXM1#

 2
56115-30100

CXM10,SXM1#

 2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

CXM10,SXM1#

 2
Common parts
90119-06480
90467-07076C0
90467-08108
