SXM10G-ARSDK (1996)
Toyota Ipsum
Production
May 1996
-
May 2001
Engine
3SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9605- )

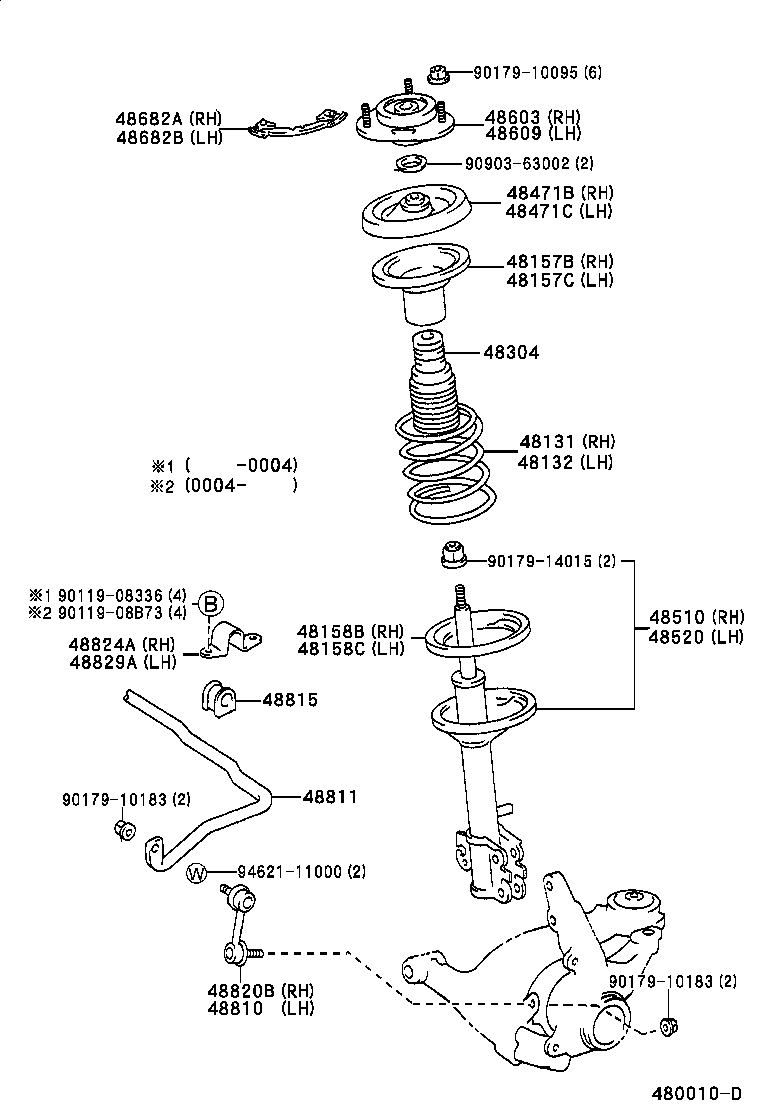

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-44031 |
SXM10 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-44031 |
SXM10 |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-44010 |
CXM10,SXM1# |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-44010 |
CXM10,SXM1# |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-20080 |
CXM10,SXM1# |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-20080 |
CXM10,SXM1# |
1 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-44020 |
CXM10,SXM1# |
2 | ||
| 48304-44010 |
SXM1# |
2 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48471-44010 |
CXM10,SXM1# |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48471-44010 |
CXM10,SXM1# |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-49046 |
SXM10 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-49046 |
SXM10 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-44020 |
CXM10,SXM1# |
1 | ||
| 48609-44011 |
CXM10,SXM1# |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-44020 |
CXM10,SXM1# |
1 | ||
| 48609-44011 |
CXM10,SXM1# |
1 | ||
| 48682A - SUPPORT, FRONT SUSPENSION, NO.2 RH | ||||
| 48682-44010 |
CXM10,SXM1# |
1 | ||
| 48682B - SUPPORT, FRONT SUSPENSION, NO.2 LH | ||||
| 48682-44010 |
CXM10,SXM1# |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48810-20020 |
CXM10,SXM1# |
1 | ||
| 48810-44010 |
CXM10,SXM1# |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-44010 |
CXM10,SXM10 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-44010 |
CXM10,SXM10 |
2 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-44010 |
CXM10,SXM1# |
1 | ||
| 48820-20040 |
CXM10,SXM1# |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-44010 |
CXM10,SXM10 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-44010 |
CXM10,SXM10 |
1 | ||
| Common parts | ||||
| 90119-08336 | ||||
| 90119-08B73 | ||||
| 90179-10095 | ||||
| 90179-10183 | ||||
| 90179-14015 | ||||
| 90903-63002 | ||||
| 94621-11000 | ||||
