CXM10G-ARSGT (1997)
Toyota Ipsum

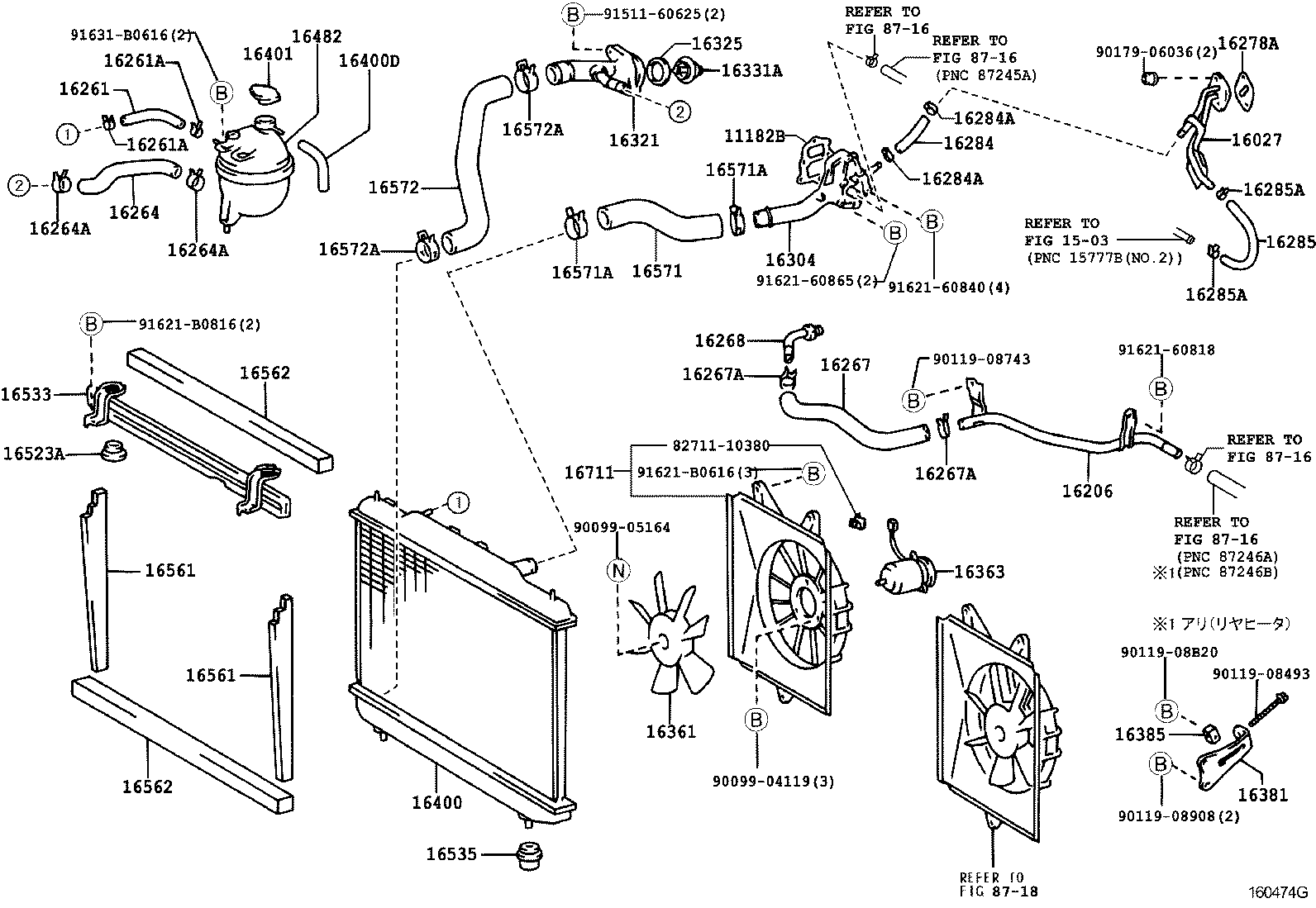

ILLUST NO. 1 OF 2(9709- )3CTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11182B - GASKET, CYLINDER HEAD REAR PLATE | ||||
| 11182-64021 |
3CTE..CXM10 |
1 | ||
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-64071 |
3CTE..CXM10 |
1 | ||
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-64050 |
3CTE..CXM10 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-64130 |
3CTE..CXM10 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13050 |
3CTE..CXM10 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13050 |
3CTE..CXM10 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-64140 |
3CTE..CXM10 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22006 |
3CTE..CXM10 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22006 |
3CTE..CXM10 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-64030 |
3CTE..CXM10 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-22004 |
3CTE..CXM10 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-22004 |
3CTE..CXM10 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-64100 |
3CTE..CXM10 |
1 | ||
| 16278A - GASKET, WATER BY-PASS | ||||
| 16347-42020 |
3CTE..CXM10 |
1 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-64061 |
3CTE..CXM10 |
1 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-13128 |
3CTE..CXM10 |
2 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-13128 |
3CTE..CXM10 |
2 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 99556-10200 |
3CTE..CXM10 *H,L=180 |
1 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-13128 |
3CTE..CXM10 |
2 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-13128 |
3CTE..CXM10 |
2 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-64020 |
3CTE..CXM10 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-64090 |
3CTE..CXM10 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63011 |
3CTE..CXM10 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
3CTE..CXM10 *WAX 82−95 |
1 | ||
| 16361 - FAN | ||||
| 16361-64080 |
3CTE..CXM10 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-64150 |
3CTE..CXM10 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-64160 |
3CTE..CXM10 |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-64011 |
3CTE..CXM10 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-6A170 |
3CTE..CXM10 |
1 | ||
| 16400D - HOSE(FOR RADIATOR DRAIN COCK) | ||||
| 85338-30010 |
3CTE..CXM10 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-5B440 |
3CTE..CXM10 |
1 | ||
| 16482 - TANK SUB-ASSY, RADIATOR RESERVE | ||||
| 16480-64170 |
3CTE..CXM10 |
1 | ||
| 16480-64171 |
3CTE..CXM10 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-74010 |
3CTE..CXM10 |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-64020 |
3CTE..CXM10 |
1 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-64050 |
3CTE..CXM10 |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-64020 |
3CTE..CXM10 |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-64020 |
3CTE..CXM10 |
2 | ||
| 16562 - SEAL, RADIATOR TO SUPPORT, NO.2 | ||||
| 16562-64020 |
3CTE..CXM10 |
1 | ||
| 16562 - SEAL, RADIATOR TO SUPPORT, NO.2 | ||||
| 16562-64020 |
3CTE..CXM10 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-64300 |
3CTE..CXM10 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-41001 |
3CTE..CXM10 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-41001 |
3CTE..CXM10 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-64290 |
3CTE..CXM10 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41001 |
3CTE..CXM10 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41001 |
3CTE..CXM10 |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-64460 |
3CTE..CXM10 |
1 | ||
| Common parts | ||||
| 82711-10380 | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-08493 | ||||
| 90119-08743 | ||||
| 90119-08908 | ||||
| 90119-08B20 | ||||
| 90179-06036 | ||||
| 91511-60625 | ||||
| 91621-60818 | ||||
| 91621-60840 | ||||
| 91621-60865 | ||||
| 91621-B0616 | ||||
| 91621-B0816 | ||||
| 91631-B0616 | ||||
| Linked diagrams | ||||
| 1503 | ||||
| 8716 | ||||
| 8718 | ||||

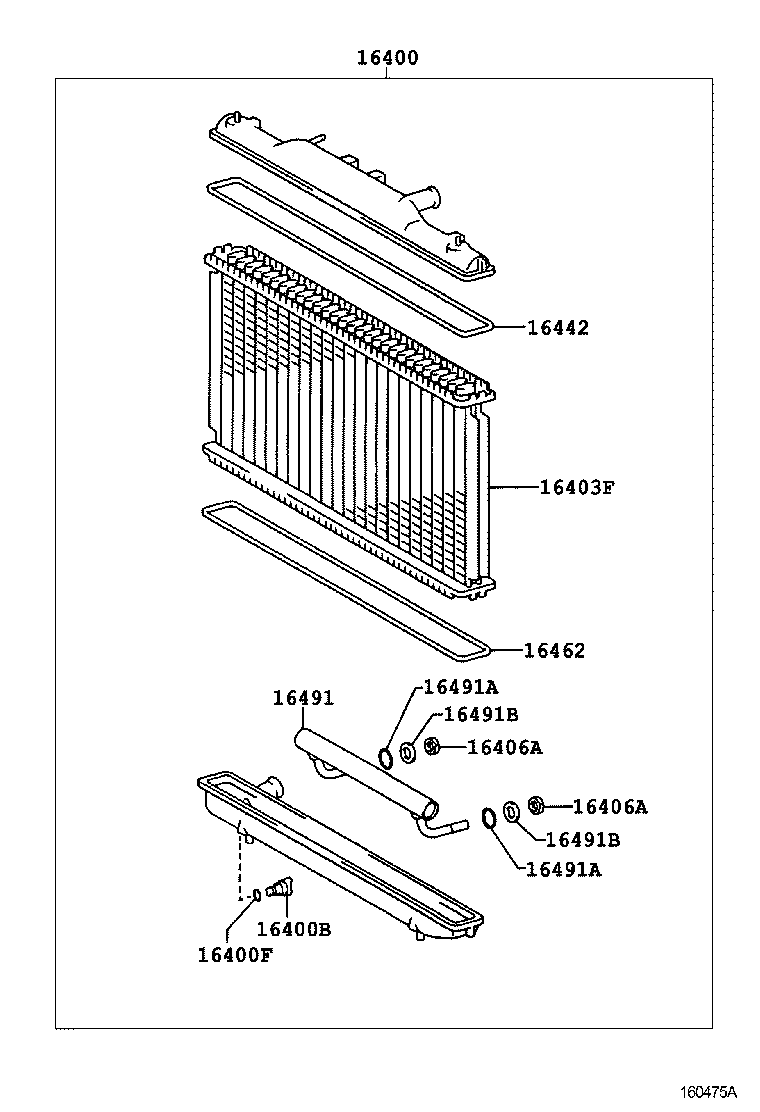

ILLUST NO. 2 OF 2(9709- )3CTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-6A170 |
3CTE..CXM10 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
3CTE..CXM10 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
3CTE..CXM10 |
1 | ||
| 16492-21050 |
3CTE..CXM10 |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-6A170 |
3CTE..CXM10 |
1 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-62060 |
3CTE..CXM10 |
2 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-62060 |
3CTE..CXM10 |
2 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16462-62050 |
3CTE..CXM10 |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-62050 |
3CTE..CXM10 |
1 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-6A170 |
3CTE..CXM10 |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-62060 |
3CTE..CXM10 |
2 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-62060 |
3CTE..CXM10 |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-62060 |
3CTE..CXM10 |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-62060 |
3CTE..CXM10 |
2 | ||
