ACM26W-ARSDK (2001)

Toyota Ipsum

Production May 2001 - Oct 2003
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

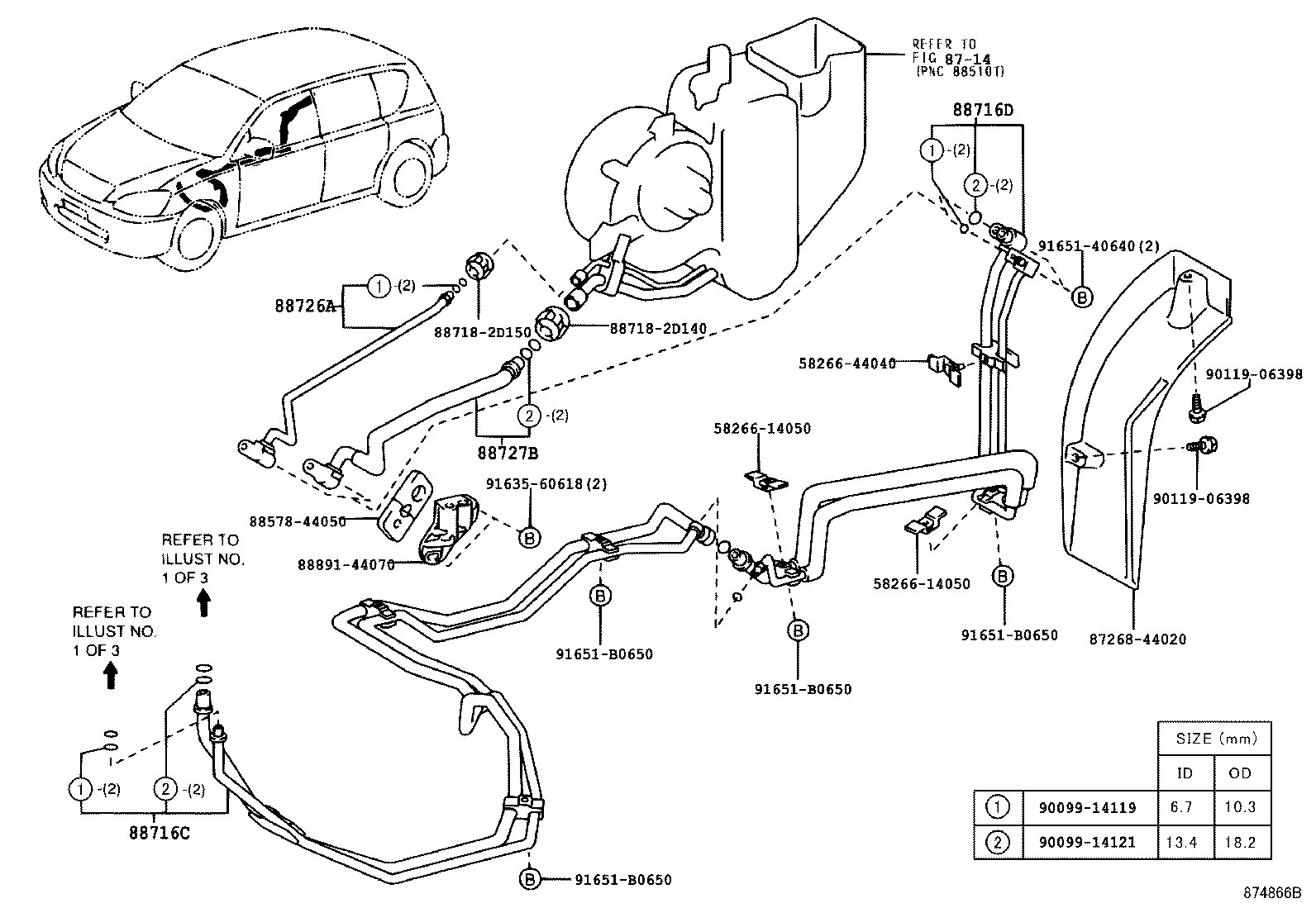

ILLUST NO. 2 OF 2(0105-0310)

Click highlighted areas on diagram

ﾘﾔ

diagram 5826614050 5826614050 5826644040 8714 8726844020 8857844050 88716C 88716D 887182D140 887182D150 88726A 88727B 8889144070 9009914119 9009914121 9011906398 9011906398 9163560618 9165140640 91651B0650 91651B0650 91651B0650 91651B0650
Part # Description Qty Price
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88710-44531

ACM2#

 1
88710-44541

ACM2#

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88710-44560

ACM2#

 1
88726A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-44490

ACM2#

 1
88727B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-44160

ACM2#

 1
Common parts
58266-14050
58266-44040
87268-44020
88578-44050
88718-2D140
88718-2D150
88891-44070
90099-14119
90099-14121
90119-06398
91635-60618
91651-40640
91651-B0650
Linked diagrams
8714

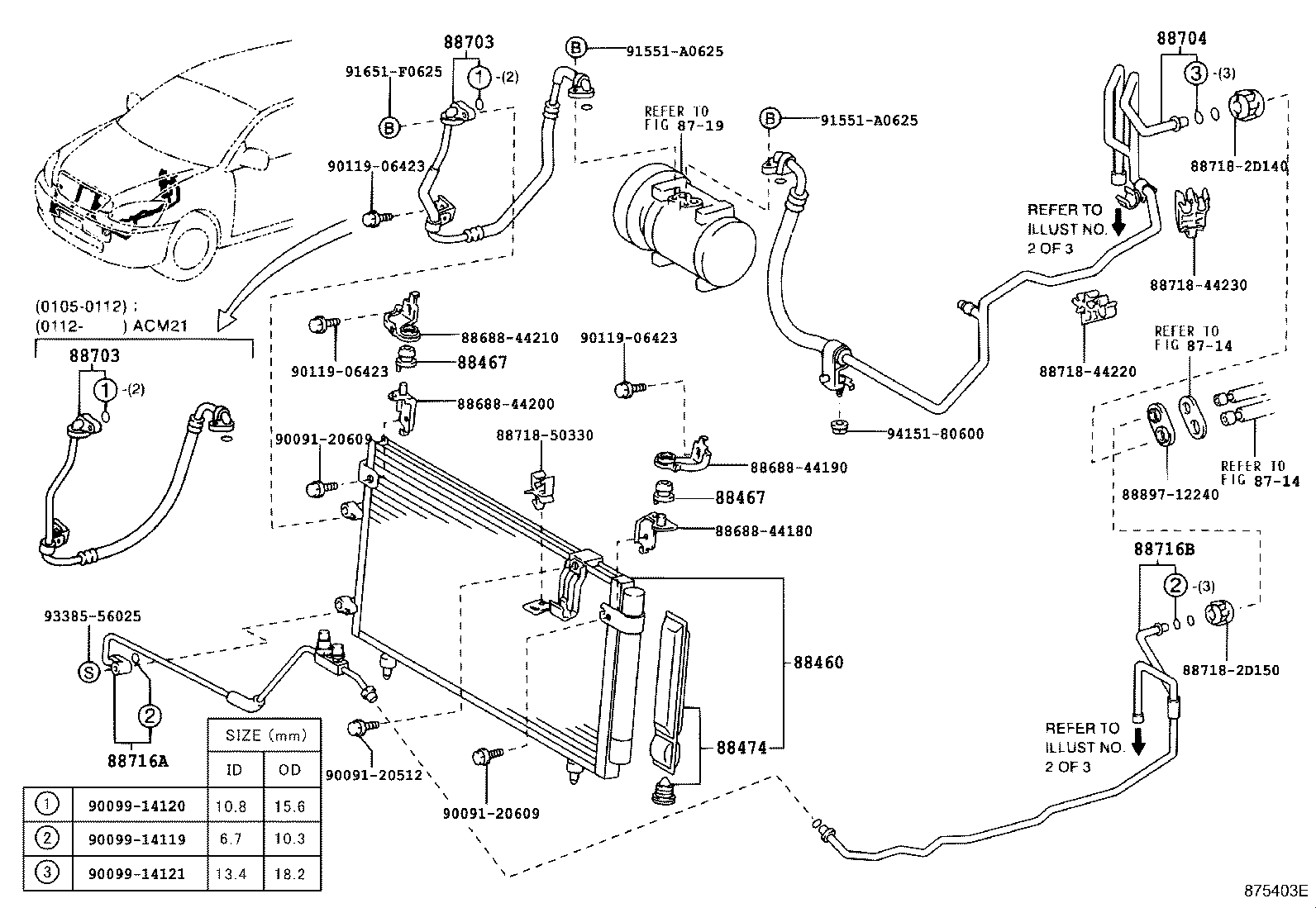

ILLUST NO. 1 OF 2(0105-0310)

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 8714 8714 8719 88460 88467 88467 88474 8868844180 8868844190 8868844200 8868844210 88703 88703 88704 88716A 88716B 887182D140 887182D150 8871844220 8871844230 8871850330 8889712240 9009120512 9009120609 9009120609 9009914119 9009914120 9009914121 9011906423 9011906423 9011906423 91551A0625 91551A0625 91651F0625 9338556025 9415180600
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-44430

ACM2#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

ACM2#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

ACM2#

 2
88474 - DRYER, COOLER
88474-47010

ACM2#

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-44270

ACM2#

 1
88703-44360

ACM26

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-44270

ACM2#

 1
88703-44360

ACM26

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-44261

ACM2#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88710-44490

ACM2#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-44511

ACM2#

 1
Common parts
88688-44180
88688-44190
88688-44200
88688-44210
88718-2D140
88718-2D150
88718-44220
88718-44230
88718-50330
88897-12240
90091-20512
90091-20609
90099-14119
90099-14120
90099-14121
90119-06423
91551-A0625
91651-F0625
93385-56025
94151-80600
Linked diagrams
8714
8719
