ACM26W-ARSDK (2001)

Toyota Ipsum

Production May 2001 - Oct 2003
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0105- )

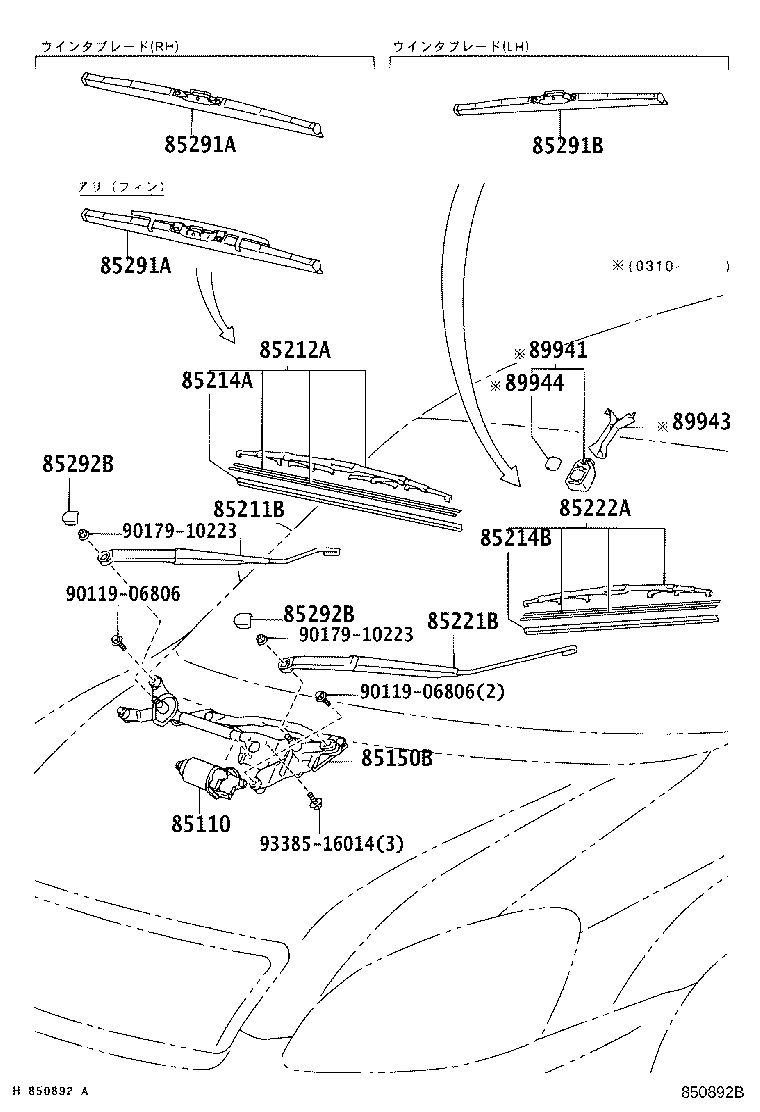

Click highlighted areas on diagram

diagram 85110 85150B 85211B 85212A 85214A 85214B 85221B 85222A 85291A 85291A 85291B 85292B 85292B 89941 89943 89944 9011906806 9011906806 9017910223 9017910223 9338516014
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-44090

ACM2#

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
85110-44080

ACM2#

 1
85150B - LINK ASSY, WIPER
85150-44080

ACM2#

 1
85211B - ARM, FRONT WIPER, RH
85211-44060

ACM2#

 1
85212A - BLADE, FR WIPER, RH
85212-44100

ACM2#

 1
85214A - RUBBER, WIPER, RH
85214-44130

ACM2#

 1
85214B - RUBBER, WIPER, LH
85214-50130

ACM2#

 1
85221B - ARM, FRONT WIPER, LH
85221-44050

ACM2#

 1
85222A - BLADE, FR WIPER, LH
85222-44060

ACM2#

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-44090

ACM2#

ｱﾘ(ﾌｲﾝ)

 1
85291-44070

ACM2#

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-44090

ACM2#

ｱﾘ(ﾌｲﾝ)

 1
85291-44070

ACM2#

 1
85291B - BLADE, FRONT WIPER, WINTER, LH
85291-44080

ACM2#

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

ACM2#

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

ACM2#

 2
Common parts
90119-06806
90179-10223
93385-16014
