ACM26W-ARSDK (2001)

Toyota Ipsum

Production May 2001 - Oct 2003
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0105-0310)

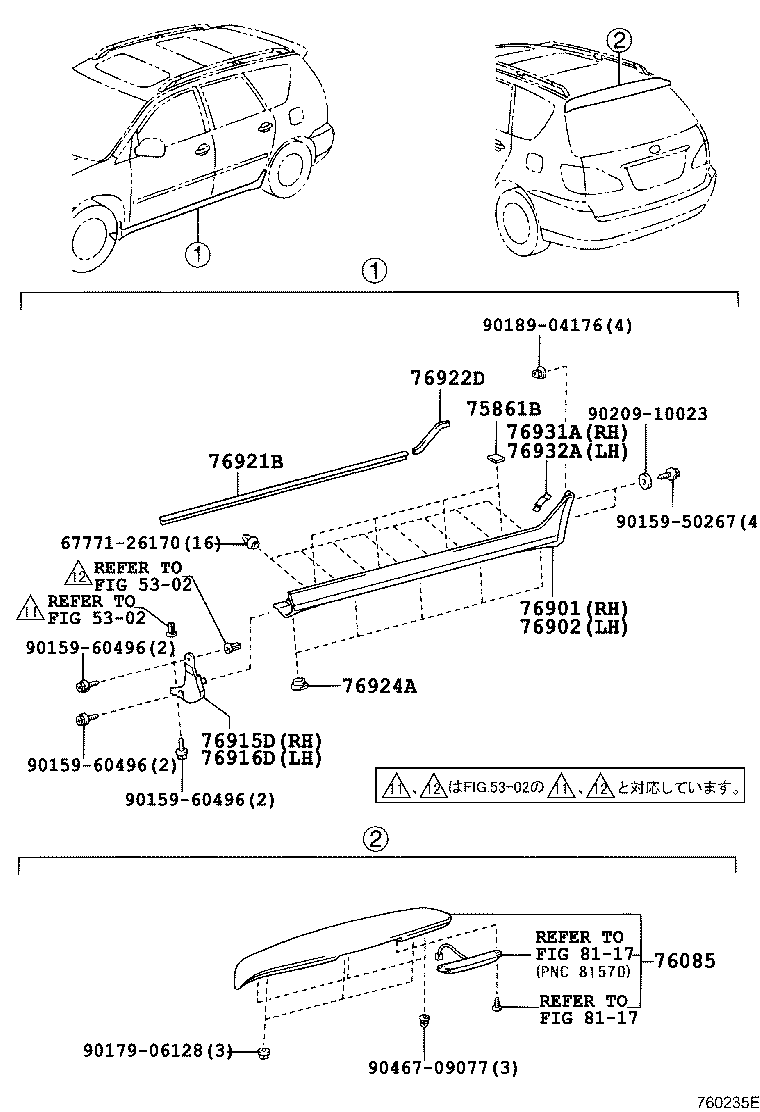

Click highlighted areas on diagram

diagram 5302 5302 6777126170 75861B 76085 76901 76902 76915D 76916D 76921B 76922D 76924A 76931A 76932A 8117 8117 9015950267 9015960496 9015960496 9015960496 9017906128 9018904176 9020910023 9046709077
Part # Description Qty Price
76085 - SPOILER SUB-ASSY, REAR
76085-44060F0

ACM2#..240E,240I,240U

CHAMPAGNE M.M.,587

 1
76085-44060A1

ACM2#..240E,240I,240U

WHITE PM.,042

 1
76085-44060J0

ACM2#

DK.BLUE M.M.,8P4

 1
76085-44060D0

ACM2#..240E,240I,240U

RED MC.,3M8

 1
76085-44060B1

ACM2#

DARK GRAY M.M.,1E2

 1
76085-44060B0

ACM2#

SILVER ME.,1C0

 1
76085-44060H0

ACM2#..240E,240I,240U

AQUA ME.,771

 1
76085-44060D1

ACM2#..240E,240I,240U

LT.ROSE M.M.,3Q1

 1
76085-44060A0

ACM2#

SUPER WHITE 2,040

 1
Common parts
67771-26170
90159-50267
90159-60496
90179-06128
90189-04176
90209-10023
90467-09077
Linked diagrams
5302
8117
